Brand: Taidacent

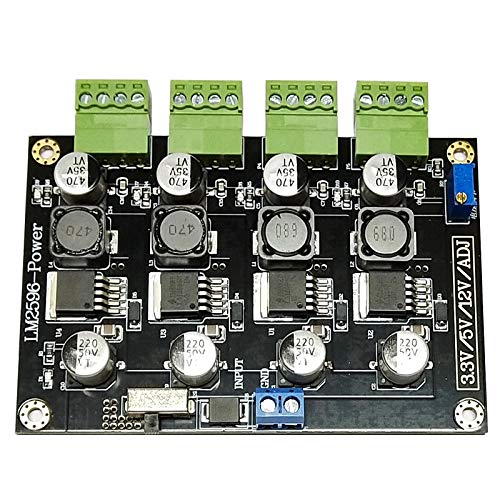

Module model: LM2596 multi-channel power supply
Module type: switching power supply
Input voltage: 13V-32V
Output voltage: multi-channel; 3.3V, 5V, 12V, ADJ
Output current: 3A (MAX); the single-channel current of the module is maximum 3A, and the total current does not exceed 5A
Conversion efficiency: 85%
Output power: 9.9W ---- 3.3V, 15W ---- 5V, 36W ---- 12V, 36W ---- ADJ
Static power consumption: 26mA
Switching frequency: 150KHz
Output ripple: 15mV ---- no load, better than 60mV ---- 12V @ 2A with load test
Module enable: None
Module protection: reverse connection protection

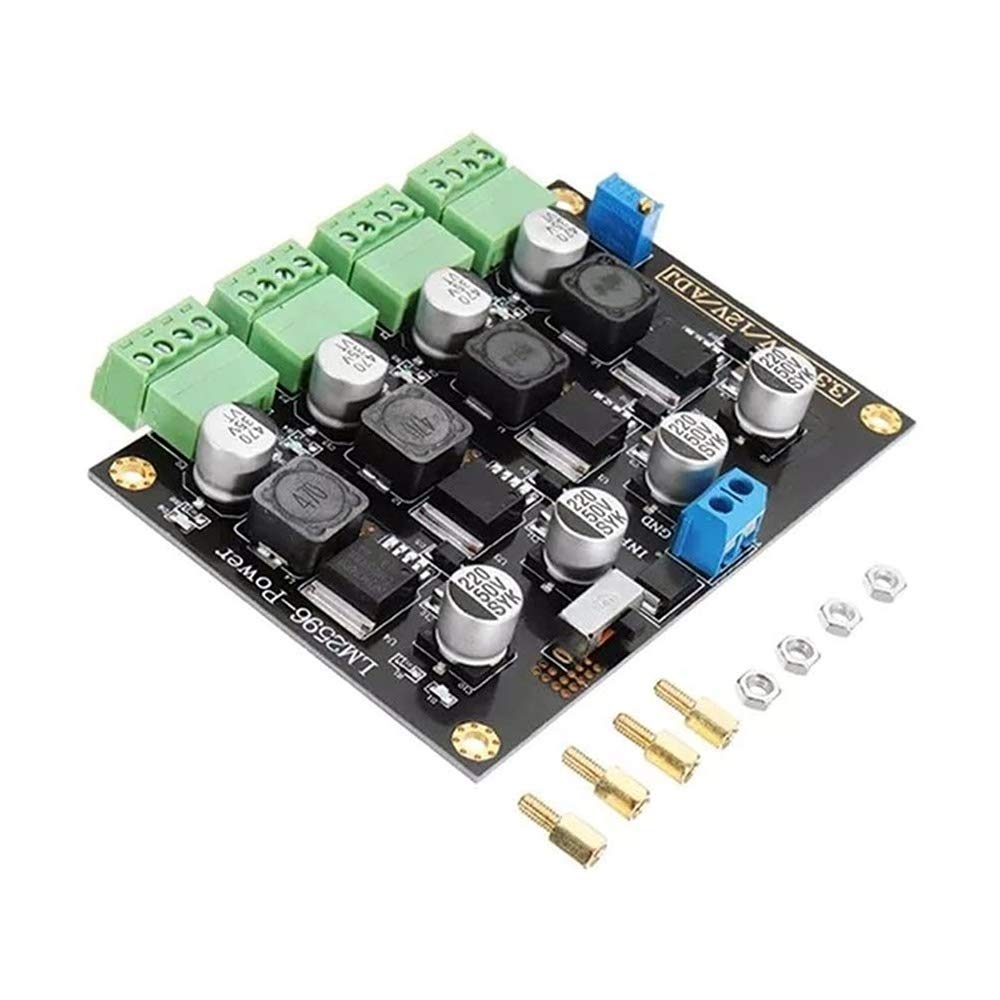

Module features: multiple; low noise, low ripple; with input and output power indicator; with positioning hole
Module application: multiple; industrial automation control, LED lighting, industrial control equipment, communication equipment, power equipment, instrumentation
Module weight: 65g

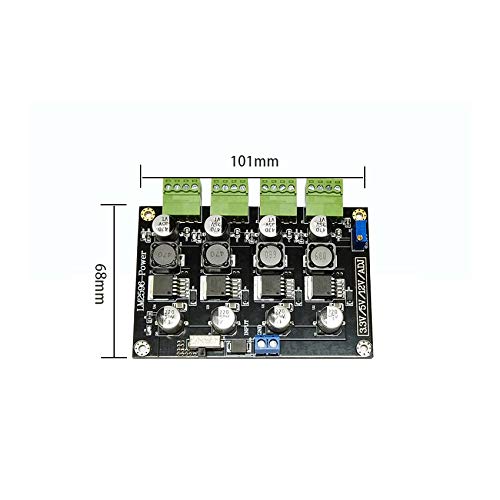

Module size: 101 × 68 × 12; length × width × height (mm)
Module heating: the greater the load, the greater the heating; the output current is greater than 2.5A (or the output power is greater than 10W) and long-term work, please add a heat sink
Working temperature: 0-70 ℃ Civil grade
Module interface: input: 5.08-2P; output: 3.81-4P * 4


• The LM2596 is a step-down power management monolithic integrated circuit switching voltage regulator, capable of outputting 3A of drive current, while having very good linearity and load regulation characteristics.

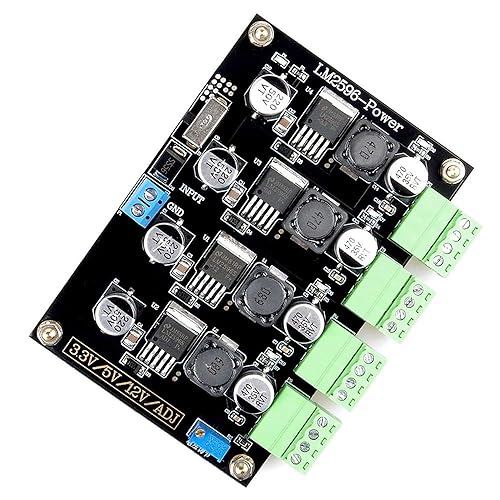

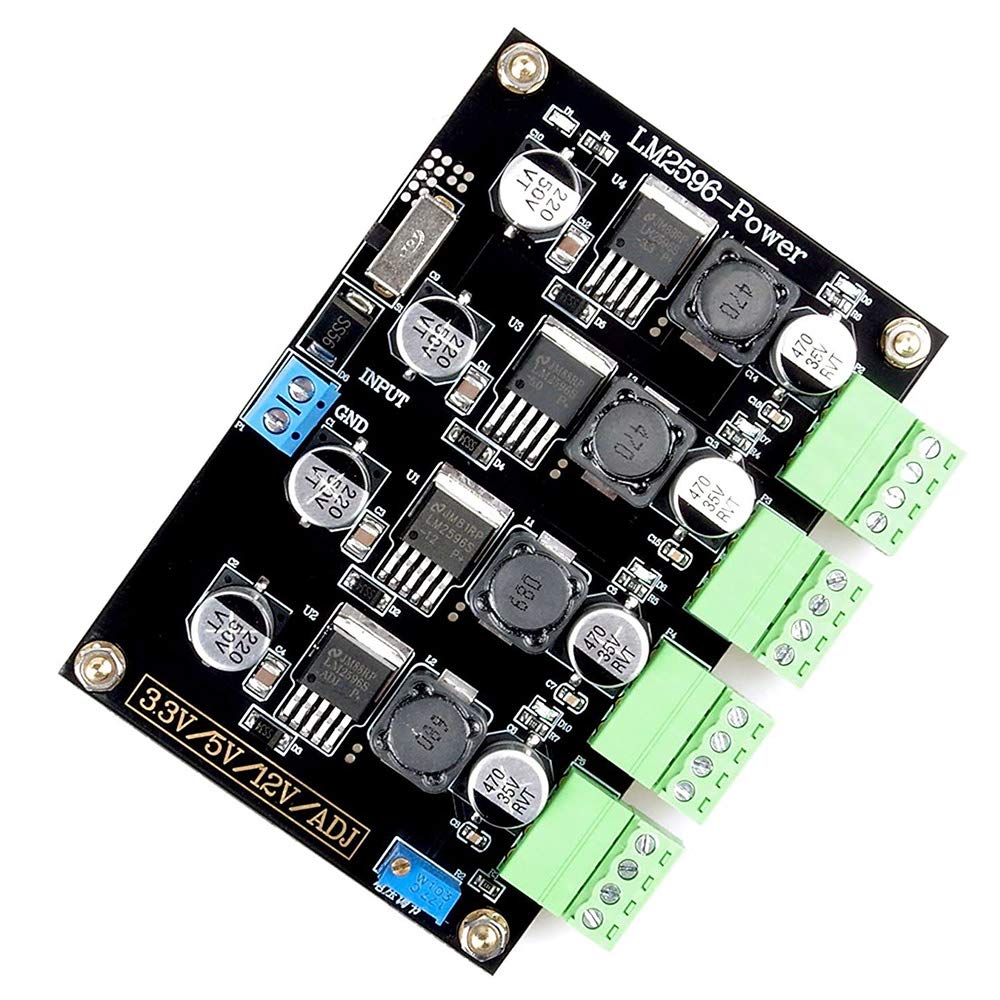

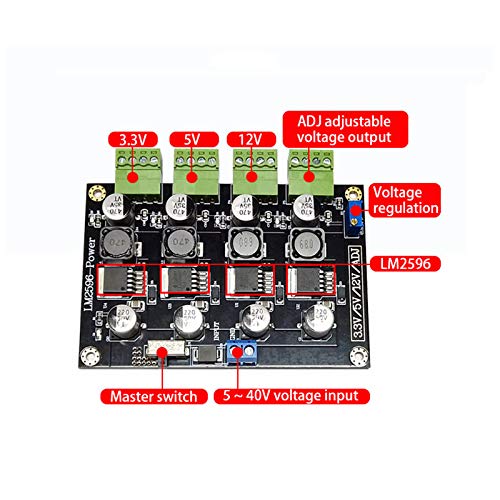

• This module integrates 4 LM2596, which can simultaneously output 3.3V, 5V, 12V, ADJ four groups of power supply, the module layout and wiring strictly in accordance with the design specifications of the power circuit
• The module belongs to the step-down type module, the input voltage needs to be greater than the output of more than 1V to stabilize the output.
• the output voltage of the module adj is generally adjustable within the range of about 1V lower than the supply voltage.
• The maximum single circuit current of the module is 3a, and the total current is not more than 5A.
