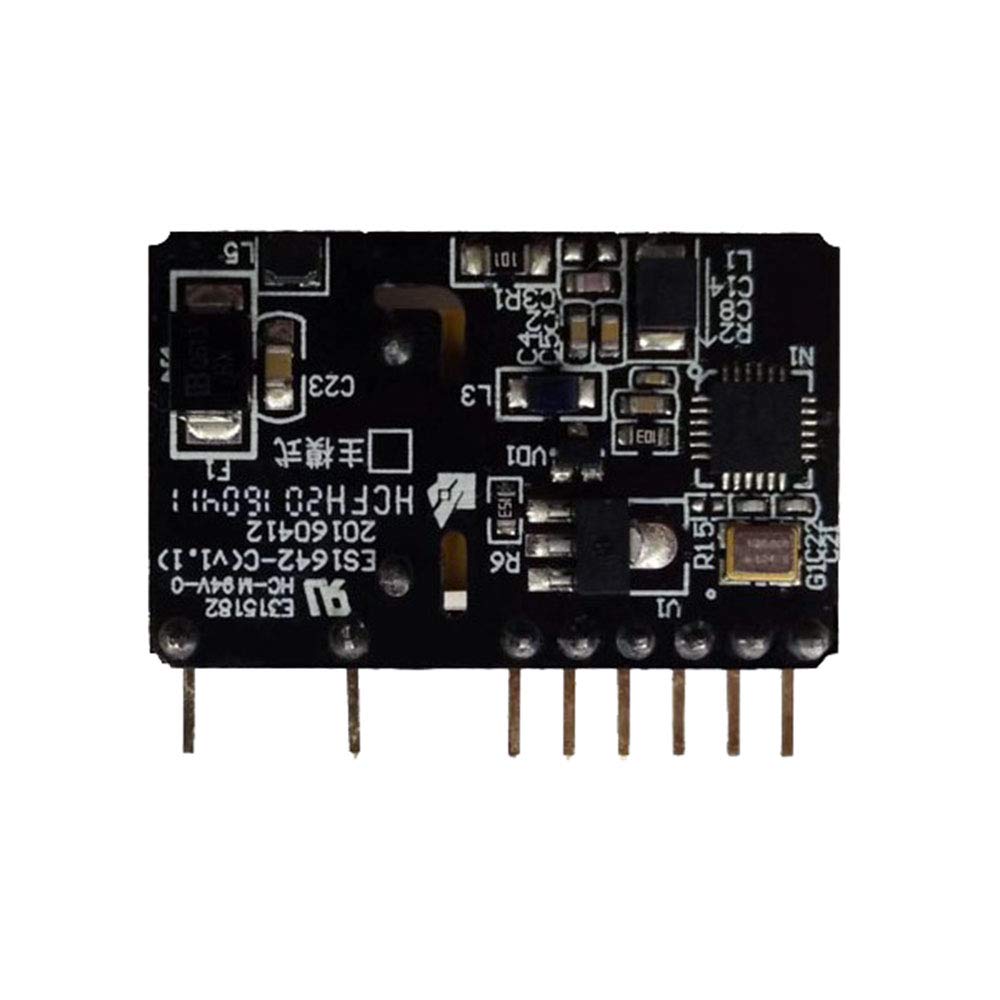

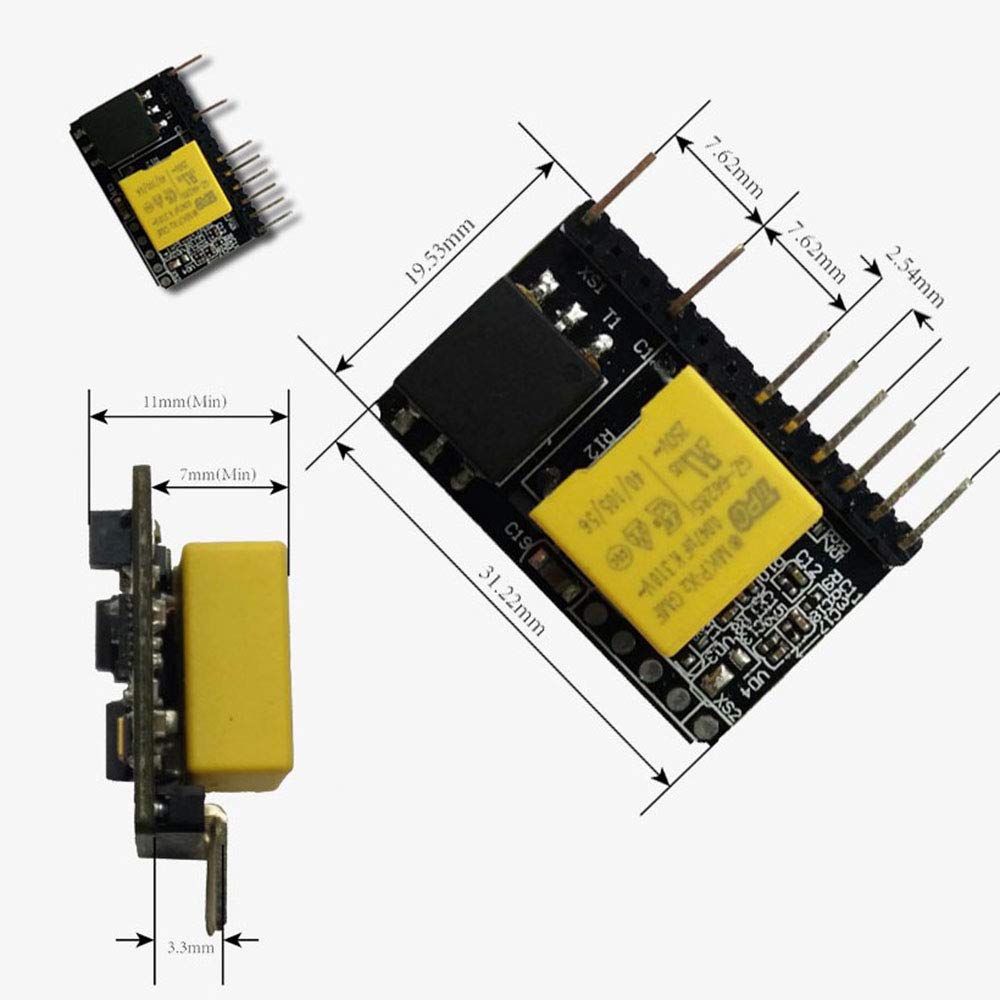

ES1642-C carrier module is a miniaturized, low-power power line carrier communication module. Its core chip adopts Neusoft carrier power line carrier communication chip SSC1642, which integrates 32-bit processor and transmits with DBPSK digital modulation and demodulation mode. High, reliable communication, strong anti-interference ability, and long communication distance. <br> The module uses a TTL level serial port to communicate with the user's MCU, which can be widely used in smart homes, intelligent light control, intelligent buildings and other fields. The software supports transparent transmission, national grid DL/T-645, and custom 79 protocol. <br> Carrier module parameters<br> Modem: DBPSK<br> Automatic relay forwarding mechanism<br> Receive sensitivity: 100UVRMS<br> Carrier symbol communication rate: 2.5KBPS~5KBPS<br> Serial port baud rate: 9600BPS, no parity<br> Static power consumption: ?0.045W<br> Dynamic power consumption: ?1.5W<br> Size: 31.2MM (length) × 19.5MM (width)<br> Meets industrial grade -40°C~+85C temperature requirements<br> Strong and weak electrical isolation withstand voltage: 3KV (50HZ)<br> Carrier voltage: 300VAC, withstand voltage depends on safety capacitor withstand voltage<br> VDD, min3.0v, typic3.3V, max5.2V, maximum current consumption: 50MA voltage ripple is not more than 20MV<br> VCC, min +11V, typic +12V, max +15V, maximum current consumption: 125MA+12V, voltage ripple is no more than 120MV<br> Input high level: 0.8*VDD-VDD<br> Input low level: 0V-0.2*VDD<br> Output high level: VDD-0.7<br> Output low level: 0.6V<br>

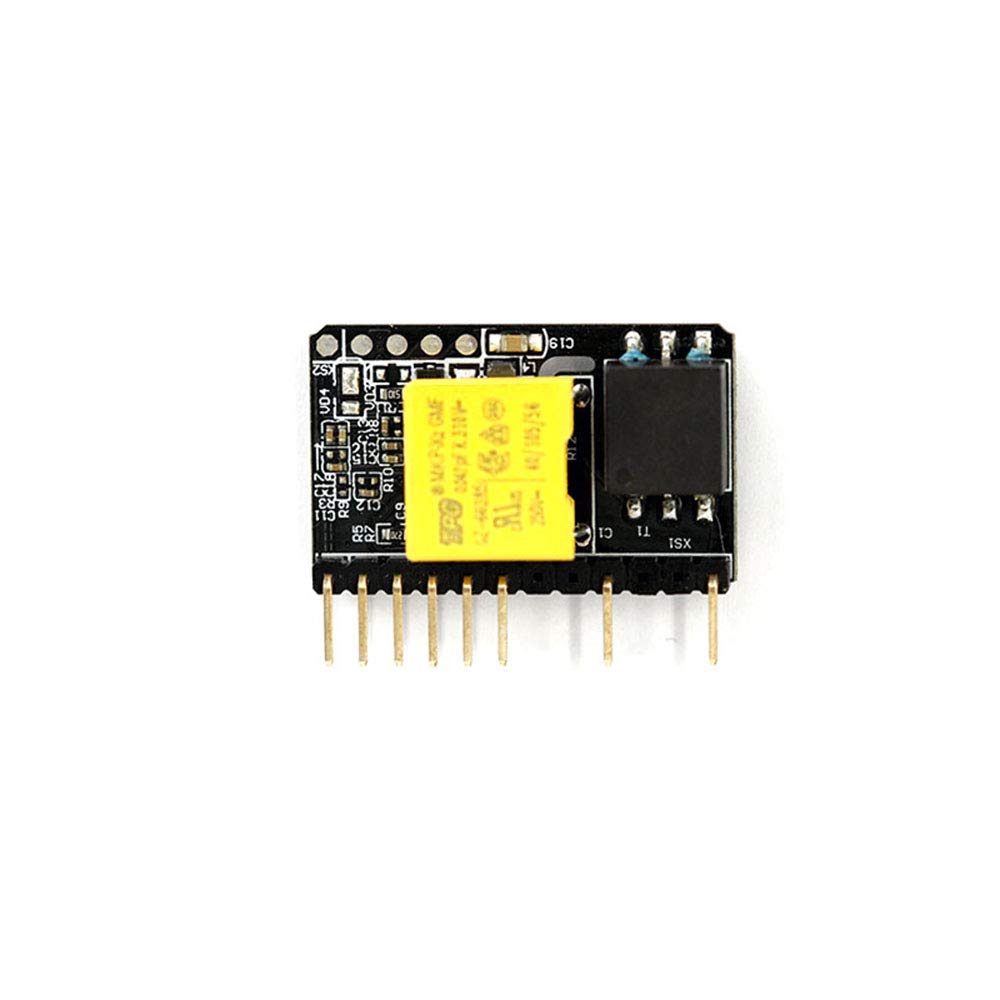

Features:

• ES1642-C carrier module is a miniaturized, low-power power line carrier communication module.
• integrates 32-bit processor and transmits with DBPSK digital modulation and demodulation mode.
• High, reliable communication, strong anti-interference ability, and long communication distance.

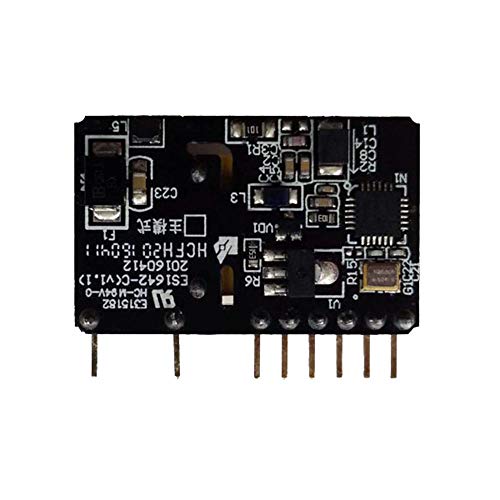

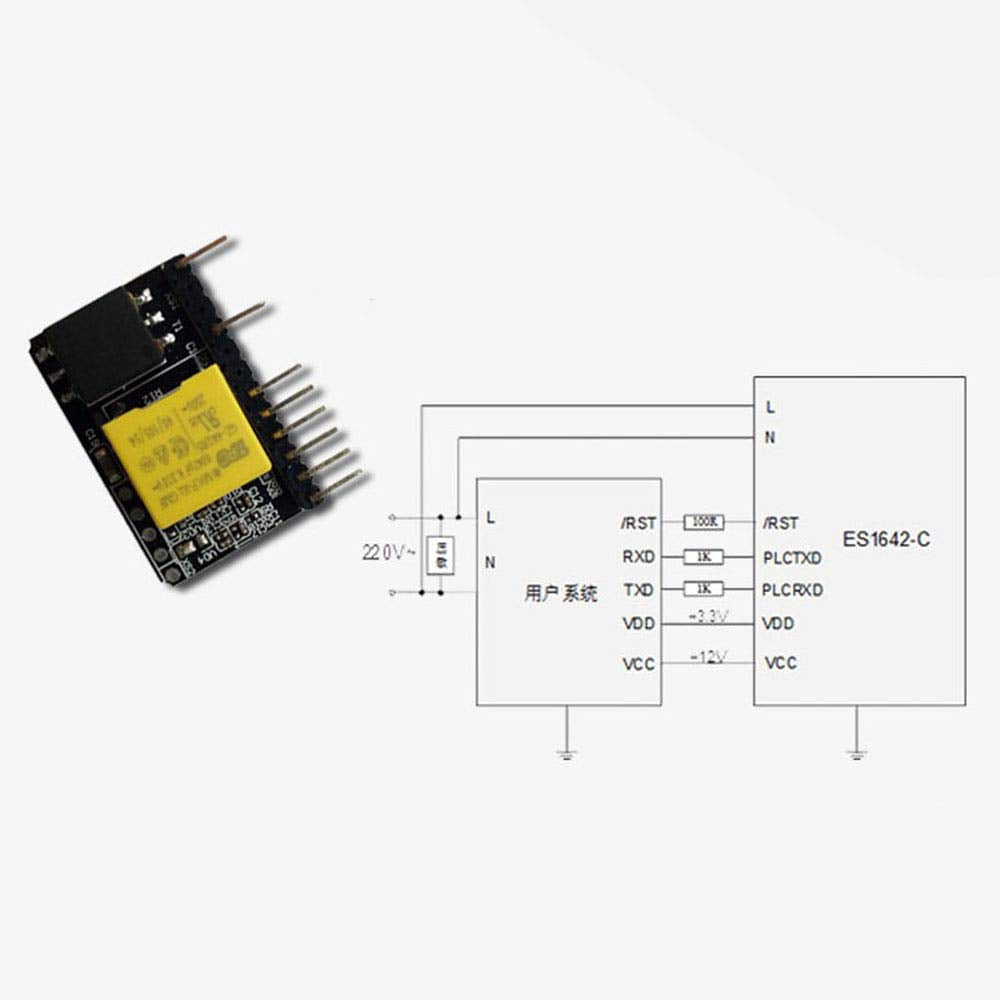

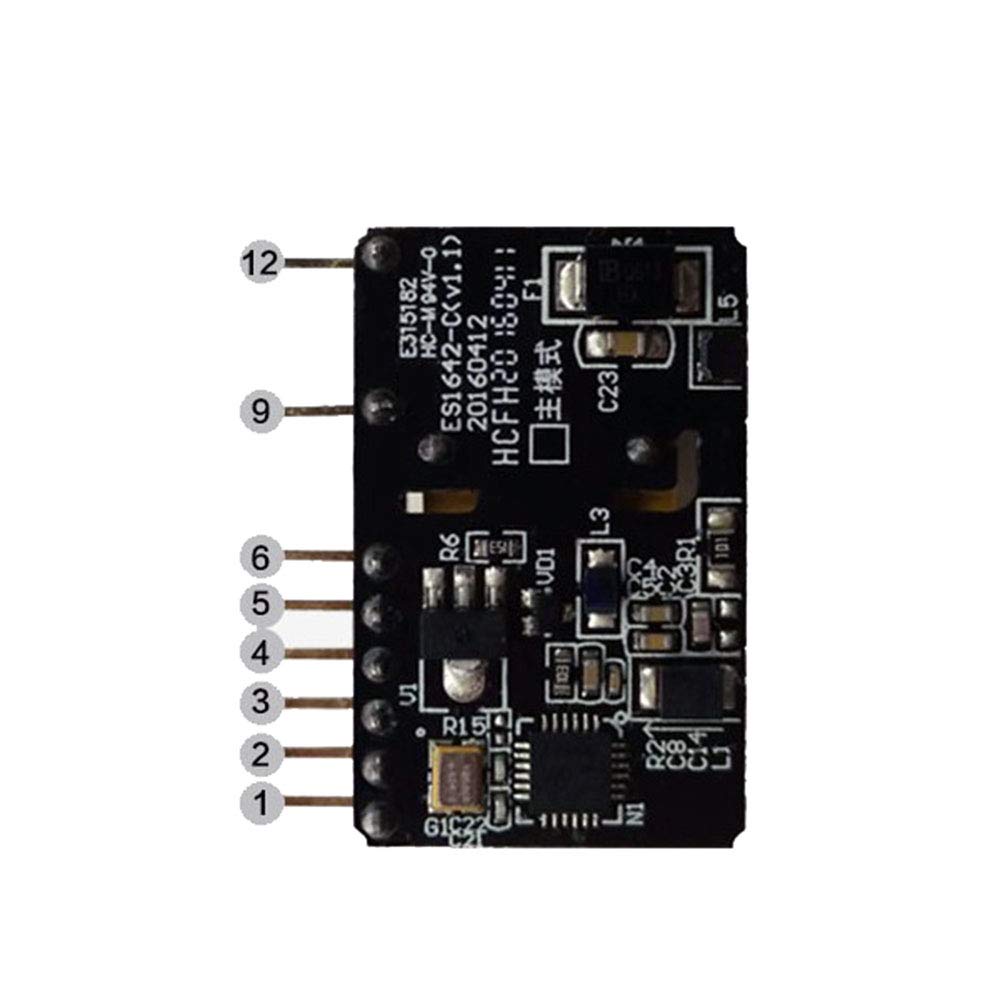

• The module uses a TTL level serial port to communicate with the user's MCU, which can be widely used in smart homes, intelligent light control, intelligent buildings and other fields.
• The software supports transparent transmission, and custom 79 protocol.

Product Details:

• Package Quantity: 1
