Description
Brand: Taidacent
Product Description<br> The TDA7498 is a 100W+100W Class D audio amplifier. The IC chip is powered by a single power supply and is used primarily in home theaters and powered speakers. And the TDA7498 uses an EPU hyper-threaded package with exposed thermal pad up, which is superior to similar amplifiers in terms of sound quality and performance! <br> Main parameters<br> Product Name: Audio Amplifier Board<br> Model: XH-M510<br> Input voltage: DC15-34V<br> Output power: 100W*2<br> Output impedance: 4-8?<br> Line Type: Class D<br> Chip selection: TDA7498<br> Harmonic distortion: Po=1W/0.05%<br> Frequency response range: 18-100KHz<br> Switching frequency: 360KHz<br> Signal to noise ratio: 110db<br> Appearance size: 96*64*25mm<br> Main features<br> Output power 100W+100W (VCC=32V, RL=4Q, THD=10%)<br> Wide (14~30V) single power supply<br> High efficiency (n=85%)<br> Four-stage gain is selectable (21.6dB, 27.6dB, 31.1dB, 33.1dB)<br> Differential input is used to significantly reduce common mode noise<br> With shutdown mode and silent mode<br> Intelligent protection function<br> With overheat protection <br>

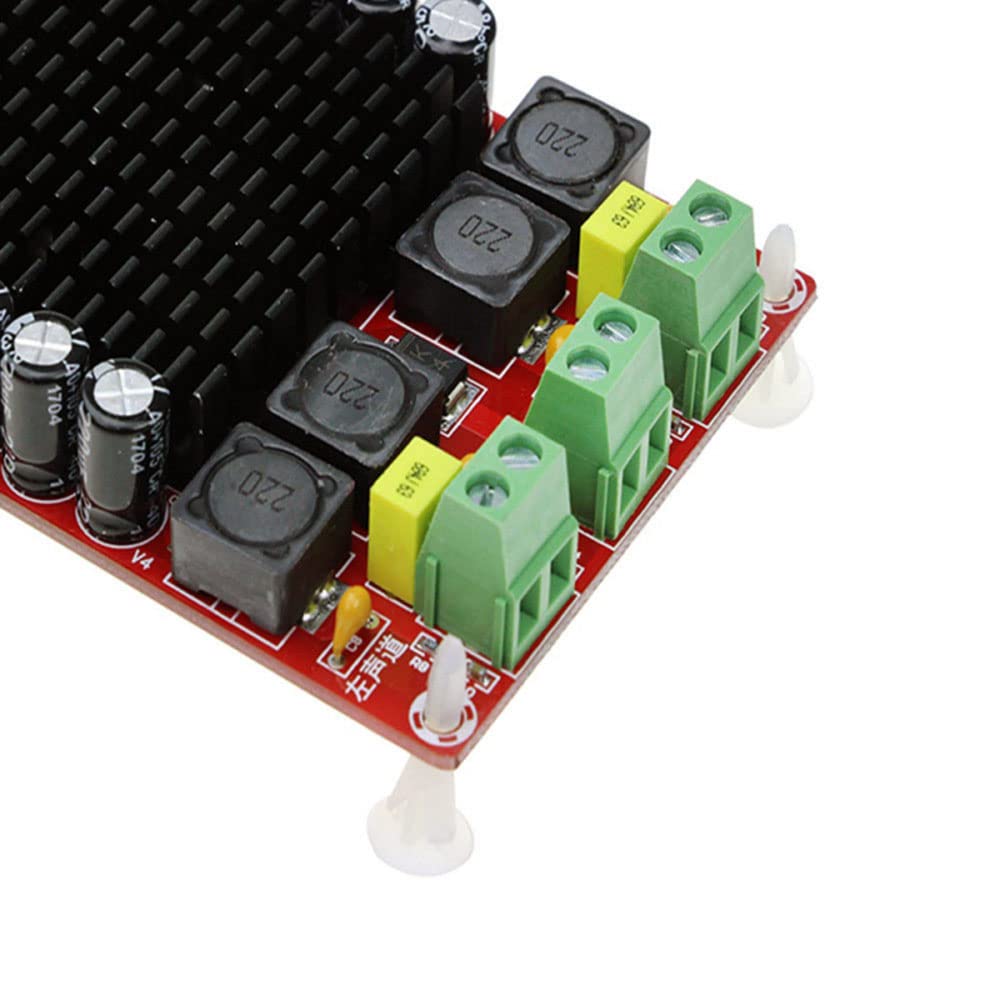

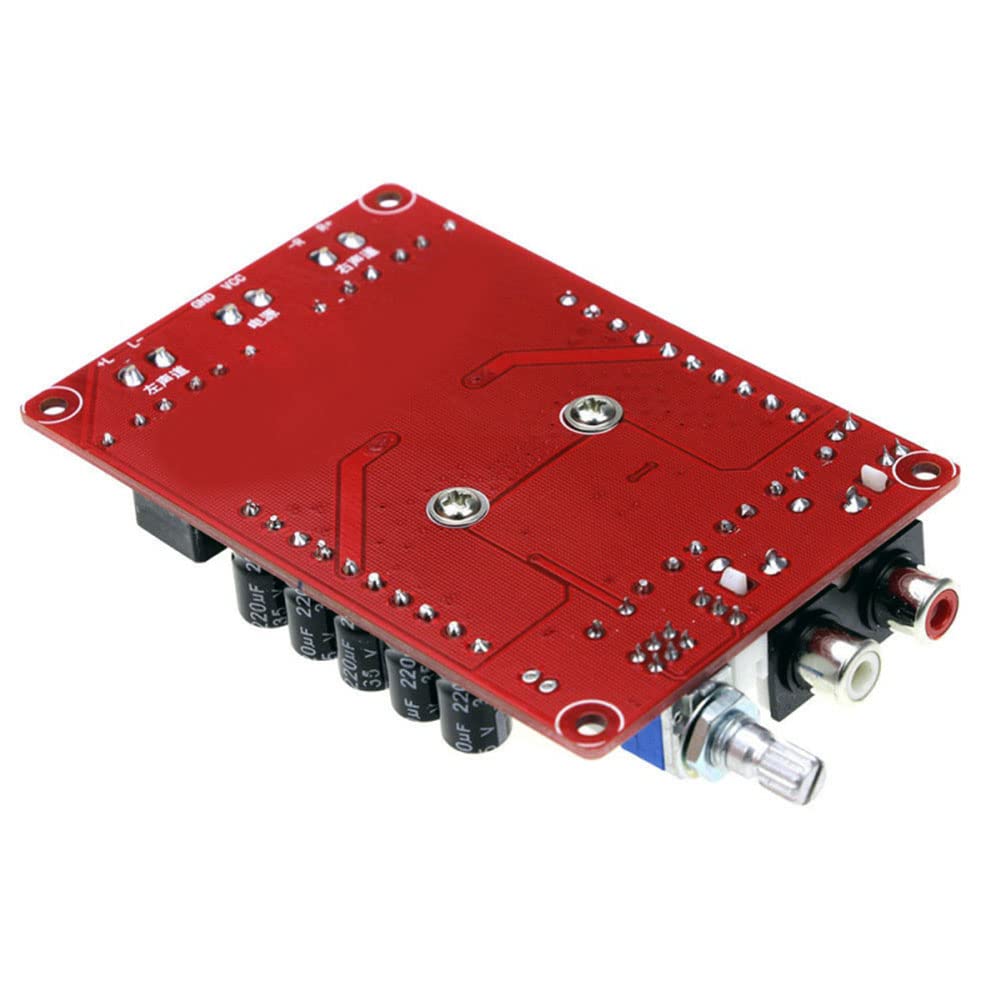

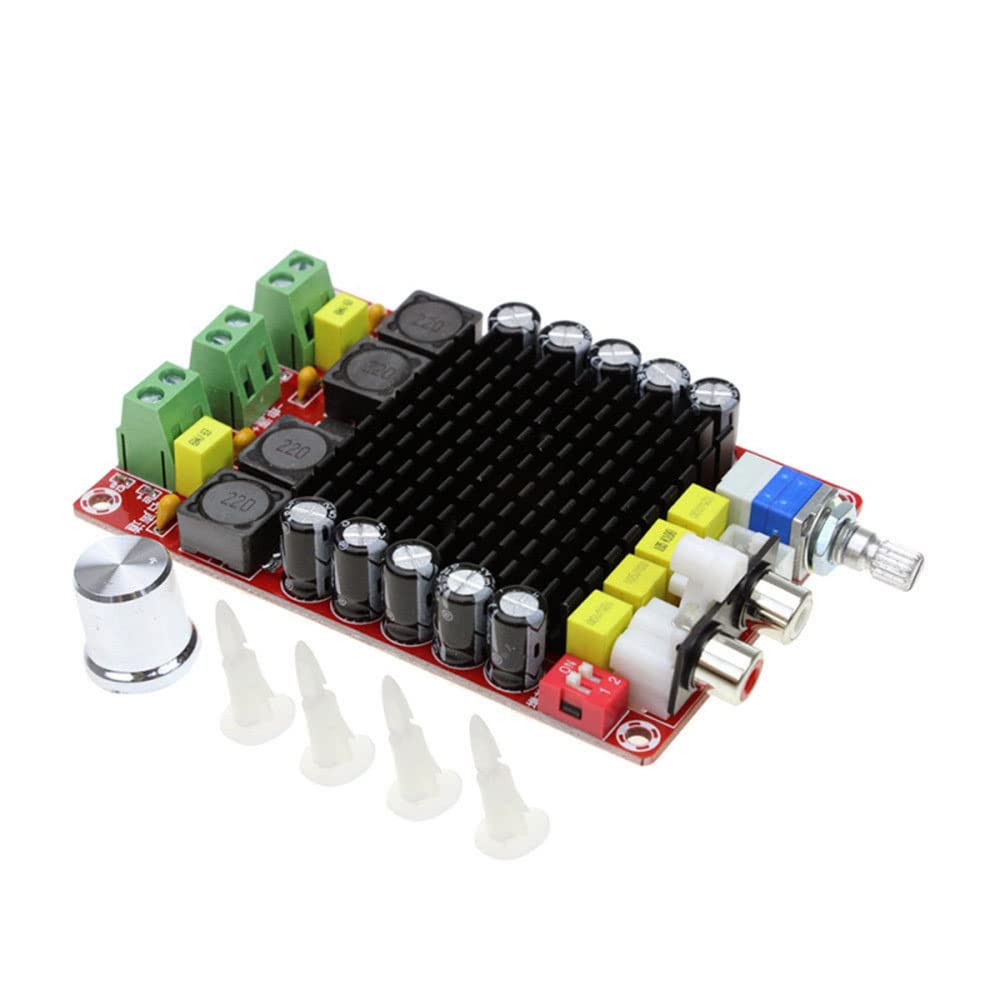

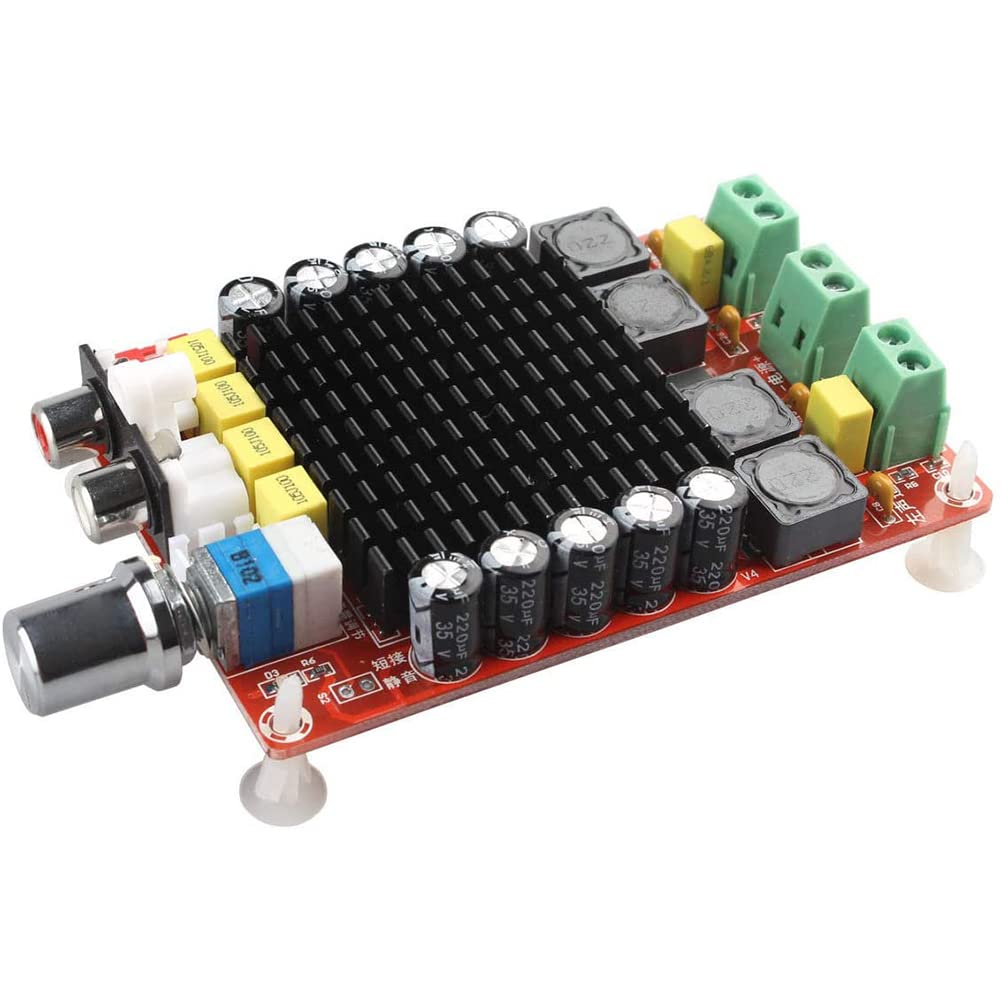

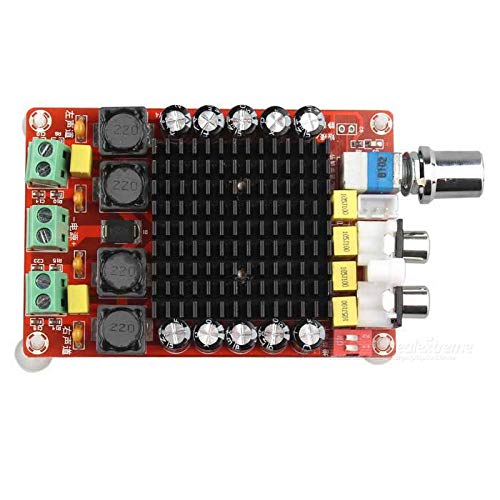

• Product Name: TDA7498 100W+100W 2 Channel Audio Amplifier Board
• Model: XH-M510
• Input voltage: DC 14-34V
• Output power: 100W*2
• Output impedance: 4-8?
Model: XH-M510
Product Description<br> The TDA7498 is a 100W+100W Class D audio amplifier. The IC chip is powered by a single power supply and is used primarily in home theaters and powered speakers. And the TDA7498 uses an EPU hyper-threaded package with exposed thermal pad up, which is superior to similar amplifiers in terms of sound quality and performance! <br> Main parameters<br> Product Name: Audio Amplifier Board<br> Model: XH-M510<br> Input voltage: DC15-34V<br> Output power: 100W*2<br> Output impedance: 4-8?<br> Line Type: Class D<br> Chip selection: TDA7498<br> Harmonic distortion: Po=1W/0.05%<br> Frequency response range: 18-100KHz<br> Switching frequency: 360KHz<br> Signal to noise ratio: 110db<br> Appearance size: 96*64*25mm<br> Main features<br> Output power 100W+100W (VCC=32V, RL=4Q, THD=10%)<br> Wide (14~30V) single power supply<br> High efficiency (n=85%)<br> Four-stage gain is selectable (21.6dB, 27.6dB, 31.1dB, 33.1dB)<br> Differential input is used to significantly reduce common mode noise<br> With shutdown mode and silent mode<br> Intelligent protection function<br> With overheat protection <br>
• Product Name: TDA7498 100W+100W 2 Channel Audio Amplifier Board
• Model: XH-M510
• Input voltage: DC 14-34V
• Output power: 100W*2
• Output impedance: 4-8?
Model: XH-M510
