Description

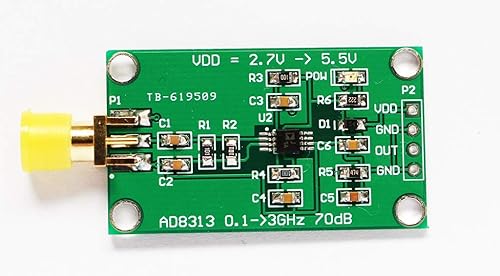

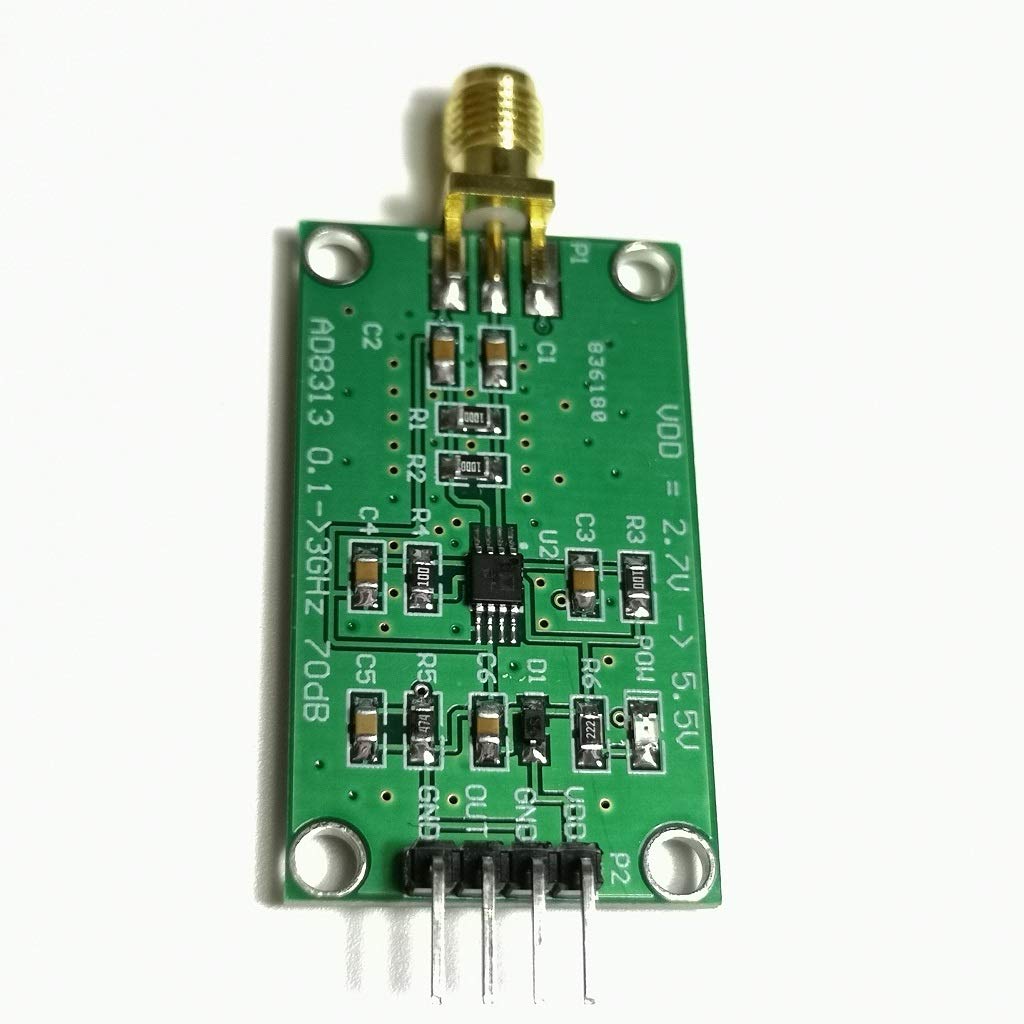

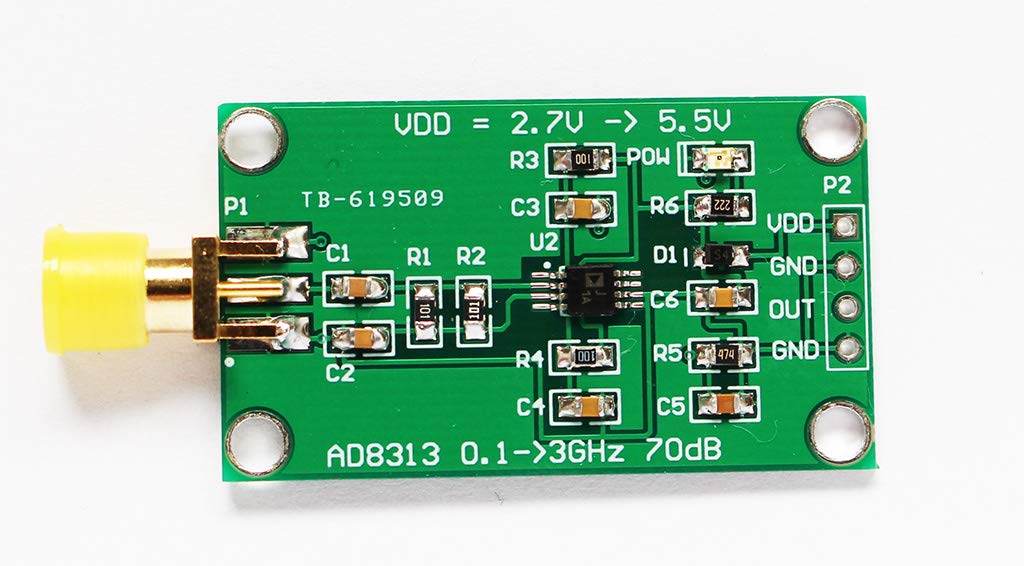

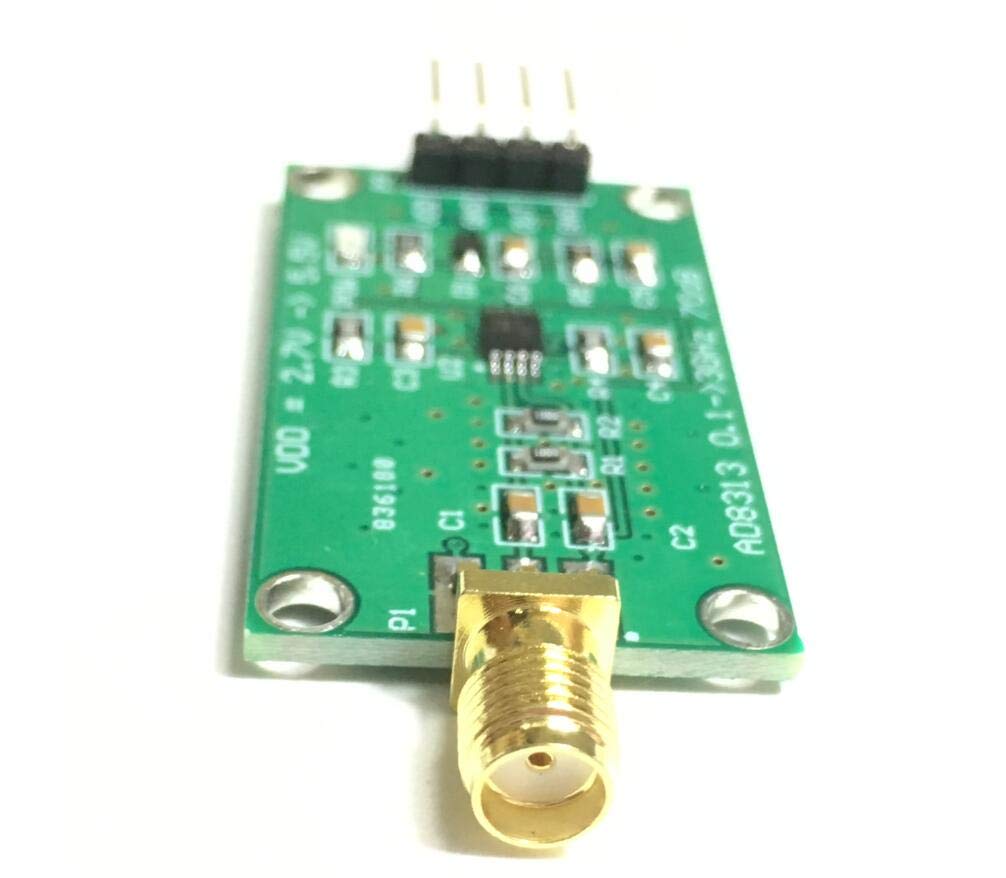

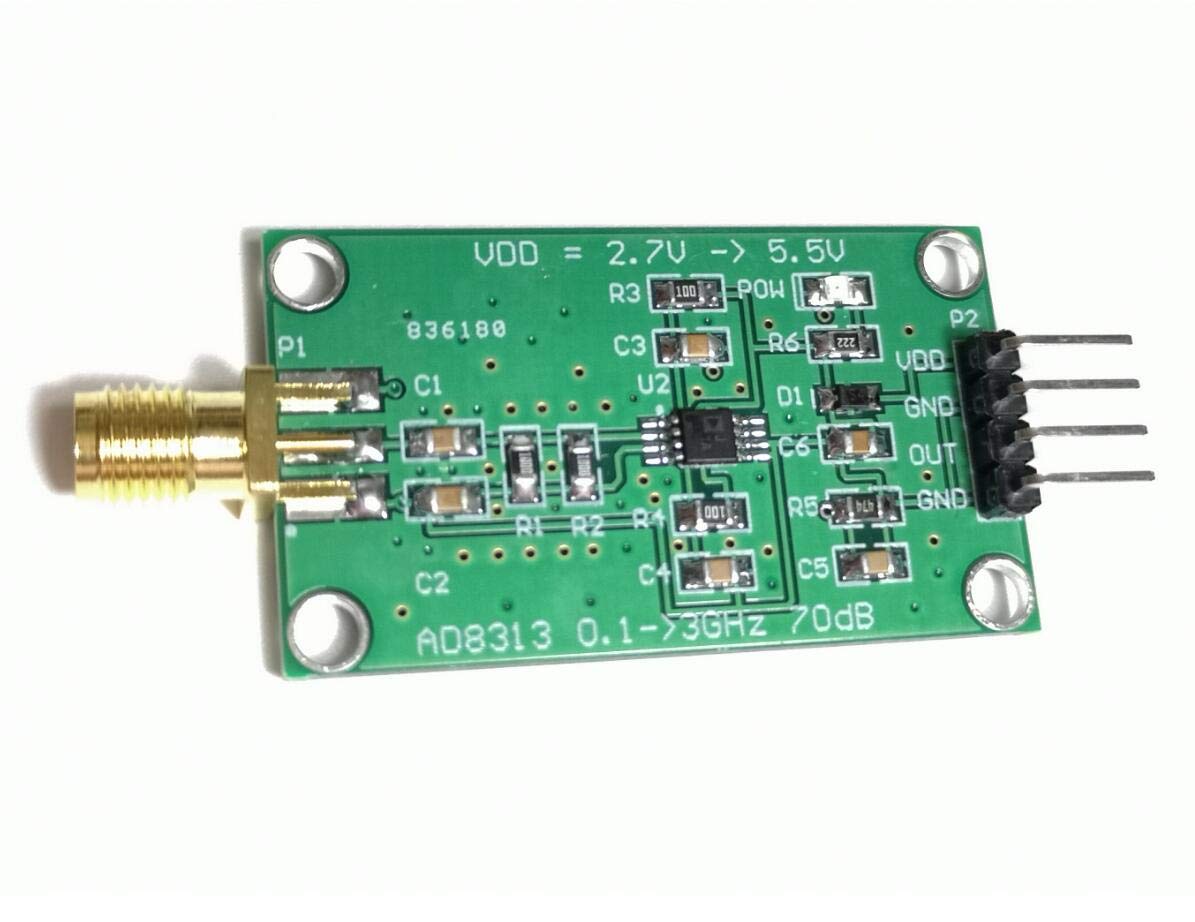

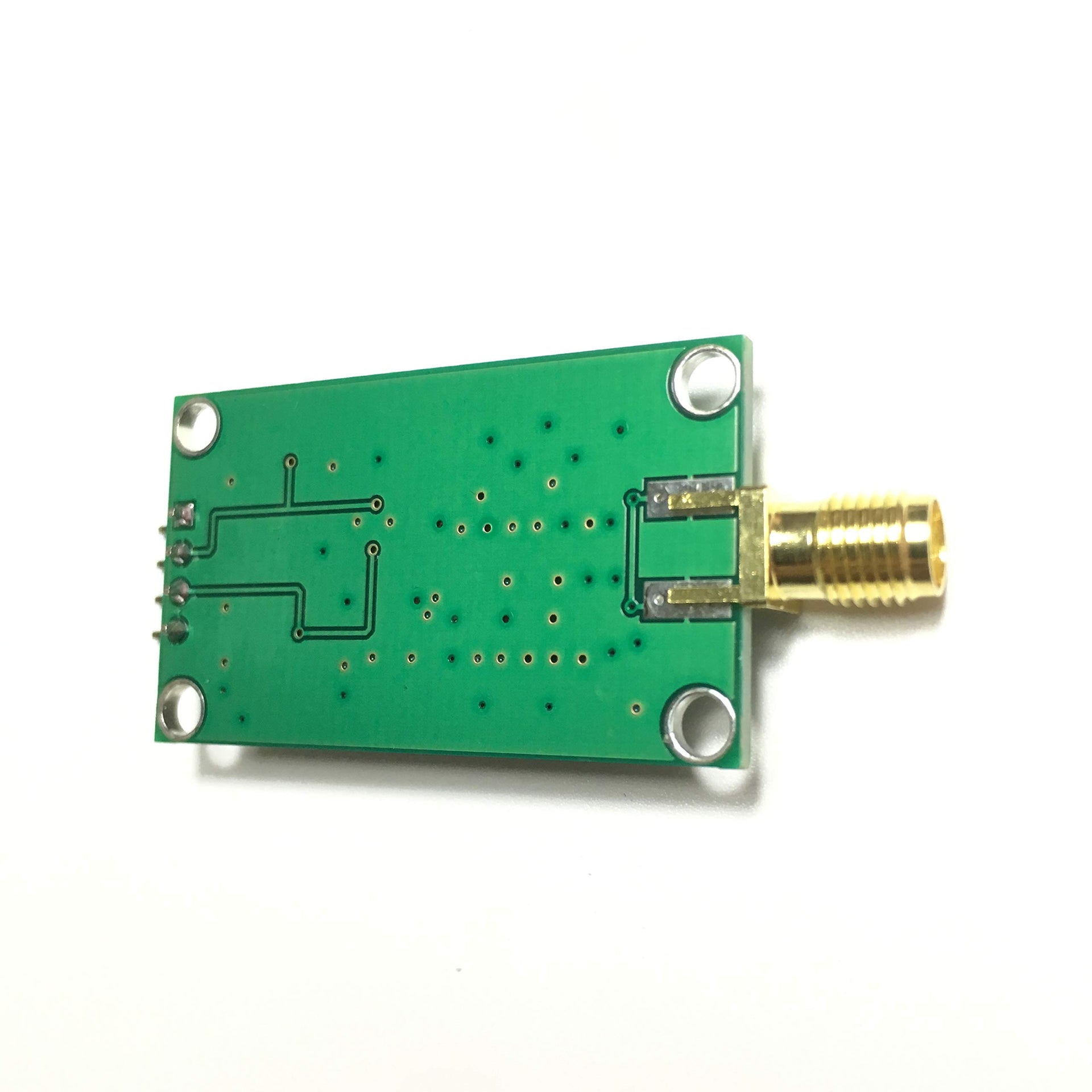

Brand: Taidacent
Operating frequency: 0.1 GHz to 3.5 GHz<br> High dynamic range: 70 dB to ±3.0 dB<br> High precision: ±1.0 dB (65 dB range, 1.9 GHz)<br> Fast response: 40 ns (full scale typical)<br> Controller mode with error output<br> Adjustment ratio does not vary with supply voltage and temperature<br> Wide supply voltage range: 2.7 V to 5.5 V<br> Low power consumption: 40 mW (3 V)<br> Power saving features: 60 mW (3 V)
• The AD8313 is a complete multi-stage demodulation log amp that accurately converts the RF signal at the input to the equivalent dB scale of the dc output. The AD8313 maintains high logarithmic consistency over the signal frequency range of 0.1 GHz to 2.5 GHz. The application is simple, requiring a single supply from 2.7 V to 5.5 V and adding the appropriate input and power coupling. With a 3 V supply, the 13.7 mA power dissipation (for TA = 25°C) is only 41 mW. With power-saving features, the in
• The AD8313 is fabricated on Analog Devices' advanced 25 GHz silicon bipolar IC process and is available in an 8-lead MSOP package
• Application:RF transmitter power amplifier setpoint control and level monitoring
• Logarithmic amplifier for RSSI measurement cellular base stations, radio link, radar.
• The AD8313 is a complete multistage demodulating logarithmic amplifier that can accurately convert an RF signal at its input to an equivalent decibel-scaled value at its dc output.
• The AD8313 maintains a high degree of log conformance for signal frequencies from 0.1 GHz to 2.5 GHz. Application is straightforward, requiring only a single supply of 2.7 V to 5.5 V and the addition of a suitable input and supply decoupling.
Model: AD8313
Operating frequency: 0.1 GHz to 3.5 GHz<br> High dynamic range: 70 dB to ±3.0 dB<br> High precision: ±1.0 dB (65 dB range, 1.9 GHz)<br> Fast response: 40 ns (full scale typical)<br> Controller mode with error output<br> Adjustment ratio does not vary with supply voltage and temperature<br> Wide supply voltage range: 2.7 V to 5.5 V<br> Low power consumption: 40 mW (3 V)<br> Power saving features: 60 mW (3 V)
• The AD8313 is a complete multi-stage demodulation log amp that accurately converts the RF signal at the input to the equivalent dB scale of the dc output. The AD8313 maintains high logarithmic consistency over the signal frequency range of 0.1 GHz to 2.5 GHz. The application is simple, requiring a single supply from 2.7 V to 5.5 V and adding the appropriate input and power coupling. With a 3 V supply, the 13.7 mA power dissipation (for TA = 25°C) is only 41 mW. With power-saving features, the in
• The AD8313 is fabricated on Analog Devices' advanced 25 GHz silicon bipolar IC process and is available in an 8-lead MSOP package
• Application:RF transmitter power amplifier setpoint control and level monitoring
• Logarithmic amplifier for RSSI measurement cellular base stations, radio link, radar.
• The AD8313 is a complete multistage demodulating logarithmic amplifier that can accurately convert an RF signal at its input to an equivalent decibel-scaled value at its dc output.
• The AD8313 maintains a high degree of log conformance for signal frequencies from 0.1 GHz to 2.5 GHz. Application is straightforward, requiring only a single supply of 2.7 V to 5.5 V and the addition of a suitable input and supply decoupling.
Model: AD8313
