Brand: Taidacent

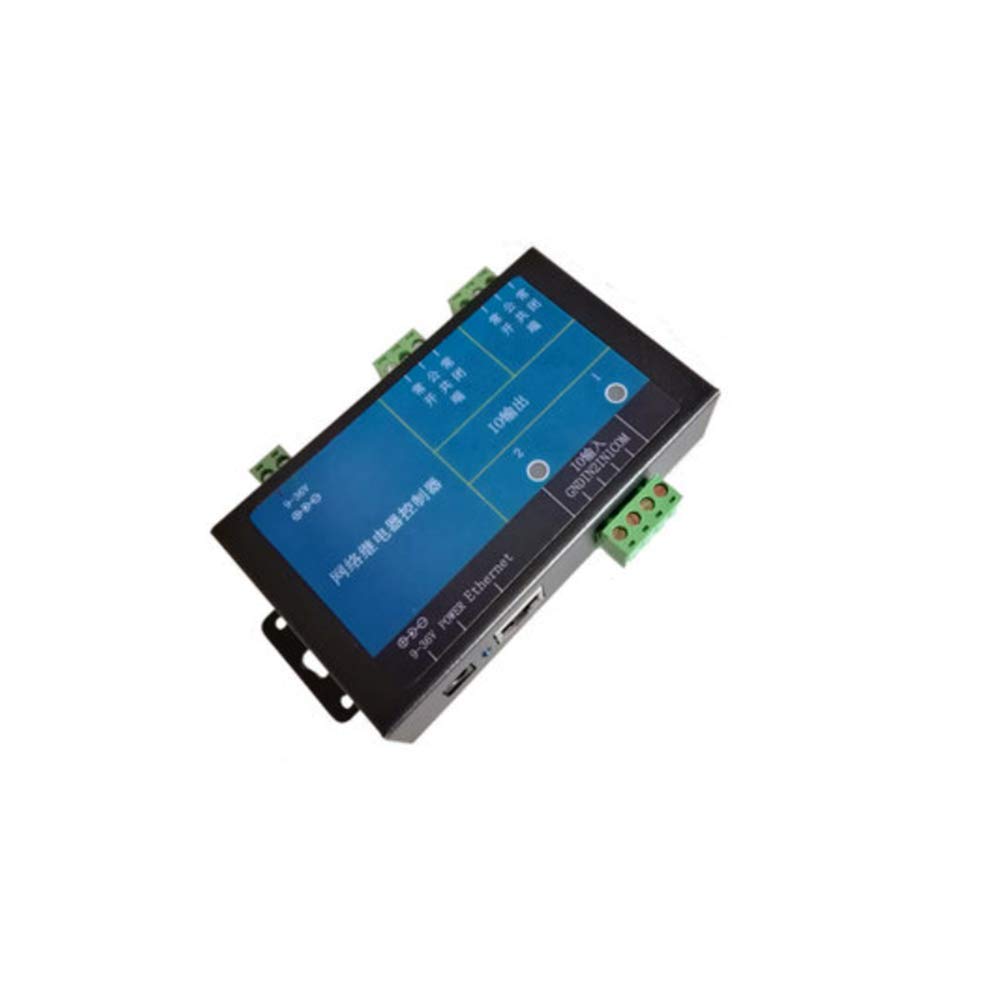

Controller Function Introduction <br> The relay control device interface is divided into WIFI, network port, GPRS, 485 and other methods, and has the same number of relay output and digital input interfaces, which are 2, 4, 8, 16 respectively. <br> Controller Control Protocol <br> Network port, WIFI, GPRS control in three networking modes: <br> 1Open order protocol customers can integrate control by themselves <br> 2Support to assist the client server platform to realize remote remote control heartbeat ID data format, etc. 3Support special requirements protocol logic change <br> Controller relay output <br> Built-in relay <br> Relay parameters--each relay output support <br> AC less than AC250V10A current <br> DC less than DC28V10A current <br> Among them 2 wifi relays support 30A <br> Relay output function <br> 1, Normally closed and opened, such as control power on and off 2.Pulse output It can be set for 2ms-60 minutes after closing for a period of time. 3, time-delay action One instruction Each relay is closed or opened by itself according to the set time to reduce the instantaneous power or logic scenario. <br> Digital input <br> The devices have the same number of switch detection interfaces as the relay output <br> Digital parameters --- can be connected <br> Dry node passive signal such as button reed switch relay output etc. <br> Wet node Active signal 3-35VDC, such as proximity switch, infrared detection and other achievable functions <br> 1, detect external signals can be obtained by query and can be actively uploaded <br> 2, can be linked to relay action, such as the button to control the local relay, such as detection of a signal, relay control alarm, etc. <br> 3. The devices control the input of device A to control the output of device B through the network. <br>

Product Details:

• Size: 2-way network port
• Package Quantity: 1
