Brand: SLL HUT

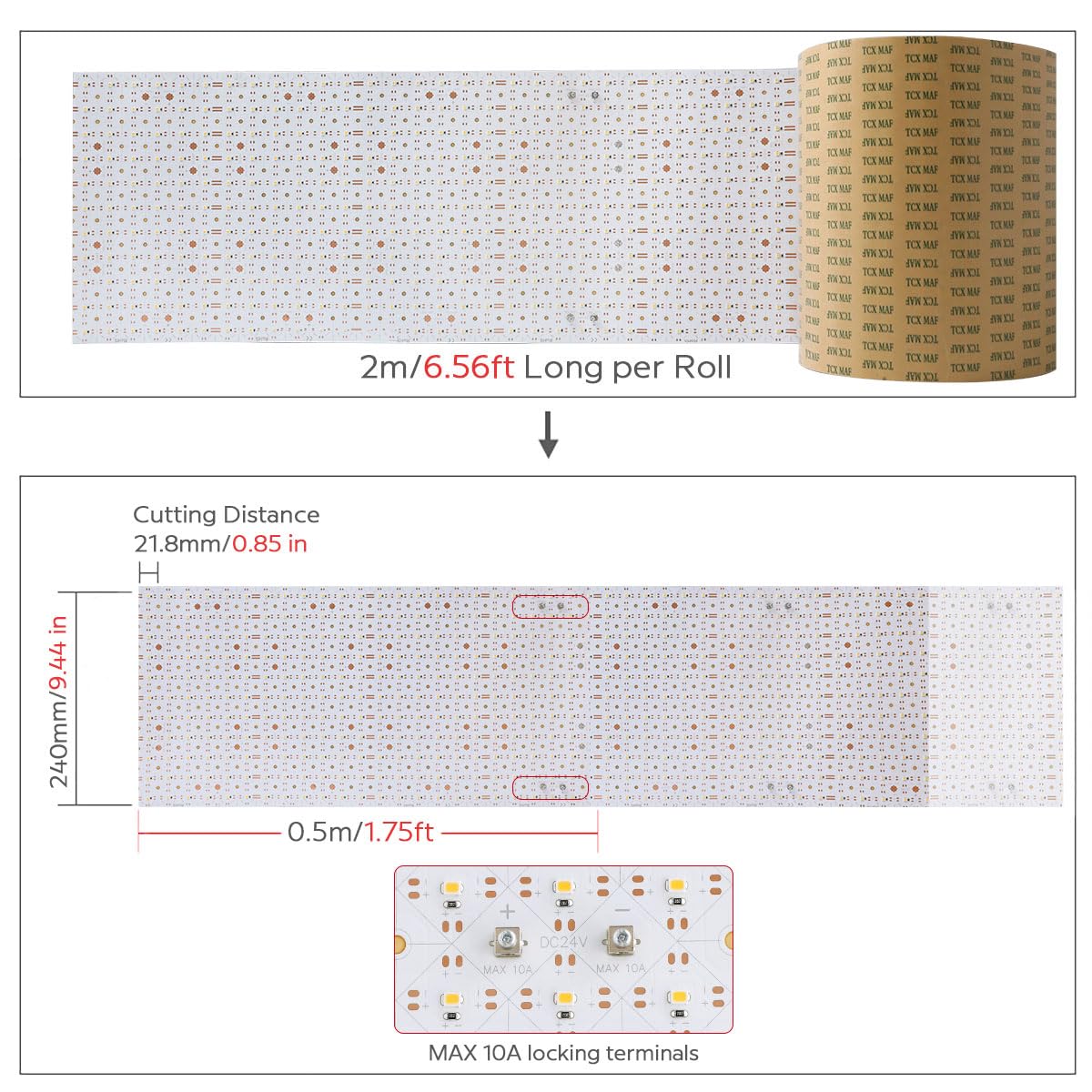

SuperLightingLED large rollable LED sheet works at 24V and can emit 3000K warm white light. It is paper-thin soft, foldable and cuttable, perfect for backlighting translucent countertops and walls. <br><br> <b>Specifications:</b><br> <b>Light Color:</b> 3000K Warm White<br> <b>Sheet Size:</b> 2m(L)X240mm(W)X8mm(H) / 78.7”(L)X9.45”(W)X0.3”(H) <br> <b>LED Chip:</b> SMD 2835 <br> <b>LED Quantity:</b> 1056 LED Chips <br> <b>Input Voltage:</b> DC24V <br> <b>Working Power:</b> 96W per Sheet <br> <b>Current:</b> 4A <br> <b>Cut Unit:</b> 1 LED (0.85"x 0.86") <br> <b>CRI:</b> 95+<br> <b>Lumen:</b> 9600LM <br> <b>Waterproof Rating:</b> IP20 <br> <b>Lifespan:</b> 50,000+hours <br> <b>Warranty:</b>2 Years<br> <b>Listing:</b><br> 1 pc 3000K warm white LED light sheet (L78.7 x W9.45 x H0.3 inches)<br> 2 pcs 150 mm long connecting power wires<br> 32 pcs screws<br> 32 pcs screw shims<br> 32 pcs 8mm high anti-collision silicone bumpers<br> Please note that power transformer and controller are not included.<br><br> <b>Usage and Instructions:</b><br> 1.Measure the size of the board you want to paste LED backlight sheet on, and determine the size and quantity of LED sheets you need to purchase accordingly. <br> 2.Connect LED sheet lights together by wire or connector <br> 3.Choose right power supply and controller for LED panel sheet. <br> Principle: The voltage of the power supply should be the same as the voltage of LED sheet. And the driver wattage should be 1.2 times the the total wattage of LED sheets.<br> For example, when you need to power 4 pieces of 24V 28W LED lighting sheets, the voltage of power supply should the same, also 24V. And the total wattage of 4 pieces 28W LED sheets is 4pcs x 28W=112W. So the wattage of power supply will be 112W x 1.2=135W. (Or a little bit above)<br> Recommend WB5 model to adjust brightness.<br> 4.Connect power supply and controller to LED light sheet panel, turn them on and ready for use. <br><br> <b>Note:</b><br> 1.Please operate the connection while the power is off. <br> 2.Please make sure that the working environment is clean and dry. <br> 3.Please kindly prepare a 24V power transformer in advance, as it is not included. <br> 4.If you need to adjust brightness of this sheet LED, a dimmer is necessary.<br>

• ?SuperLightingLED Big LED Sheet Light?This 78.7”x 9.45” LED backlight sheet covers 5.3 sq ft. No more splicing small sheets of light. One piece backlits a broader area, avoiding light spots or uneven brightness caused by splicing, saving time and effort. Daisy-chain up to 5 sheets (26.5 sq ft total) with uniform brightness and zero voltage drop.

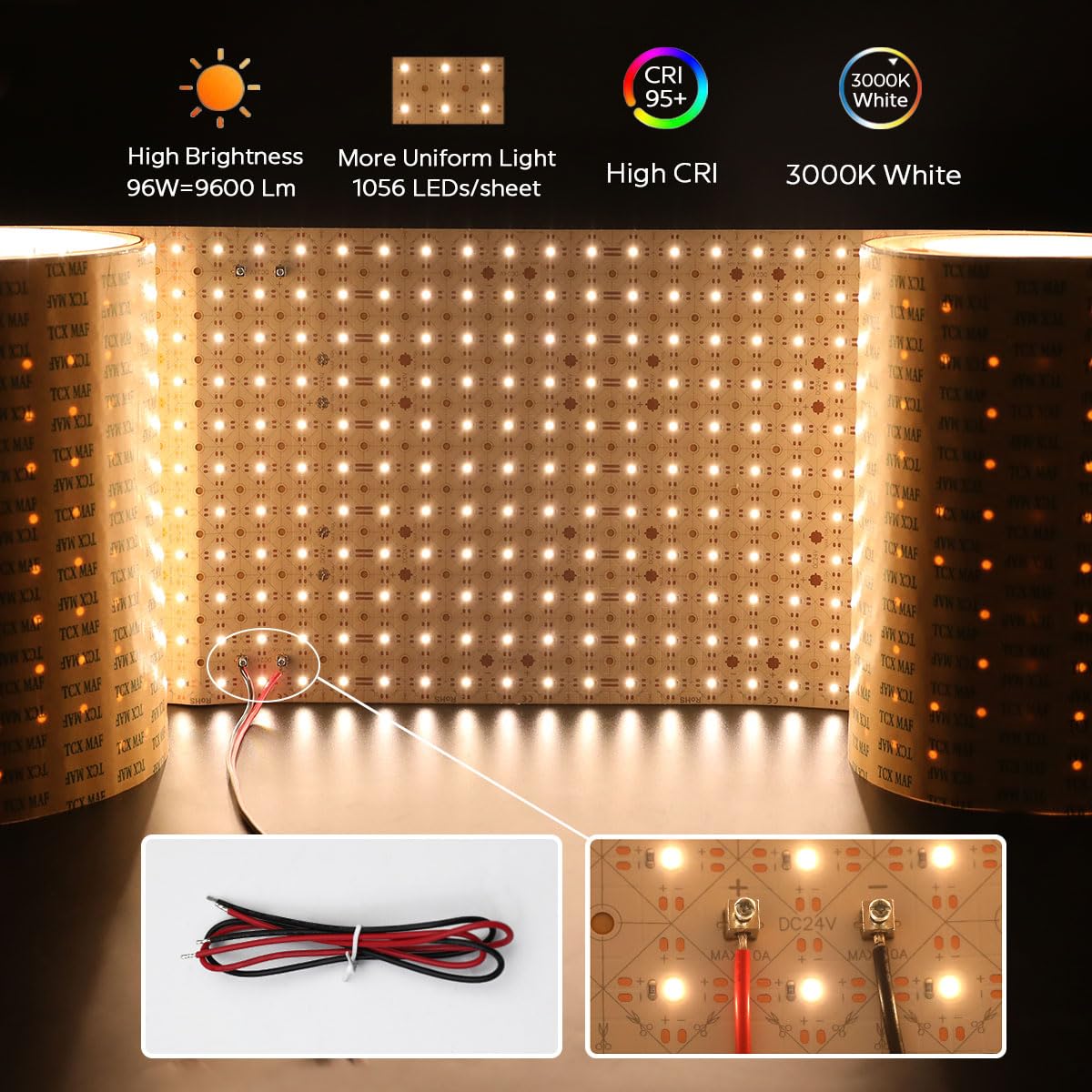

• ?3000K Warm White Light, Dimmable, CRI 95+?This flexible LED panel sheet has a total of 1056 light chips that work together to emit an even, bright 3000K warm white light for a relaxing and cozy atmosphere. Each sheet LED delivers 9600 LM of brightness. CRI95+ is eye-friendly. If you want to adjust brightness, please purchase an additional dimmer.

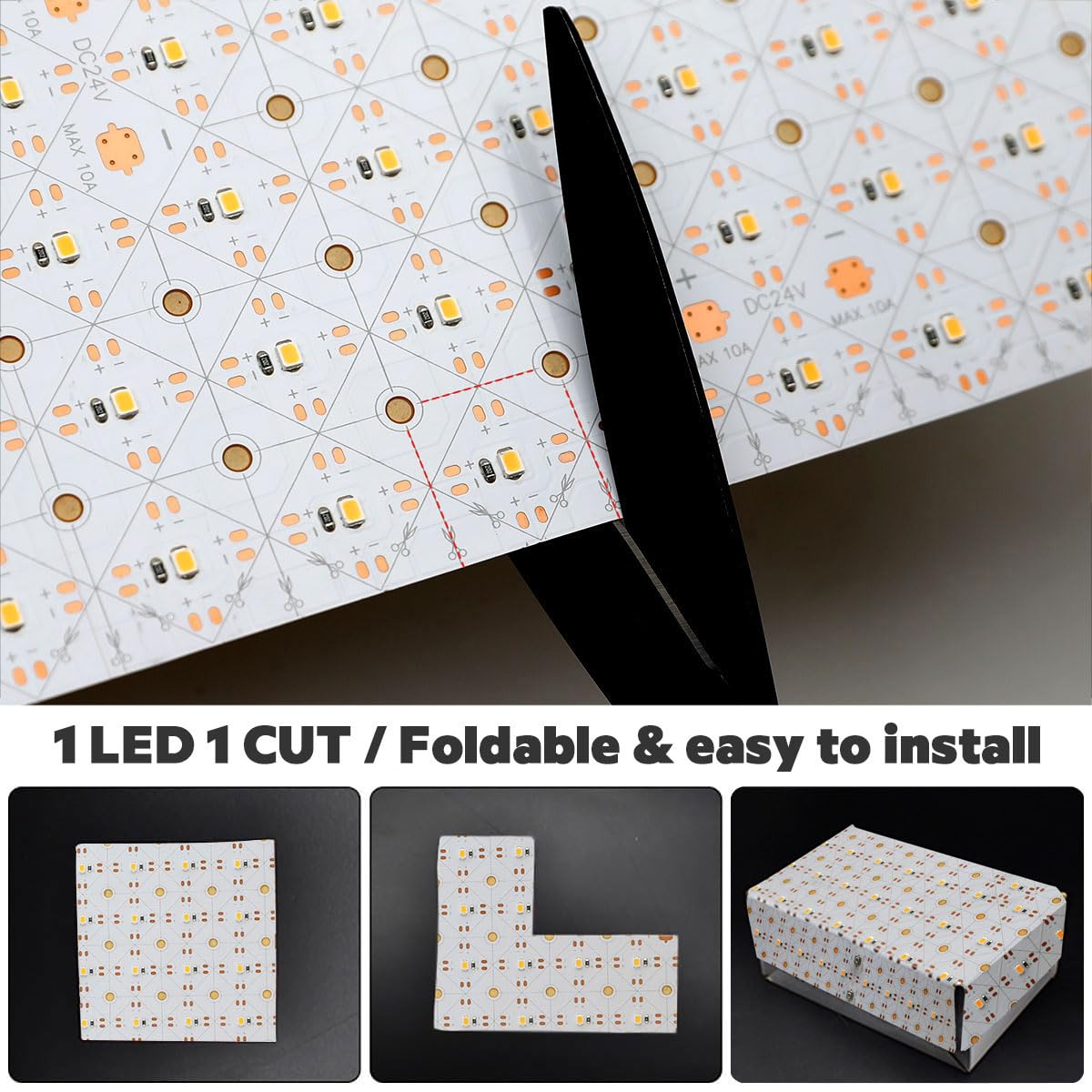

• ?Slim, Flexible, Cut to Size?LED light panel operates at 24V low voltage and is safe to touch. Made of double-layer FPC material, our soft LED sheet is as thin as paper (only 1.5mm thickness), and can be folded into different shapes. Each chip can be cut with scissors to freely customize the size you want.

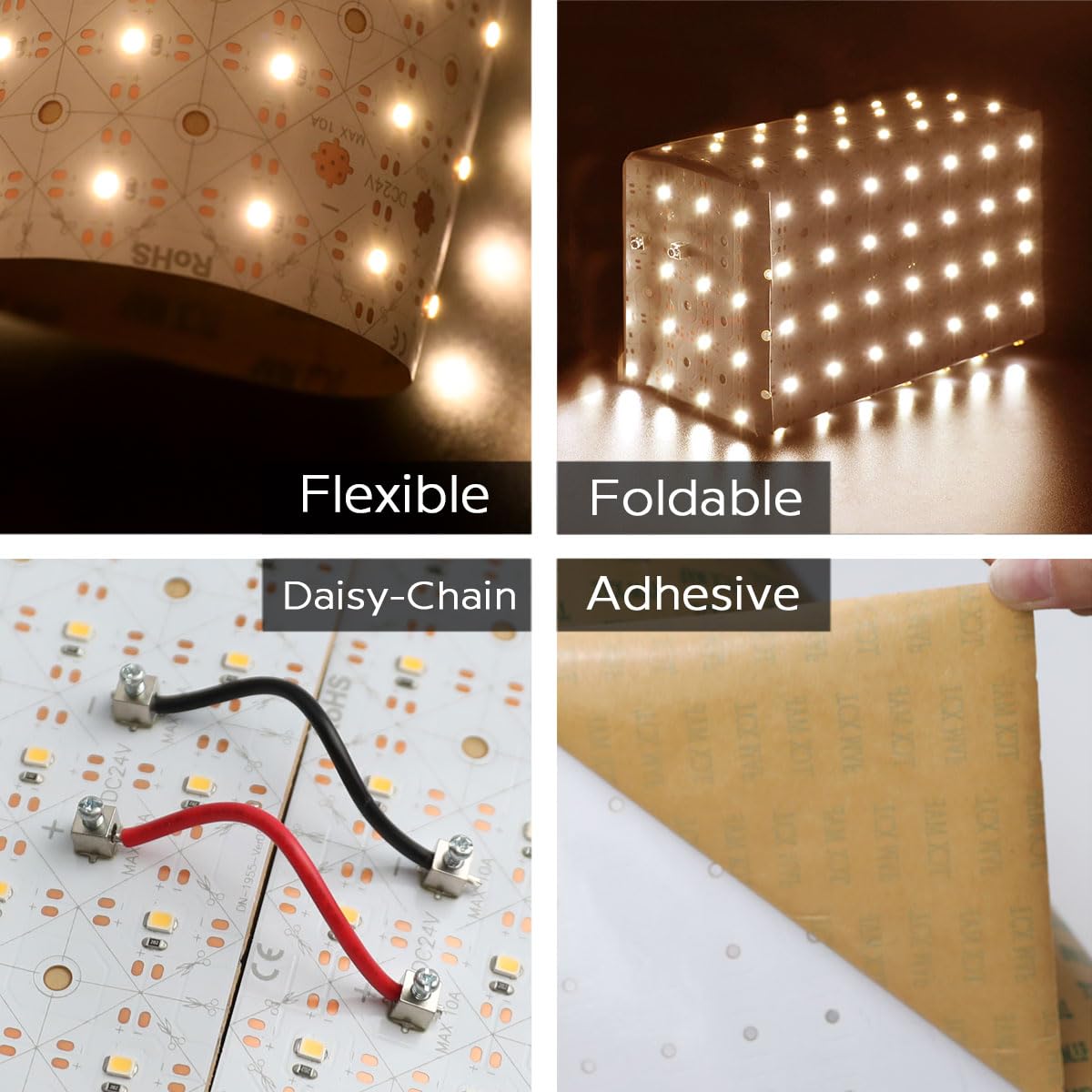

• ?Easy to Connect and Install?Eight 8mm high screw connectors are mounted on the top of the flex LED sheet for easy power injection. The backing is pre-applied with adhesive for peel-and-stick installations. We also include an accessory pack with powering cables, silicone anti-collision bumpers, screws, and screw shims.

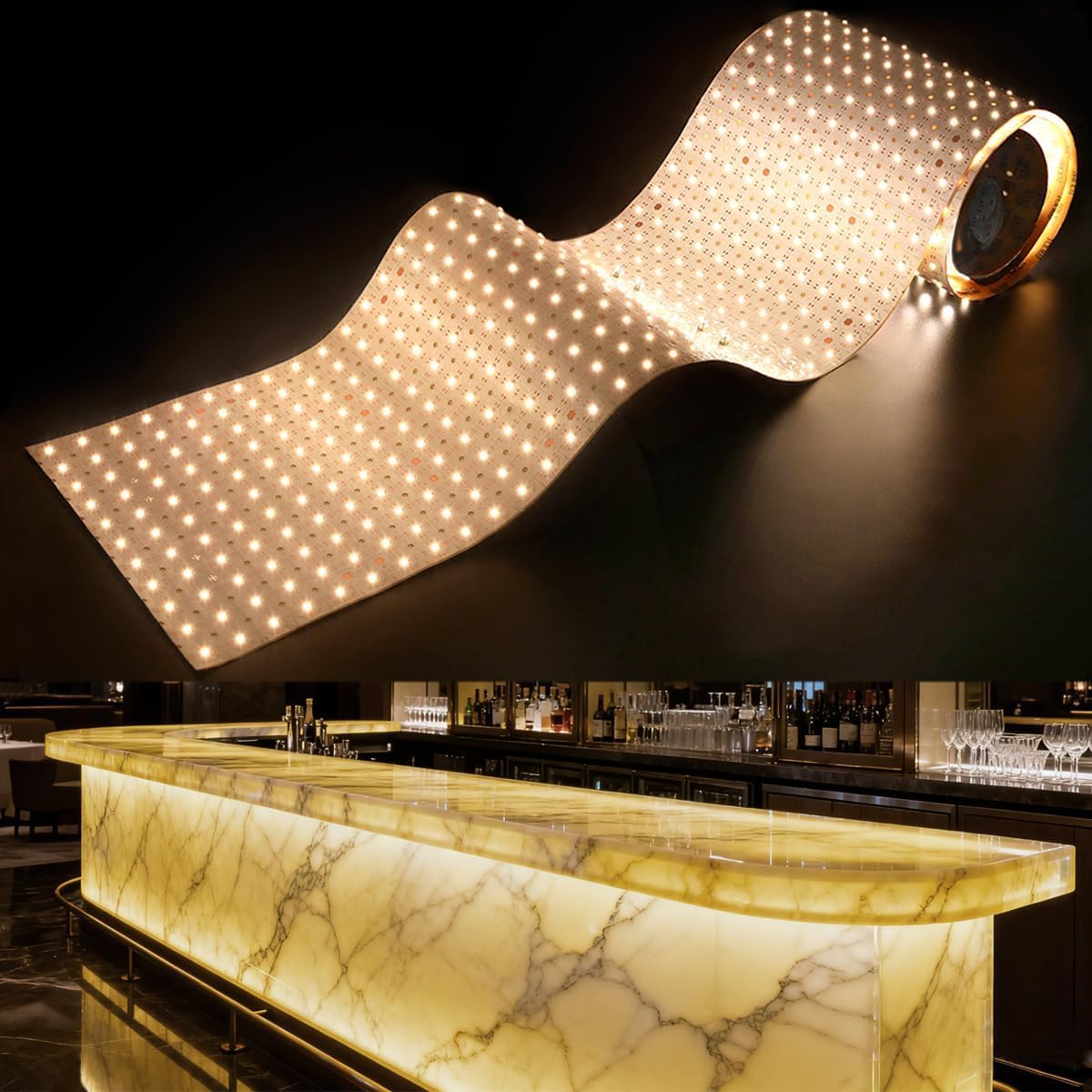

• ?For Wide Area Backlighting?LED screen panel sheet is widely used in onyx, marble, stained glass, translucent acrylic panels, and other backlighting lighting fields. Especially suitable for commercial display walls, high-end hotels, restaurants, or bar decorations, artwork displays, and advertising backlighting.
• ?How to Choose the Right Power Supply (NOT Included)?To pick the right power supply: Count your LED sheets × 96W each to get total watts. Then choose a 24V power supply with at least 20% more power (total watts × 1.2). Example: 3 LED sheets = 96 x 3= 288W ? 288 × 1.2 = 346W ? get a 350W+ 24V supply.

Color: 3000K
