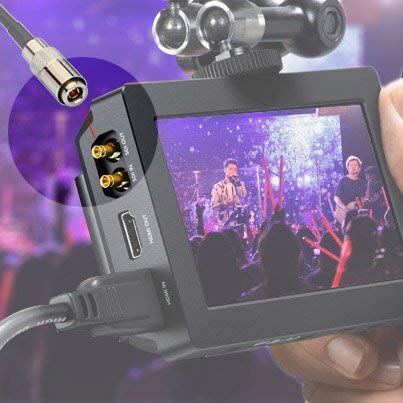

This cable is suitable for any device with HD SDI video with connections of BNC or Din 1.0/2.3. for example, to connect the Micro Studio Camera 4K to Video Assist 4K or the front output of URSA Mini to Video Assist.
1.0/2.3 DIN and BNC connectors exceed 3.0Gbps HD-SDI requirements specified in SMPTE424M. These cables more than meet today's requirements for 3 Gbps signal/data serial interface needs, and are designed for any equipment that has 1.0/2.3 mini-din input or output.

Specifications:
AWG: 23
Stranding: Solid
Conductor Material: BC - Bare Copper
Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
Outer Shield Material: Dual Shield - Duofoil/TC - Tinned Copper
Outer Jacket Material: PVC - Polyvinyl Chloride
Overall Diameter: 0.159"
Cables meet SMPTE 259M, 292M,424M Standards
Tinned copper braid, and Duofoil shields, for excellent shielding
Hand assembly and testing in-house

Applications Include:
High-Density HD Video Routing
HD-Serial Digital Video
Best for Fixed HD Applications
HDTV Upgrades
Broadband Facilities
SMPTE 259M, 292M, 424M
High-density 1.0/2.3 Din Video Patchbay/Router output to BNC input
Compatible with Blackmagic DeckLink Quad capture cards

• Belden 1855A 3G/6G/12G HD-SDI Low Loss Serial Digital Video Cable

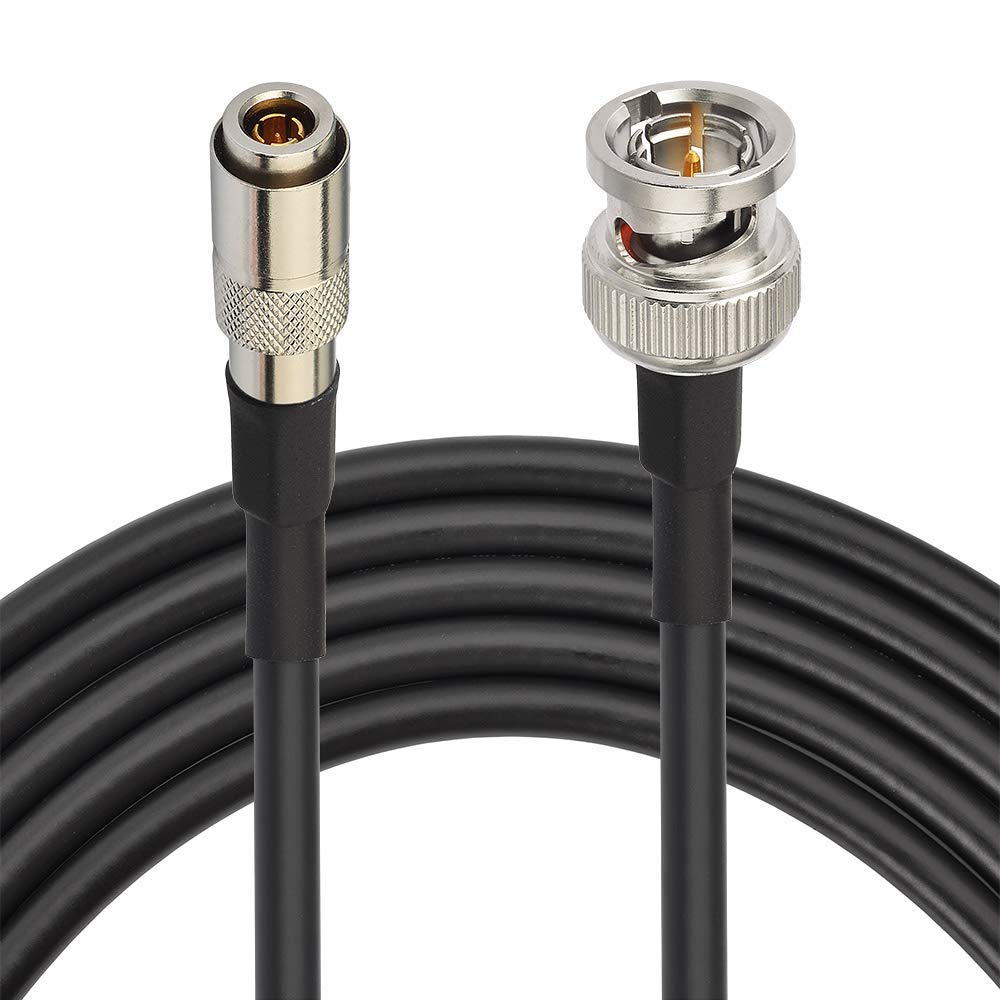

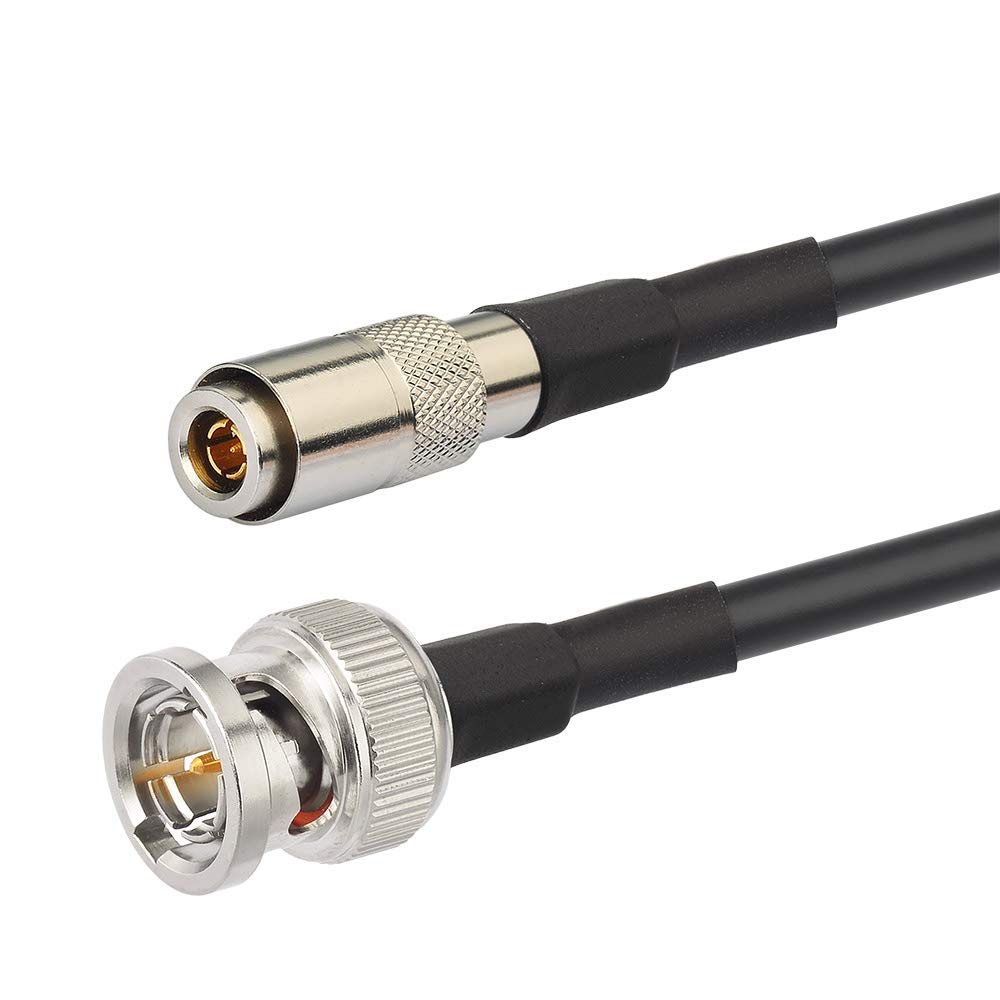

• 1.0/2.3 DIN Male to BNC Male, Black 12inch/ 1ft

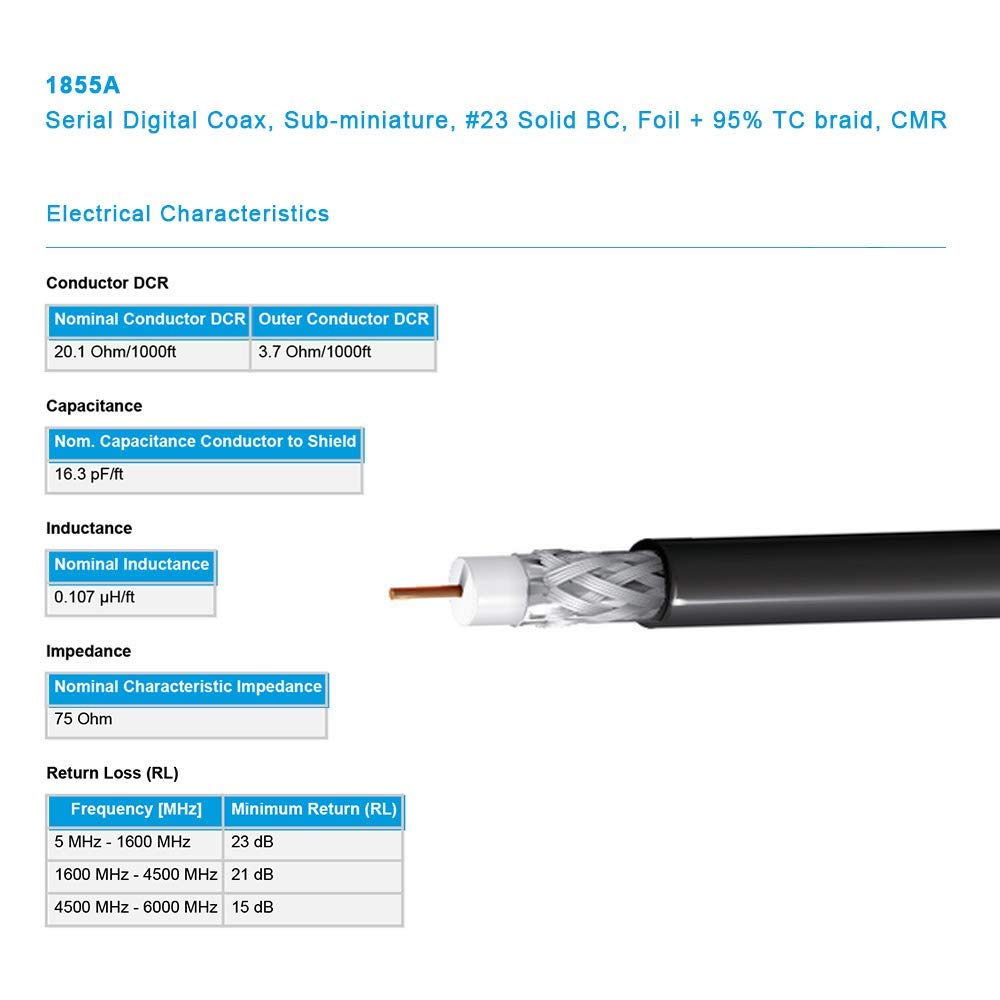

• cable:75 ohm Belden 1855A HD SDI Cable - Sub-Miniature Precision Broadcast Video Coax Cable 23 AWG solid .023" bare copper conductor, gas-injected foam HDPE insulation, tinned copper braid shield (95% coverage), PVC jacket?the cable which is not only superb in high impedance stability and low return loss but is physically robust and stable and will endure frequent handling and flexing.
• Easier to plug and push
• High-speed and 4K stable data transfer
• We are a professional manufacturer. If you need other length Cable, please contact us by email.

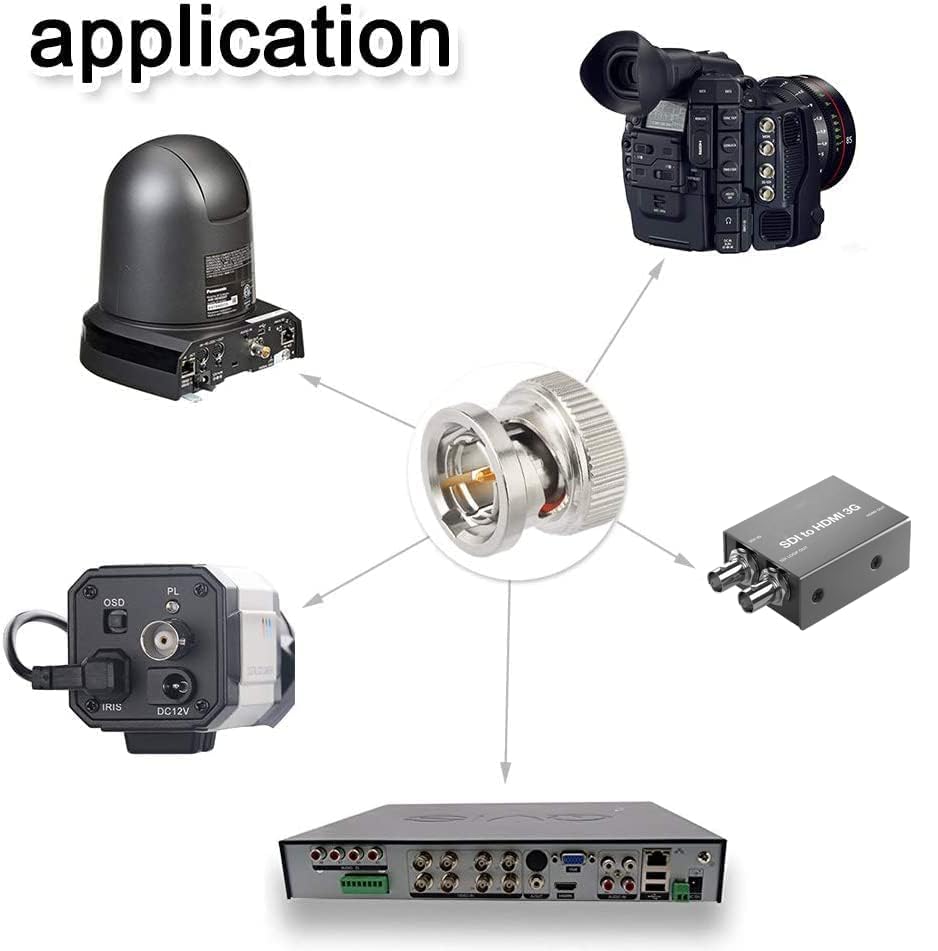

• This cable is designed for use wherever you need to go from a conventional BNC SDI connection to a camera, patch panel or other devices that uses DIN 1.0/2.3 connectors.Suitable for:Blackmagic Design URSA?BMCC, BMPC. Canon C300, C500. Sony FS5, FS7, FS700, F55, RED EPIC, SCARLET, ARRI Alexa, Amira, SmallHD 502, 702, Atomos Shogun, Odyssey7 or Red One etc.
• AJA, Nevion, Harris, MIRANDA, 3COM, CISCO
• Never worry about any security problems. We are confident in the quality of our din to bnc cable and willing to provide 1 MONTHS Replacement. If you unfortunately get a defective one, please contact our customer support.

Color: 1pcs
