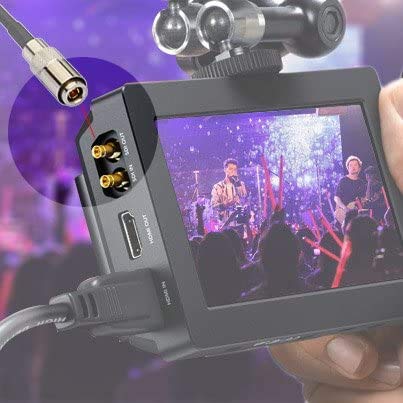

This cable is suitable for any device with HD SDI video with connections of BNC or Din 1.0/2.3. for example, to connect the Micro Studio Camera 4K to Video Assist 4K or the front output of URSA Mini to Video Assist.
1.0/2.3 DIN and BNC connectors exceed 3.0Gbps HD-SDI requirements specified in SMPTE424M. These cables more than meet today's requirements for 3 Gbps signal/data serial interface needs, and are designed for any equipment that has 1.0/2.3 mini-din input or output.

Specifications:
AWG: 23
Stranding: Solid
Conductor Material: BC - Bare Copper
Insulation Material: Gas-injected FHDPE - Foam High Density Polyethylene
Outer Shield Material: Dual Shield - Duofoil/TC - Tinned Copper
Outer Jacket Material: PVC - Polyvinyl Chloride
Overall Diameter: 0.159"
Cables meet SMPTE 259M, 292M,424M Standards
Tinned copper braid, and Duofoil shields, for excellent shielding
Hand assembly and testing in-house

Applications Include:
High-Density HD Video Routing
HD-Serial Digital Video
Best for Fixed HD Applications
HDTV Upgrades
Broadband Facilities
SMPTE 259M, 292M, 424M
High-density 1.0/2.3 Din Video Patchbay/Router output to BNC input
Compatible with Blackmagic DeckLink Quad playback and capture cards

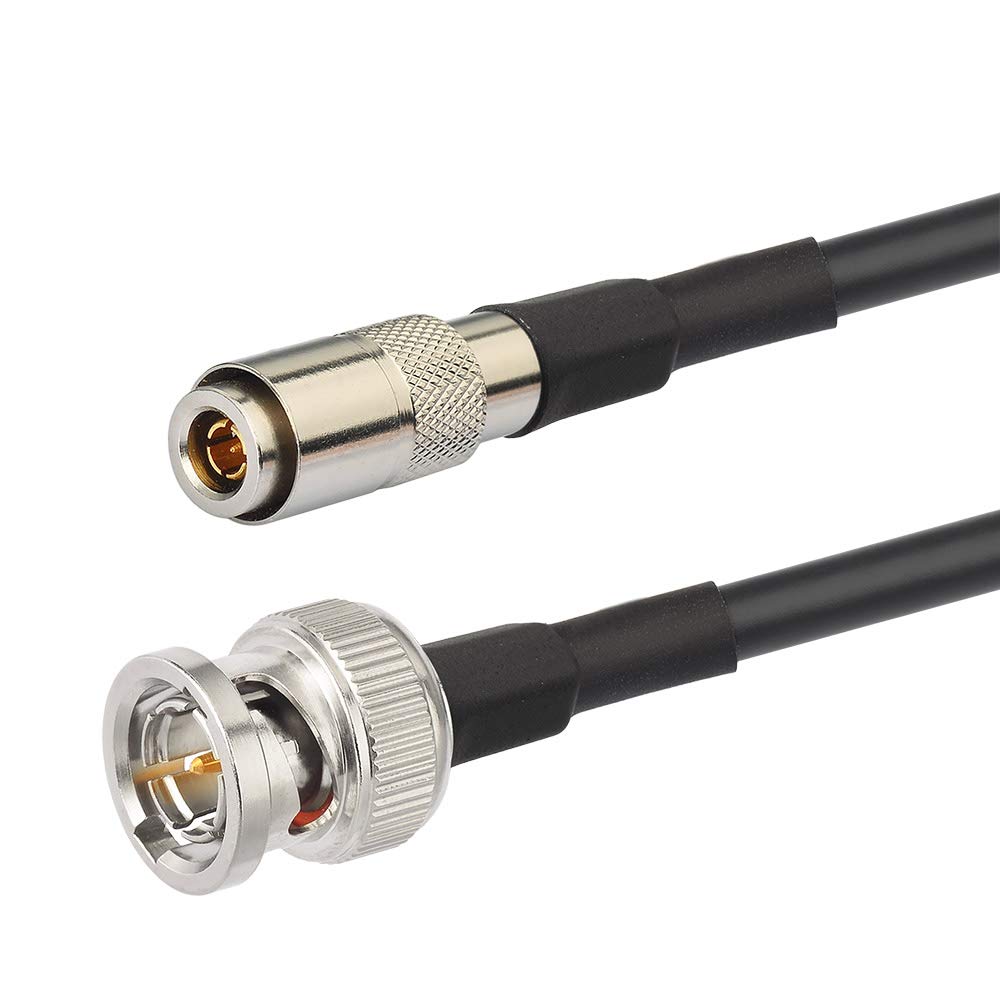

• DIN 1.0/2.3 to BNC Male, Black 3ft (100CM)
• 3G/6G/12G HD-SDI Low Loss Digital Video Cable for blackmagic design video sdi converter

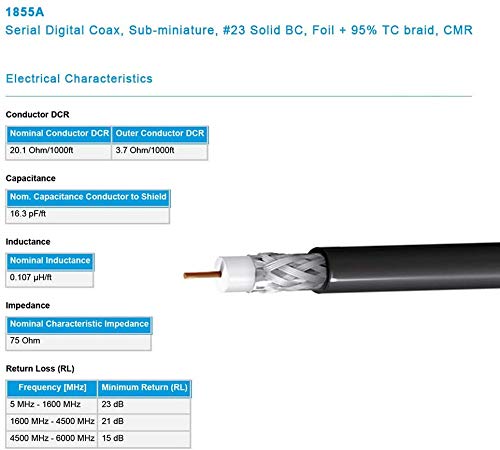

• 75 ohm Belden 1855A Din SDI Cable - Sub-Miniature Precision Broadcast Video Coax Cable 23 AWG solid .023" bare copper conductor, gas-injected foam HDPE insulation, tinned copper braid shield (95% coverage), PVC jacket?the cable which is not only superb in high impedance stability and low return loss but is physically robust and stable and will endure frequent handling and flexing.
• Easier to plug and push
• High-speed and 4K stable data transfer?the cable which is not only super in high impedance stability and low return loss but is physically robust and stable and will endure frequent handling and flexing.

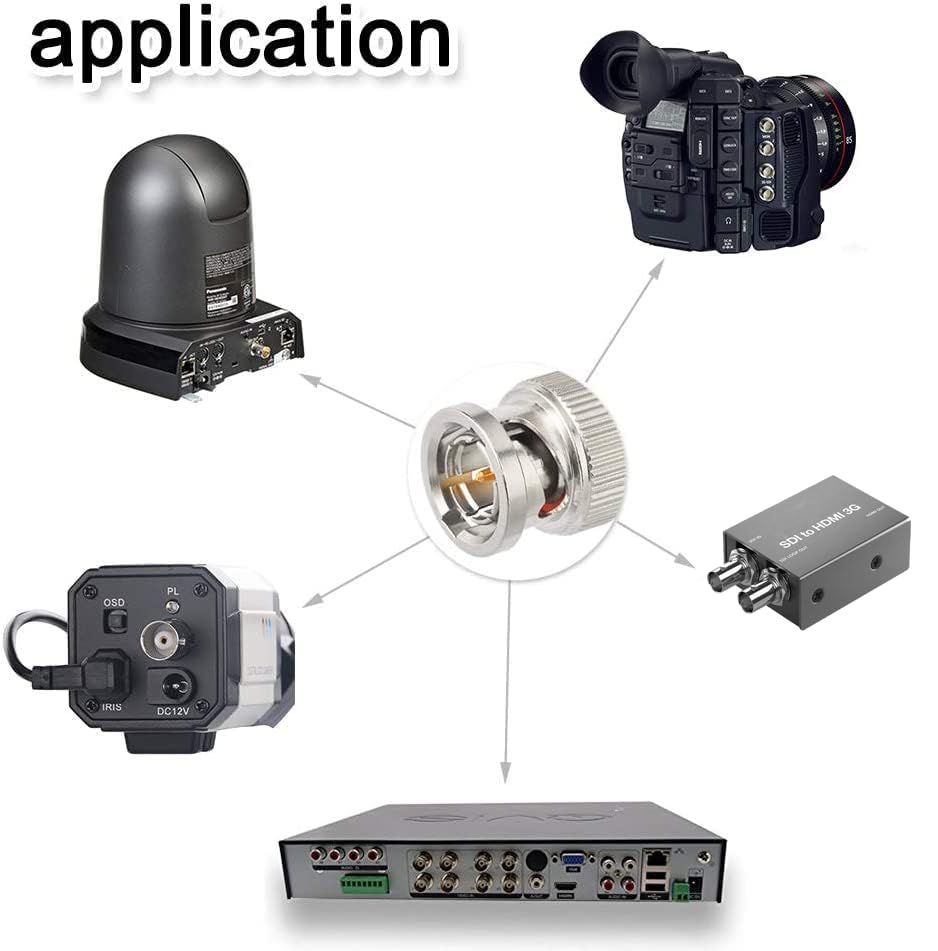

• This cable is designed for use wherever you need to go from a conventional BNC SDI connection to a camera, patch panel or other devices that uses DIN 1.0/2.3 connectors.Suitable for:Blackmagic Design sdi to hdmi converter URSA?BMCC, BMPC. Canon C300, C500. Sony FS5, FS7, FS700, F55, RED EPIC, SCARLET, ARRI Alexa, Amira, SmallHD 502, 702, Atomos Shogun, Odyssey7 or Red One etc.
• AJA, Nevion, Harris, MIRANDA, 3COM

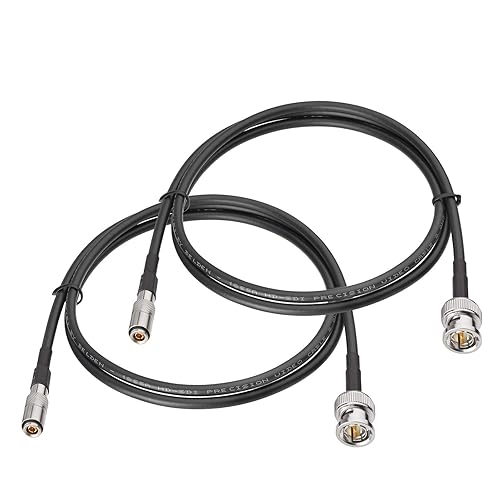

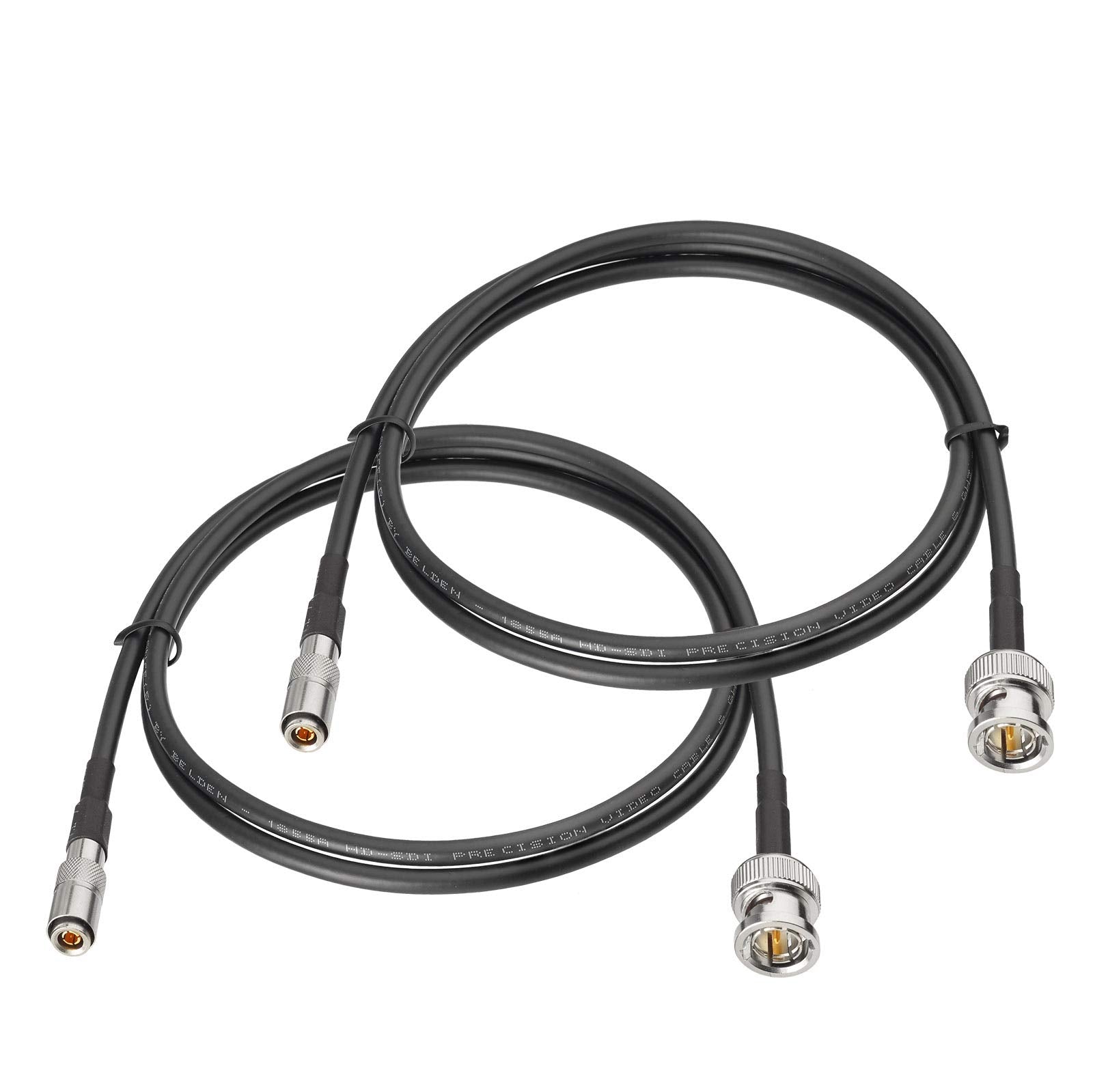

• Package List: 2 x sdi to din cable assembly. If you unfortunately get a defective one, please contact our customer support.

Color: 2pcs
