Brand: Stemedu

Description:

Condition:100% brand new and good quality
Use: This HC-SR501 PIR motion sensor can automatically and quickly open various types of incandescent, fluorescent lamps, buzzer, automatic doors, electric fans, automatic washing machine and dryer Machines and other devices, is a high tech products. Especially suitable for enterprises, hotels, shopping malls, warehouses and family aisles, corridors and other sensitive Sense of region, or for the security zone automatic lighting, lighting and alarm systems.

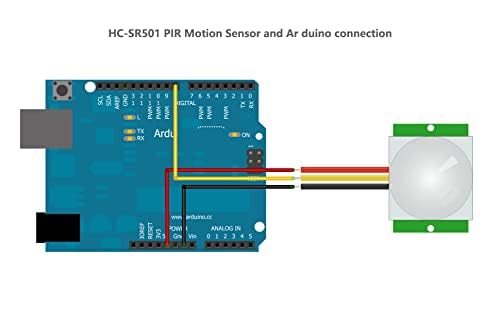

Also, it can work with Arduino or Raspberry Pi projects
As per the HC-SR501 data sheet, stops detecting ("detection range is shorter") as temperature approaches 30 degrees celsius (approximately 90 degrees fahrenheit).
These units have the through-holes to add a thermistor to improve high temperature performance, if one has a thermistor to add.
Easy to set up. Pins fit well into female Dupont wires for prototyping.
Features:

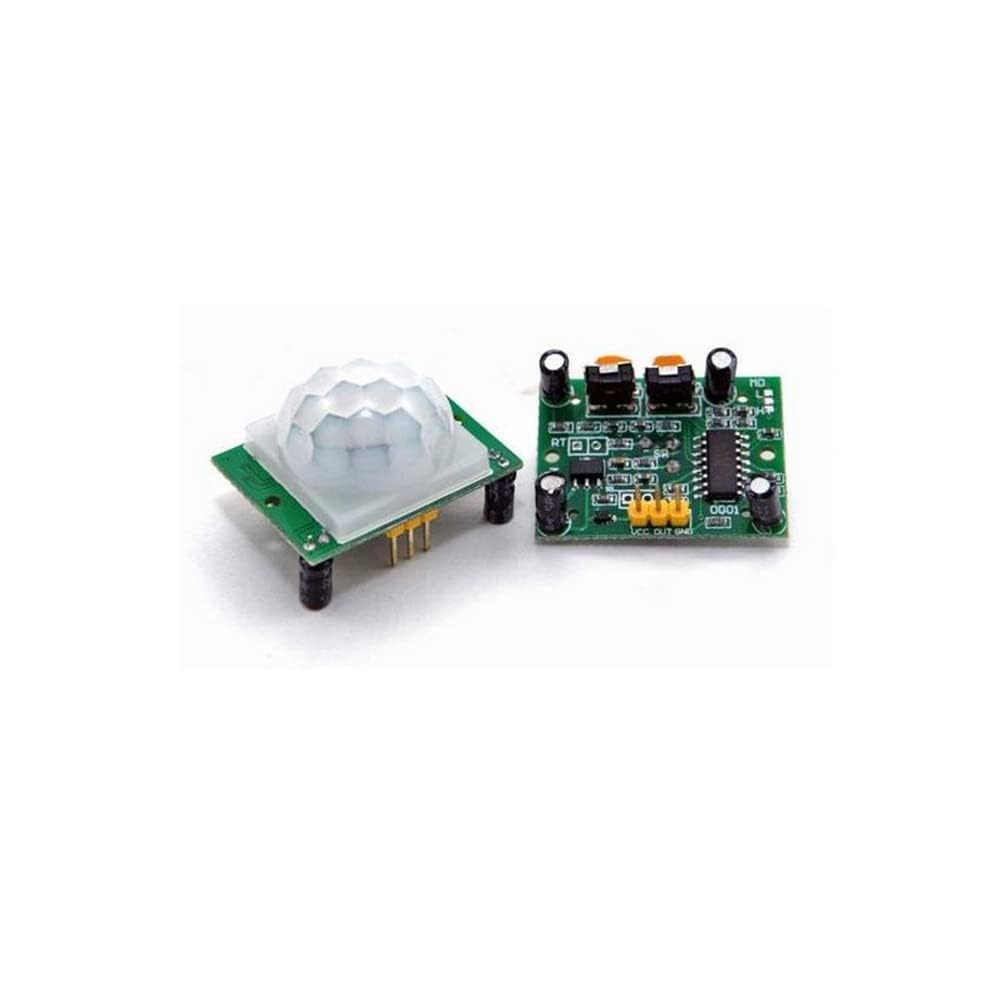

Product Name: HC-SR501 Body Sensor Module
Operating voltage range: DC 4.5-20V
Quiescent Current: <50uA
Trigger: L can not be repeated trigger/H can be repeated trigger(Default repeated trigger)
Delay time: 0.5-200S(adjustable) the range is (0.xx second to tens of second)
Block time: 2.5S(default)Can be made a range(0.xx to tens of seconds
Board Dimensions: 32mm*24mm
Angle Sensor: <100 ° cone angle Lens size
HC-SR501 Sensor Diameter:23mm(Default)

Package Included:

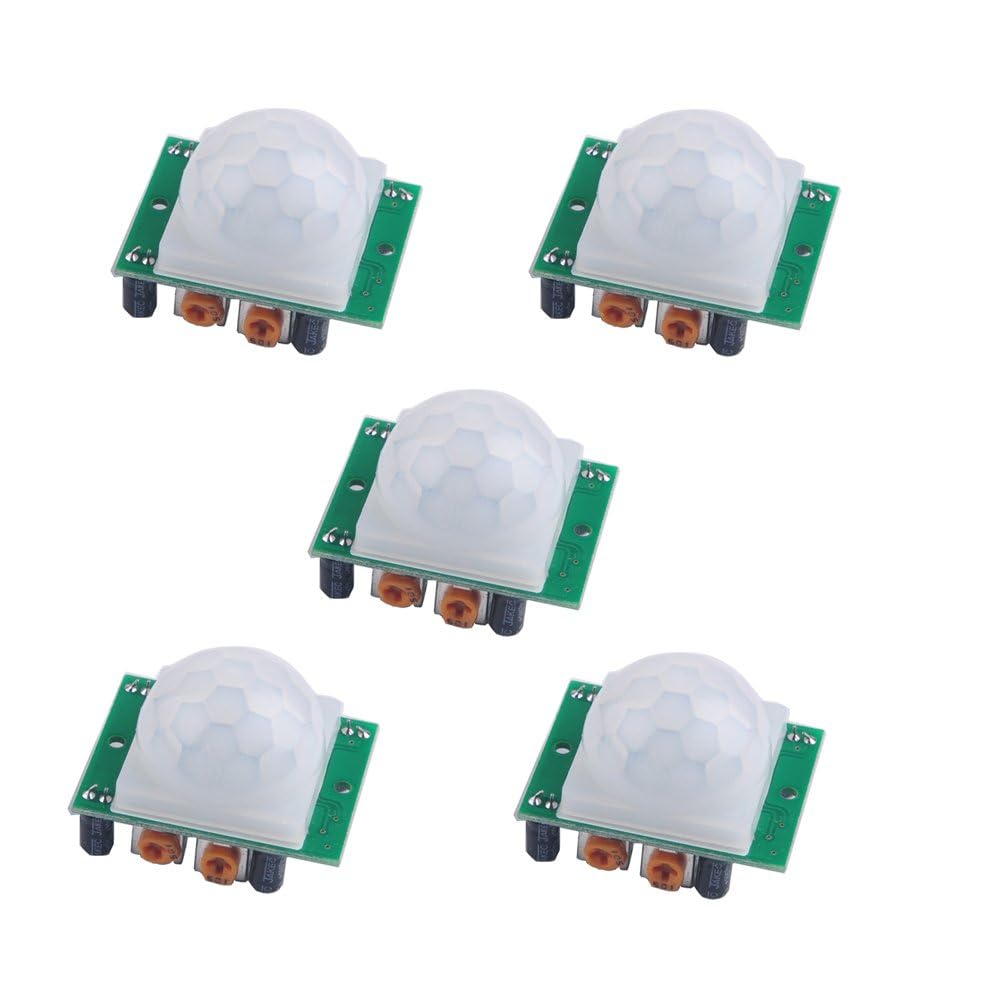

5 X Stemedu HC-SR501 PIR Infrared Sensor

Questions
Q: What is the level output of these?
Q: I connected this to raspberry pi (5v) and it randomly activate without any movement. Is that normal?
Q: What is the delay adjustment and how to change it using the small dial?"
Q: Will it control 12 volt mini LED lights in my kitchen cabinets?

If you're interested in these questions, please contact us for the answers.

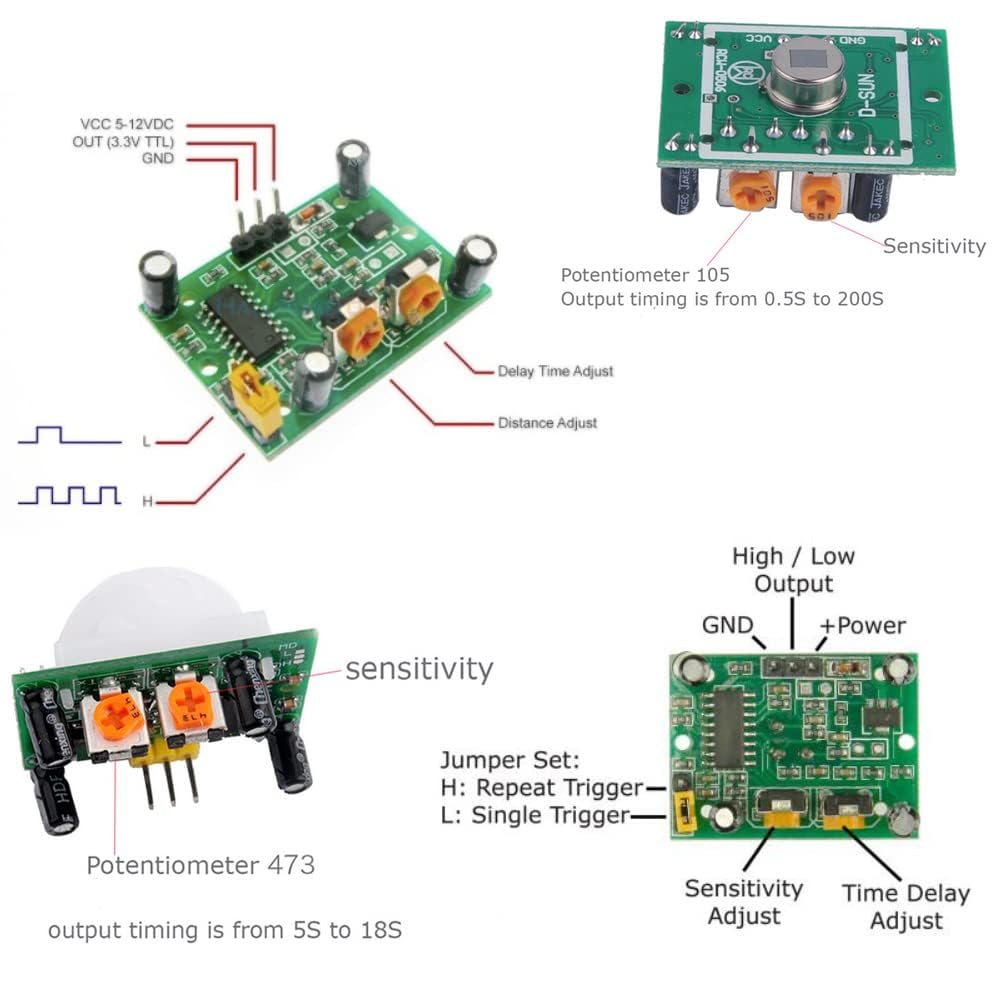

• HC-SR501 Delay Time: 0.5-200S (adjustable), the range is (0.xx second to tens of second), the delay time can be adjusted by using the potentiometer on the HC-SR501 motion sensor.
• Operating voltage range: DC 4.5-20V; Quiescent Current: <50uA; Trigger: L can not be repeated trigger/H can be repeated trigger (Default repeated trigger)
• Automatically and quickly turn on home devices by detected HC-SR501 motion sensor.
• HC-SR501 motion sensor is an economic hightech products. It is widely used.
• Angle Sensor: <100 ° cone angle Lens size
