Brand: StarTech.com

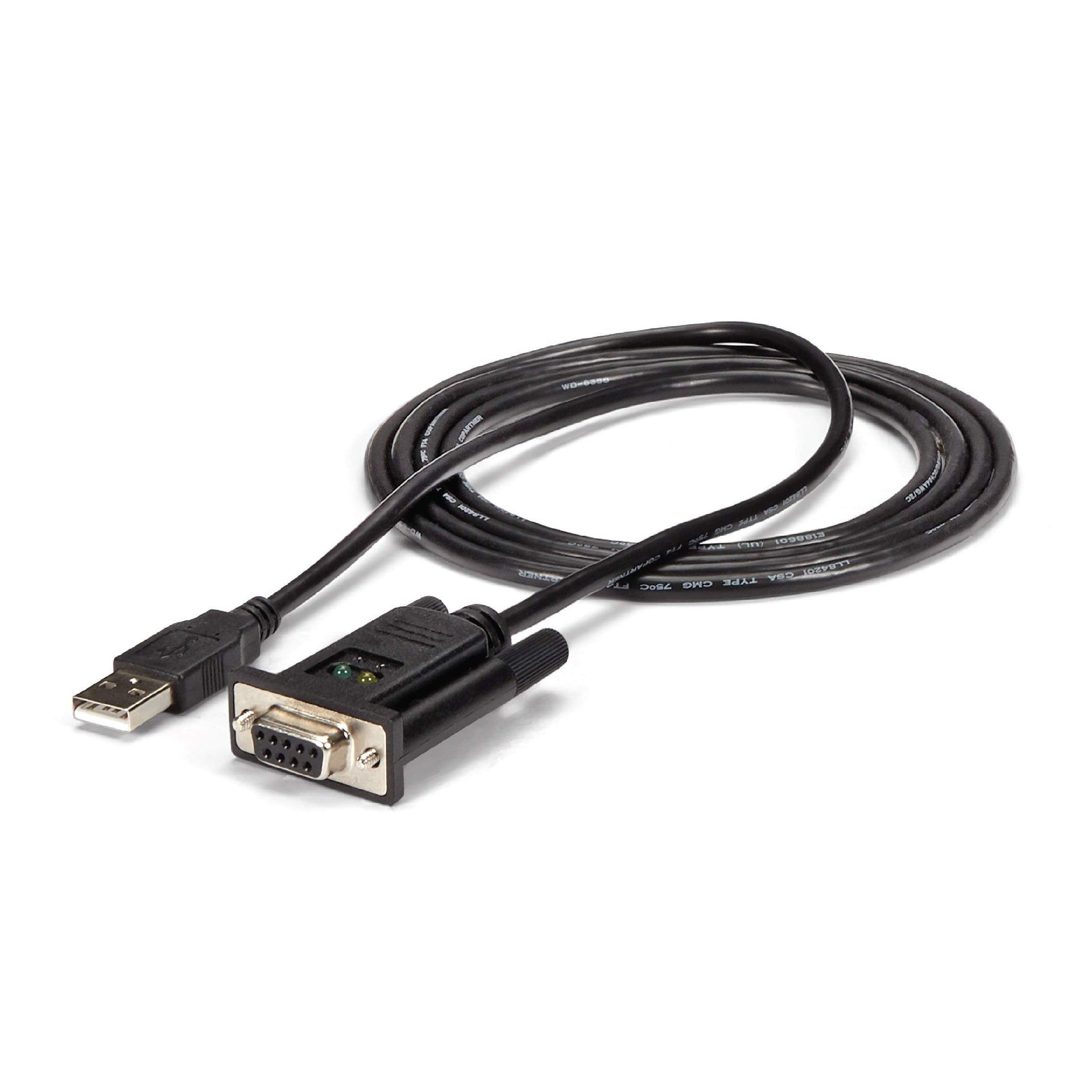

USB to Null Modem (Cross-Wired) RS232 Serial Adapter Baud Rate up to 921.6Kbps Integrated FTDI USB UART Chip COM Port assignments maintained across reboot USB-powered - no external power adapter required Compatible with USB 1.1 or 2.0 Ports Compatible with Windows®, Mac OS and Linux Single cable design for portability The ICUSB232FTN FTDI USB to Null Modem Serial Adapter Cable (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 Null Modem serial DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters. This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The integrated FTDI chipset supports additional customization, advanced features, and compatibility not necessarily offered by other solutions. The USB to Null Modem adapter is compatible with a broad list of operating systems including Windows®, Windows CE, Mac OS and Linux, making it easier to integrate into mixed environments. Backed by a StarTech.com 2-year warranty and free lifetime technical support. Perfect for IT Administrators looking to add legacy functionality to newer notebooks, PCs and servers that lack an integrated RS232 port Connect, monitor and control industrial/automotive sensors and equipment Connect bar code scanners, receipt printers and other point of sale devices Connect and program LED and Digital signage boards with serial communication ports Connect a satellite receiver, serial modem, or PDU USB to Null Modem serial adapter corrects DTE/DCE conflicts without requiring additional adapters or cables The FTDI chipset is highly customizable and broadly compatible, making it the ideal solution for any setup Portable USB-Powered design requires no bulky power adapter or outlet Specifications Warranty Information Warranty 2 Years Connector(s) 1 - Connector Type(s) USB Type-A (4 pin) USB 2.0 DB-9 (9 pin, D-Sub) Environmental Operating Temperature 0°C to 55°C (32°F to 131°F) Storage Temperature -20°C to 85°C (-4°F to 185°F) Humidity 5~95% RH Hardware Ports 1 Interface Serial Bus Type USB 2.0 Port Style Cable Adapters Chipset ID FTDI - FT232RL Packaging Information Package Height 1,5 in [39 mm] Package Length 5,7 in [14,6 cm] Shipping (Package) Weight 7,2 oz [205 g] Package Width 8,2 in [20,8 cm] Performance Serial Protocol RS-232 Max Baud Rate 921.6 Kbps Data Bits 7, 8 FIFO 256 Bytes Parity None, Odd, Even, Mark, Space Stop Bits 1, 2 MTBF 541,728 hours Physical Characteristics Weight of Product 3,2 oz [90 g] Color Black Material Plastic Cable Length 5,6 ft [1,7 m] Product Length 5,9 ft [1,8 m] Product Width 1,2 in [30 mm] Product Height 0,6 in [1,5 cm] Power Power Source USB-Powered Software OS Compatibility Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0 Linux Kernel 3.0.x - 5.4.x (LTS Versions Only) Special Notes / Requirements System and Cable Requirements One available USB 1.1 (or better) port What's in the Box 1 - Included in Package USB to RS-232 Null Modem Adapter Driver CD Instruction Manual

Features:

• MAXIMIZED PORTABILITY: This USB to serial RS232 adapter with FTDI features a single cable design removing the need for additional adapters and cables

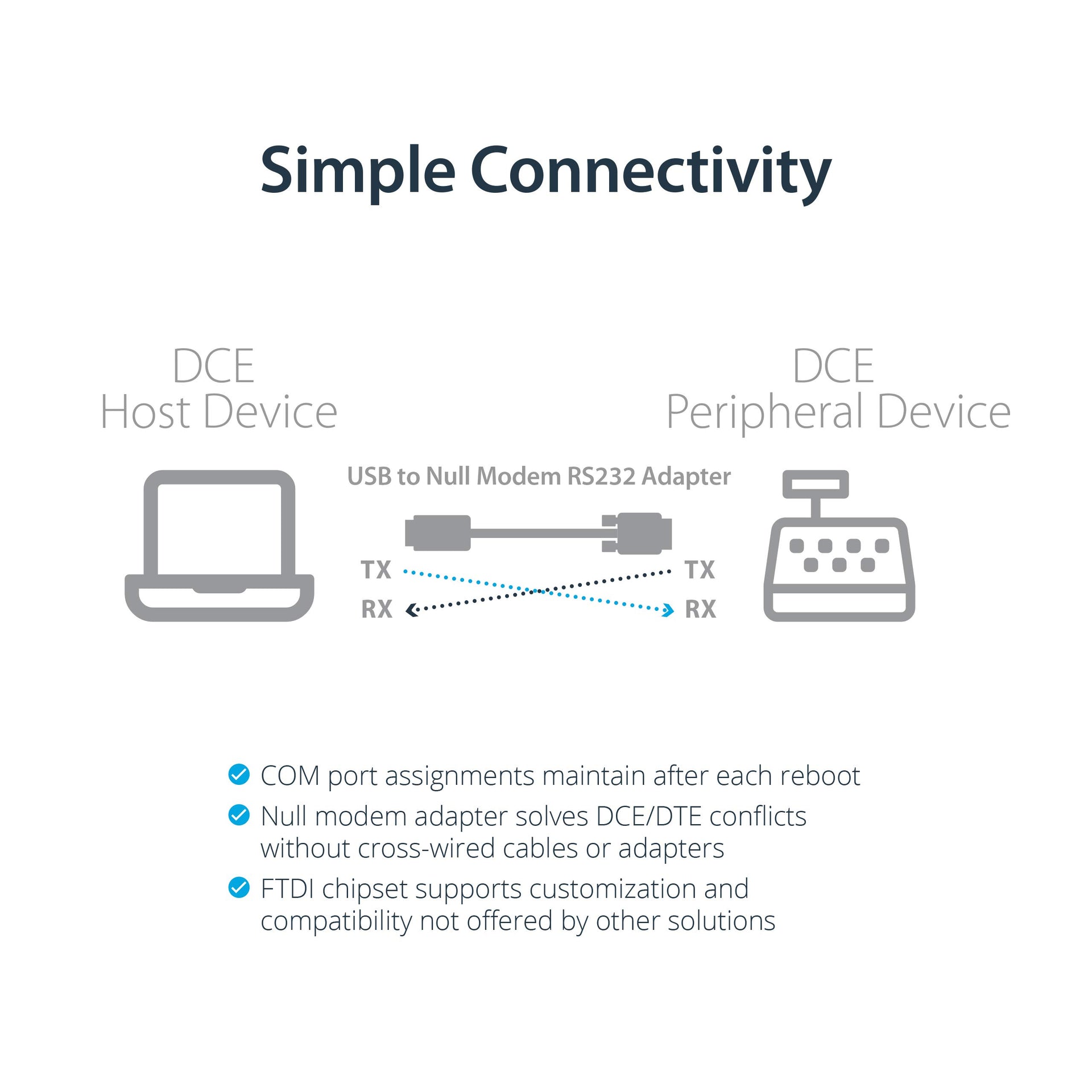

• CORRECT DTE/DCE CONFLICTS: Convert your available USB port into a null modem RS232 DB9 serial port, resolving any DTE/DCE conflicts

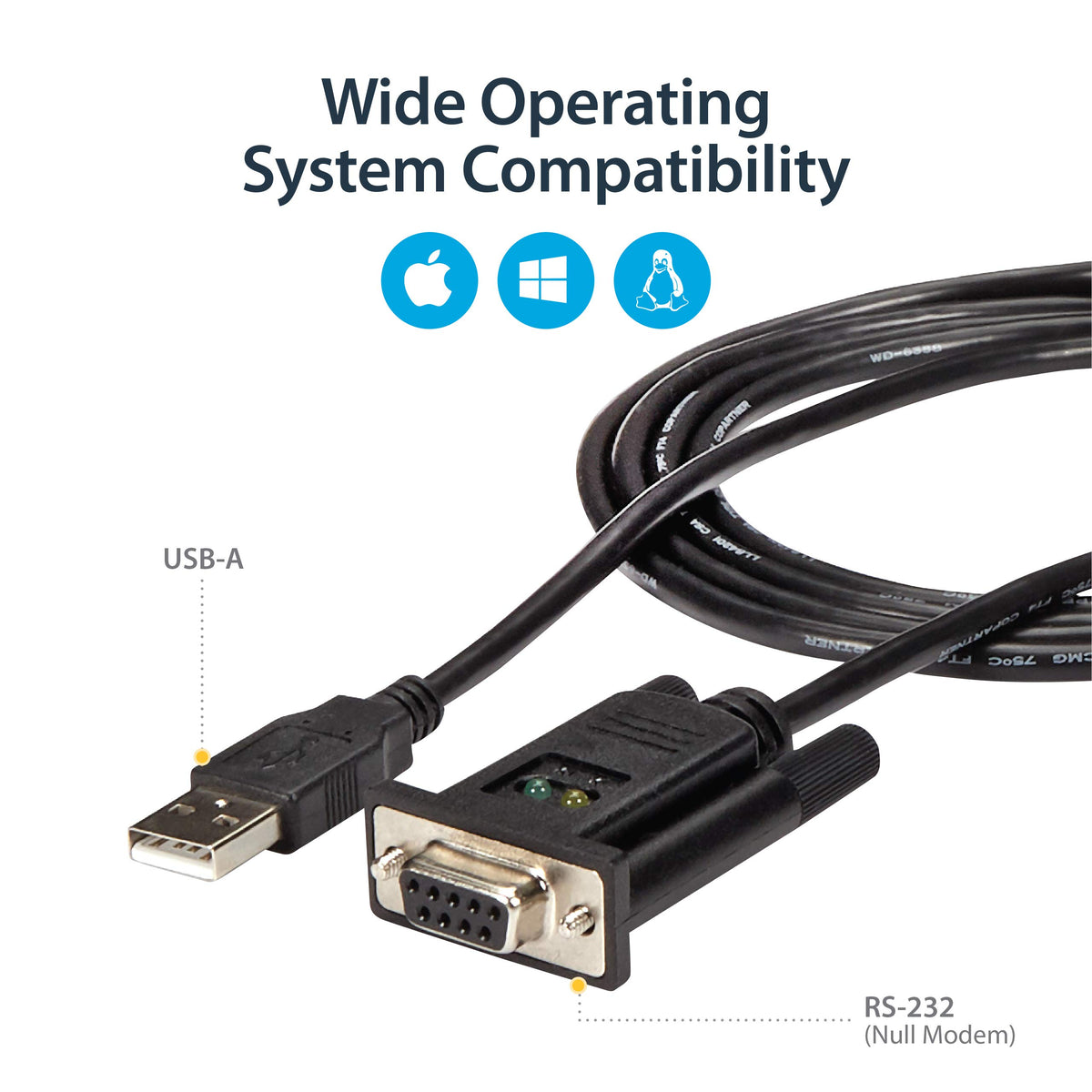

• BROAD COMPATIBILITY: Compatible with your USB 1.0 or 2.0 ports, this RS232 converter works with your Windows, Mac or Linux systems
• FAST TRANSFER SPEEDS: Experience fast speeds with this serial adapter, supporting a Baud Rate up to 921.6Kbps

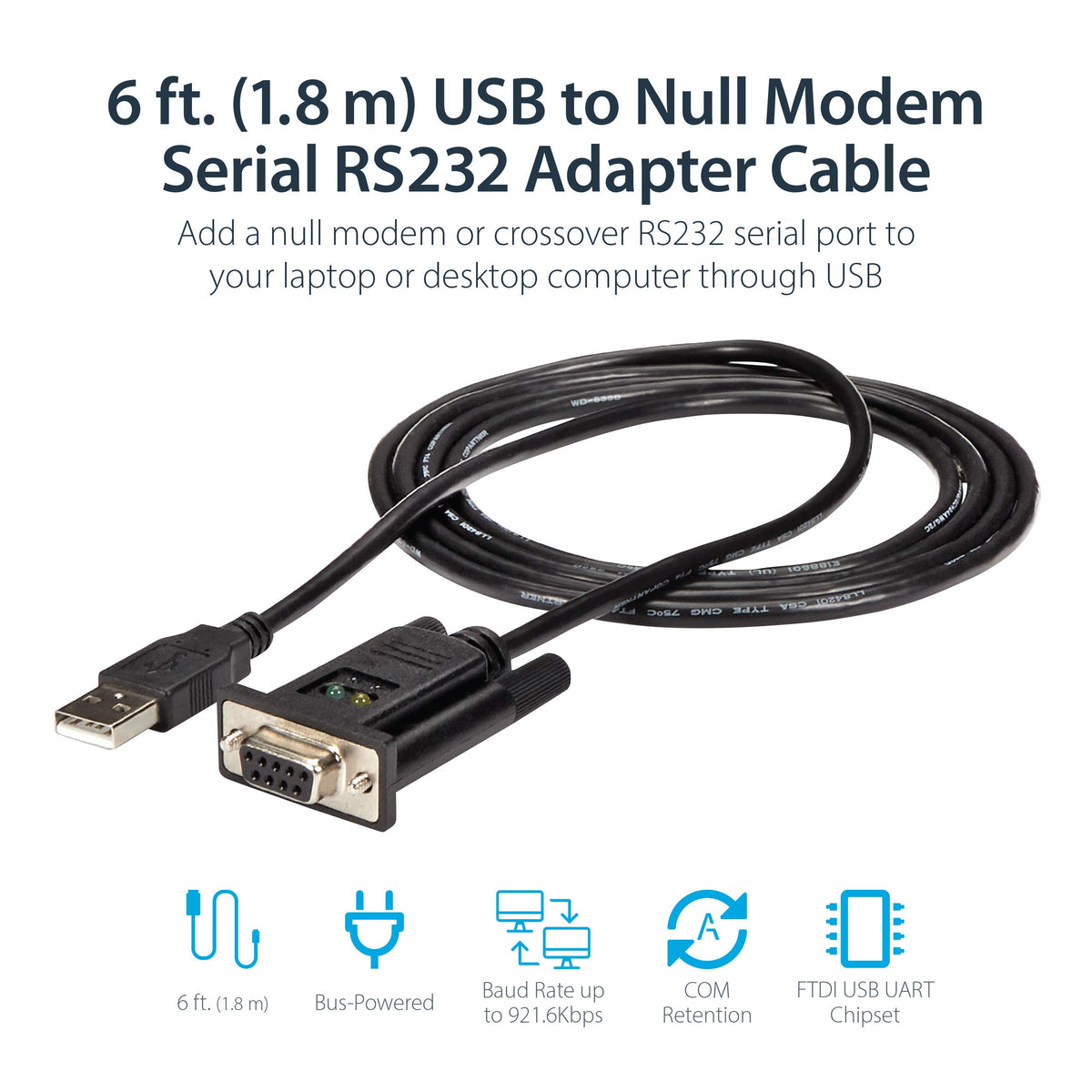

• TECH SPECS: 6 feet (1.8 meters)
• FTDI FT232RL Chipset
• Max Baud Rate: 921.6 Kbps
• 256 Bytes FIFO
• None/Odd/Even/Mark/Space Parity Modes
• 7 or 8 Data Bits
• 1 or 2 Stop bits
• TAA Compliant

Product Details:

• Color: Black
• Size: 5.6ft
• Model: ICUSB232FTN
• Package Quantity: 1
