Description
Brand: Square D
HomeLine Circuit Breakers UL Listed as HACR typePlug-in breakers are for use with HomeLine load centers.

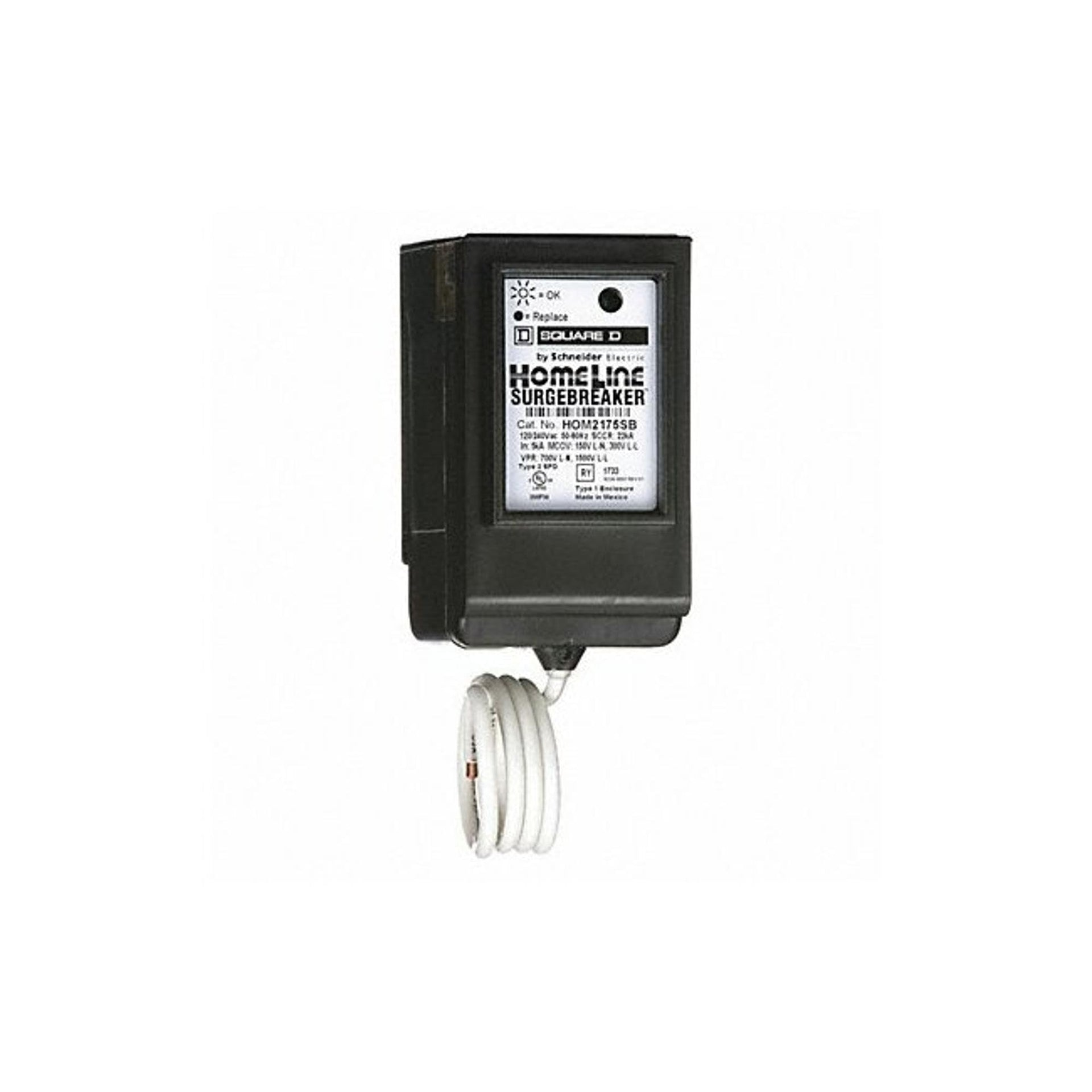

Item: Surge Protection Device
Phase: 1
Voltage: 120/240VAC
Max. Continuing Operating Voltage: 150VAC
Voltage Protection Rating: 700V (L-N), 1500V (L-L)
Nominal Discharge Current: 5kA
Modes of Protection: L-L, L-N
Filtering / Nonfiltering: Nonfiltering
Modular / Nonmodular: Nonmodular
Mounting Style: Pluggable
Enclosure Material: Plastic

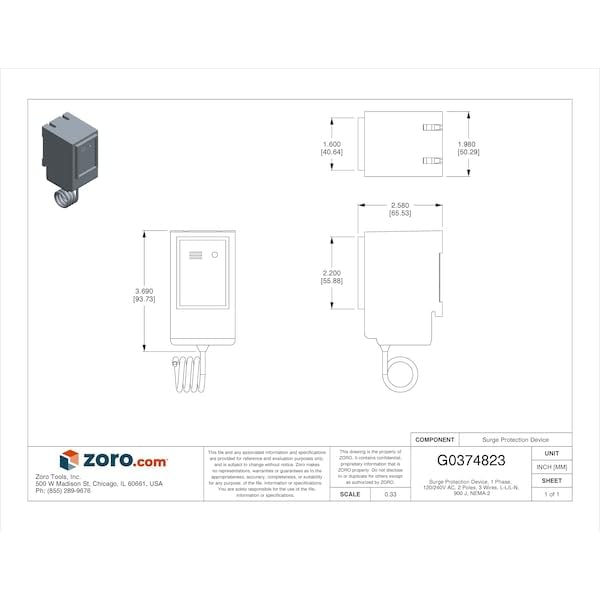

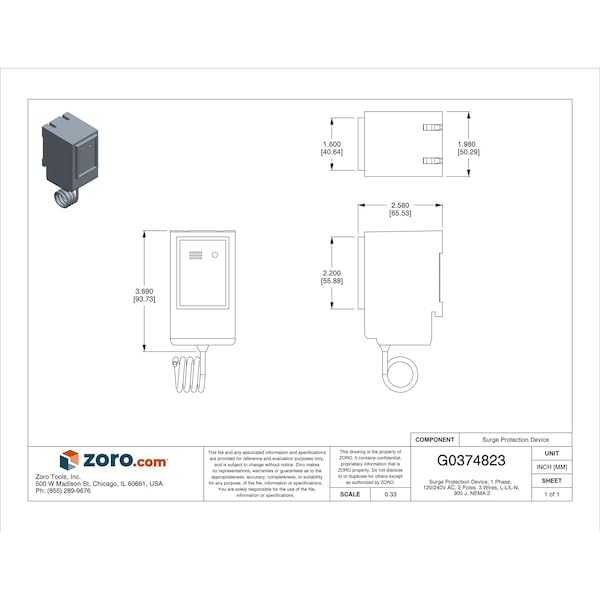

Length: 3.69"
Width: 1.97"
Depth: 2.58"
Joules: 900
Max. Surge Current Per Phase: 22.5kA
Max. Surge Current Per Mode: 22.5kA
Short Circuit Current Rating: 22kA
Number of Poles: 2
Number of Wires: 3 Wires
Standards: UL 1449 3rd Edition CSA C22.3
Includes: LED Status Indicator
• Item: Surge Protection Device
• Phase: 1
• Voltage: 120/240VAC
• Max. Continuing Operating Voltage: 150VAC
• Voltage Protection Rating: 700V (L-N), 1500V (L-L)
HomeLine Circuit Breakers UL Listed as HACR typePlug-in breakers are for use with HomeLine load centers.
Item: Surge Protection Device
Phase: 1
Voltage: 120/240VAC
Max. Continuing Operating Voltage: 150VAC
Voltage Protection Rating: 700V (L-N), 1500V (L-L)
Nominal Discharge Current: 5kA
Modes of Protection: L-L, L-N
Filtering / Nonfiltering: Nonfiltering
Modular / Nonmodular: Nonmodular
Mounting Style: Pluggable
Enclosure Material: Plastic
Length: 3.69"
Width: 1.97"
Depth: 2.58"
Joules: 900
Max. Surge Current Per Phase: 22.5kA
Max. Surge Current Per Mode: 22.5kA
Short Circuit Current Rating: 22kA
Number of Poles: 2
Number of Wires: 3 Wires
Standards: UL 1449 3rd Edition CSA C22.3
Includes: LED Status Indicator
• Item: Surge Protection Device
• Phase: 1
• Voltage: 120/240VAC
• Max. Continuing Operating Voltage: 150VAC
• Voltage Protection Rating: 700V (L-N), 1500V (L-L)
