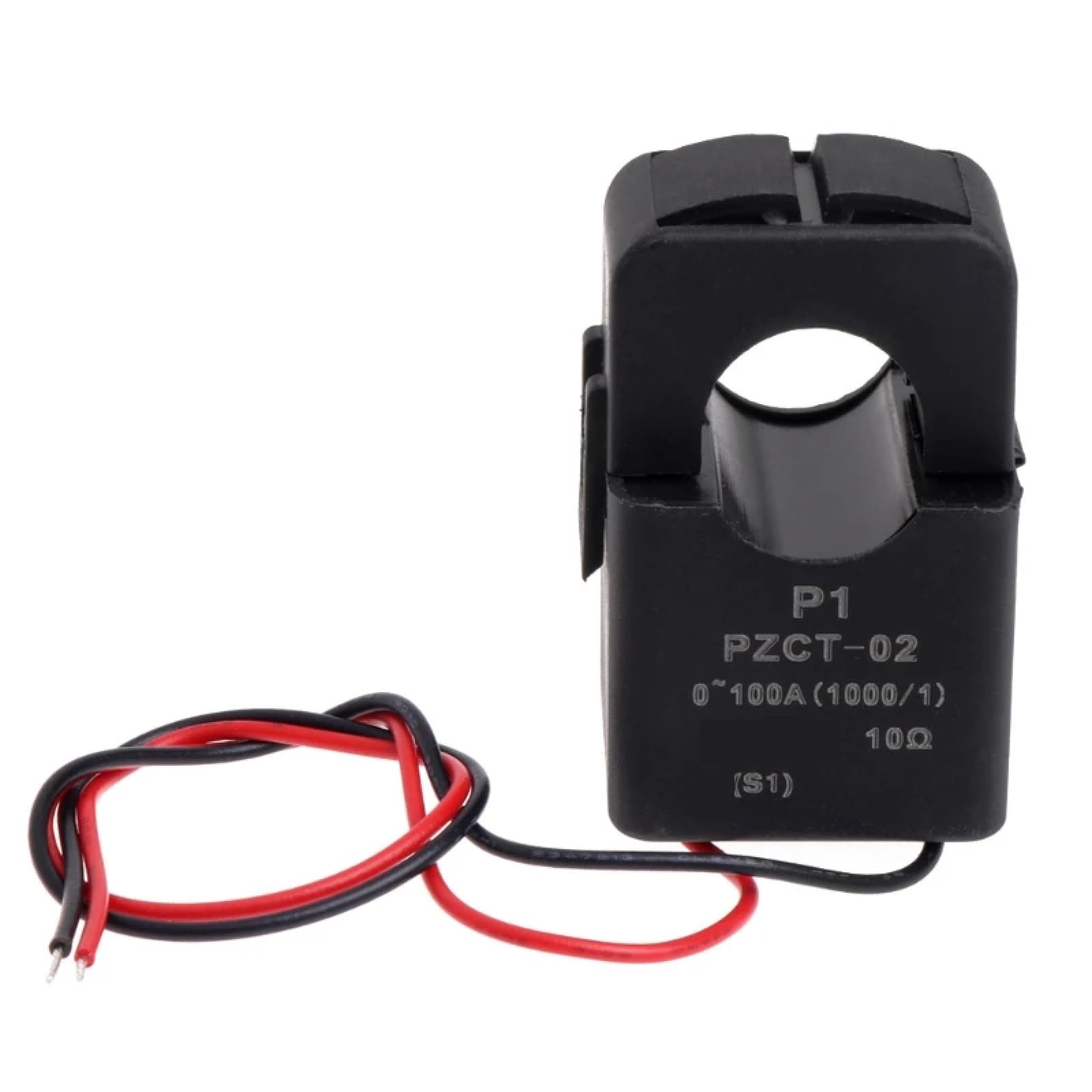

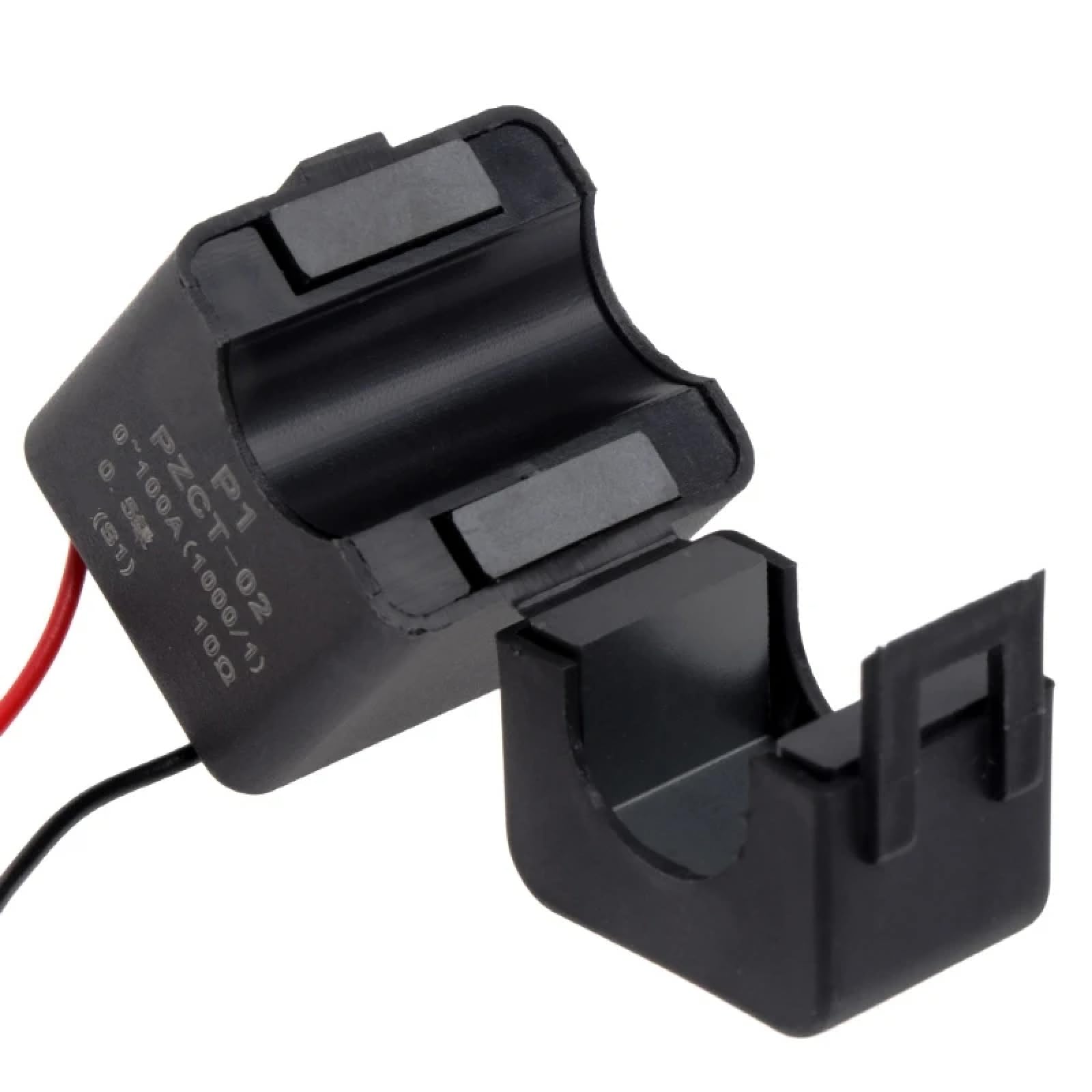

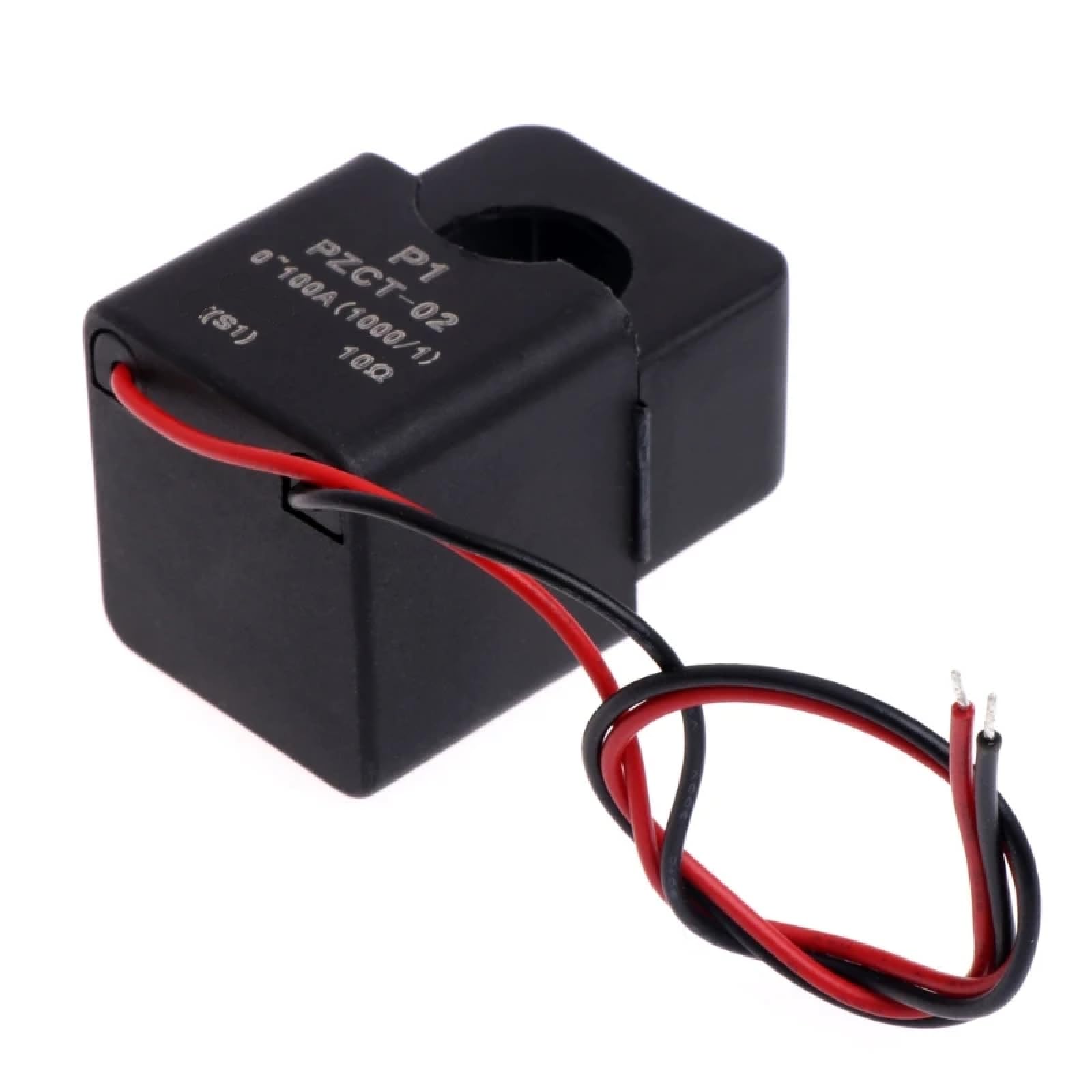

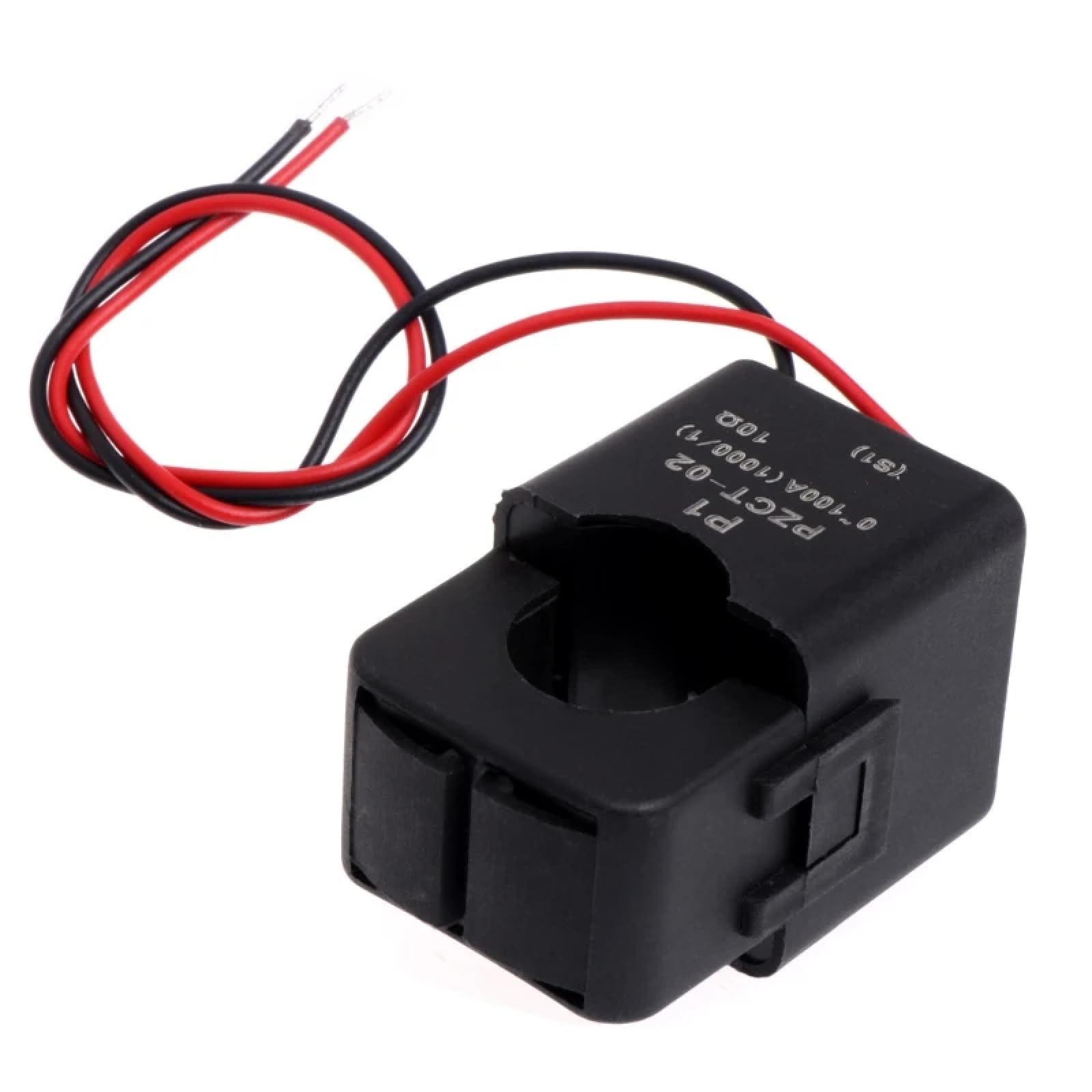

This PZCT-02 split core current transformer is a compact and efficient solution for current measurement in energy metering applications. With its measuring range of 0-100A and compact dimensions of 1.85x1.22x1.14 inches, it's notably smaller than similar products while delivering reliable performance. The transformer features a convenient split design with a 0.63-inch inner hole diameter, allowing for easy installation without power interruption. It operates across a wide temperature range from -40??F to +185??F and supports both 220V and 380V power supplies. The device includes a 7.87-inch wire lead and maintains high isolation capability with >1000M?? insulation resistance. Its fully enclosed design ensures robust mechanical properties, while the joint structure enables straightforward cable mounting using nylon ties. The transformer operates at 50-60Hz frequency with 10?? internal resistance, making it ideal for energy monitoring applications. The black housing provides a professional appearance while offering practical functionality for various electrical measurement needs.

Features

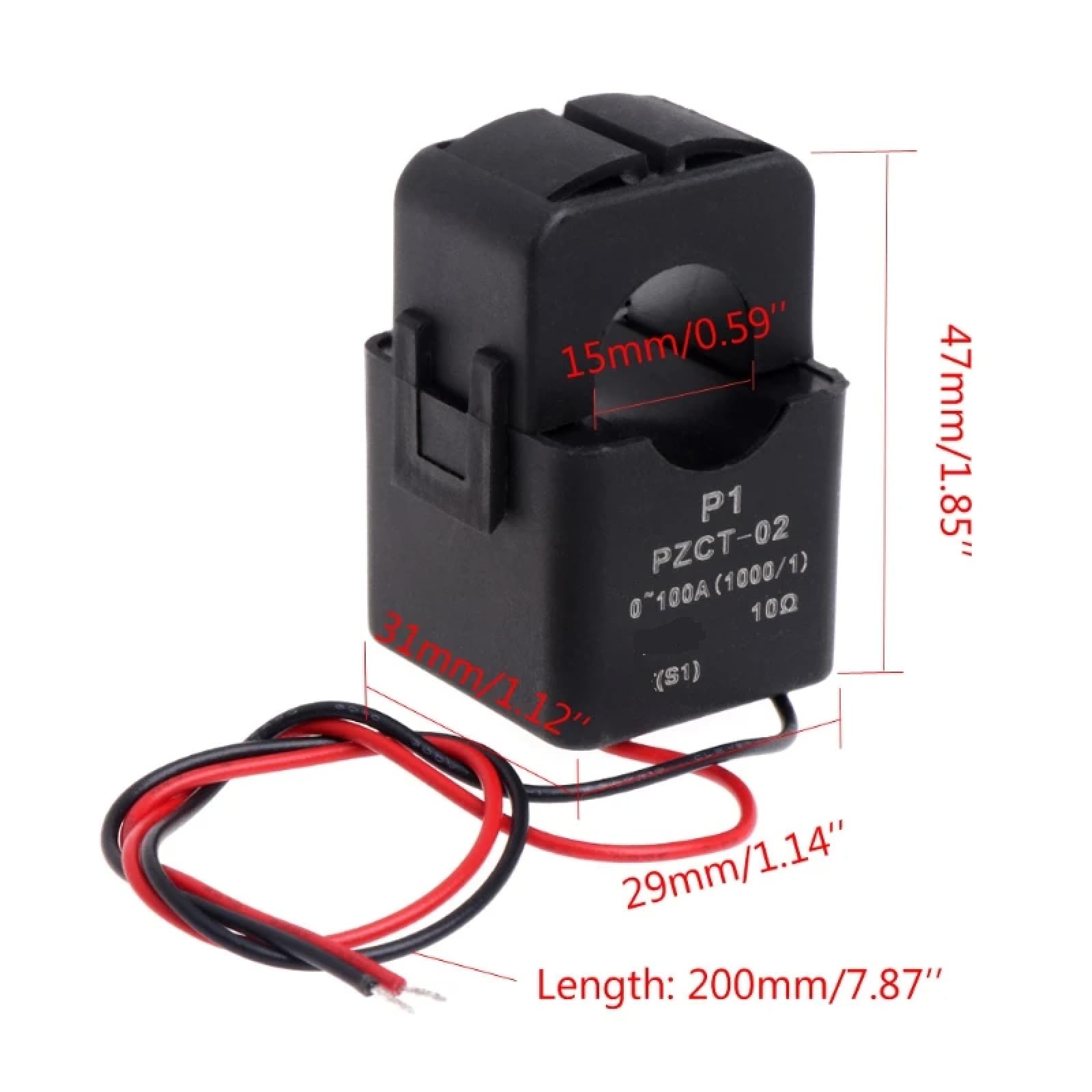

• COMPACT DESIGN: Mini split core current transformer measuring just 1.85x1.22x1.14 inches, featuring a 16mm inner hole diameter and built-in input coil for easy installation
• PERFORMANCE SPECS: Operates at 50-60Hz frequency with 0-100A measuring range, 10?? internal resistance, and high accuracy grade of ?ëñ0.5
• DURABILITY: Robust fully enclosed construction with B grade insulation (130??C), capable of withstanding power frequency of 1000V/minute
• VERSATILE APPLICATION: Compatible with both 220V and 380V power supplies, ideal for energy meter applications with no power interruption required during installation
• TECHNICAL DETAILS: Includes 7.87-inch wire leads, operates in temperatures from -40??F to +185??F, with relative humidity tolerance ?ëñ90% at 104??F

Product details

• Brand: WIOPETON
• Manufacturer: WIOPETON
• Item count: 216
• Package quantity: 1
