Zoom
Description
Brand: SMTAV

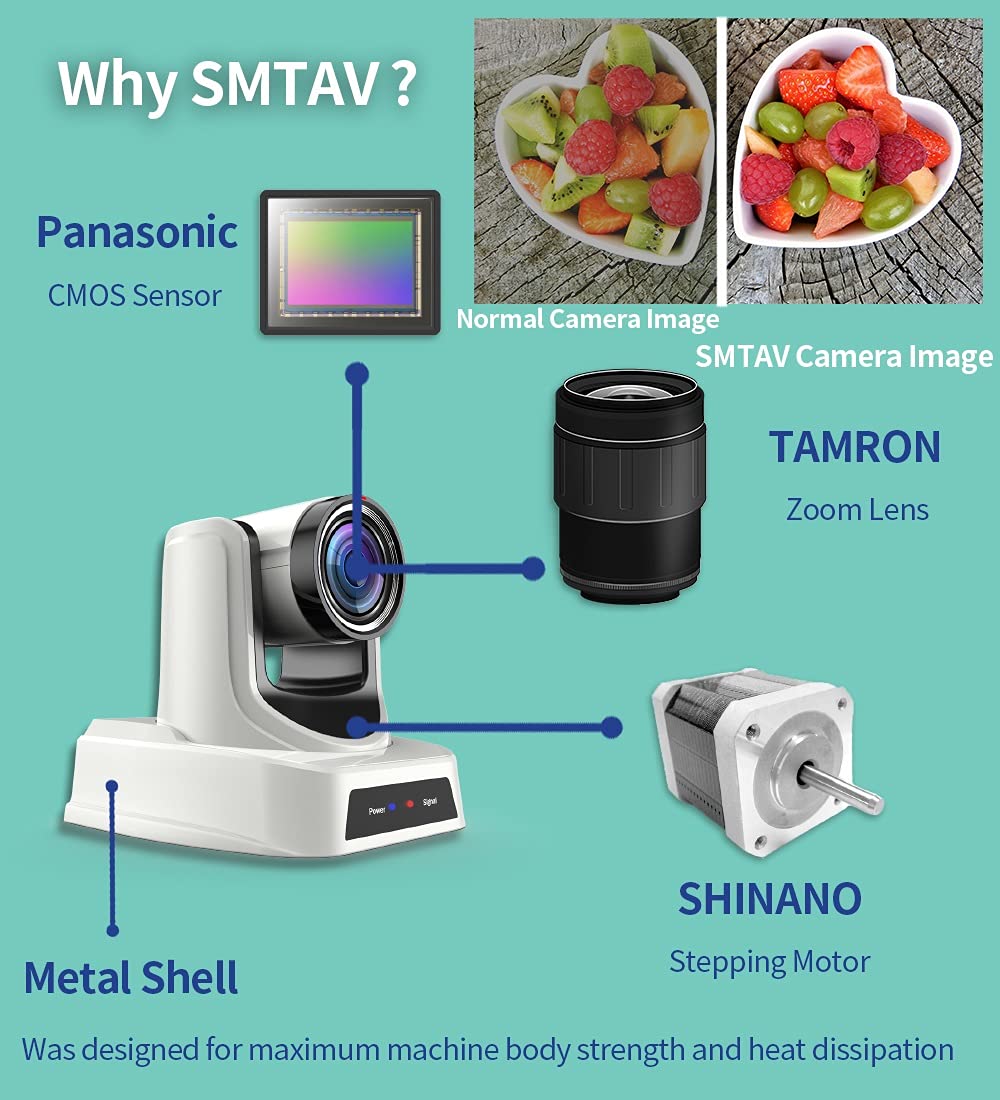

• Apply 1/2.7 inch high quality HD CMOS sensor and TAMRON Lens offers a wide 60.7 degree FOV and support 20x + 16X Zoom.The High SNR of CMOS sensor and 2D&3D Digital noise reduction supports working in 0.5 Lux Low Light well.

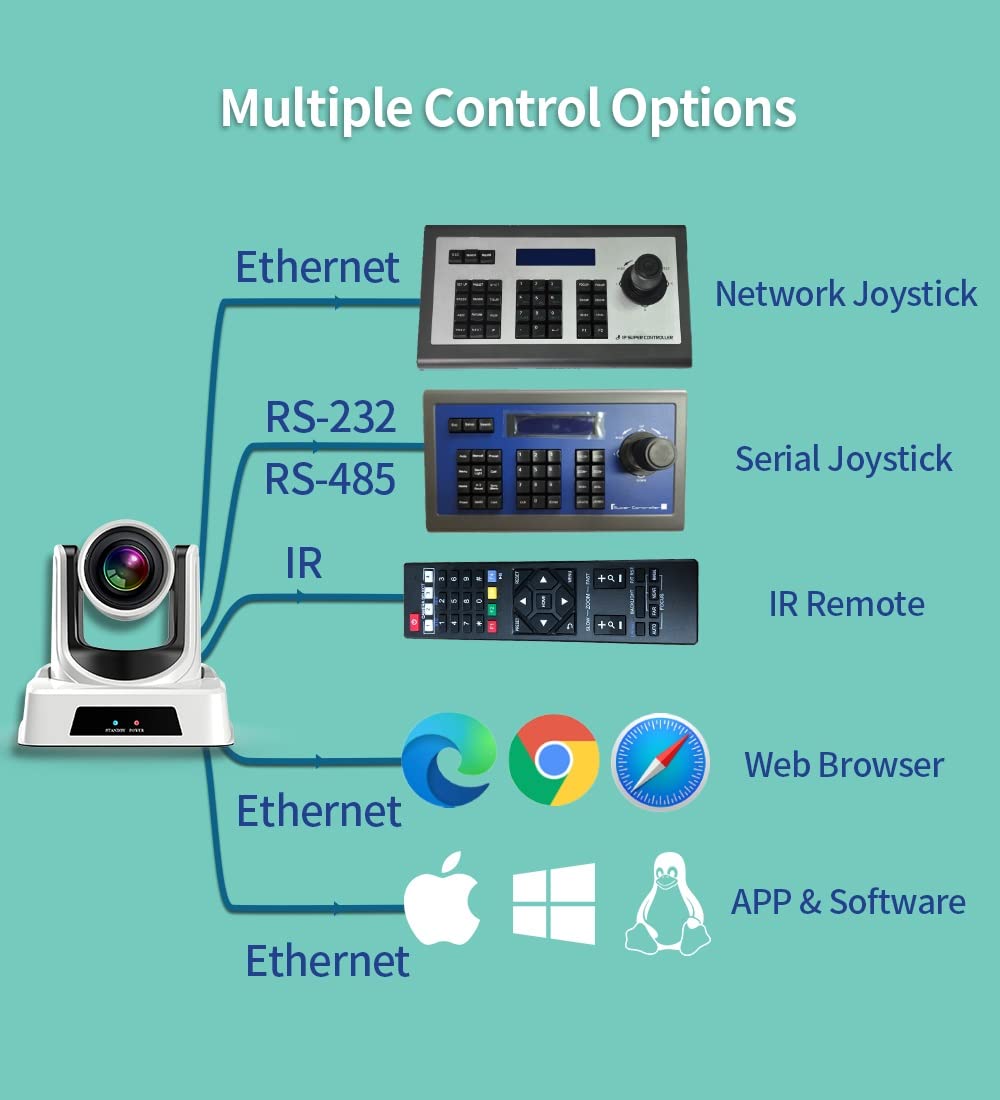

• As a PTZ camera,supports horizontal rotation(-170° to 170°) and vertical rotation(-30° to 90°).It has multiple ways of control, such as the included IR remote controller,CGI/HTTP/Visca/Pelco-D/Pelco-P control via RS485 or RS232 or IP.

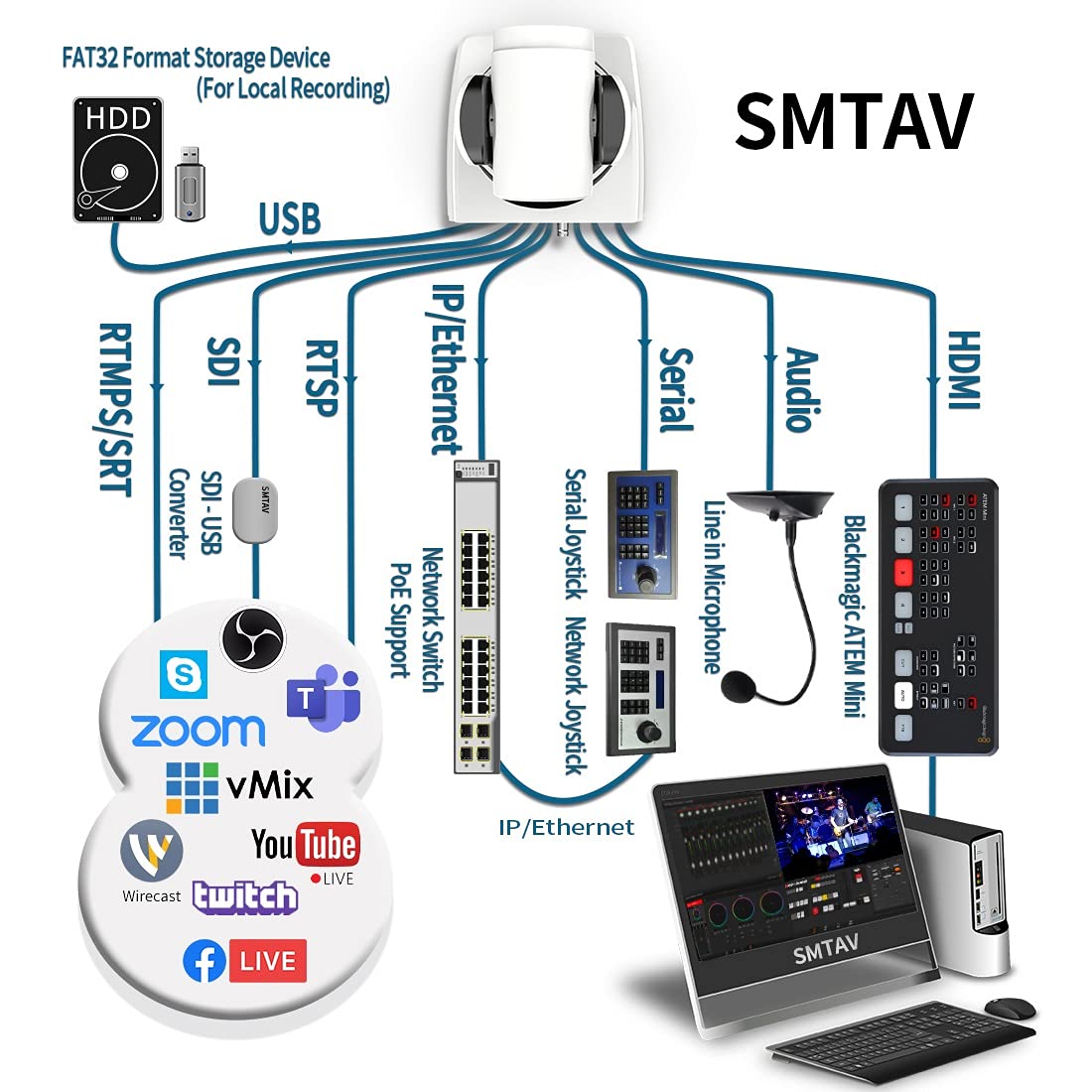

• Is a Full HD professional live streaming camera and video conference camera,it can simultaneously output max 1080p@60fps video from 3G-SDI,HDMI and IP streaming(MJPEG & H.264 & H.265).Support PoE(802.3af) and RTSP, RTMP, SRT and other technologies,ability to support advanced features for live streaming.
• It has a variety of installation modes, which can be used with tripod brackets, wall brackets, and ceiling brackets.For simplicity,we also offer free app to help you setting the camera.? If you need wall or ceiling mount bracket pls serach B08SC4N9J2.?
• What can you get.20X Full HD PTZ Camera,Power adapter,IR remote control,user manual,Serial control cable.Any question, please feel free to contact us, Our support team will reply you within 24 hours.

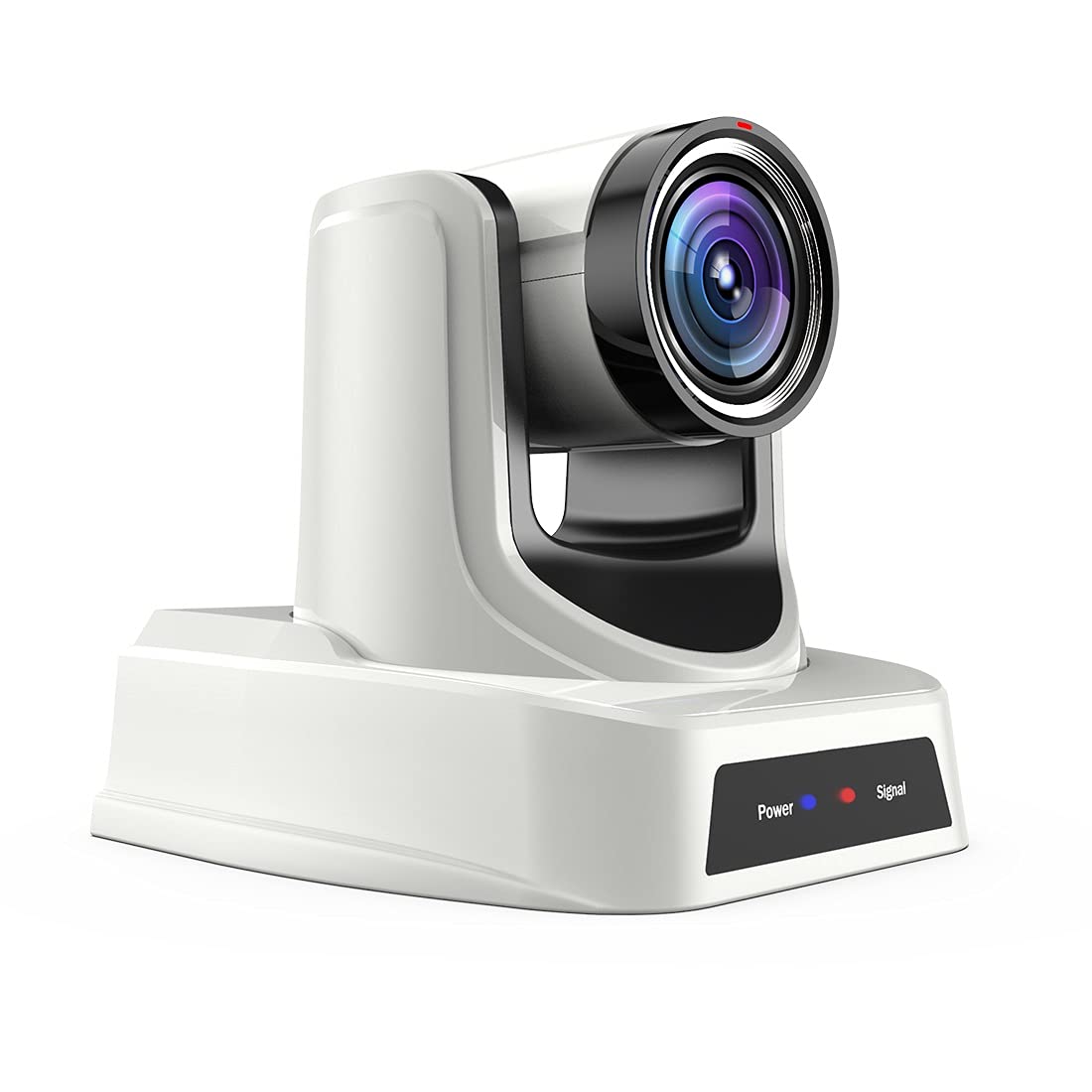

BA20S-W(Color White) is a new design professional Full HD Broadcast and Conference PTZ Camera.It has 20X +16X Zoom and 60.7 degree FOV with 1/2.7 inch high quality HD CMOS sensor.Supports 3G-SDI,HDMI and IP Streaming to output frame rate up to 60fps in 1080P.High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm allows it to keep the picture clean and clear in an Low-light environment of 0.5 Lux.Support TCP/IP,HTTP,RTSP,RTMP,DHCP,Multicast,VISCA/Pelco-D/Pelco-P protocols etc.Is a ideal use for Live Streaming,Broadcast,Conference,Events,Church and School etc
Sensor:1/2.7'',CMOS,Effective Pixel:2.07M
Scanning:Progressive
Lens:20x,f4.42mm~88.5mm,F1.8~F2.8
Digital Zoom:16x
Video Output:1080p/60,1080p/50,1080i/60,1080i/50,1080p/30,1080p/25,720p/60,720p/50,720p/30,720p/25,640x480p/240,480i,576i
Video Compression:H.265/H.264/MJEPG
Minimal Illumination:0.5Lux@(F1.8,AGC ON)
Shutter:1/30s~1/10000s
Digital Noise Reduction:2D/3D Digital Noise Reduction
Video S/N:?55dB
Horizontal/Vertical Angle of View:60.7°~3.36°/34.1°~1.89°
Horizontal Rotation Range:±170°
Vertical Rotation Range:-30°~+90°
Pan Speed Range:1.7°~100°/s
Tilt Speed Range:1.7°~69.9°/s
Backlight Compensation:Support
H/V Flip:Support
Image Freeze:Support
Number of Preset:255
Preset Accuracy:0.1°
HD Output:1x3G-SDI,1xHDMI
SD Output:1xCVBS
Network Interface:1xRJ45
Audio Interface:1x3.5mm Audio Interface,Line In
USB Interface:1xUSB2.0 Type A
Communication Interface:1xRS485(2pin Phoenix Port),1xRS232 In(8pin Min DIN),1xRS232 Out(8pin Min DIN)
Power Jack:JEITA type(DC IN 12V)
MTBF: >30000h
Size:169mmx142mmx164mm
Net Weight:1.35Kg(3.0lb)
• Apply 1/2.7 inch high quality HD CMOS sensor and TAMRON Lens offers a wide 60.7 degree FOV and support 20x + 16X Zoom.The High SNR of CMOS sensor and 2D&3D Digital noise reduction supports working in 0.5 Lux Low Light well.
• As a PTZ camera,supports horizontal rotation(-170° to 170°) and vertical rotation(-30° to 90°).It has multiple ways of control, such as the included IR remote controller,CGI/HTTP/Visca/Pelco-D/Pelco-P control via RS485 or RS232 or IP.
• Is a Full HD professional live streaming camera and video conference camera,it can simultaneously output max 1080p@60fps video from 3G-SDI,HDMI and IP streaming(MJPEG & H.264 & H.265).Support PoE(802.3af) and RTSP, RTMP, SRT and other technologies,ability to support advanced features for live streaming.
• It has a variety of installation modes, which can be used with tripod brackets, wall brackets, and ceiling brackets.For simplicity,we also offer free app to help you setting the camera.? If you need wall or ceiling mount bracket pls serach B08SC4N9J2.?
• What can you get.20X Full HD PTZ Camera,Power adapter,IR remote control,user manual,Serial control cable.Any question, please feel free to contact us, Our support team will reply you within 24 hours.
