Description
Brand: SMTAV

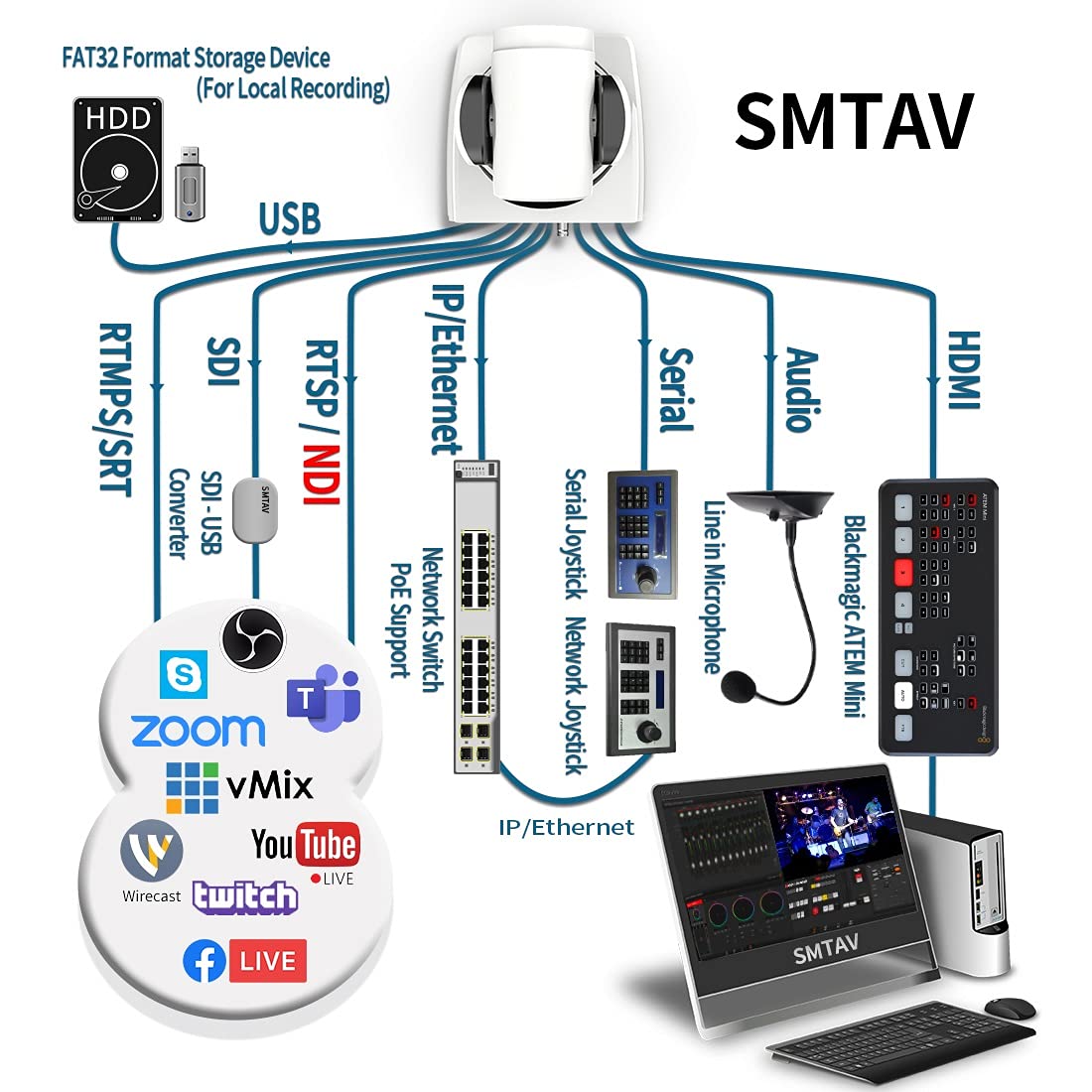

• With NDI Technology,Support power, audio, control and lower-latency video with only one Ethernet cable.Easy integration with industry popular video APP (including OBS, vMix, Livestream Studio,Wirecast and more).

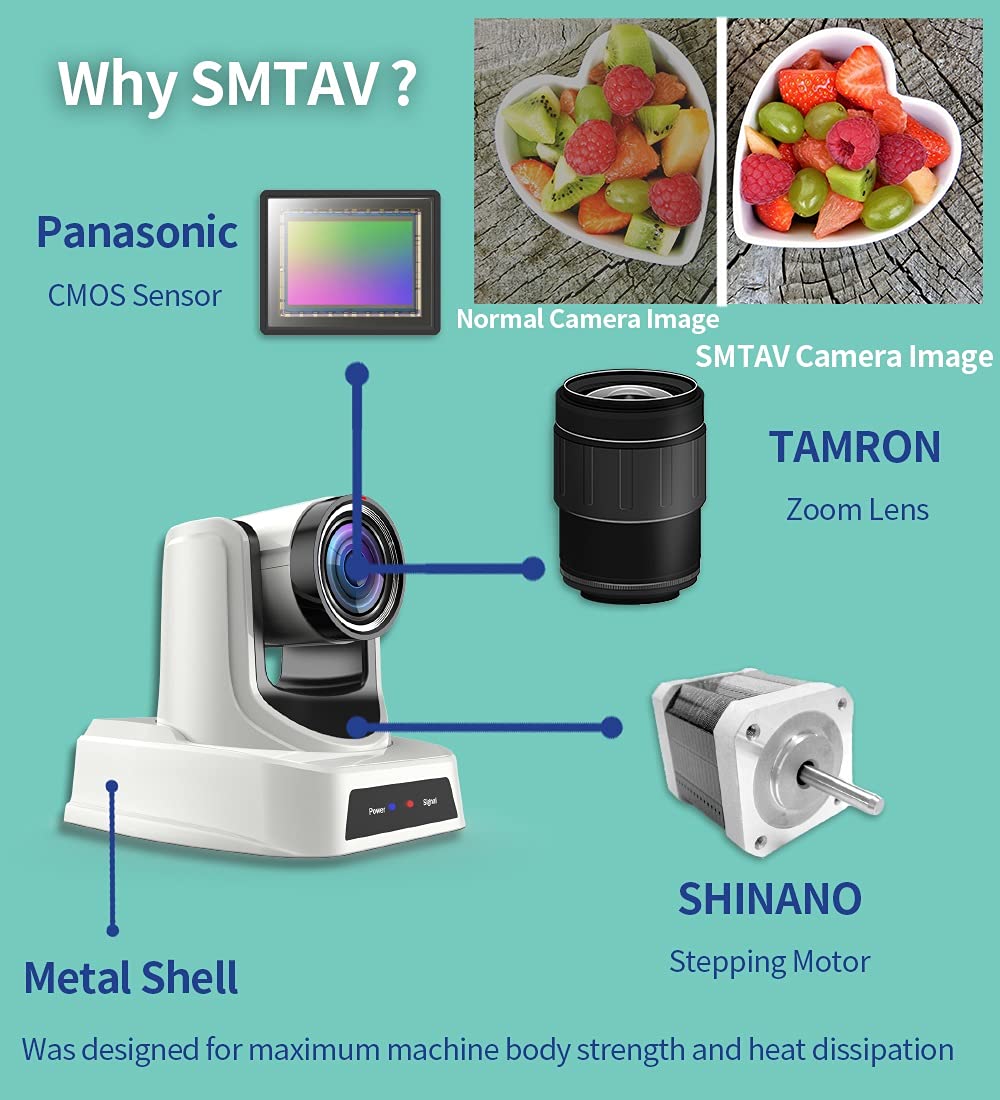

• Apply 1/2.7 inch CMOS sensor and TAMRON lens(Maximum Aperture F1.8) offers a wide 60.7 degree FOV and support 20x + 16x zoom.The High SNR of CMOS sensor and WDR, 2D&3D Digital noise reduction supports working in LOW illumination.Hold your streaming in low lighting with this ptz camera.
• As a PTZ camera,supports horizontal rotation(-170° to 170°) and vertical rotation(-30° to 90°).It has multiple ways of control, such as the included IR remote controller,NDI PTZ/CGI/HTTP/Visca/Pelco-D/Pelco-P control via RS485 or RS232 or IP.Compatible with Ptzoptics App.
• Is a Full HD live streaming camera and video conference camera,it can simultaneously output max 1080p@60fps video from NDI,3G-SDI,HDMI and IP streaming(MJPEG & H.264 & H.265).Support NDI, PoE(802.3af), RTSP, RTMP, SRT and other technologies,ability to support advanced features for live streaming.
• Flexible and easy-to-use installation options. LINE IN audio embeded simultaneous on NDI, HDMI and IP, powered by POE or the included power adapter, and can be installed on a wall bracket, ceiling bracket, or tripod bracket.? If you need wall or ceiling mount bracket pls serach B08SC4N9J2.?

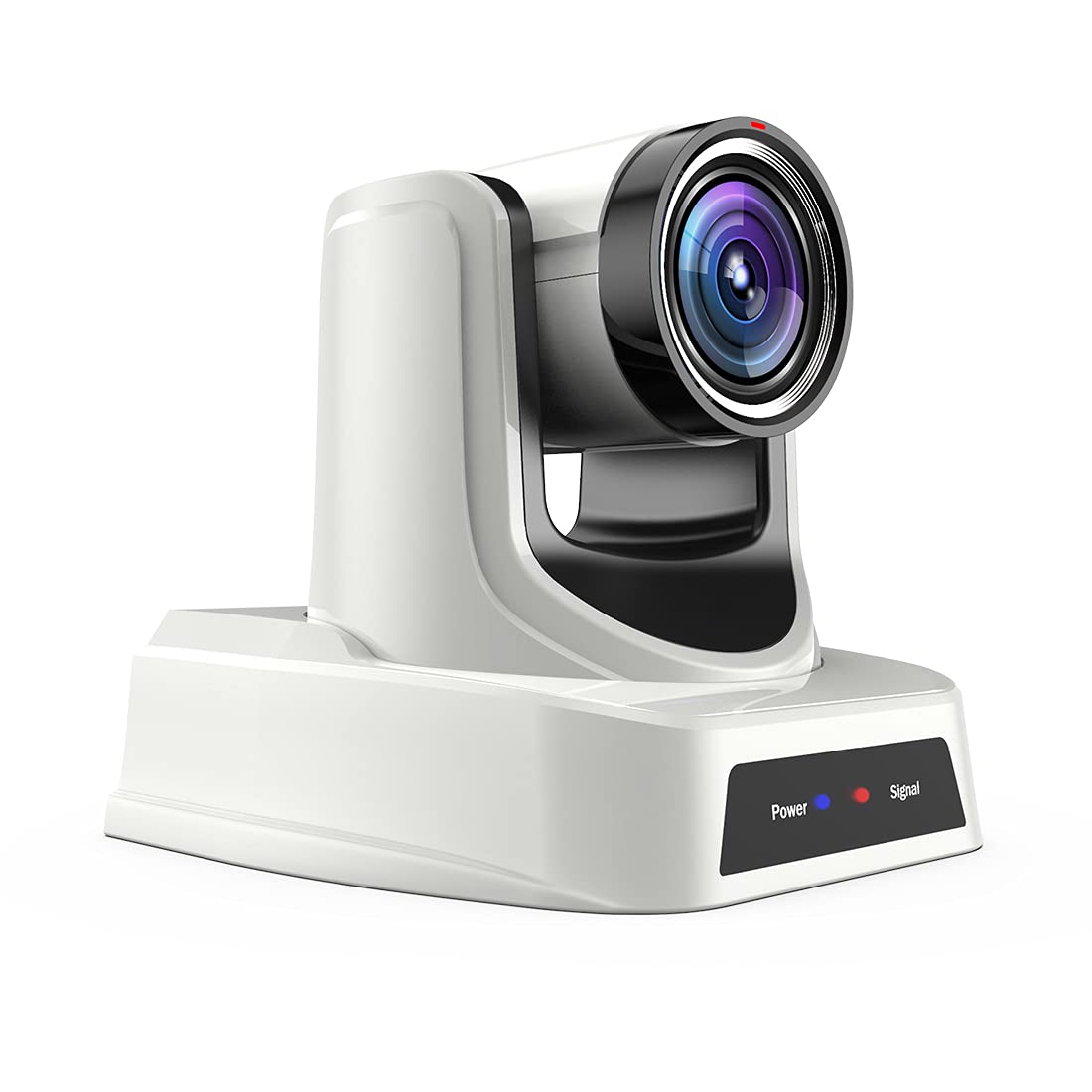

BA20N-W is a White color design professional NDI PTZ Camera.It has 20X + 16X Zoom and 60.7 degree FOV with 1/2.7 inch high quality HD CMOS sensor.TAMRON lens has large aperture of maximum F1.8 can get more light and achieve better background blur effects, especially close-up at the telephoto.
Supports NDI,3G-SDI,HDMI and IP Streaming to output frame rate up to 60fps in 1080P.Support NDI, NDI|HX, NDI|HX2,TCP/IP,HTTP,RTSP,RTMP,DHCP,Multicast,VISCA/Pelco-D/Pelco-P protocols etc.Features of broadcast frame rates and NDI, create more artistic possibilities.So,it is a ideal use for Live Streaming,Conference,Church,Teaching,Esports,Fitness Classes and Cooking demonstrations and more.
NDI Support:NDI, NDI|HX, NDI|HX2, NDI PTZ
Sensor:1/2.7'',CMOS,Effective Pixel:2.07M
Scanning:Progressive
Lens:20x,f4.42mm~88.5mm,F1.8~F2.8
Digital Zoom:16x
Video Output:1080p/60,1080p/50,1080i/60,1080i/50,1080p/30,1080p/25,720p/60,720p/50,720p/30,720p/25,etc
Video Compression:H.265/H.264/MJEPG
Minimal Illumination:0.5Lux@(F1.8,AGC ON)
Shutter:1/30s~1/10000s
Digital Noise Reduction:2D/3D Digital Noise Reduction
Video S/N:?55dB
Horizontal/Vertical Angle of View:60.7°~3.36°/34.1°~1.89°
Horizontal Rotation Range:±170°
Vertical Rotation Range:-30°~+90°
Pan Speed Range:1.7°~100°/s
Tilt Speed Range:1.7°~69.9°/s
Backlight Compensation:Support
H/V Flip:Support
Image Freeze:Support
Number of Preset:255
Preset Accuracy:0.1°
HD Output:1x3G-SDI,1xHDMI
SD Output:1xCVBS
Network Interface:1xRJ45
Audio Interface:1x3.5mm Audio Interface,Line In
USB Interface:1xUSB2.0 Type A
Communication Interface:1xRS485(2pin Phoenix Port),1xRS232 In(8pin Min DIN),1xRS232 Out(8pin Min DIN)
Power Jack:JEITA type(DC IN 12V)
• With NDI Technology,Support power, audio, control and lower-latency video with only one Ethernet cable.Easy integration with industry popular video APP (including OBS, vMix, Livestream Studio,Wirecast and more).
• Apply 1/2.7 inch CMOS sensor and TAMRON lens(Maximum Aperture F1.8) offers a wide 60.7 degree FOV and support 20x + 16x zoom.The High SNR of CMOS sensor and WDR, 2D&3D Digital noise reduction supports working in LOW illumination.Hold your streaming in low lighting with this ptz camera.
• As a PTZ camera,supports horizontal rotation(-170° to 170°) and vertical rotation(-30° to 90°).It has multiple ways of control, such as the included IR remote controller,NDI PTZ/CGI/HTTP/Visca/Pelco-D/Pelco-P control via RS485 or RS232 or IP.Compatible with Ptzoptics App.
• Is a Full HD live streaming camera and video conference camera,it can simultaneously output max 1080p@60fps video from NDI,3G-SDI,HDMI and IP streaming(MJPEG & H.264 & H.265).Support NDI, PoE(802.3af), RTSP, RTMP, SRT and other technologies,ability to support advanced features for live streaming.
• Flexible and easy-to-use installation options. LINE IN audio embeded simultaneous on NDI, HDMI and IP, powered by POE or the included power adapter, and can be installed on a wall bracket, ceiling bracket, or tripod bracket.? If you need wall or ceiling mount bracket pls serach B08SC4N9J2.?
