Description
Brand: LOAMLIN

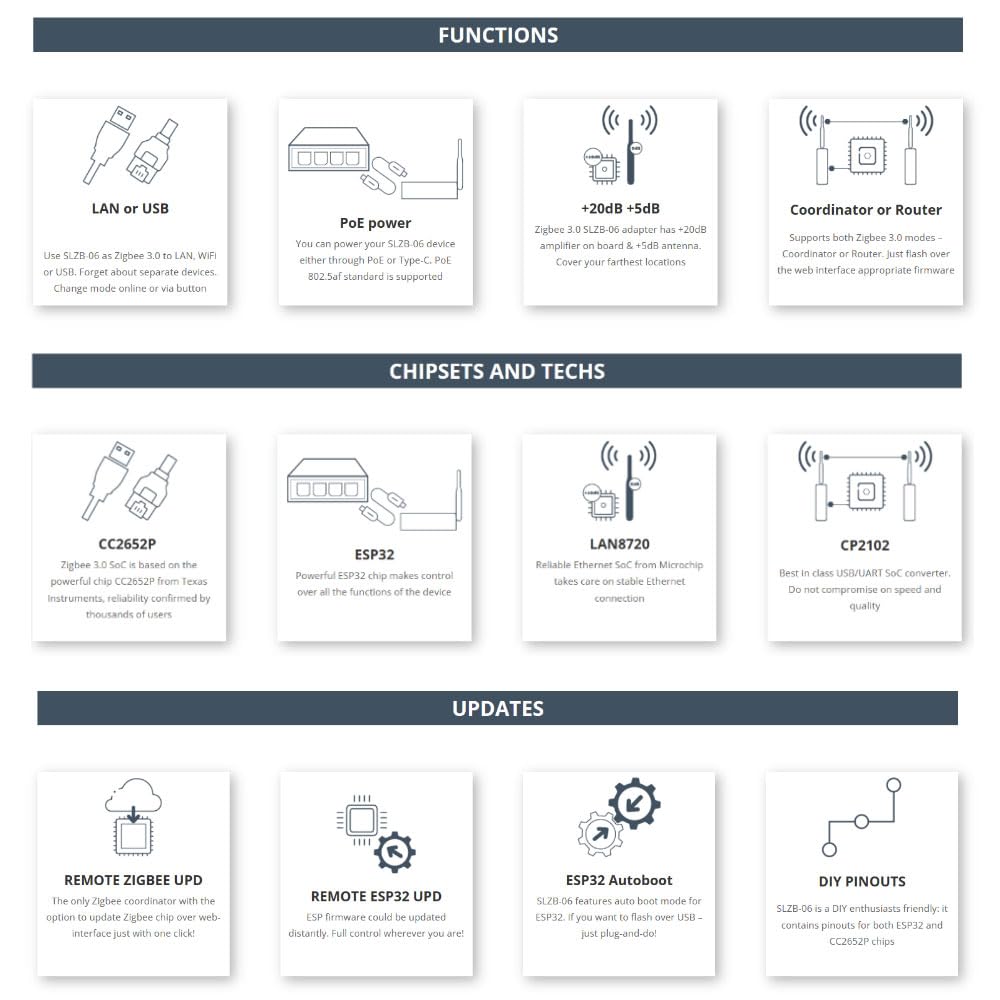

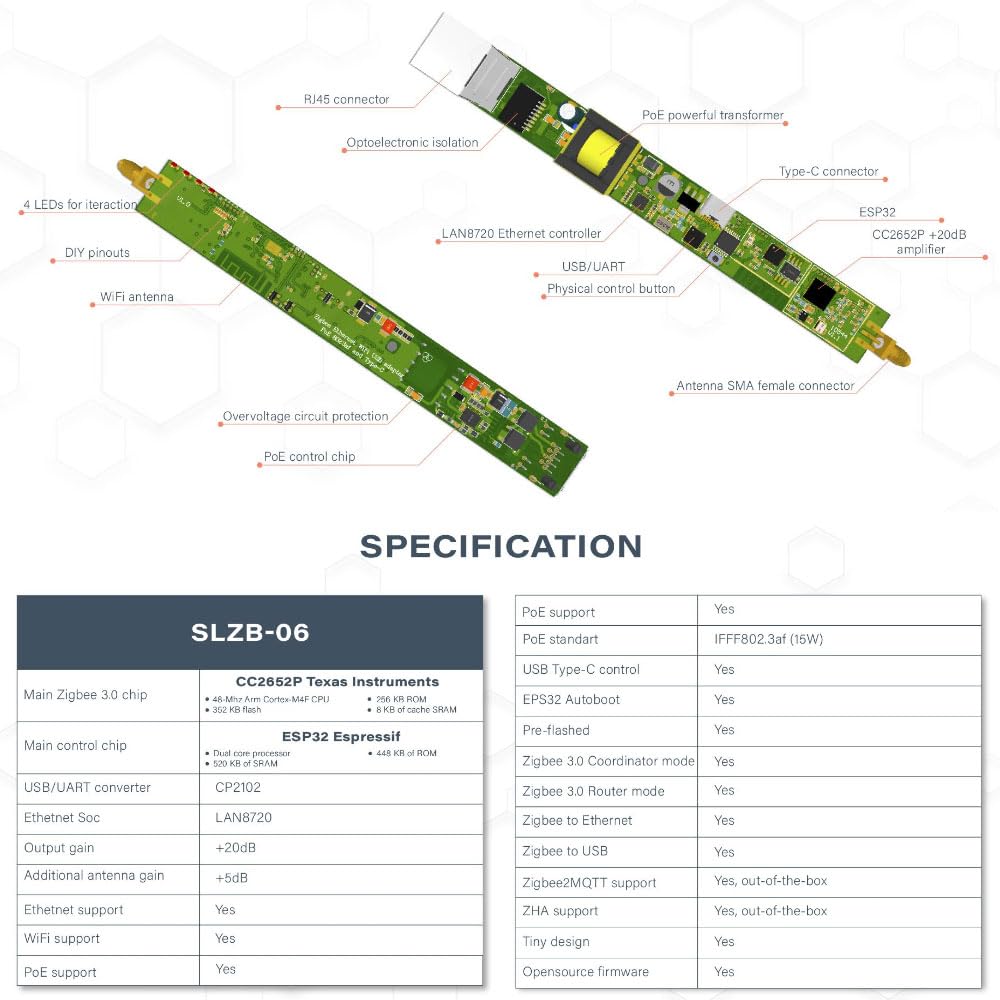

<b>SLZB-06 specifications:</b> <br> ?<b>Wireless SoCs</b><br> ?Texas Instruments CC2652P1FRGZR Arm Cortex-M4F microcontroller @ 48 MHz with 352KB flash, 256KB ROM for protocols and library functions, 80+8KB SRAM, integrated power amplifier, Bluetooth 5.2 Low Energy and 802.15.4 radios<br> ?Espressif Systems ESP32-DOWDQ5-V3 dual-core processor @ 240MHz with 448 KB ROM, 520 KB SRAM, 16 KB SRAM in RTC, WiFi and BLE connectivity<br> ?<b>Connectivity</b><br> ?Ethernet RJ45 port with PoE support (IEEE 802.3af) implemented through Microchip LAN8720 10/100M Ethernet controller<br> ?2.4 GHz WiFi up to 100 Mbps<br> ?Zigbee 3.0 support<br> ?+5dB SMA antenna included<br> ?USB - USB Type-C port for data and power<br> ?Misc - 4x user LEDs, 1x button<br> ?Power Supply<br> oInput - 5V/200mA via USB or PoE<br> ?Dimensions - 160 x 26 x 22mm<br> ?Operating temperature: +5?C - +35?C<br> <br> <b>Note:</b><br> ?SLZB-06 designed to work with Zigbee2MQTT or ZHA integration. <br>

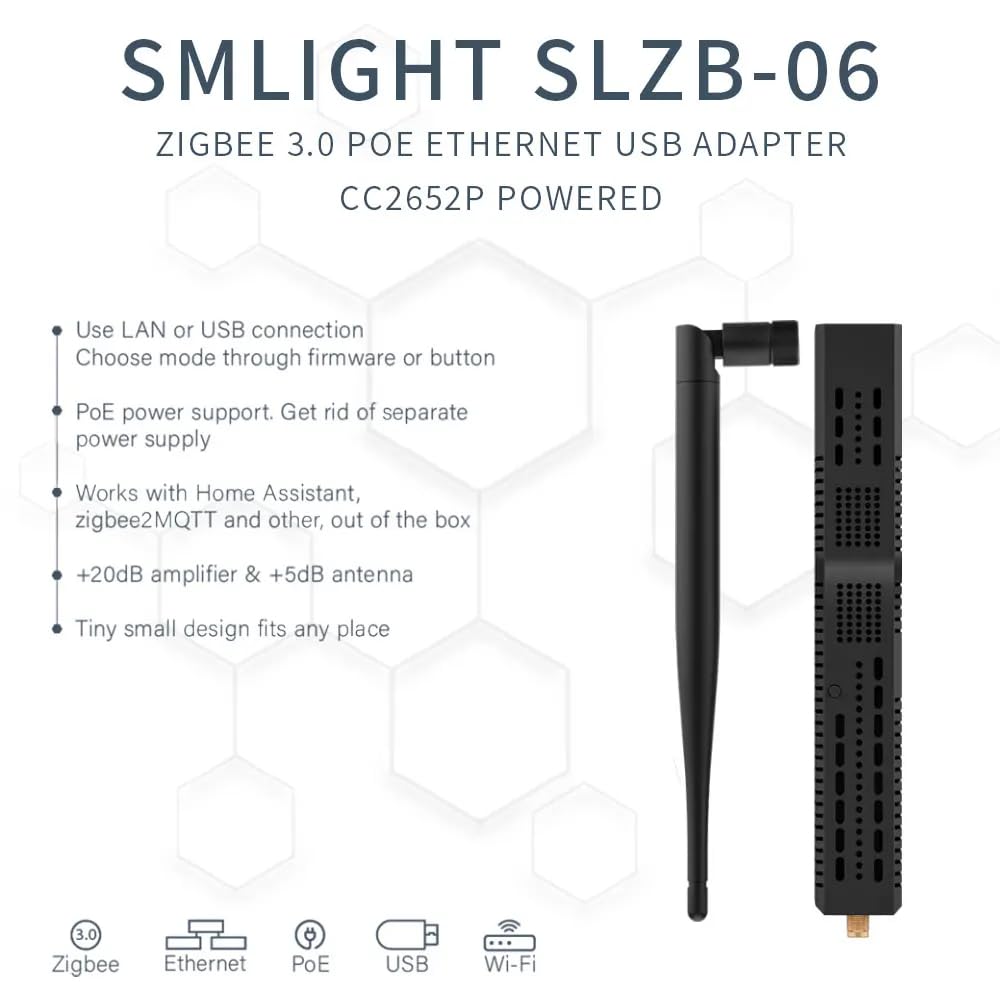

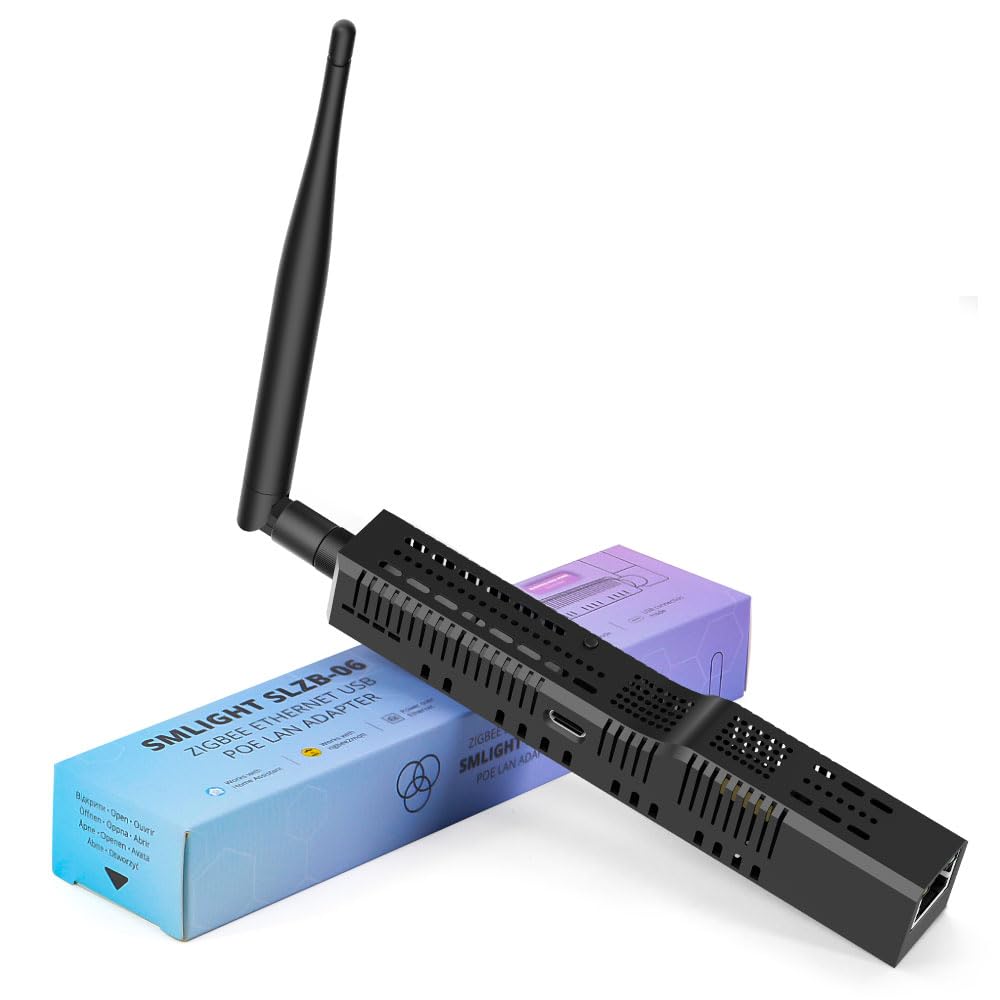

• 1.SLZB-06 is a Zigbee to Ethernet/USB/WiFi adapter with POE support, comes pre-flashed and ready to use. Can be used as a Zigbee 3.0 gateway in the open source automation platforms - Zigbee2MQTT, Home Assistant, ZHA.
• 2.Works in both modes - LAN and USB. Mode can be changed in firmware or via button.

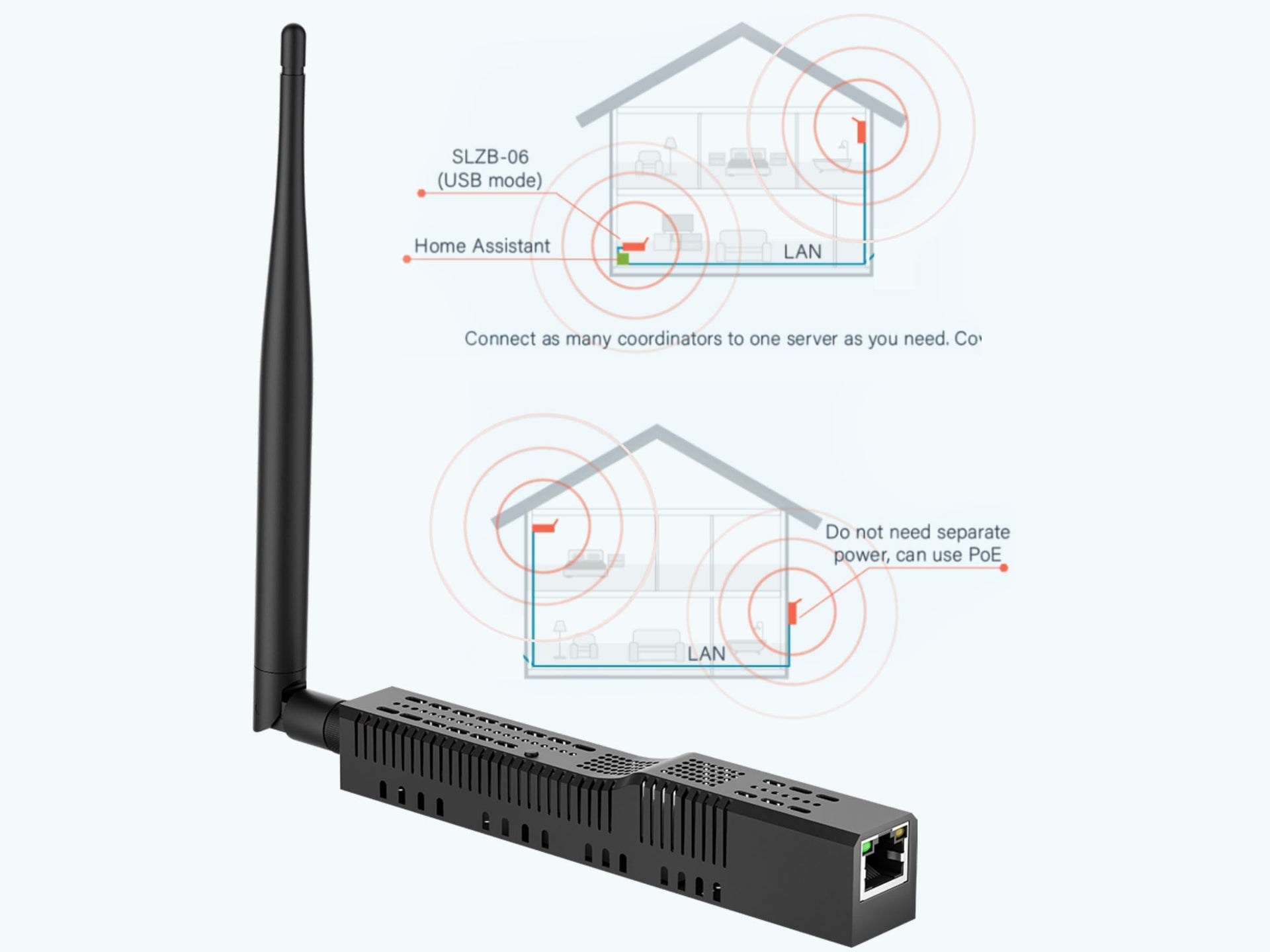

• 3.Can add as many Zigbee coordinators to one server as you want. So you can easily cover different rooms, buildings and connect them to the same Home Assistant instance.
• 4.You can power the device through POE or type-C.
• 5.Zigbee SoC CC2652P features +20dB gain, +5dB antenna included.
Color: Black
<b>SLZB-06 specifications:</b> <br> ?<b>Wireless SoCs</b><br> ?Texas Instruments CC2652P1FRGZR Arm Cortex-M4F microcontroller @ 48 MHz with 352KB flash, 256KB ROM for protocols and library functions, 80+8KB SRAM, integrated power amplifier, Bluetooth 5.2 Low Energy and 802.15.4 radios<br> ?Espressif Systems ESP32-DOWDQ5-V3 dual-core processor @ 240MHz with 448 KB ROM, 520 KB SRAM, 16 KB SRAM in RTC, WiFi and BLE connectivity<br> ?<b>Connectivity</b><br> ?Ethernet RJ45 port with PoE support (IEEE 802.3af) implemented through Microchip LAN8720 10/100M Ethernet controller<br> ?2.4 GHz WiFi up to 100 Mbps<br> ?Zigbee 3.0 support<br> ?+5dB SMA antenna included<br> ?USB - USB Type-C port for data and power<br> ?Misc - 4x user LEDs, 1x button<br> ?Power Supply<br> oInput - 5V/200mA via USB or PoE<br> ?Dimensions - 160 x 26 x 22mm<br> ?Operating temperature: +5?C - +35?C<br> <br> <b>Note:</b><br> ?SLZB-06 designed to work with Zigbee2MQTT or ZHA integration. <br>
• 1.SLZB-06 is a Zigbee to Ethernet/USB/WiFi adapter with POE support, comes pre-flashed and ready to use. Can be used as a Zigbee 3.0 gateway in the open source automation platforms - Zigbee2MQTT, Home Assistant, ZHA.
• 2.Works in both modes - LAN and USB. Mode can be changed in firmware or via button.
• 3.Can add as many Zigbee coordinators to one server as you want. So you can easily cover different rooms, buildings and connect them to the same Home Assistant instance.
• 4.You can power the device through POE or type-C.
• 5.Zigbee SoC CC2652P features +20dB gain, +5dB antenna included.
Color: Black
