Description
Brand: Riotaxy

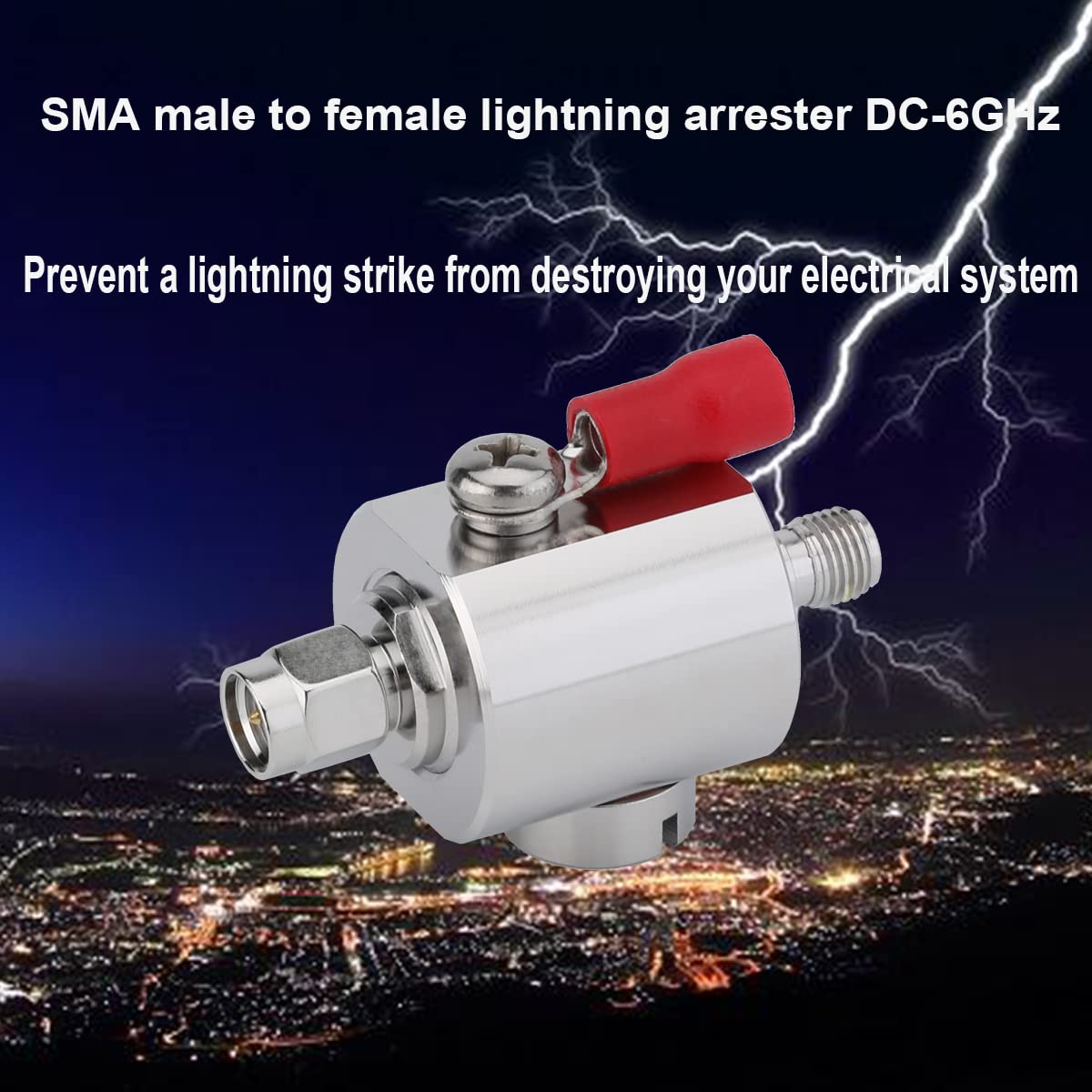

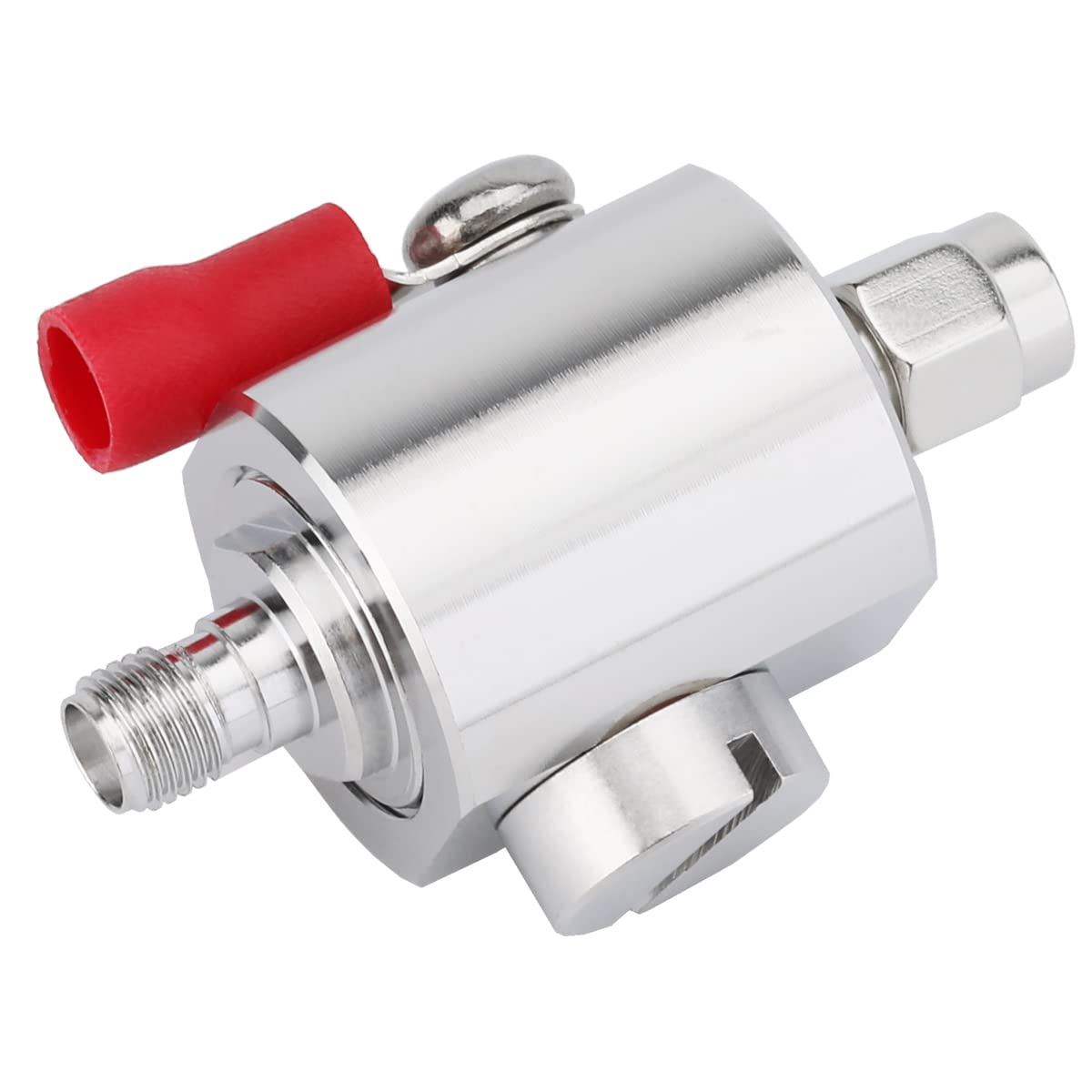

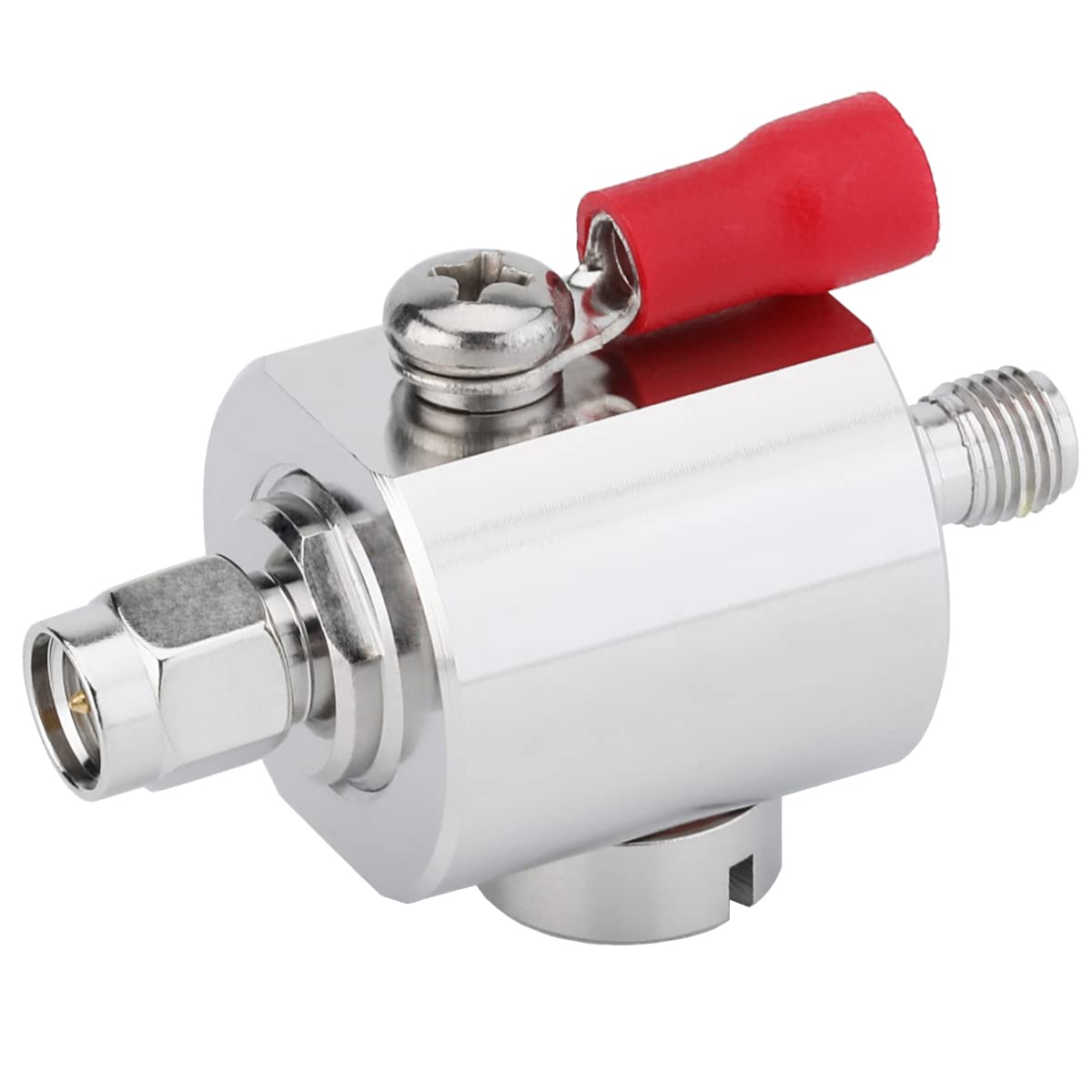

Lightning Arrestor Surge Protector SMA Male to SMA Female 50 Ohm DC-6Ghz.
It is a SMA Surge Protector that operates over the frequency range of 0-6 GHz.
It uses a gas discharge tube to protect connected equipment against transients and surges caused by lightning strikes.
It features standard 50 Ohm SMA-Male to SMA-Female connectors.
Protects cell phone signal boosters/amplifiers from power surges typically caused by lightning strikes to antennas mounted outdoors.
Designed to be placed between amplifier and outside antenna cable connection, need to be grounded. (DC Pass)
Electrical Specifications:
Input Impedance: 50?
Frequency Range: DC - 6 GHz
Durability: ? 500 cycles
VSWR: <1.3:1
Insertion Loss: <0.4dB
DC Breakdown Voltage: 90 V
Mechanical & Environmental:

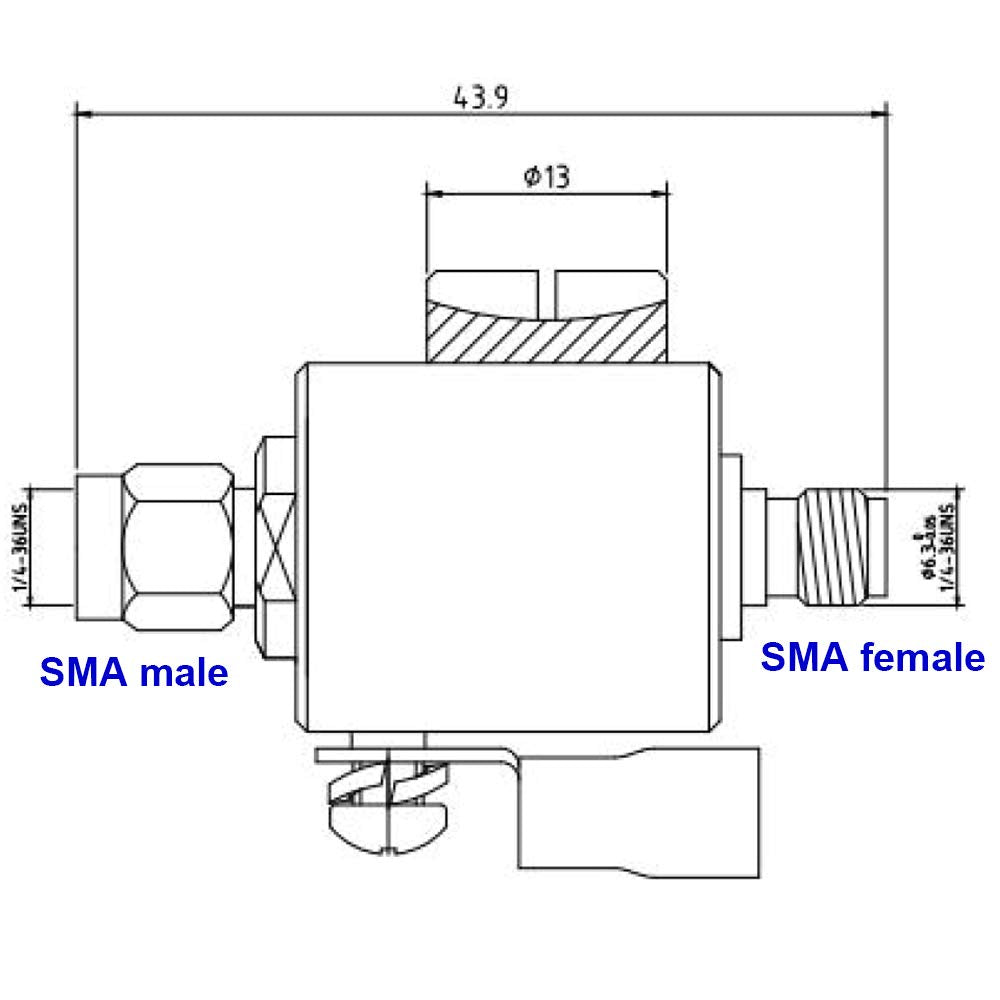

Connector Types: SMA-Male to SMA-Female
Connector Body Material: Brass nickel plated
Pin?Body brass gold plated
Insulator Material: PTFE( Teflon)
Temperature Range: ?-55? to +155??
Package:
1 x SMA Lightning Arrestor Surge Protector SMA-Male to SMA-Female 50 Ohm DC-6Ghz( with 90V gas discharge element )
• 1. SMA Lightning Arrester Protect 50 Ohm SMA Cellular Boosters, GPS Receivers, Wireless Video Systems
• 2. Lightning surge protector With SMA Male to SMA Female Connectors
• 3. SMA Surge Protector Broad Operating Frequency DC-6 GHz

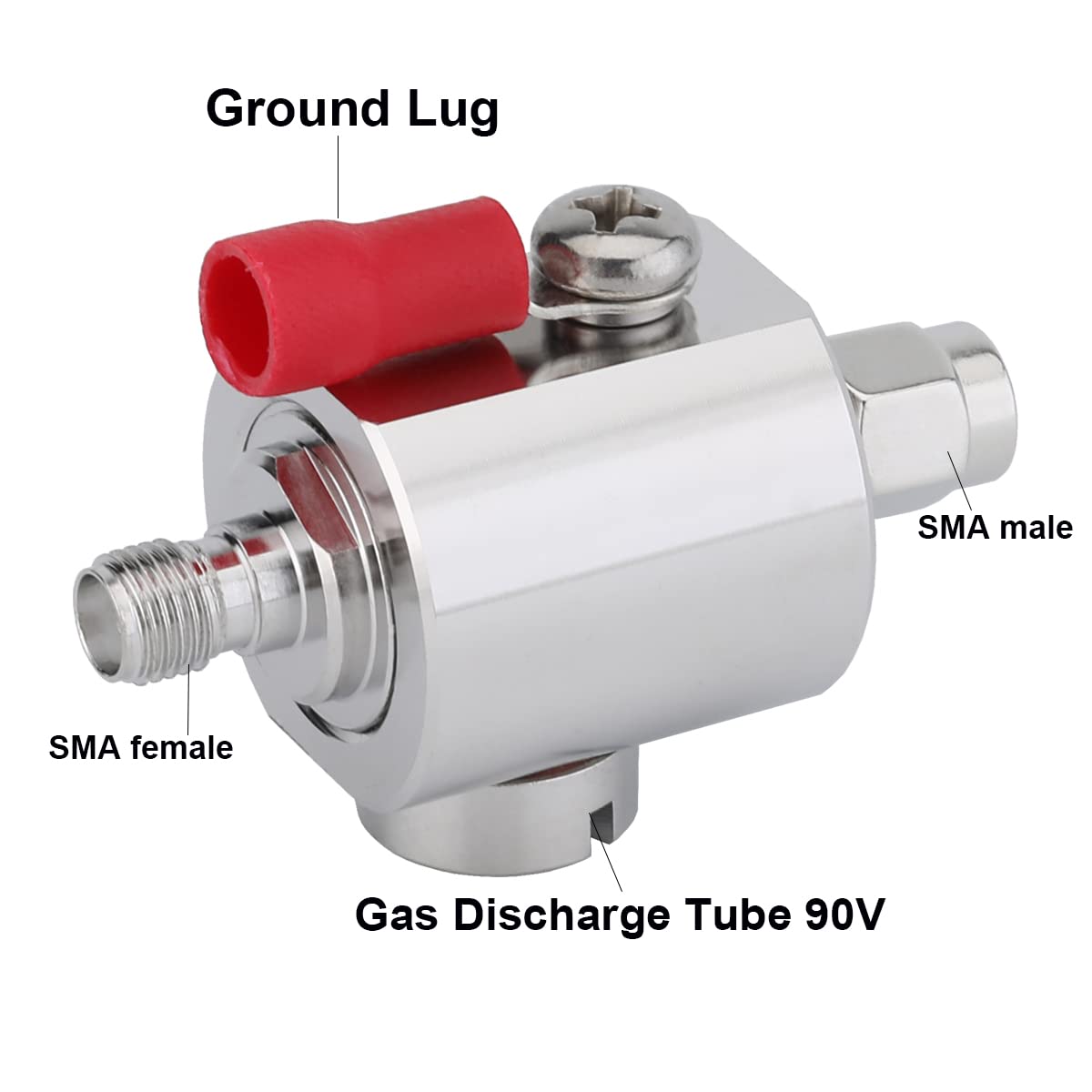

• 4. Replaceable Gas Tube Element 90V with High Surge Power Capability
• 5. Low Loss and VSWR and 50 Ohms Impedance
Color: 6G SMA Male to Female
Lightning Arrestor Surge Protector SMA Male to SMA Female 50 Ohm DC-6Ghz.
It is a SMA Surge Protector that operates over the frequency range of 0-6 GHz.
It uses a gas discharge tube to protect connected equipment against transients and surges caused by lightning strikes.
It features standard 50 Ohm SMA-Male to SMA-Female connectors.
Protects cell phone signal boosters/amplifiers from power surges typically caused by lightning strikes to antennas mounted outdoors.
Designed to be placed between amplifier and outside antenna cable connection, need to be grounded. (DC Pass)
Electrical Specifications:
Input Impedance: 50?
Frequency Range: DC - 6 GHz
Durability: ? 500 cycles
VSWR: <1.3:1
Insertion Loss: <0.4dB
DC Breakdown Voltage: 90 V
Mechanical & Environmental:
Connector Types: SMA-Male to SMA-Female
Connector Body Material: Brass nickel plated
Pin?Body brass gold plated
Insulator Material: PTFE( Teflon)
Temperature Range: ?-55? to +155??
Package:
1 x SMA Lightning Arrestor Surge Protector SMA-Male to SMA-Female 50 Ohm DC-6Ghz( with 90V gas discharge element )
• 1. SMA Lightning Arrester Protect 50 Ohm SMA Cellular Boosters, GPS Receivers, Wireless Video Systems
• 2. Lightning surge protector With SMA Male to SMA Female Connectors
• 3. SMA Surge Protector Broad Operating Frequency DC-6 GHz
• 4. Replaceable Gas Tube Element 90V with High Surge Power Capability
• 5. Low Loss and VSWR and 50 Ohms Impedance
Color: 6G SMA Male to Female
