Brand: Simply45

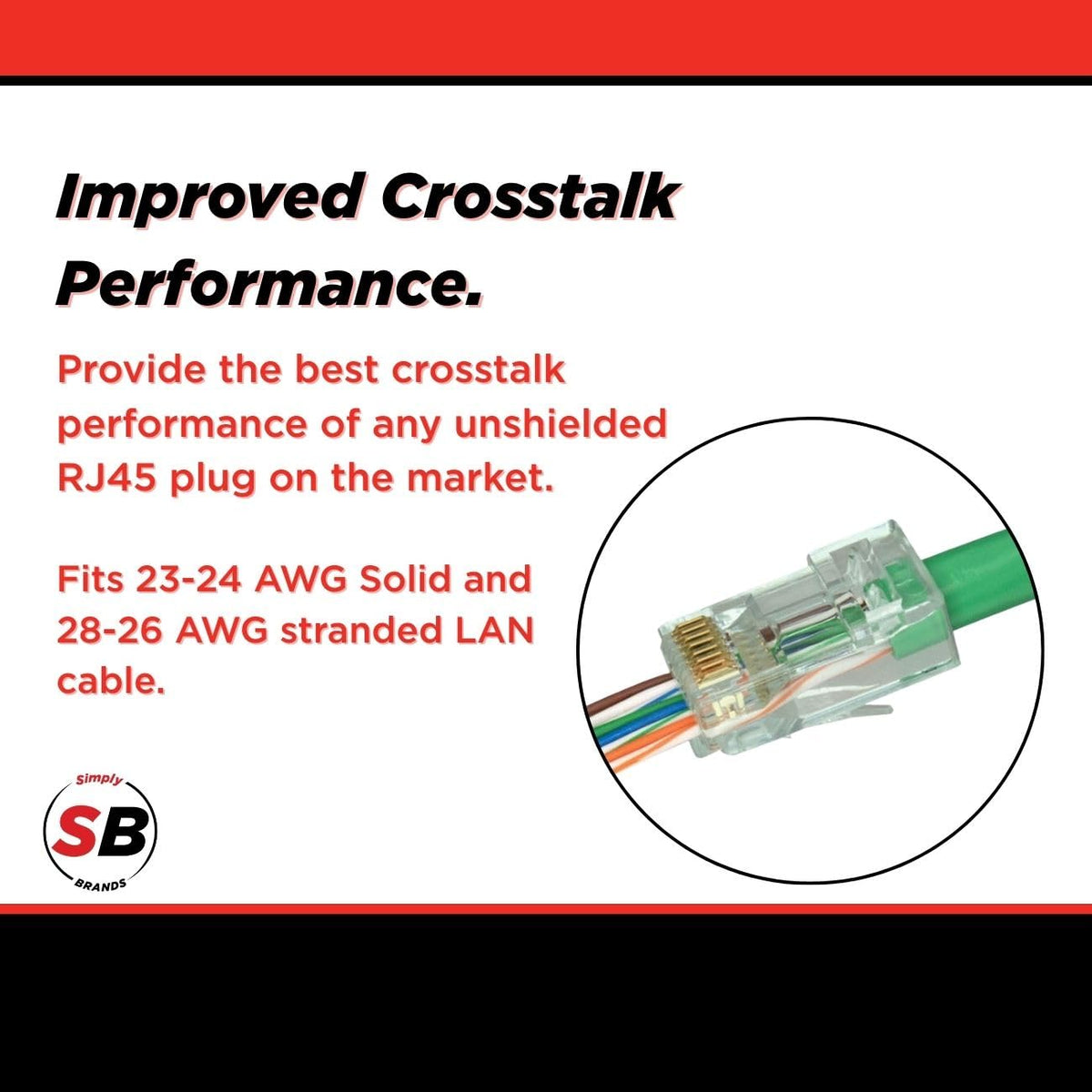

The Simply45 S45-1601 Cat6 UTP Pass-Through RJ45 Modular Plugs provide a professional solution for terminating unshielded Cat6 Ethernet cables. The straight-line wire insert allows conductors to pass through the front of the plug for easier positioning, while the plug's internal design allows the cable to extend farther into the connector. This helps reduce untwisted wire length and improve NEXT performance. The S45-1601 is designed for 23 AWG solid and 26-24 AWG stranded LAN cables, supporting 0.95-1.05 mm conductors and cable diameters up to 7.0 mm. The pass-through design is suitable for most Cat6 UTP cables, including compatible stranded cables used for patch cords and leads. Simply45's 3-prong contact design with 50µ 24ct gold plating provides three points of contact with each copper conductor for strong retention and reliable electrical performance. The S45-1601 is also rated for PoE/PoH applications and is HDBaseT approved, making it suitable for professional networking and structured cabling installations. Built from UL94 V-0 commercial-rated polycarbonate, these RJ45 modular plugs are UL/cUL listed and recommended for compatible CMP Plenum, CMR, CM, and LSZH LAN cables. The S45-1601 meets ANSI/TIA 568.2-D Class E and ISO/IEC 11801 Class E requirements and comes in a convenient 50-piece resealable clamshell for installers and network professionals.

Features:

• Single Piece Design - The S45-1601 is a single-piece unshielded pass-through RJ45 modular plug for use with unshielded LAN cables. No-load bar required.

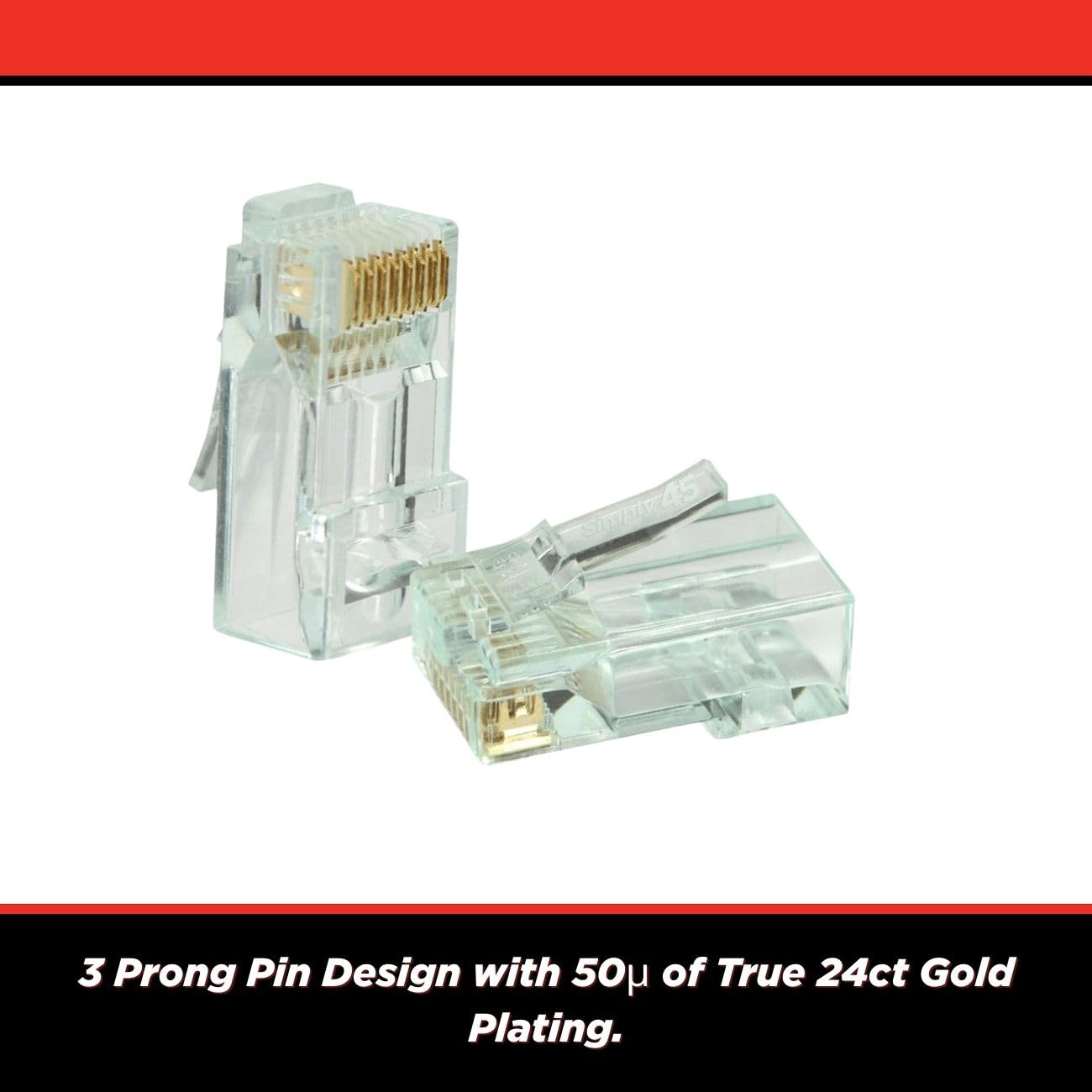

• Gold-Plated 3-Prong Pins - All Simply45 pass-through RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs.
• Solid and Stranded LAN Cables - The S45-1601 is ideal for most Cat6 UTP (unshielded twisted pair) solid 23 AWG LAN cables with a maximum cable diameter of 7.0mm (0.276”).
• PoE/PoH Rated - The S45-1601 is ideal for PoE/PoH applications. The S45-1601 uses the correct 3-Prong Pin design
• true 24ct gold plated pins and is made using the highest quality materials for RJ45 modular plugs.
• Commercial Rated - These RJ45 mod plugs are UL94 V0 (IEC 60695-11-10) rated for all commercial installations. These RJ45 mod plugs are recommended for CMP Plenum, CMR, CM
• and LSZH up to B2ca rated LAN cables.

Product Details:

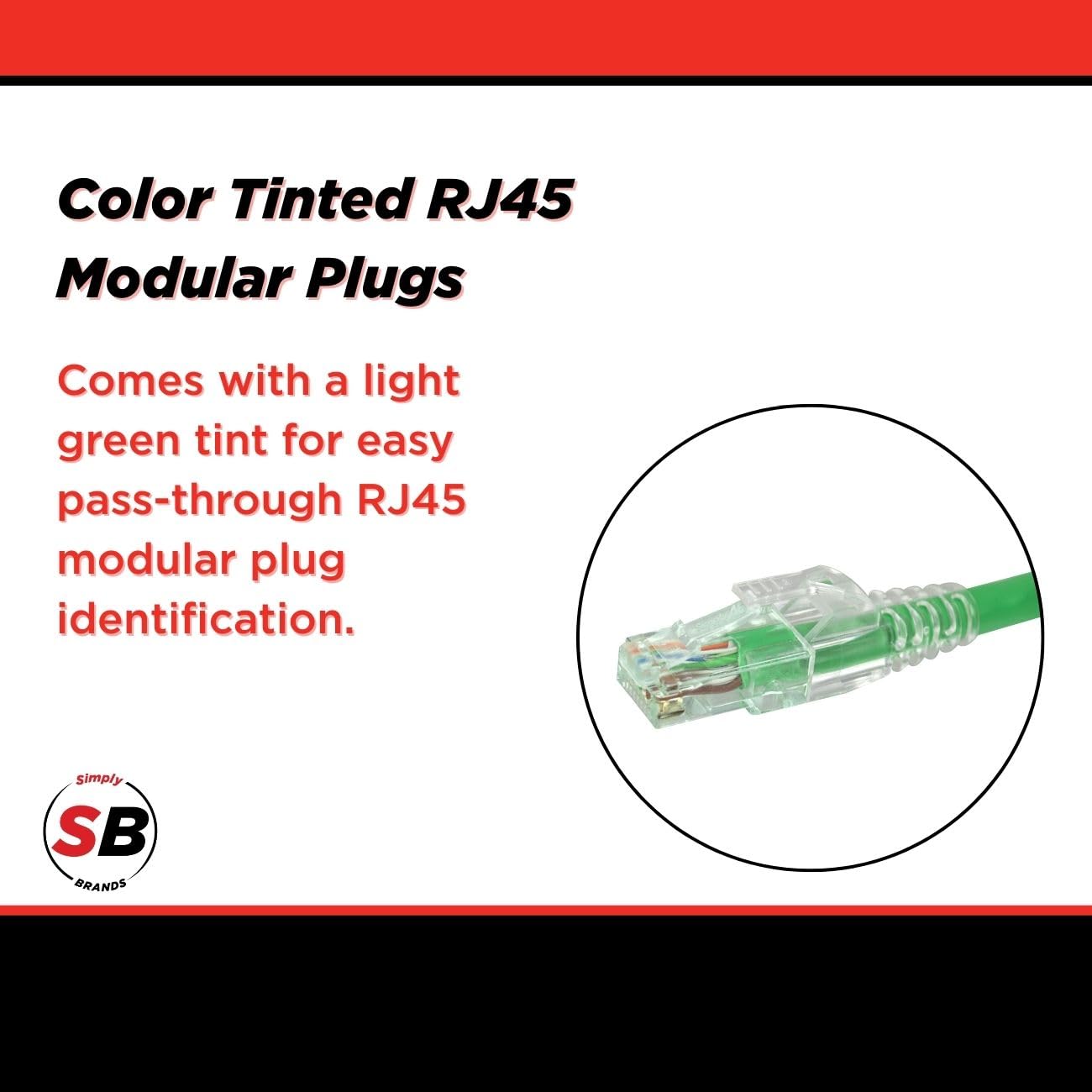

• Color: Green

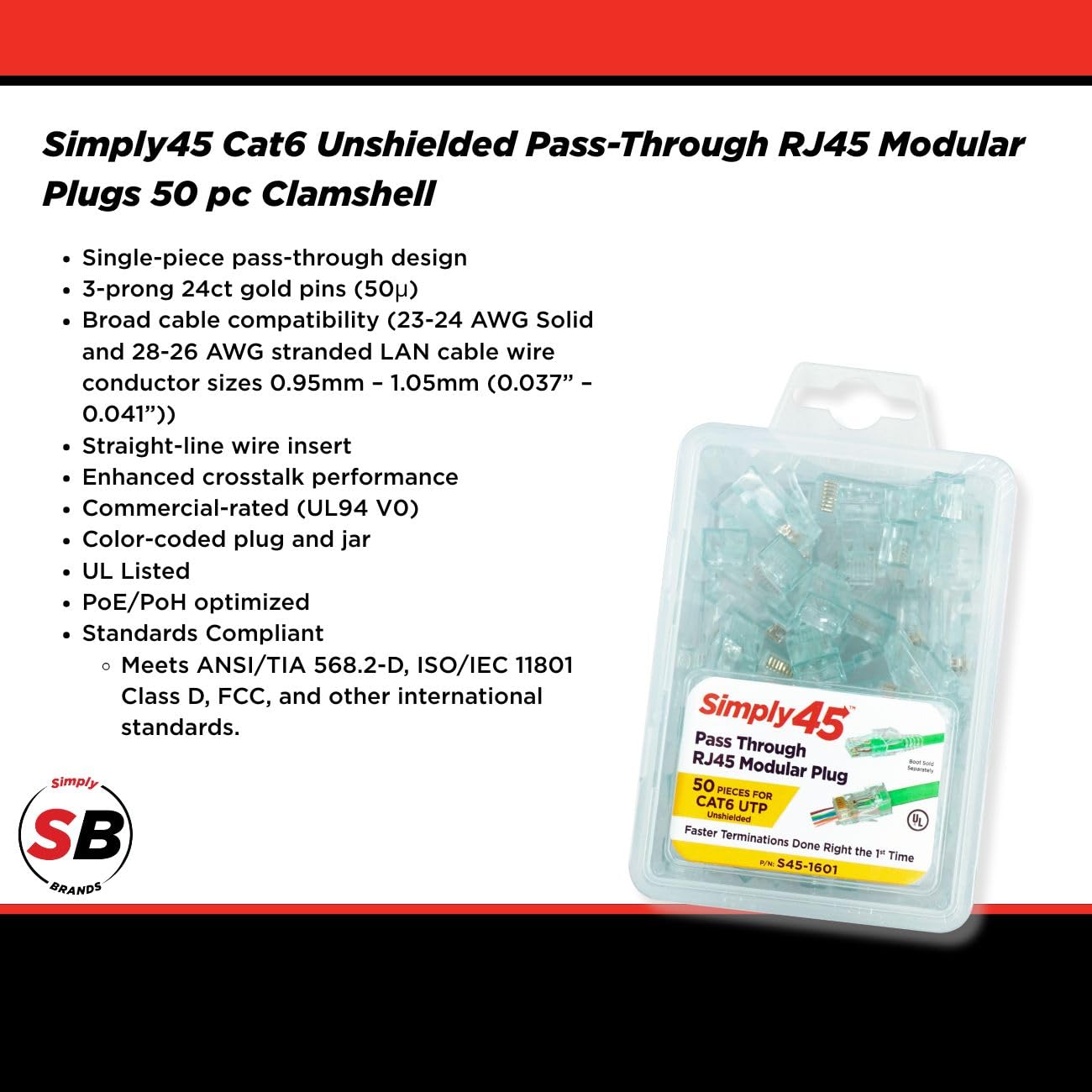

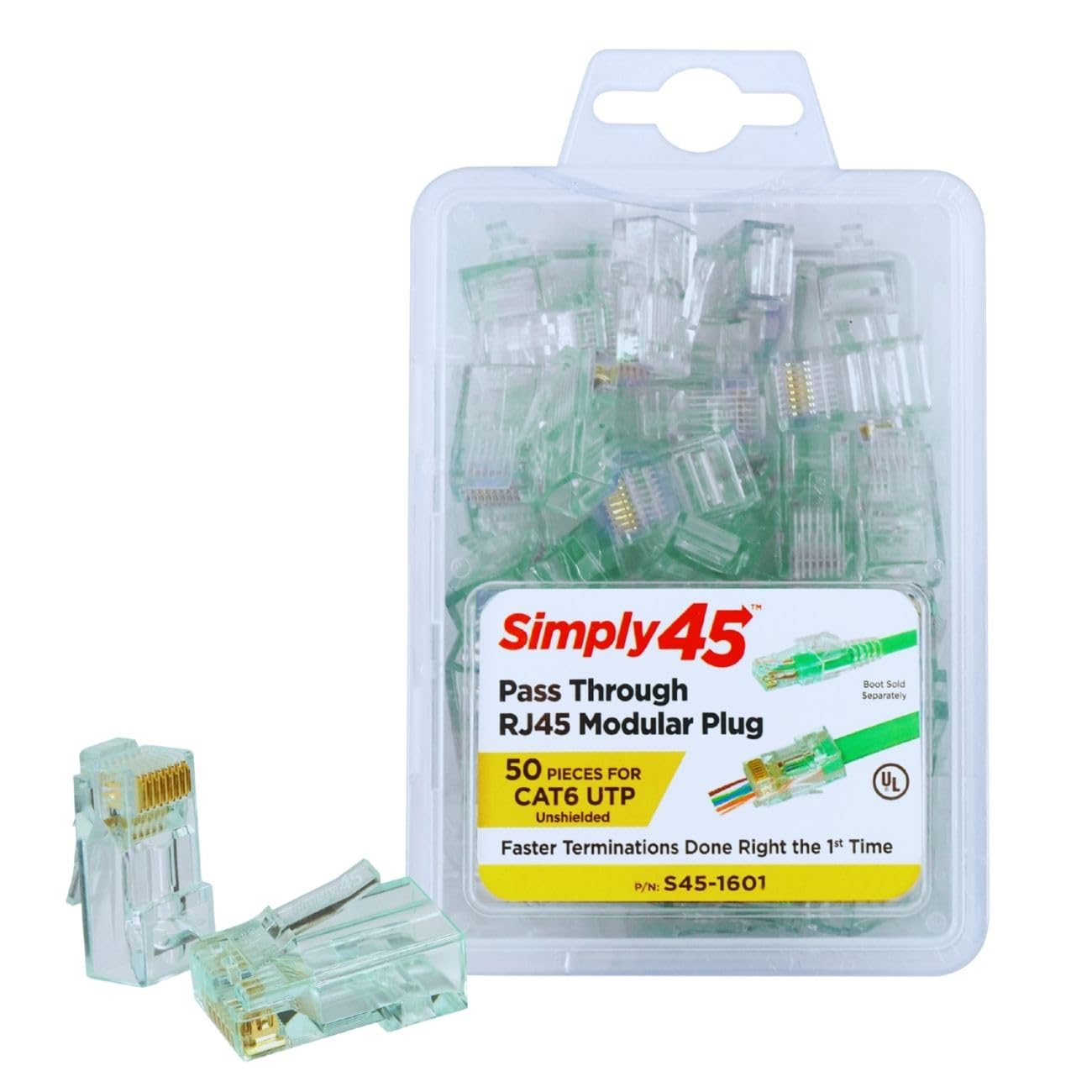

• Size: 50 Piece
• Model: S45-1601
• Package Quantity: 1
