Brand: SIIG

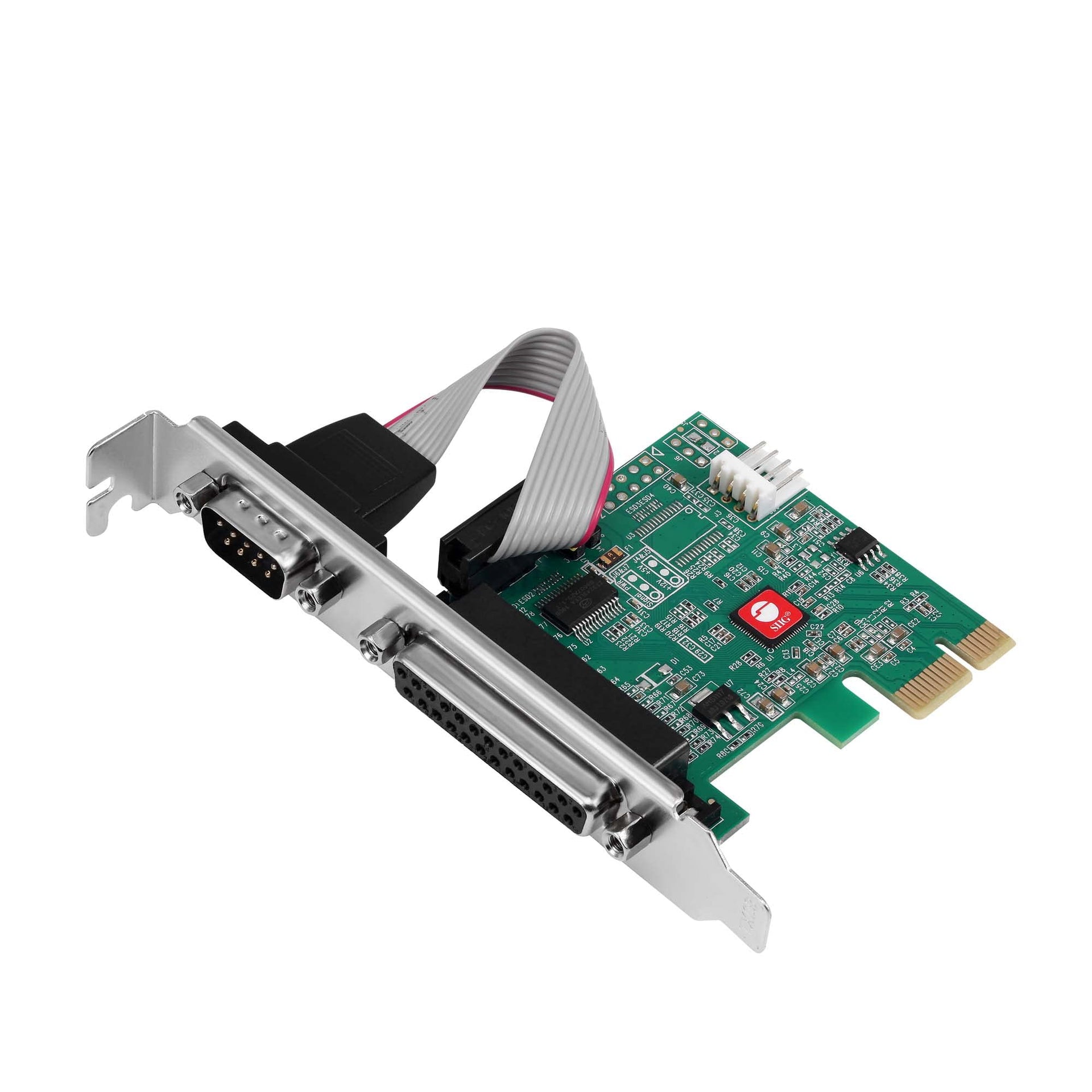

The SIIG's PCIe serial card can be installed into an available PCI Express slot on the computer motherboard, to provide serial port and parallel port. It offers a convenient solution for connecting modern or legacy equipment to newer computer systems that do not have RS232 or parallel ports. The 16C650 UART serial port with data transfer rate up to 250Kbps. Our PCIe card is compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode It works as a standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers. Benefits The PCIe serial card can decrease the loading on CPU activity which helps ensure optimal system performance and prevent errors from happening. The card has a dual-profile design which fits full height and low-profile system chassis using the included spare low-profile brackets This is a great solution to connect with POS systems, industrial testing and control devices, security systems, logistic management equipment, vinyl cutter, printers, scanners, and etc.

Features:

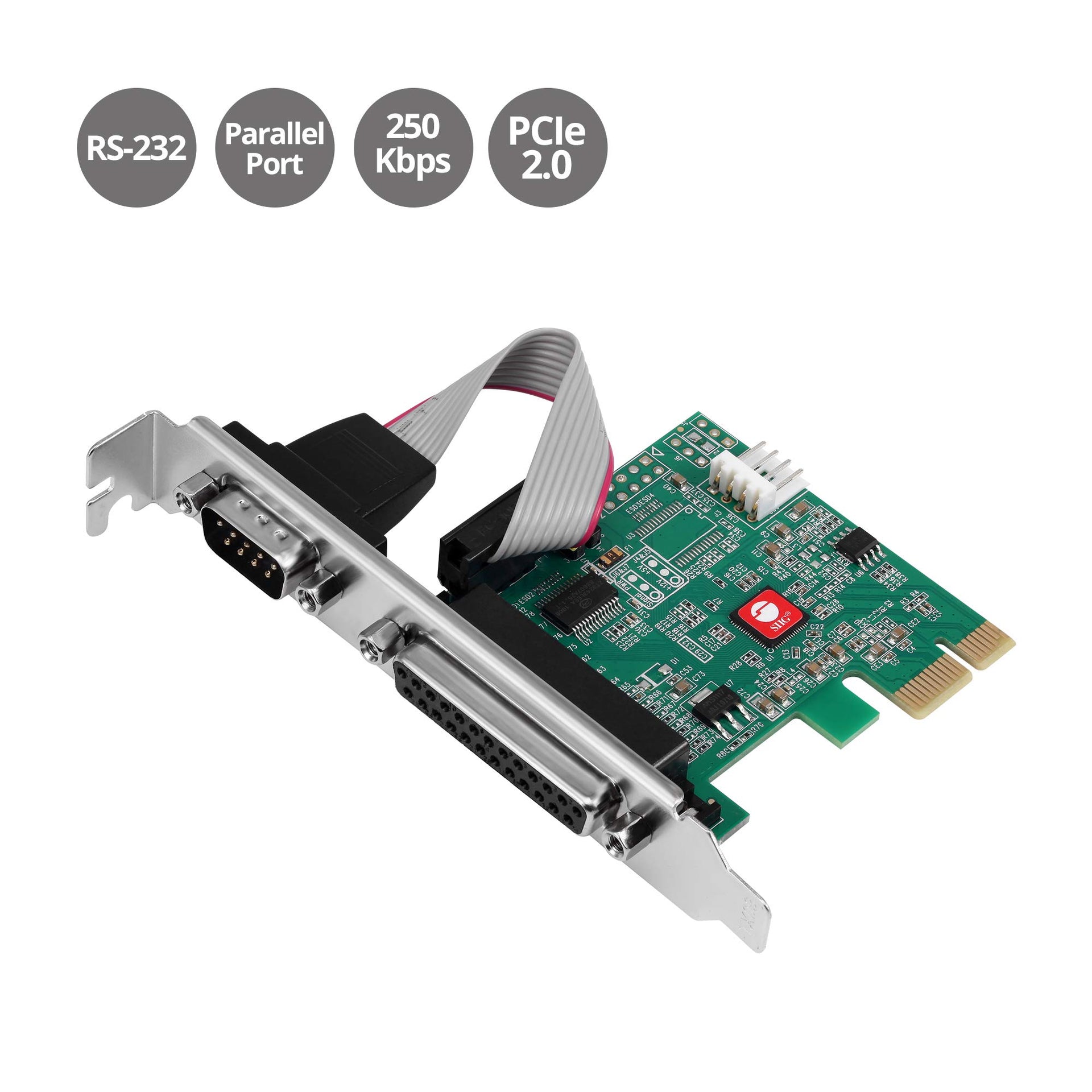

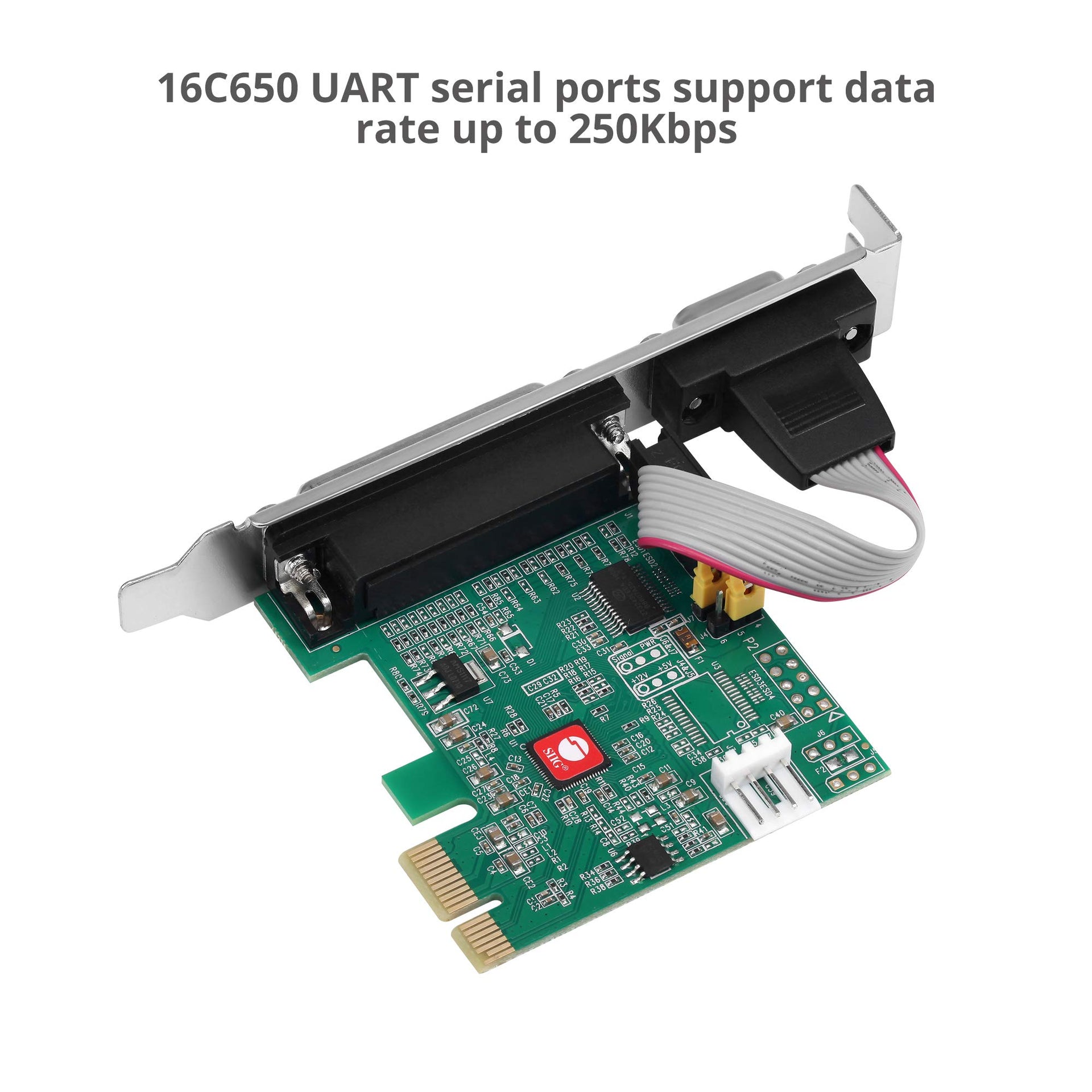

• SERIAL AND PARALLEL PORT: Easily adds one serial port and one parallel port through an available PCI Express slot. 16C650 UART serial port with data transfer rates of up to 250Kbps. Compliant with PCI Express 2.0 Gen 1. Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode
• PHY INTEGRATION: Single-lane (X1) PCI Express end-point controller with PHY integrated. Full serial modem control. Hardware and software flow control
• SERIAL FORMAT: 5, 6, 7, 8 and 9-bit serial format. Even, odd, none, space and mark parity. On chip 256 byte FIFO buffers in transmit, receive path

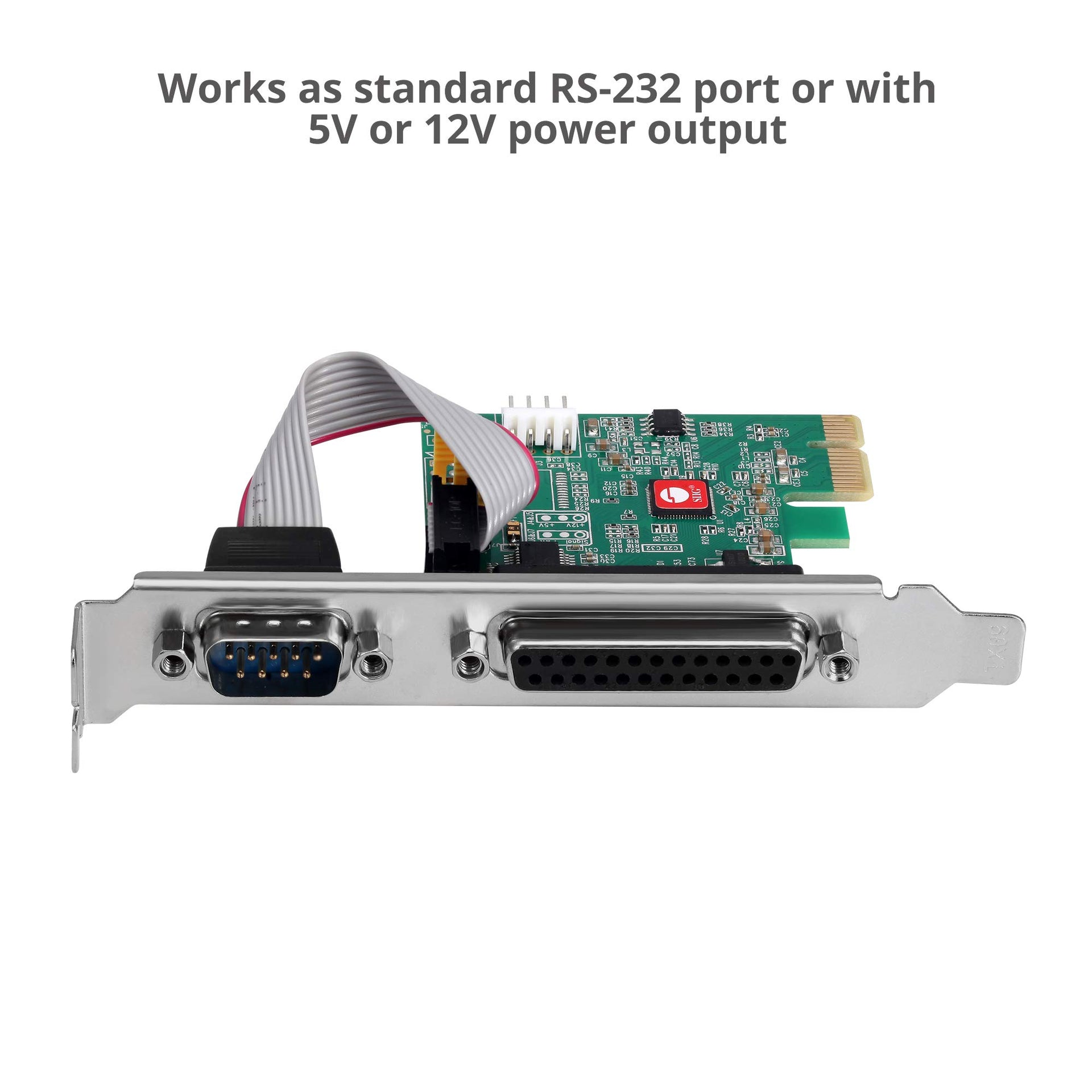

• RS-232: Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers. Supports PCI bus Power Management Interface Specification Revision 1.2

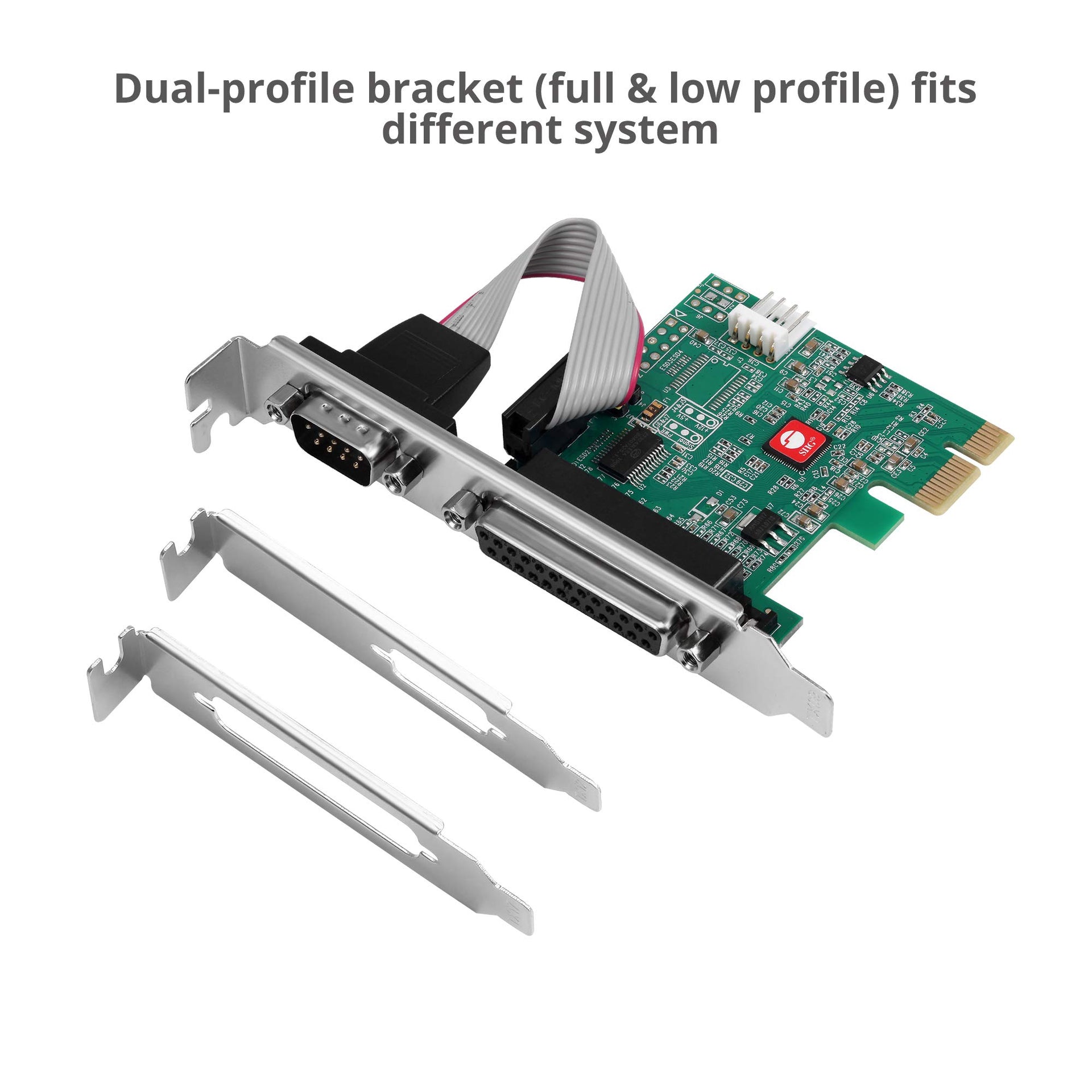

• DUAL PROFILE: Dual-profile design fits full height and low-profile system chassis with the included spare low-profile brackets. Perfect solution to connect with POS systems, industrial testing and control devices, security systems, logistic management equipment, printers, scanners, etc.

Product Details:

• Size: Serial Port x1 & Parallel Port x1
• Model: JJ-E20311-S1
• Package Quantity: 1
