Brand: SHNITPWR

Model: SNT-0324-120


Parameter
Input: AC 100V~240V 50/60Hz
Output Voltage: DC 4V~24V Adjustable
Output Current: Max 5A
Output Wattage:Max 120W

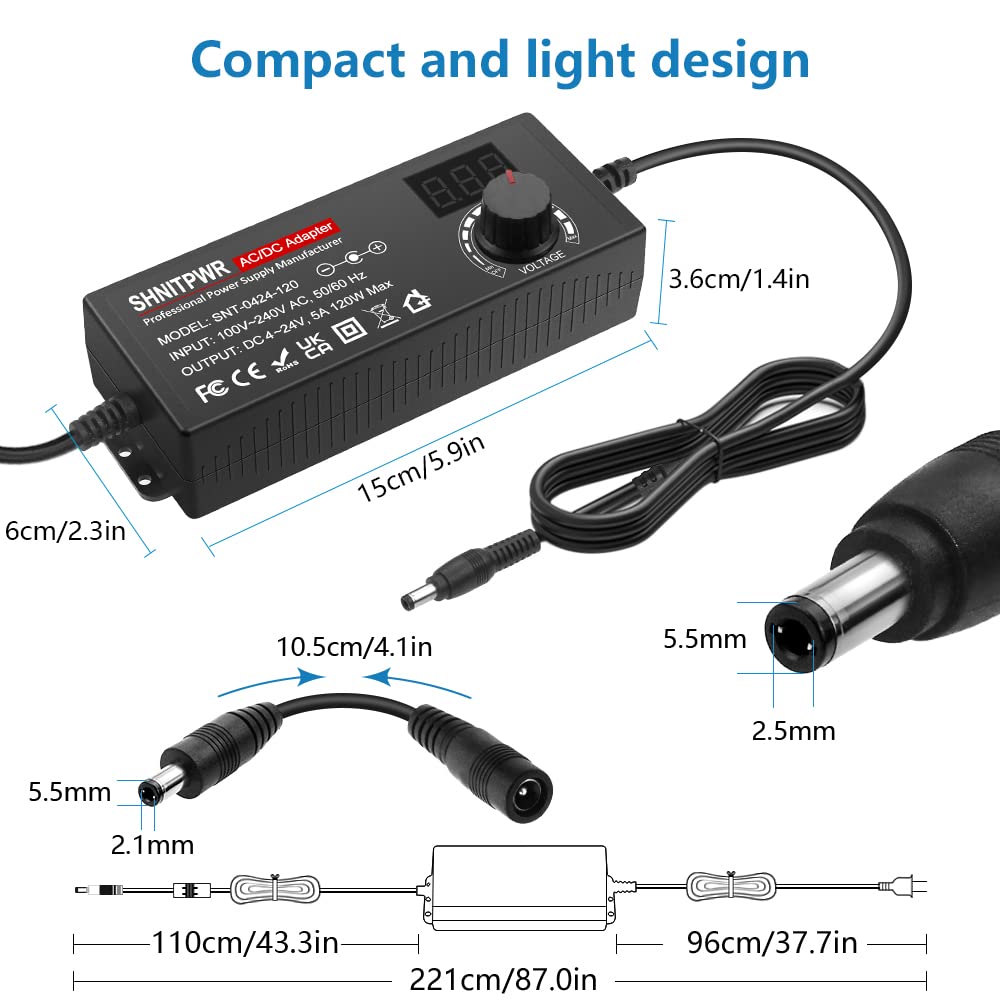

Output DC connector:5.5mm x 2.5mm (inside"+", outside"-")
Reverse polarity converter: 5.5mm x 2.1mm
14 Tips Size: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm,
6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm,
3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector.
Power cable length: 6ft / 180cm
Safety Compliance: FCC / CE/ RoHS / CCC
Working Temperature: 0~40℃
Storage Temperature: -40~85℃
Ambient Humidity: 5~95% Non-Condensation
Weight: 1.1 lb / 500g

Professional advice from licensed electrician:
The max use should be no more than 80% of the full loads.
Otherwise, the power supply will generate much heat and its service life will be greatly shortened.
We recommend you to use this 120W power supply to power devices less than 96W.

Package included

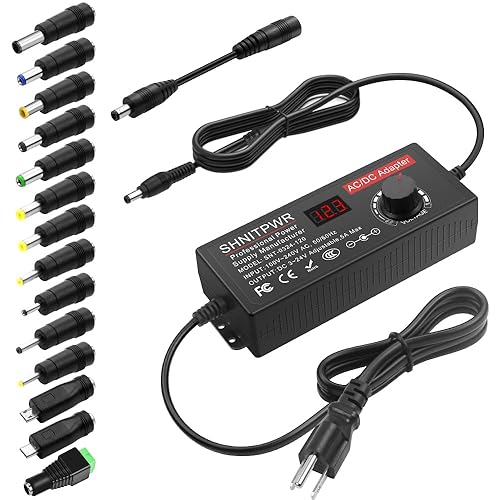

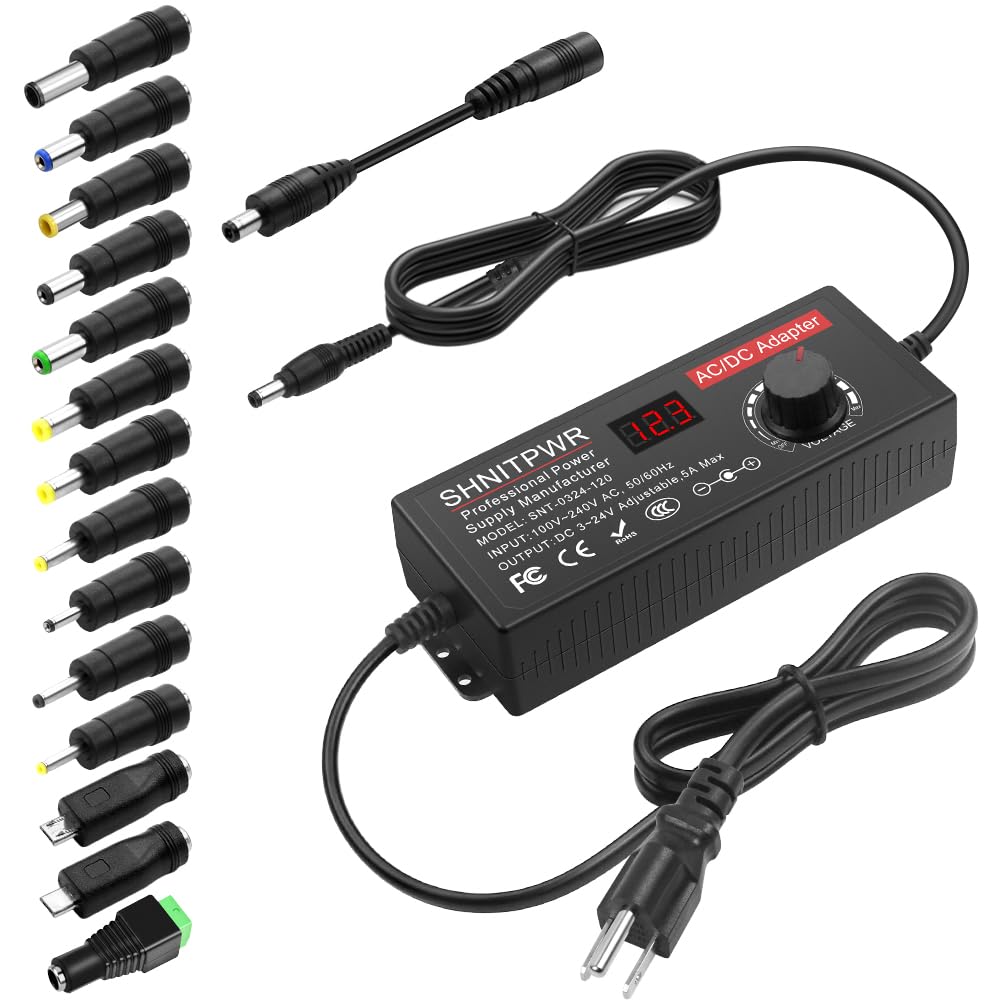

1x 4~24V DC 120W Universal Power Supply Adapter
14x DC Tips
1x Reverse polarity converter cable


• 𝐈𝐧𝐩𝐮𝐭 𝐚𝐧𝐝 𝐎𝐮𝐭𝐩𝐮𝐭: Input: AC 100~240V, 50/60Hz
• Output: DC 4~24V Adjustable, Max 5A 120W

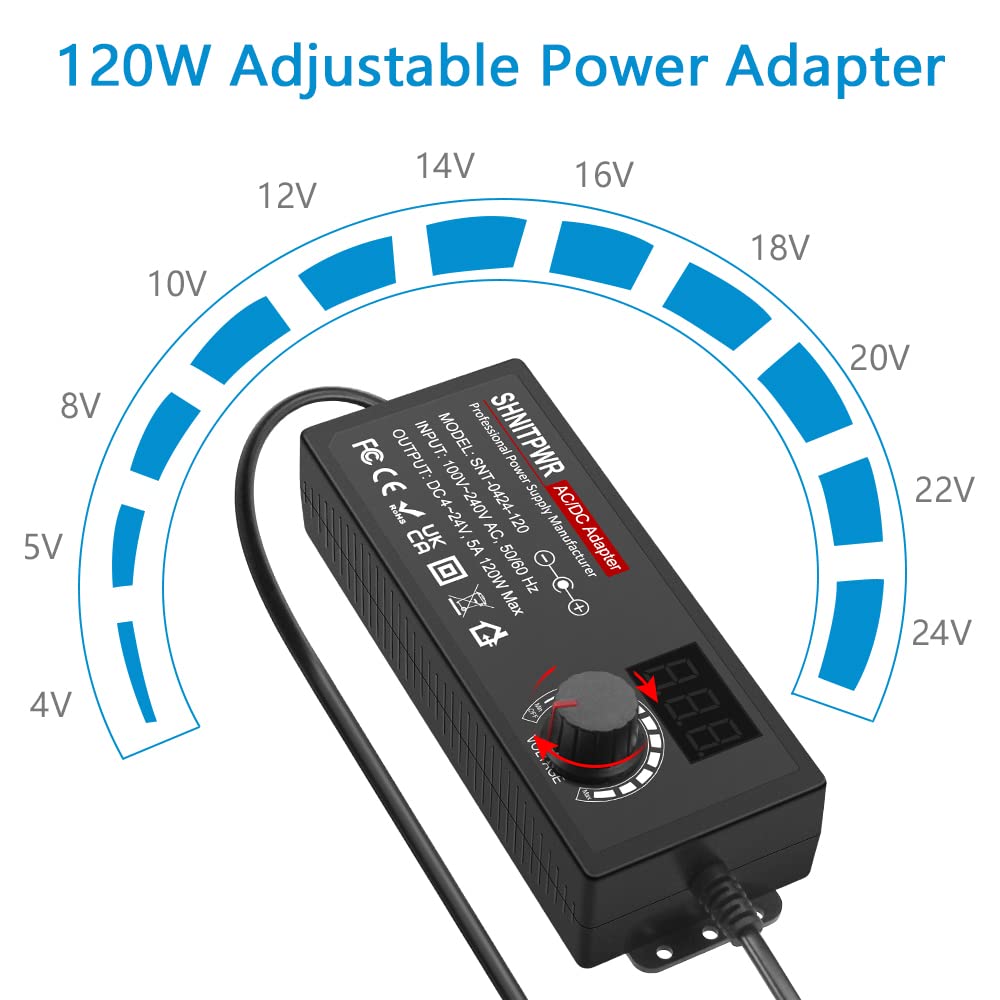

• It can supply with any voltage between 4~24V,such as 4V 4.5V 5V 5.5V 6V 9V 12V 14V 15V 16V 18V 19V 19.5V 20V 22V 24V, etc and any amp less than 5A, such as such as 300mA, 500mA,1A, 1.5A, 2A, 2.5A, 3A, 3.5A, 4A, 4.5A, 5A. LCD display will show the output voltage, in case that wrong voltage regulation damage your device.
• 𝐔𝐩𝐠𝐫𝐚𝐝𝐞𝐝 𝐕𝐞𝐫𝐬𝐢𝐨𝐧 𝐏𝐨𝐰𝐞𝐫 𝐒𝐮𝐩𝐩𝐥𝐲: Based on hundreds of users feedback, we have made the following improvements: 1. The knob can be adjusted more evenly, and it can reach 13V ~ 14V by rotating 50%. 2. Increase the off gear to turn off the power without pulling the plug. 3.Add a polarity converter cable, which make it compatible with more devices，doubles its range of application.

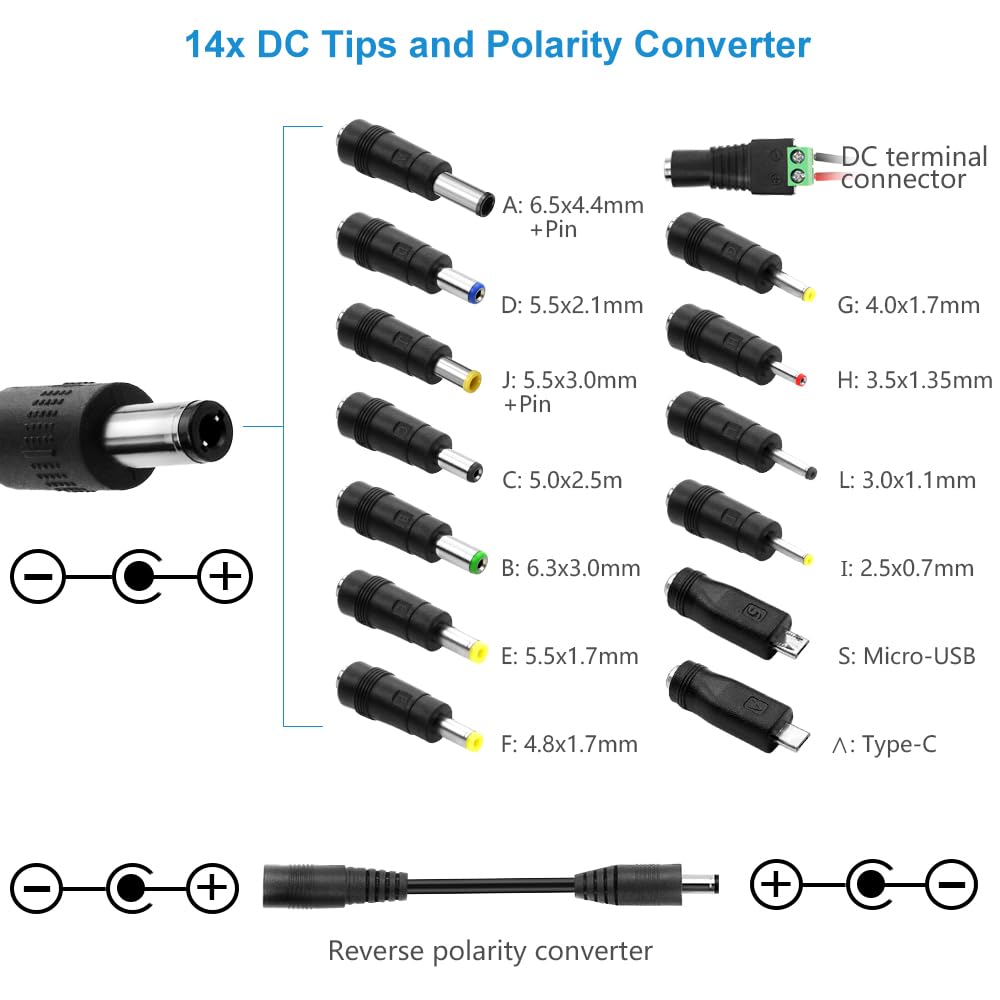

• 𝟏𝟒𝐩𝐜𝐬 𝐅𝐫𝐞𝐪𝐮𝐞𝐧𝐭𝐥𝐲 𝐔𝐬𝐞𝐝 𝐓𝐢𝐩𝐬: It comes with an original 5.5x2.5mm tip and 14pcs frequently used tips: 6.5x4.4mm+Pin, 5.5x2.1mm, 5.5x3.0mm+Pin, 5.0x2.5mm, 6.3x3.0mm, 5.5x1.7mm, 4.8x1.7mm, 4.0x1.7mm, 3.5x1.35mm, 3.0x1.1mm, 2.5x0.7mm, Micro-USB, Type-C and DC terminal connector. Can be applied to almost all commonly used electronic devices. You can screw wires onto it easily, perfect for DIY projects.
• 𝐖𝐢𝐝𝐞 𝐑𝐚𝐧𝐠𝐞 𝐨𝐟 𝐀𝐩𝐩𝐥𝐢𝐜𝐚𝐭𝐢𝐨𝐧𝐬: The 120W all-in-one multipurpose AC/DC adapter fit for many 4~24V small household electronics such as LED strips, under-cabinet light, TV Box, smart speaks, wireless routers, essential oil diffuser humidifier, USB fan, Wifi camera, USB Hub, hard disk box, DC motor, DC pump, digital photo frame, DVR NVR surveillance system etc.For indoor use only.
• 𝐒𝐚𝐟𝐞𝐭𝐲 𝐏𝐫𝐨𝐭𝐞𝐜𝐭𝐢𝐨𝐧 𝐒𝐲𝐬𝐭𝐞𝐦𝐬: Built-in multiple safety protection systems. Automatic over voltage cut-off, over current cut-off, over temperature cut-off, short circuit cut-off. We focus on producing premium quality and safety power adapters. No noise, no spontaneous combustion, no explosion, no fire hazard, safe to use. 6ft long power cable makes it convenient to use.
• 𝐊𝐢𝐧𝐝𝐥𝐲 𝐍𝐨𝐭𝐞: This product is an AC to DC adapter, NOT charger!!!It can’t be used to charge electronic devices with batteries, such as laptops. Please choose correct voltage before plug it to your device. Wrong voltage may damage your device. We recommend to use less than 80% of the full load. We always stand behind our products. If there is any issue, please feel free to contact us.

Color: Black

Power/Wattage: 120W
