Brand: Sensky

Description

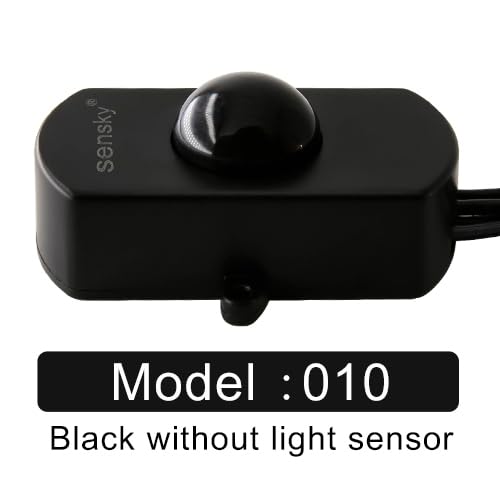

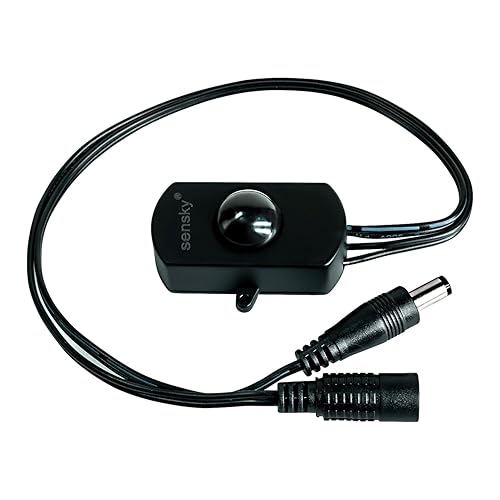

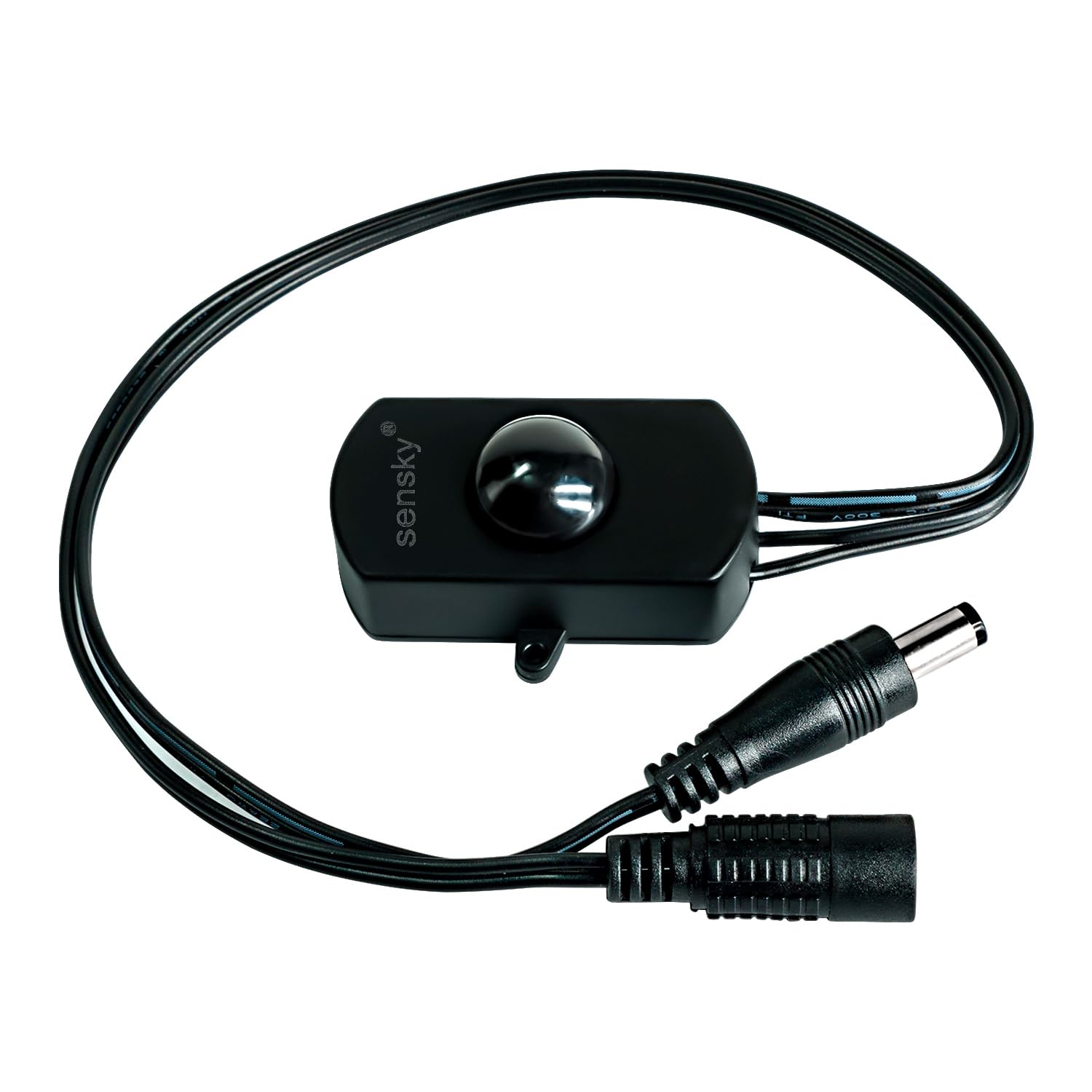

PIR(Passive infrared) Motion sensor is pyroelectric device can detect human movement by detecting Infrared ray emitted by human body. Operating voltage is 5~25VDC, and output voltage is equal to input voltage. High sensitivity, Easy to install.
Automatic Induction

When people enter into the sensing range, Motion sensor will output a voltage equal to input voltage, after the delay time, it will output 0V; During the delay time if motion detected, the delay time will reset, and start a new delay time.
Application

Widely used on the Motion-activated lighting, LED strips Security System, automatic sensory device and more.
< Specification

Passive Infrared Sensor
Operating voltage DC: 12V
Load current : 3A
Delay time: Default setting 5-25s (2~280 Seconds adjustable)

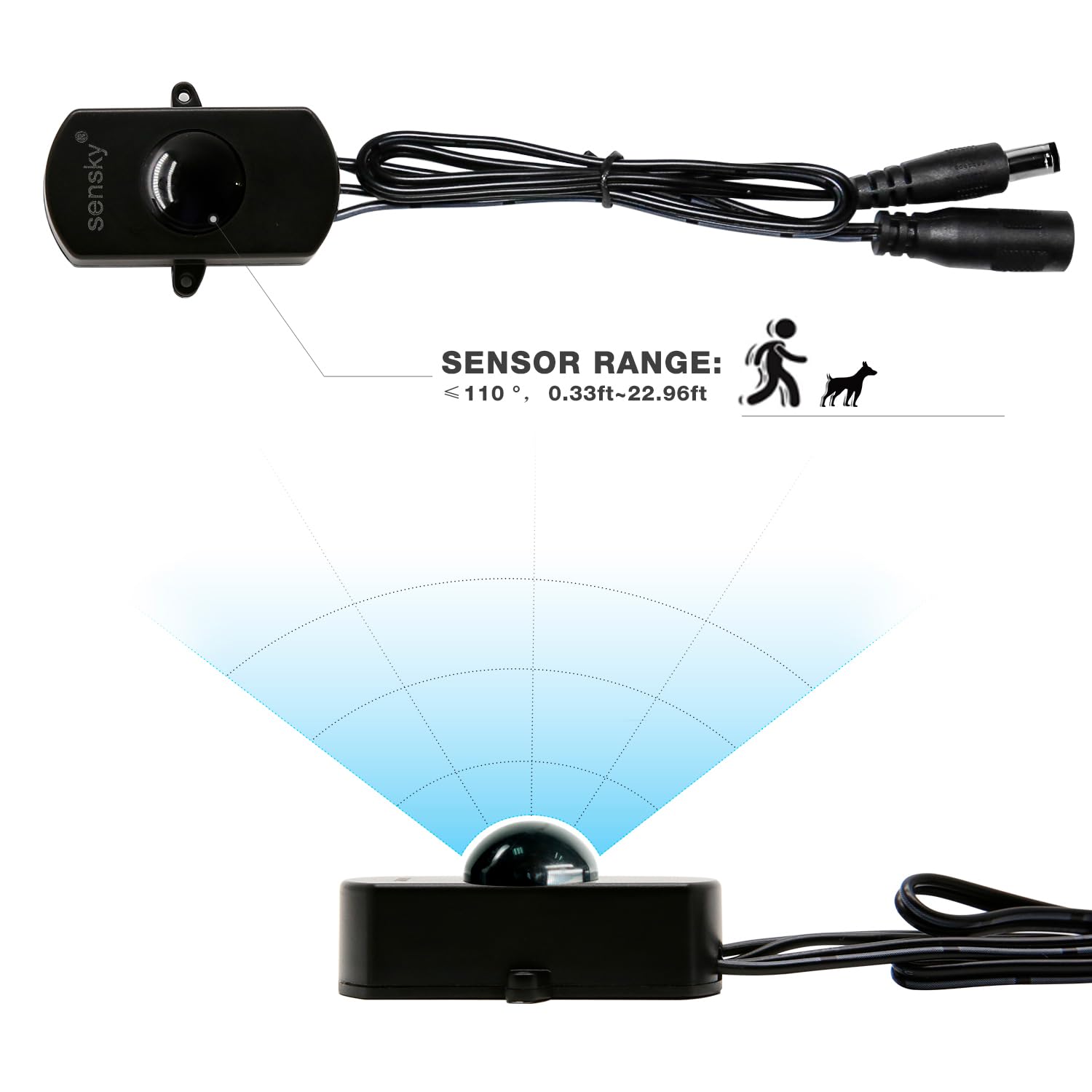

Detecting range ? 110 degrees cone angle
Detecting distance4M-7M (10cm-7M adjustable)
Trigger way : Continuous triggering
Blockade time: 0 seconds

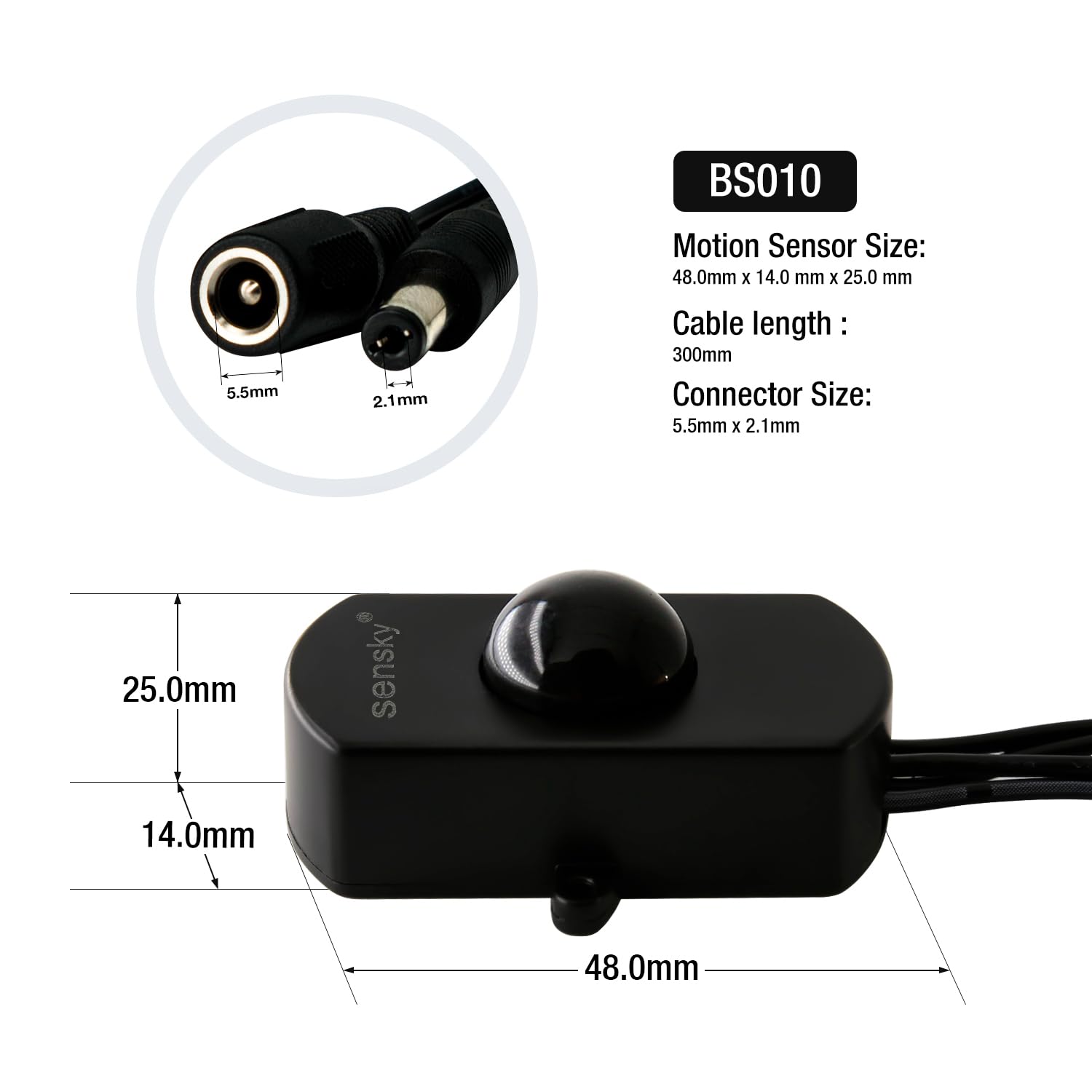

Size: 48*25*14 mm

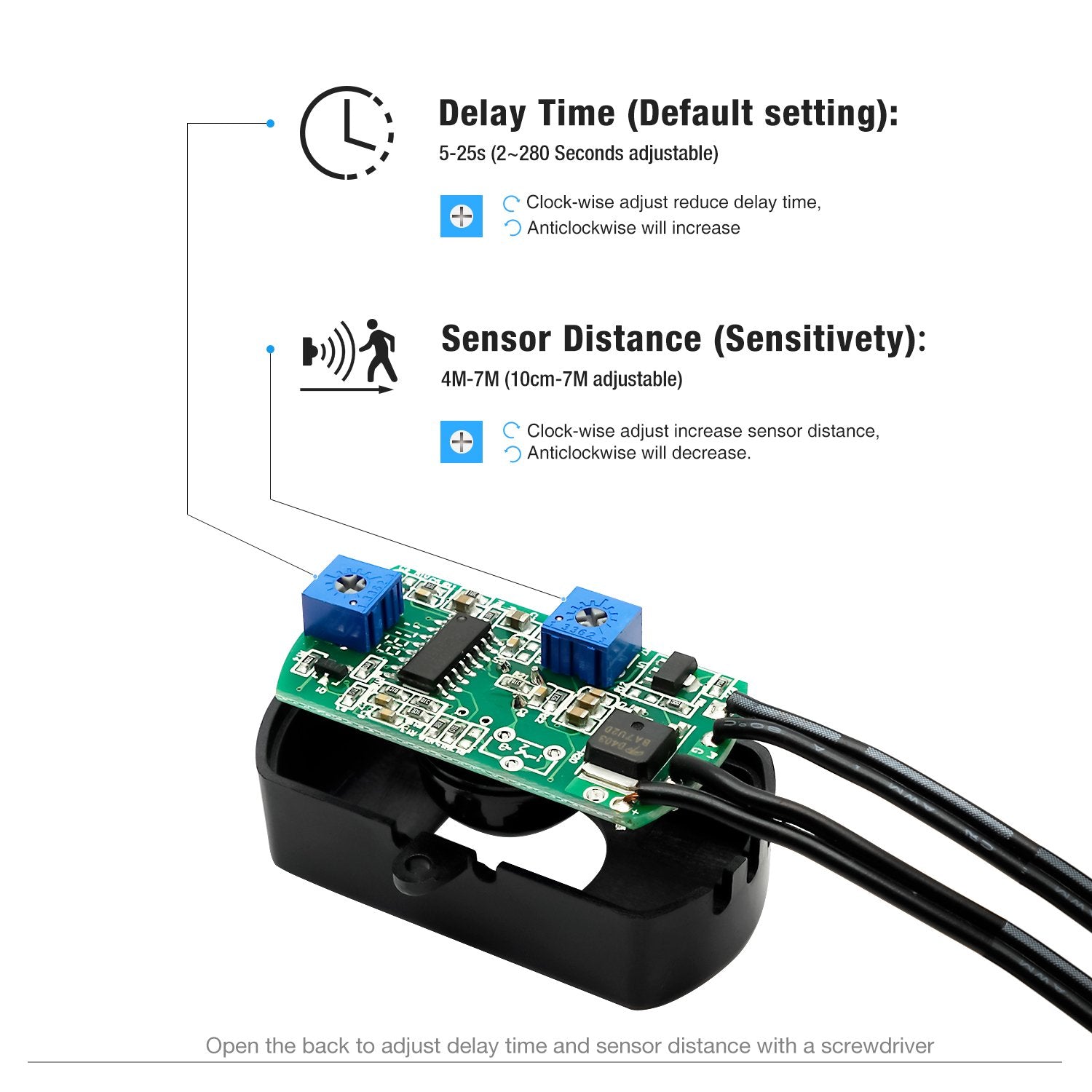

Delay time adjustment: Clock-wise reduce the delay time , Anticlockwise increase the delay time
Sensor distance adjustment: Clock-wise increase the Sensor distance, Anticlockwise reduce the Sensor distance

Note:

1. The PIR Sensor requires a 'warm-up' time in order to function properly, about 10 s to1 min, depending on the delay time; during this time, the signal triggered by the module is not stable, after one minute, it will be ready.
2. Don't expose the Sensor Switch to direct sun light /lighting, big wind, or placing near to a heater or air condition.
3. Don't fix the item at a place where there are obstructing material (eg. Glass, dense clothes) which IR cannot get though.
4. Don't fix the motion sensor switch in strong shock or vibration environment.


• ?Warm Tips?? To figure out your values for the Sensitivity , Please set the delay time to its minimum value first , this will save your time.
• ?Motion Activated? : Sensor function triggered by motion, you can use this small motion sensor switch to control lighting like Led strip lighting.
• ?Delay Time Adjustable?: The delay time controls how long the light stays on once it gets triggered, during the delay time if motion detected, the delay time will reset and start a new delay time.
• ?Sensitivity Adjustable?: The sensitivity controls how close you need to be to the sensor in order to activate it.
• ?Wide Application?: You can use this sensor in different occasions like entryway lighting, cabinet lighting, gun safe lighting, pantry lighting, under the bed rails lighting.
