Zoom
Description
Brand: Seco-Larm
• Relay trigger can be adjusted from 0.8 to 30 sec delay, or as long as a hand is near the sensor
• Adjustable Hand wave/sensing range from 2" to 7"
• LED colors can be selected from red to green or green to red
• Manual override button works as backup to the sensor
• Weather resistant stainless steel double-gang

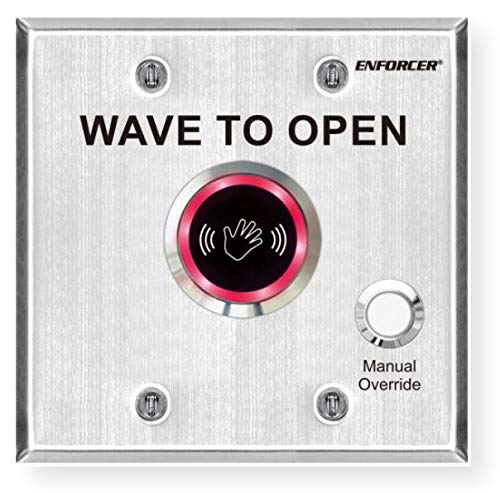

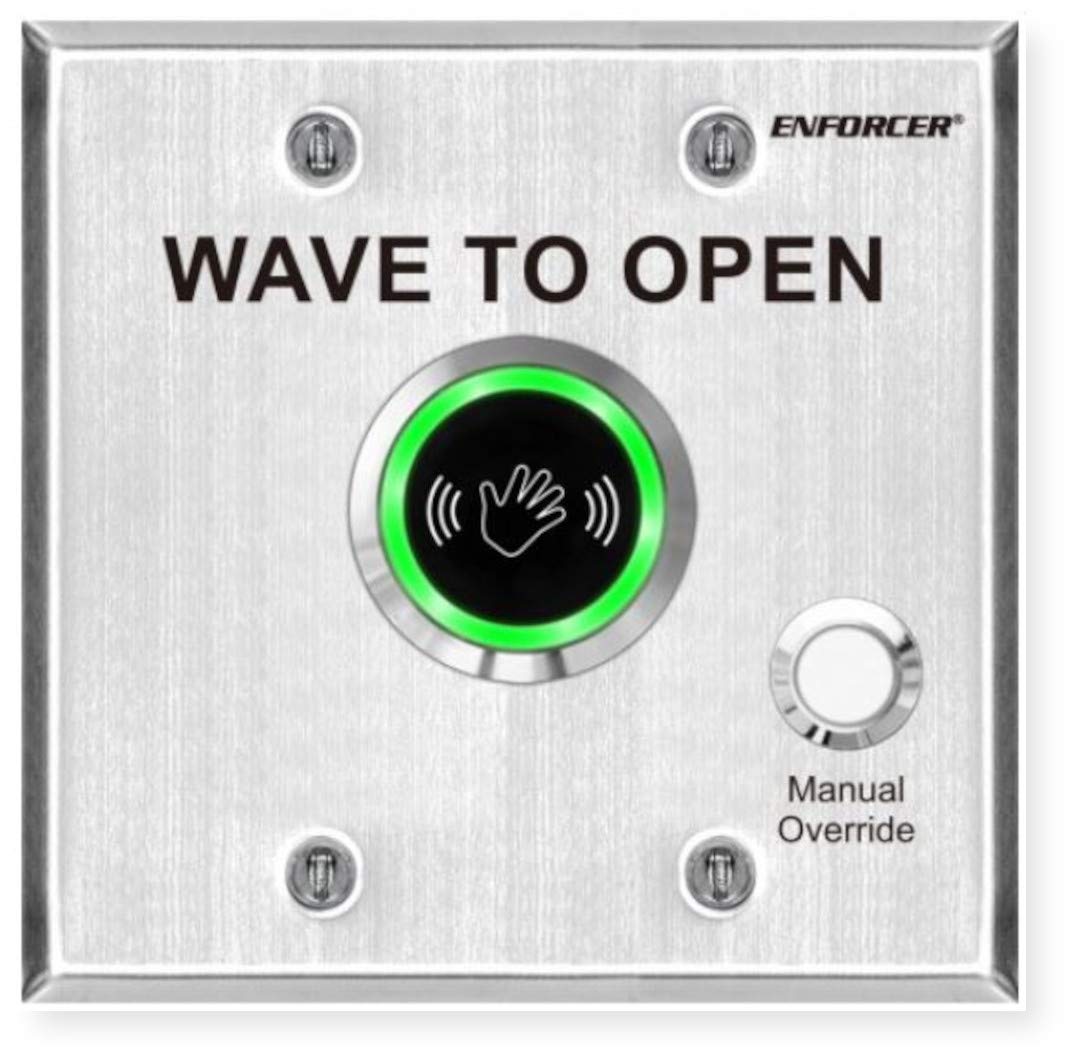

Enjoy access to your property with a wave of your hand with the Seco-Larm Enforcer Outdoor Double-Gang Wave-to-Open Sensor with Manual Override. This wall mounted IR sensor detects nearby handwave motions in order to activate nearby devices such as doors, lights, etc. When activated, the sensor's built-in LED changes color (from red to green or green to red) to indicate a successful detection. The sensor's no touch design reduces the risk of contamination, making it perfect for locations including schools, hospitals, labs, clinics, clean rooms, warehouses, factories, and office buildings.
- Stainless steel double-gang relay (can be adjusted from 0.8 to 30 sec, toggle, or as long as a hand is near the sensor)
- Adjustable Hand wave/sensing range from 2" to 7"
- LED colors can be selected from red to green or green to red
- Manual override button works as backup to the sensor
- Quick connect screwless terminal block
Contents
- Wave-to-Open Sensor
- Manual
Technical Details
- Manufacturer Part #: SD-9463-KSVQ
- UPC: 676544021155
- Color: Stainless Steel
- Operating Voltage: 12~24 VAC/VDC
- Current Draw (max.):
- Standby: 16mA@12VDC / 25mA@24VDC
- Triggered: 25mA@12VDC / 32mA@24VDC
- Relay Type: Form C dry contact, 1.2A@30VDC
- Response Time: 10ms
- LEDS: Default, reversible by jumper
- Standby: Red
- Triggered: Green
- Output Time: 0.8 to 30 sec. or toggle, or as long as sensor is triggered
- Sensing Range: Adjustable between 2-3/8" to 7" (5 to 18 cm)
- Operating Temperature: -4° to 131° F (-20° to 55° C)
- Weight: 5.6-oz (160g)
- Warranty: 1 Year
• Relay trigger can be adjusted from 0.8 to 30 sec delay, or as long as a hand is near the sensor
• Adjustable Hand wave/sensing range from 2" to 7"
• LED colors can be selected from red to green or green to red
• Manual override button works as backup to the sensor
• Weather resistant stainless steel double-gang
