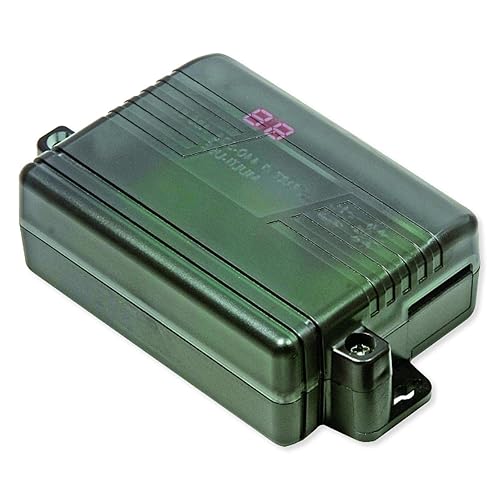

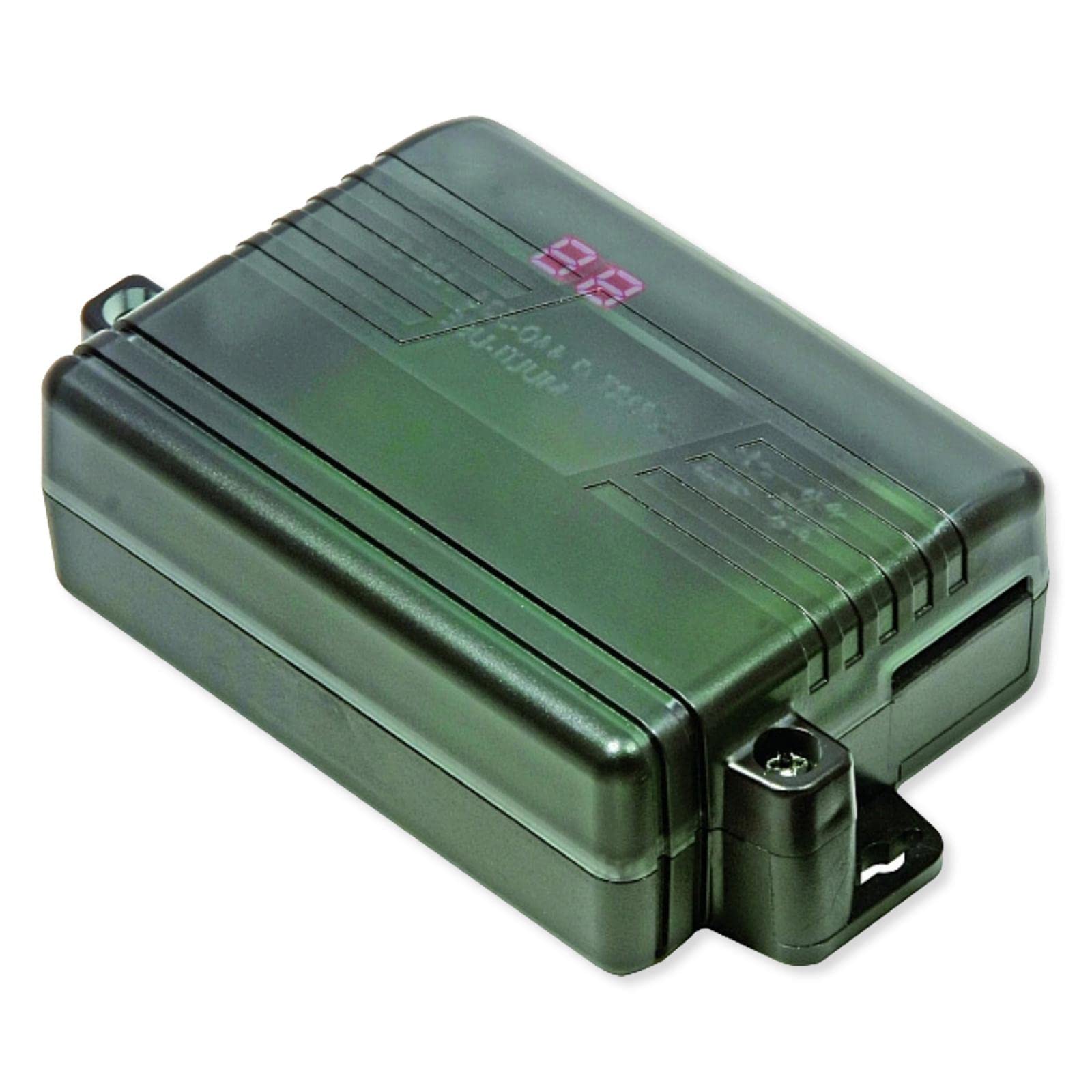

Create a network of various 917 MHz wireless devices with the Seco-Larm Enforcer RF Receiver. The Seco-Larm Enforcer RF Receiver is part of the HL series and is compatible with all 917MHz Seco-Larm transmitters. It features 5 output modes per channel and each channel can be programmed independently. This RF receiver works with the RF transmitter to allow you to wirelessly control various applications/devices such as smart home devices, garage doors, gates, house lights, alarm panels, or other devices connected to a Seco-Larm receiver. For example, each member of your family can carry a personal transmitter that operates your garage door opener, arms/disarms your security system, or controls your outdoor lighting with the push of a button. The receiver is available in 1-channel or 2-channel options.

• Up to 99 button codes per channel and 5 individually programmable output modes
• Compatible with all Enforcer 917 MHz RF transmitters
• Operates up to 1,800 feet (depending on installation and operating environment)
• Armor-piercing technology for improved penetration
• Wide voltage range: 10~24 VAC or 9~48 VDC

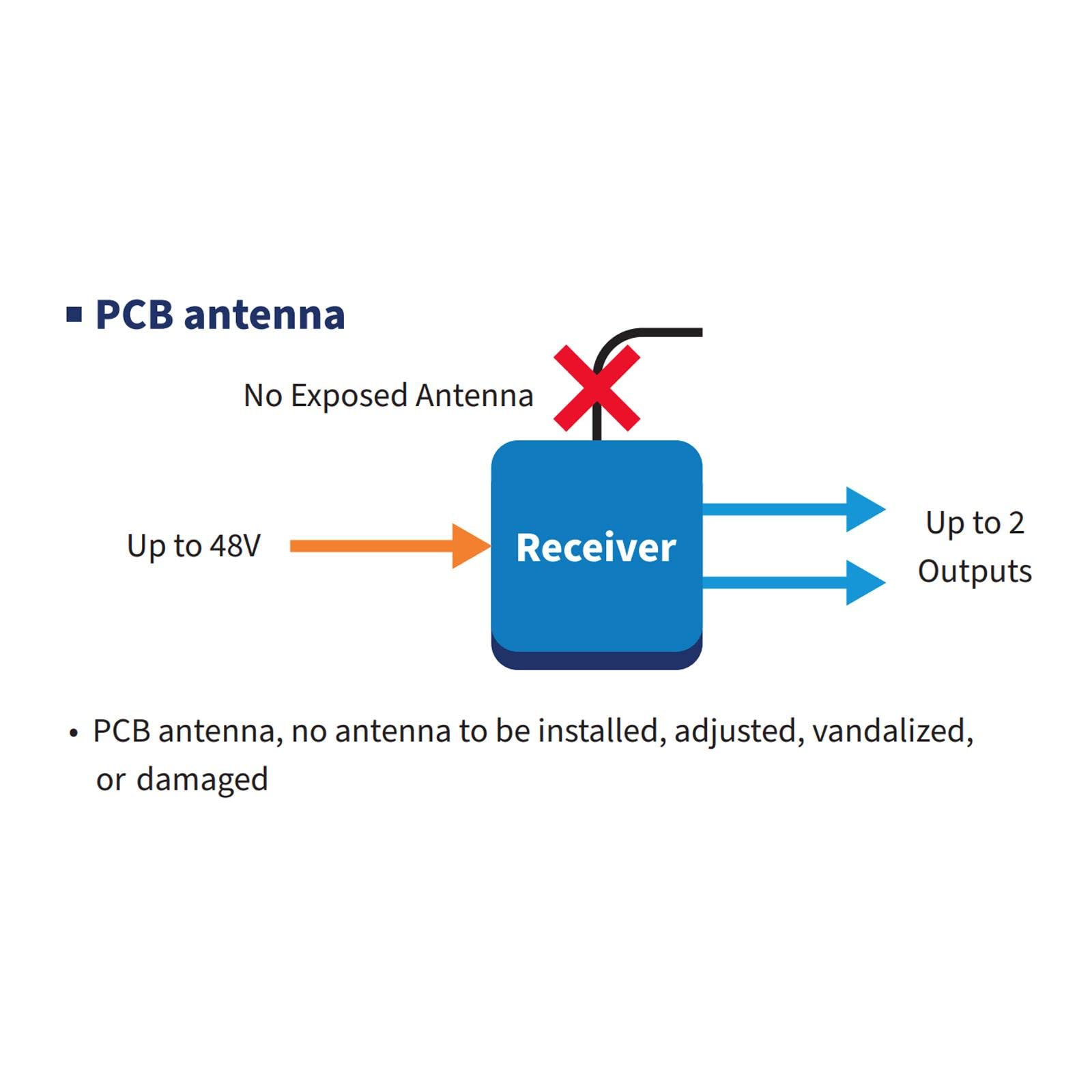

• PCB antenna makes installation easy

Seco-Larm Enforcer RF Transmitters and Receivers feature digital modulation, which helps reduce interference and allows for improved signal penetration in areas with heavy obstructions. The transmitters offer a long battery life of up to 10 years while the receivers have a wide voltage range (low current – 10~24 VAC / 9~48 VDC). Plus, they also feature a significantly longer range of up to 1,800 feet (line of sight).

Contents

• RF Receiver
• Manual

Technical Details

• Manufacturer Part #: HL-951R1-SQ
• UPC: 676544021209
• Type: 1 Channel
• RF Frequency: 917MHz
• Memory Capacity: 99 transmitter button codes per channel
• Operating Voltage: 10~24 VAC, 9~48 VDC
• Operating Current:
• Standby: 8mA@12VDC / 5mA@24VDC / 3mA@48VDC (typical)
• Active: 100mA@12VDC / 50mA@24VDC / 25mA@48VDC per channel
• Relay Output:
• Type: Independent, sequence, access control
• Modes: 1~99 sec momentary (default, 1s), 1~99 min momentary, toggle, latch, follow (validity)
• Relay Contacts: Form C 10A@14VDC
• Operating Range: Up to 1,800 feet (depending on installation and operating environment
• Digital Display: 2-Digit, 7-segment LED

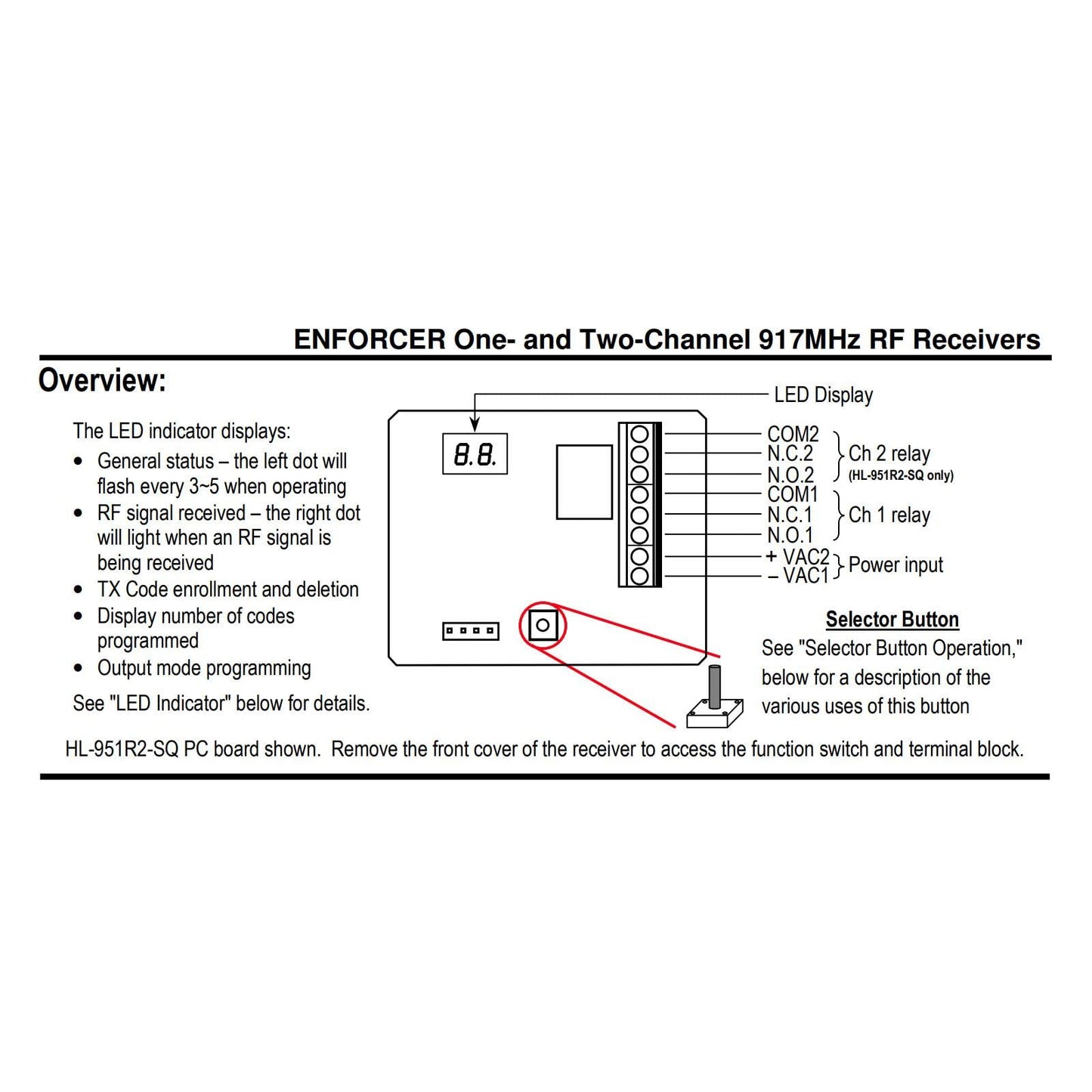

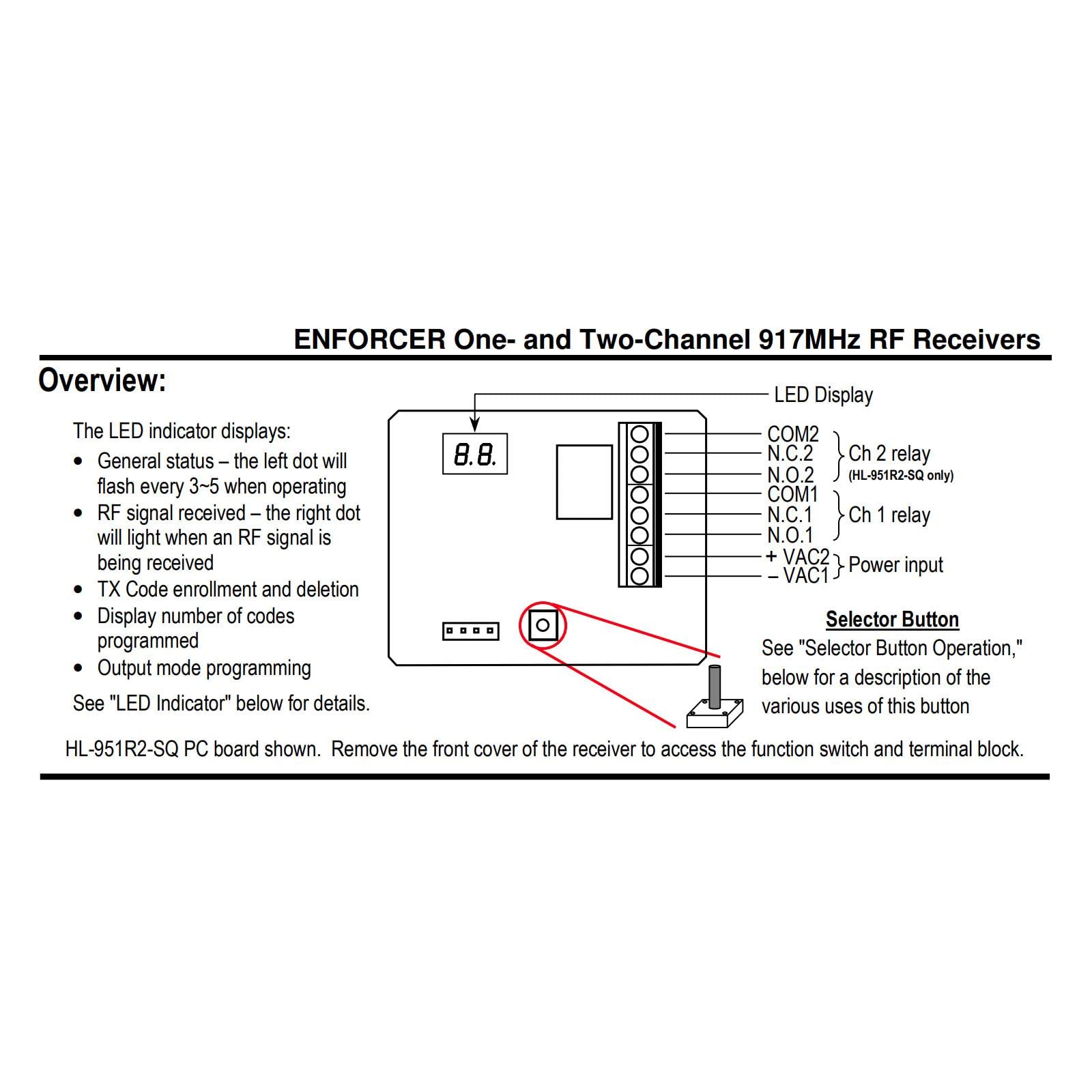

• Connectors: Screw terminals, +, -, with NO/NC/COM per relay
• Other Features:
• Programming by the switch, no need to cut jumpers
• LED Indicates RF reception and programming functions
• RF Signal strength/site survey test mode to find the optimal installation location
• Operating Temperature: -40°~167° F (-40°~75° C)
• Dimensions: 3-15/16 x 2-1/2 x1-3/1 inches (100 x 63 x 30 mm)
• Credentials: FCC, CE
• Warranty: 1 Year
