Description
Brand: Ruimou

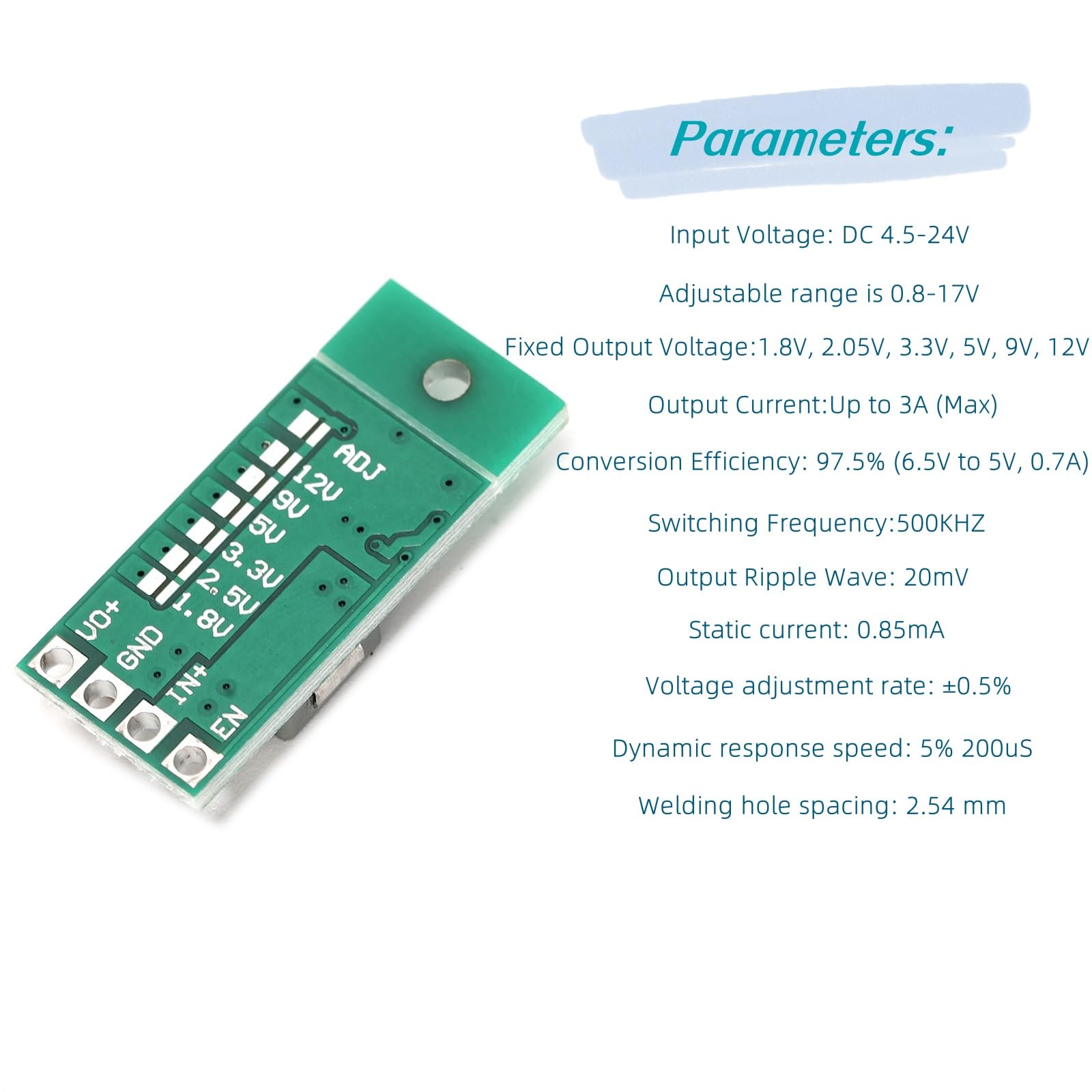

Parameters: Input Voltage: DC 4.5-24V Adjustable range is 0.8-17V Fixed Output Voltage:1.8V, 2.05V, 3.3V, 5V, 9V, 12V Output Current:Up to 3A (Max) Conversion Efficiency: 97.5% (6.5V to 5V, 0.7A) Switching Frequency:500KHZ Output Ripple Wave: 20mV (12V to 5V 3A) 20m band width Static current: 0.85mA Voltage adjustment rate: ±0.5% Dynamic response speed: 5% 200uS Wiring method: soldering Output method: soldering or pins Welding hole spacing: 2.54 mm Size:20 x10mm/0.78 x 0.39inch Operating temperature: -40℃ - +85℃, industrial class, the higher the operation temperature is, and the smaller the output power is. Package includes: 10 x DC-DC Buck Converter

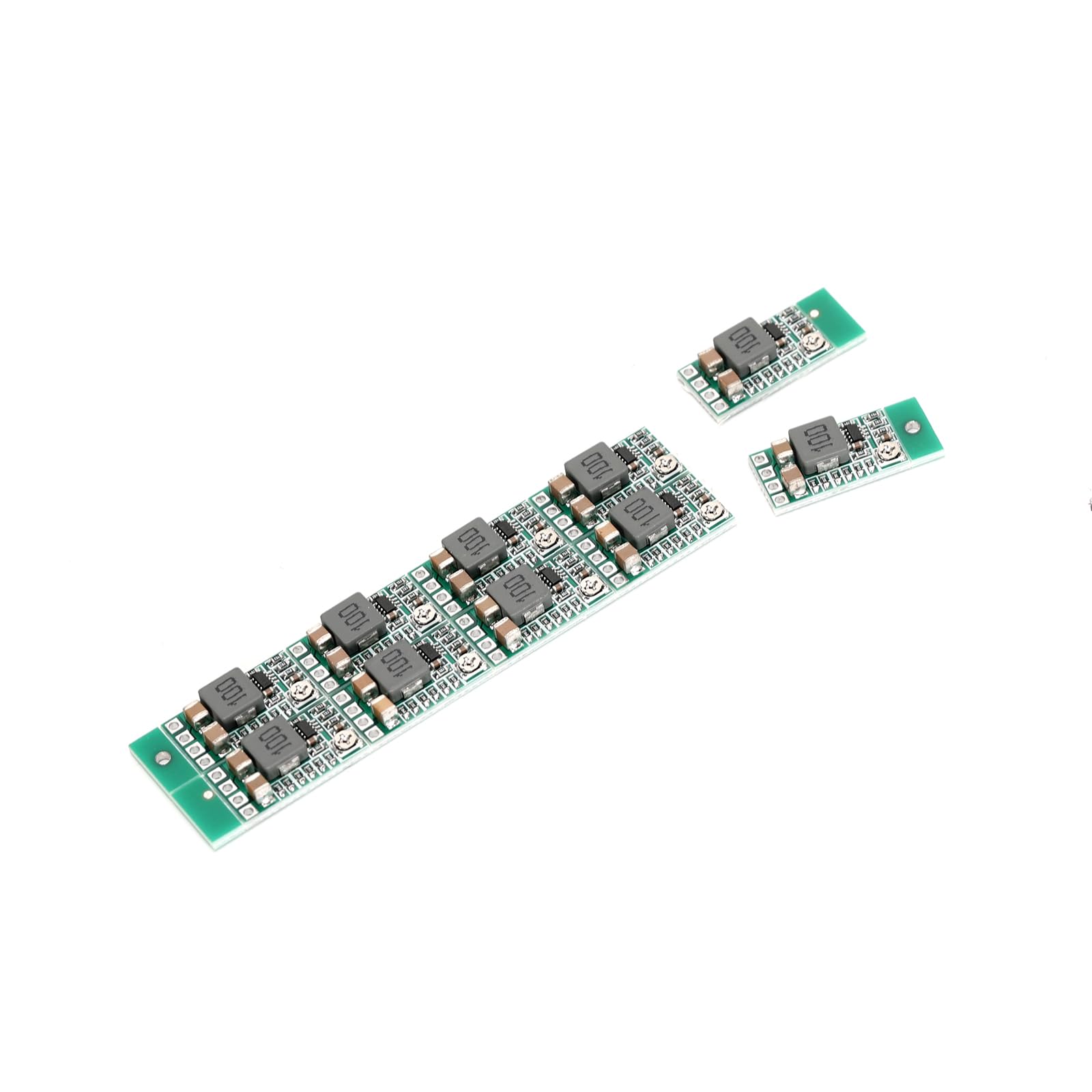

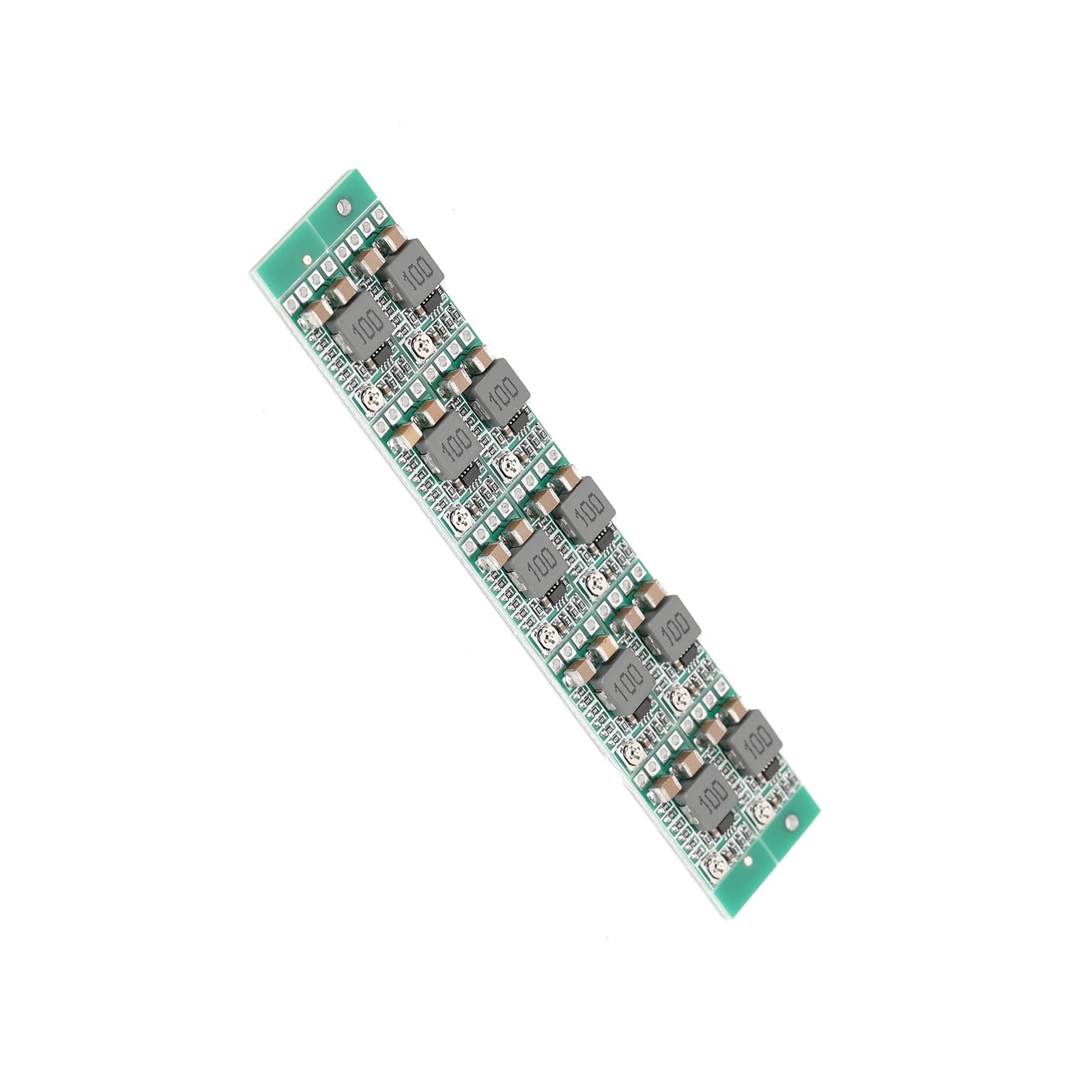

• 1.You will receive:10 x Mini regulators module.
• 2.Adjustable and fixed voltage output: the power supply module input is DC 4.5V to 24V, adjustable range is 0.8 V to17V, fixed output is 1.8V, 2.5V, 3.3V, 5V, 9V, 12V
• output current: 3A (Maximum)
• conversion Efficiency: 97.5% (Maximum).
• 3.Operates at 500KHZ
• Output ripple: about 20mV (12V to 5V3A)
• Quiescent current: 0.85 mA ,Load regulation rate: ±1%. Voltage adjustment rate: ±0.5%. Dynamic response rate: 5% 200uS. Welding hole spacing: 2.54mm.

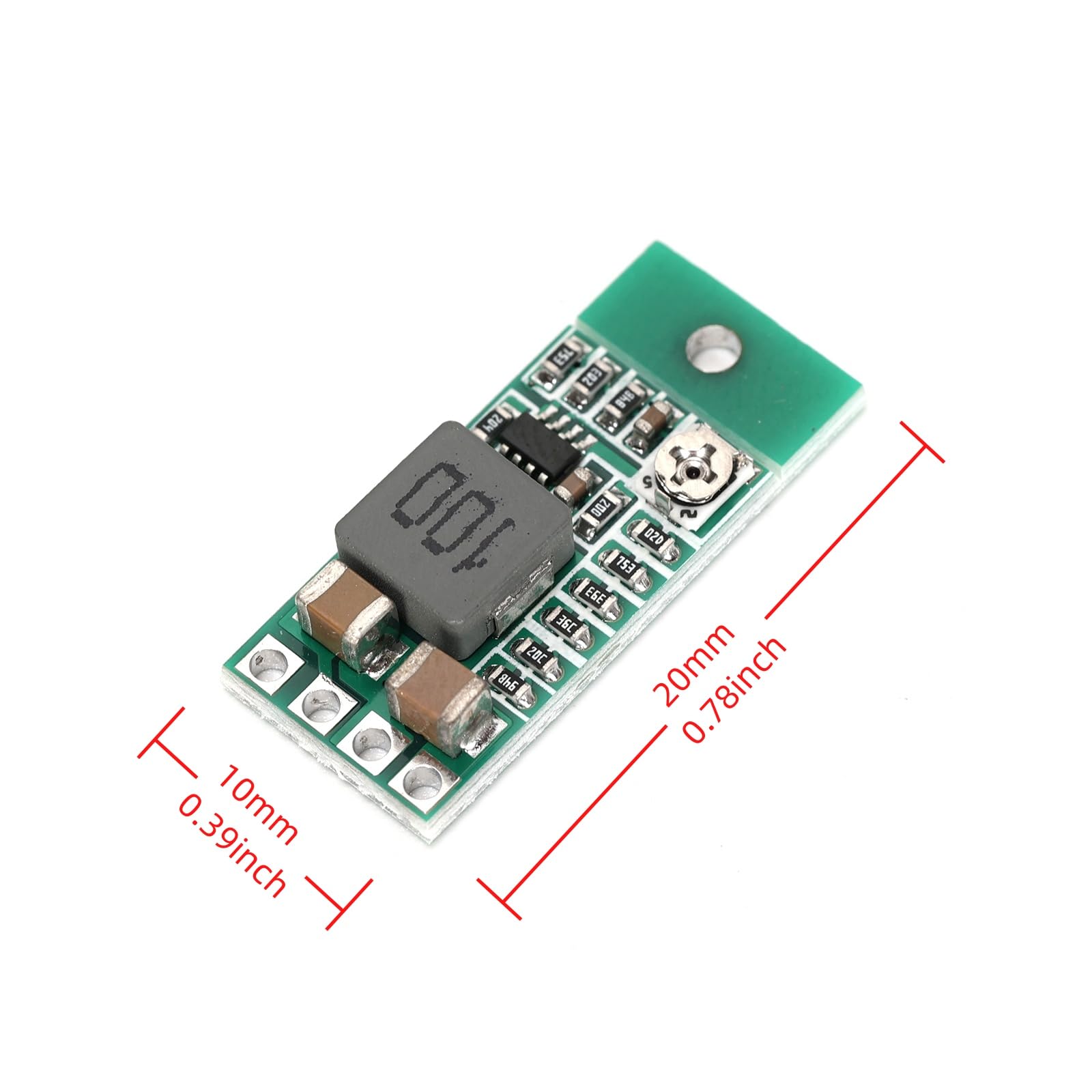

• 4.Size : 20x10mm/0.78x0.39inch
• This voltage regulator module is really tiny,high frequency, low ripple and stable working performance,Improve the power supply voltage conversion efficiency. Reduce heat generation.
• 5.Wide range of applications: for DIY mobile power supply. Aviation model Automobile power supply, communication equipment power supply, all kinds of occasions with harsh requirements on size and weight.
Parameters: Input Voltage: DC 4.5-24V Adjustable range is 0.8-17V Fixed Output Voltage:1.8V, 2.05V, 3.3V, 5V, 9V, 12V Output Current:Up to 3A (Max) Conversion Efficiency: 97.5% (6.5V to 5V, 0.7A) Switching Frequency:500KHZ Output Ripple Wave: 20mV (12V to 5V 3A) 20m band width Static current: 0.85mA Voltage adjustment rate: ±0.5% Dynamic response speed: 5% 200uS Wiring method: soldering Output method: soldering or pins Welding hole spacing: 2.54 mm Size:20 x10mm/0.78 x 0.39inch Operating temperature: -40℃ - +85℃, industrial class, the higher the operation temperature is, and the smaller the output power is. Package includes: 10 x DC-DC Buck Converter
• 1.You will receive:10 x Mini regulators module.
• 2.Adjustable and fixed voltage output: the power supply module input is DC 4.5V to 24V, adjustable range is 0.8 V to17V, fixed output is 1.8V, 2.5V, 3.3V, 5V, 9V, 12V
• output current: 3A (Maximum)
• conversion Efficiency: 97.5% (Maximum).
• 3.Operates at 500KHZ
• Output ripple: about 20mV (12V to 5V3A)
• Quiescent current: 0.85 mA ,Load regulation rate: ±1%. Voltage adjustment rate: ±0.5%. Dynamic response rate: 5% 200uS. Welding hole spacing: 2.54mm.
• 4.Size : 20x10mm/0.78x0.39inch
• This voltage regulator module is really tiny,high frequency, low ripple and stable working performance,Improve the power supply voltage conversion efficiency. Reduce heat generation.
• 5.Wide range of applications: for DIY mobile power supply. Aviation model Automobile power supply, communication equipment power supply, all kinds of occasions with harsh requirements on size and weight.
