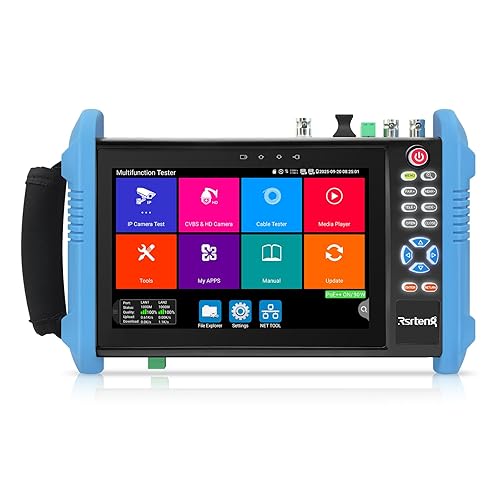

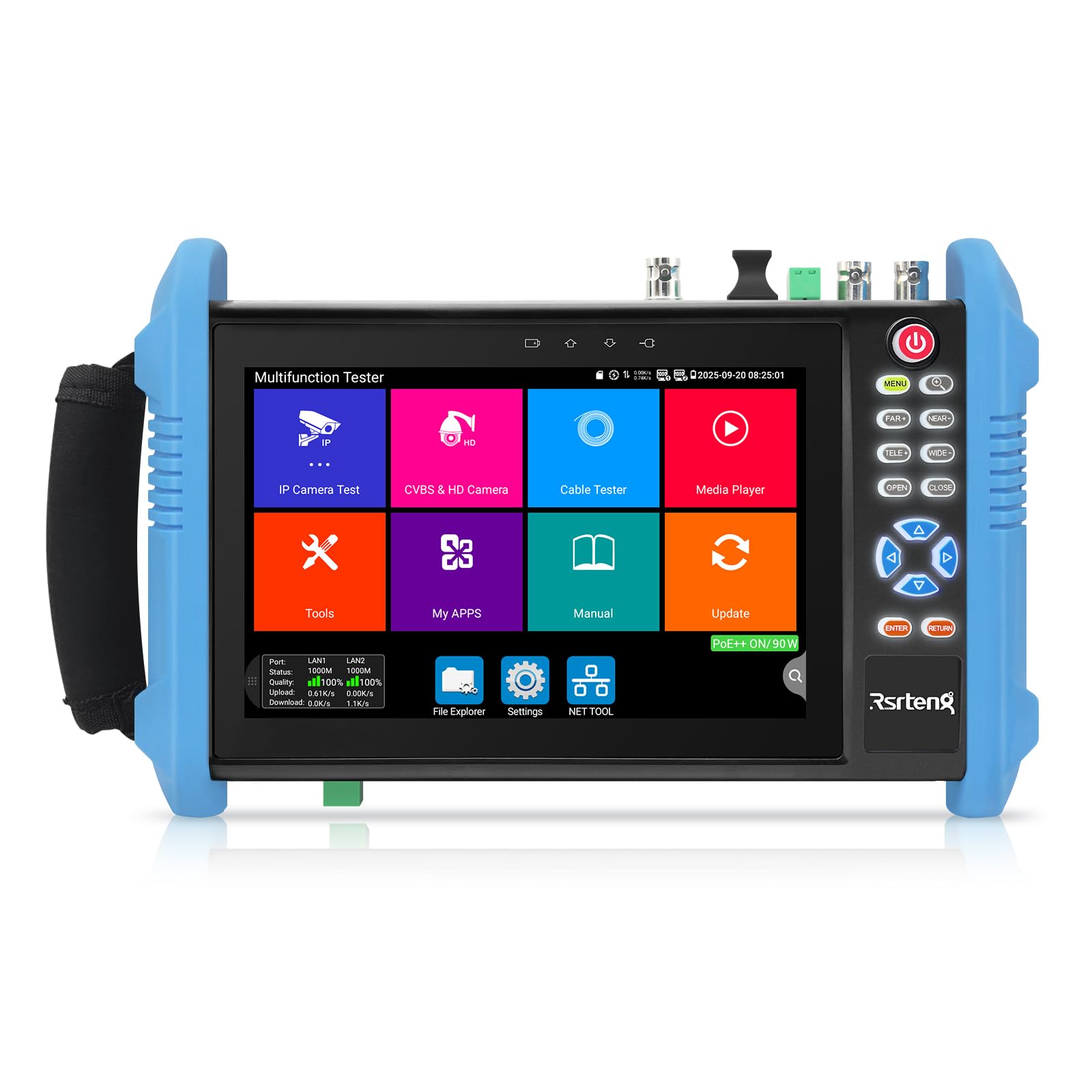

Brand: Rsrteng

Model: IPC-9800ADHS Plus+

Display

7”IPS touch screen, 1920*1200 resolution.


Video Mode

CVBS:
1* BNC input, 1* BNC looped output, NTSC/PAL (Auto adapt).
Analog video, peak video, SYNC signal level, Color bar chroma level measurement.
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols.

IP camera test:
4K/H.265/H.264, IP Discovery/Quick OVIF/IPC test /RTSP play /Client APK.
Rapid Video:Auto view the video, create testing report.
Hik and DH camera test tool.
IP & CVBS test at the same time, converter test from analog to digital with dual test window.

Coaxial HD camera test:
8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/ call OSD menu
8MP CVI camera test, 3840 x 2160P 12.5F/15F,UTC control/call OSD menu
8MP AHD camera test, 3840x2160P 15FPS, UTC control/call OSD menu
8MP EX-SDI, HD-SDI, 3G-SDI, UTC control & call OSD menu.


Others

Power: Input DC12V/2A; Output DC24V/2A, DC12V/3A, DC5V/2A & POE IEEE802.3af/at/bt max 90W.
1 channel SFP module interface
Network test: Trace route, Link monitor, DHCP server, port flashing, Ping test.
1 HD input, 1 HD output.
Audio test, Data monitor, POE test.
language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese.
Working Temperature: -10~50C, Humidity 30%-90%.
Dimension/Weight: 240mmx154mmx46mm/0.7kg(1.6lbs)

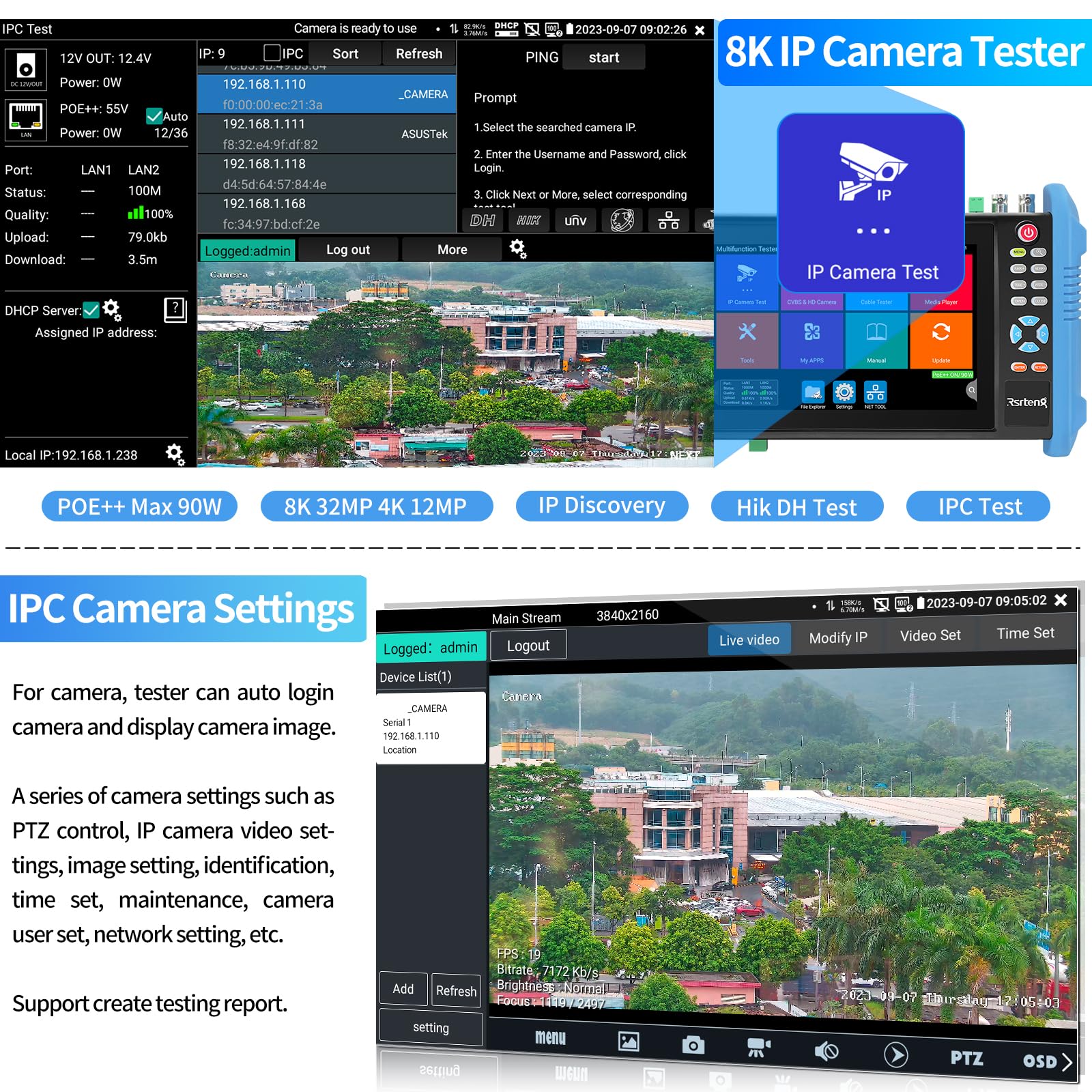

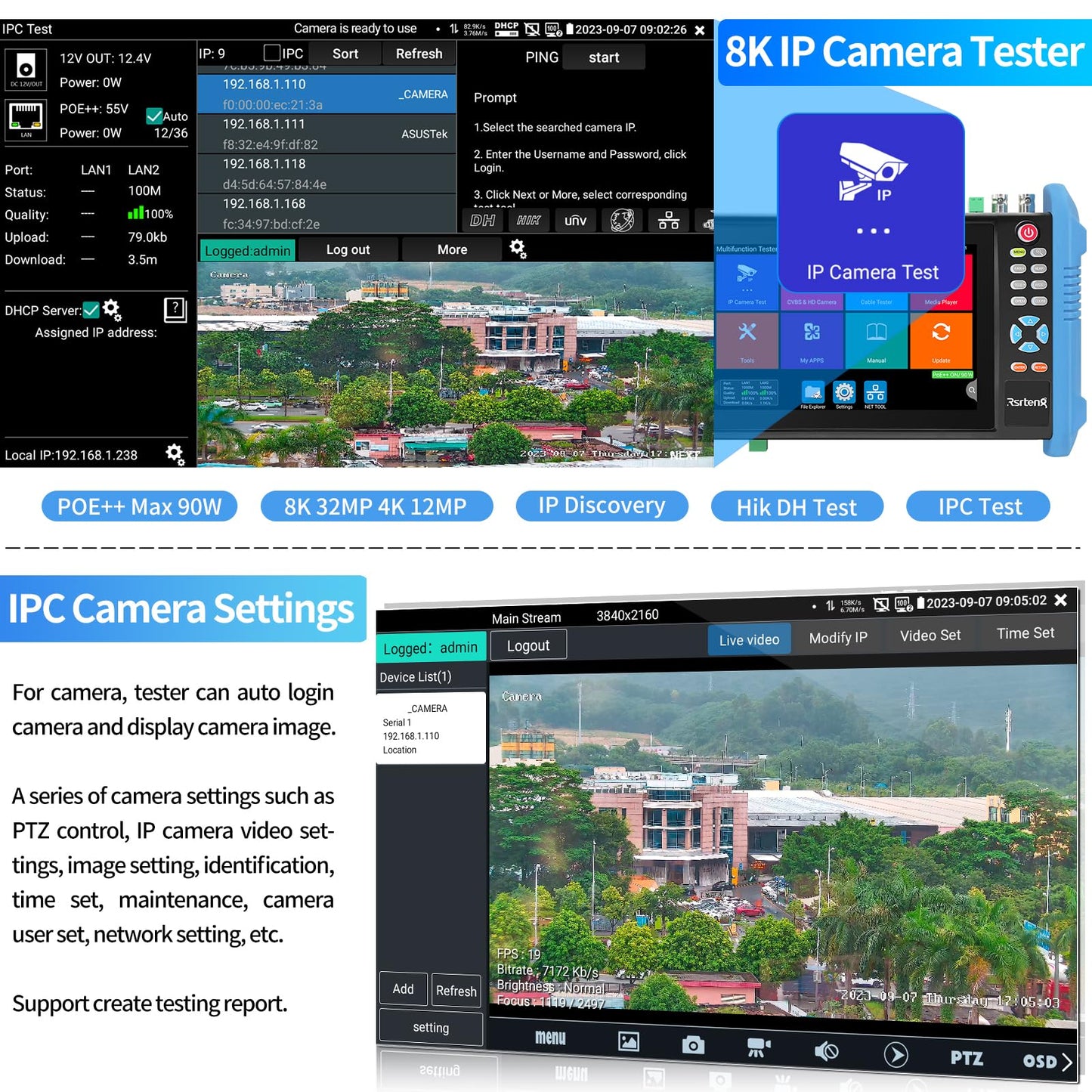

• ?IP Camera Tester?Network camera tester support max 8K 32MP 8160*3616P 4K 12MP 4000*3000P IP Camera test. Real-time network traffic detection in the status bar. Rapid Video, auto view the video, create testing report. IP Discovery/IPC test /RTSP play /Client APK. CCTV Tester Built-in special tools for Hik and for DH and other 3rd brand camera test tools, support batches of fast setting of Hik and DH cameras and compatible with most existing cameras.

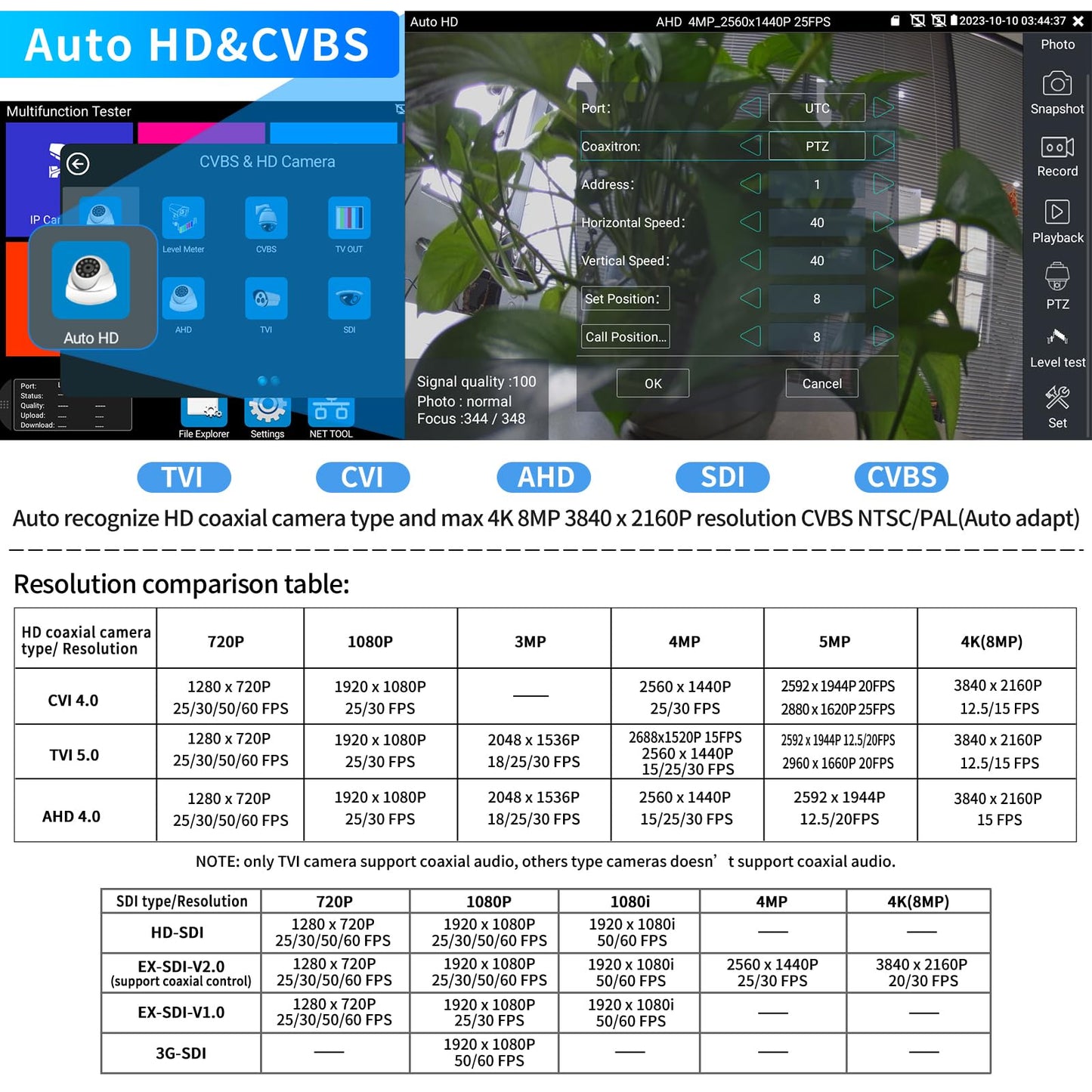

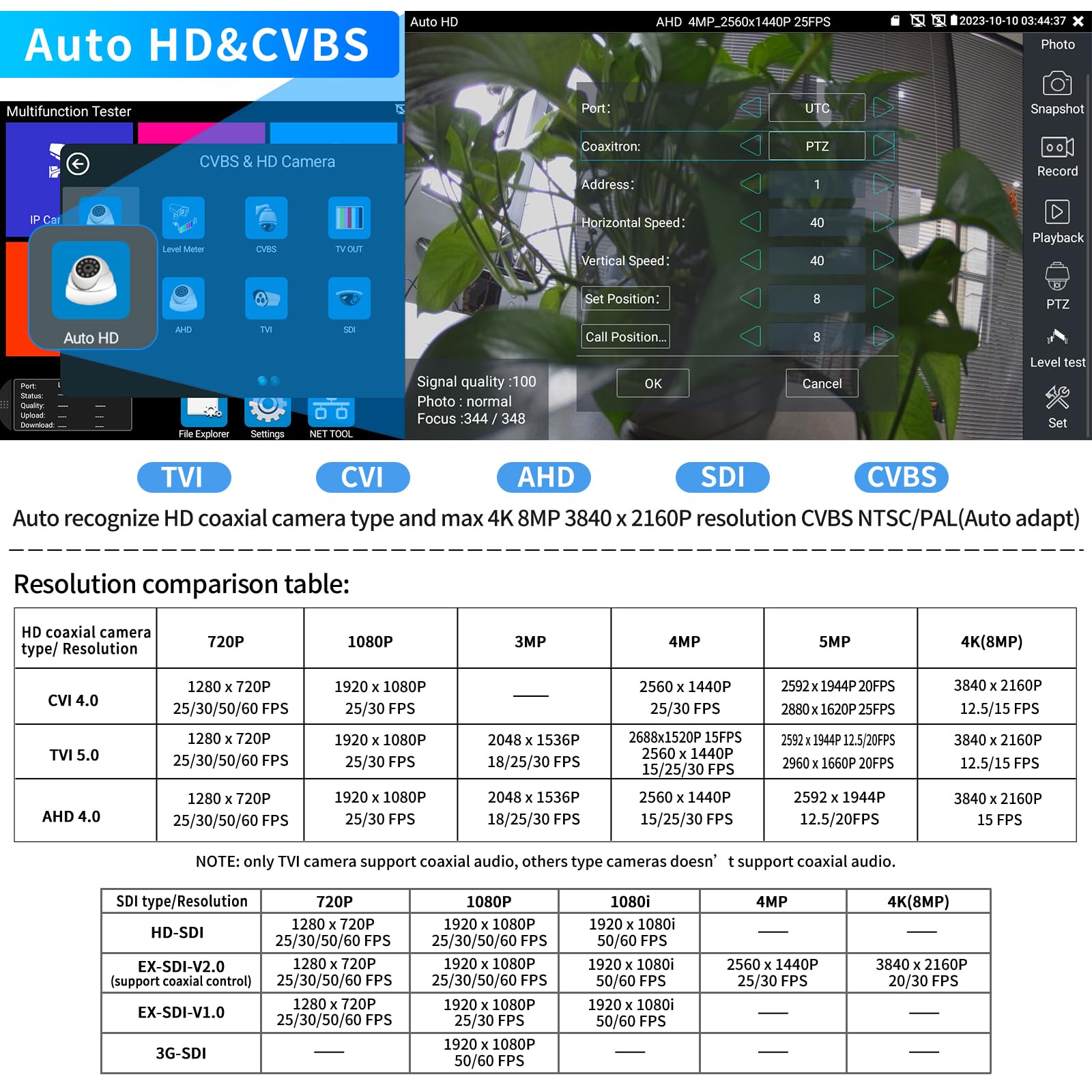

• ?Coaxial HD CCTV Camera test?CCTV tester monitor support max 8MP(3840x2160P) TVI / AHD / CVI / SDI coaxial camera test,UTC PTZ control and call OSD menu. Built-in "Auto HD" APP can automatically recognize the camera type when viewing HD AHD / TVI / CVI / SDI cameras. The 7 inch ip tester also support CVBS analog camera test. Color bars test.

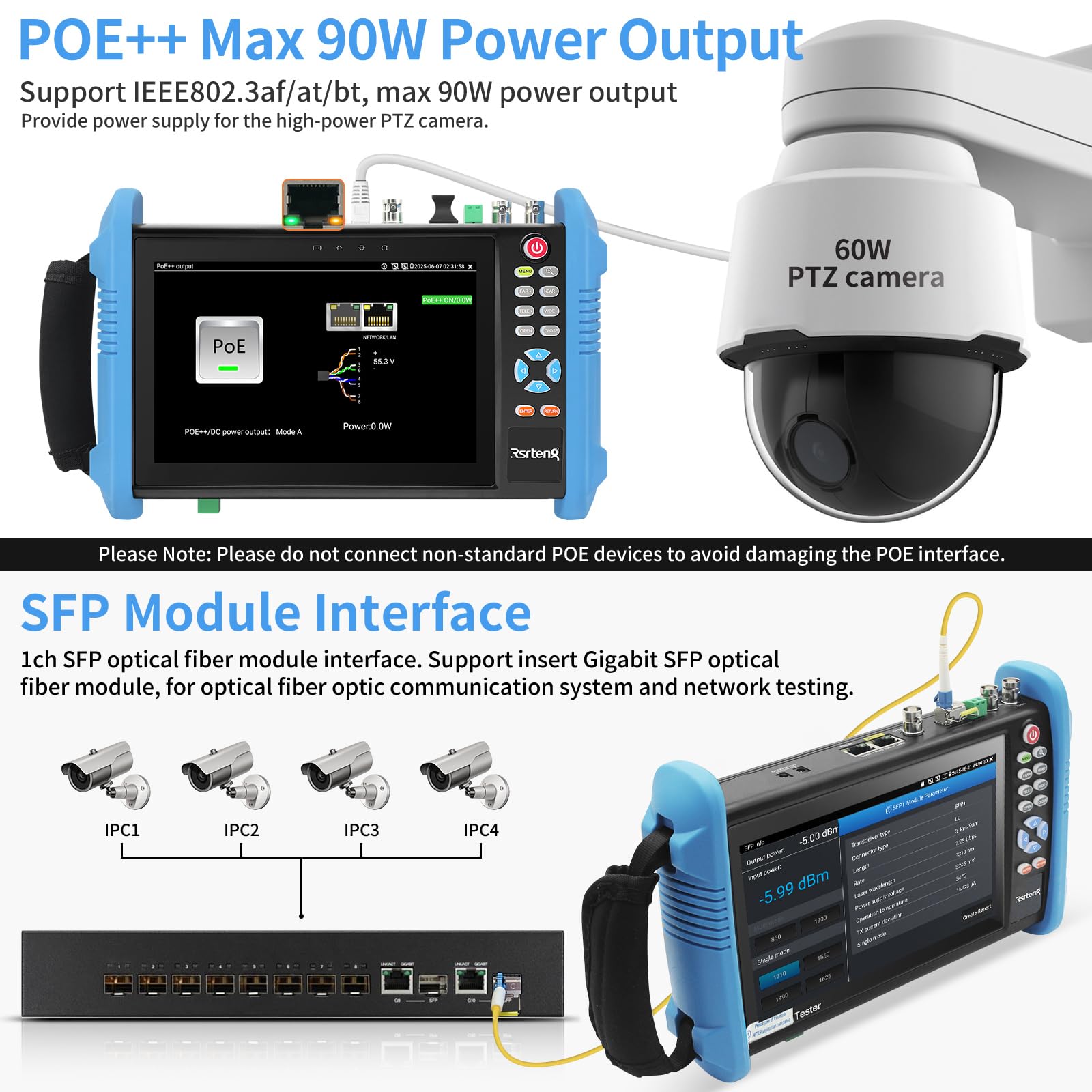

• ?POE++ MAX 90W Power Output & 1CH Gigabit SFP Module Interface?Rsrteng IPC-9800ADHS Pro CCTV Tester support standard IEEE 802.3af & IEEE 802.3at and IEEE 802.3bt,max 90W power output.Provide power supply for high-power PTZ speed dome camera. 1CH SFP optical fiber module interface,support insert Gigabit SFP optical fiber module for optical fiber network testing.
• ?Professional testing tools?Power management can view real-time data such as voltage and power of POE, DC12V,DC24V output/PSE, and DC15V input. Powerful network tools trace route, link monitor, DHCP server, port flashing, Ping test. UTP cable test. RJ45 TDR cable test can test cable pair status, length, attenuation, reflectivity, impedance, skew etc, measurement range 180M. Use it to make your installation simple and efficient.

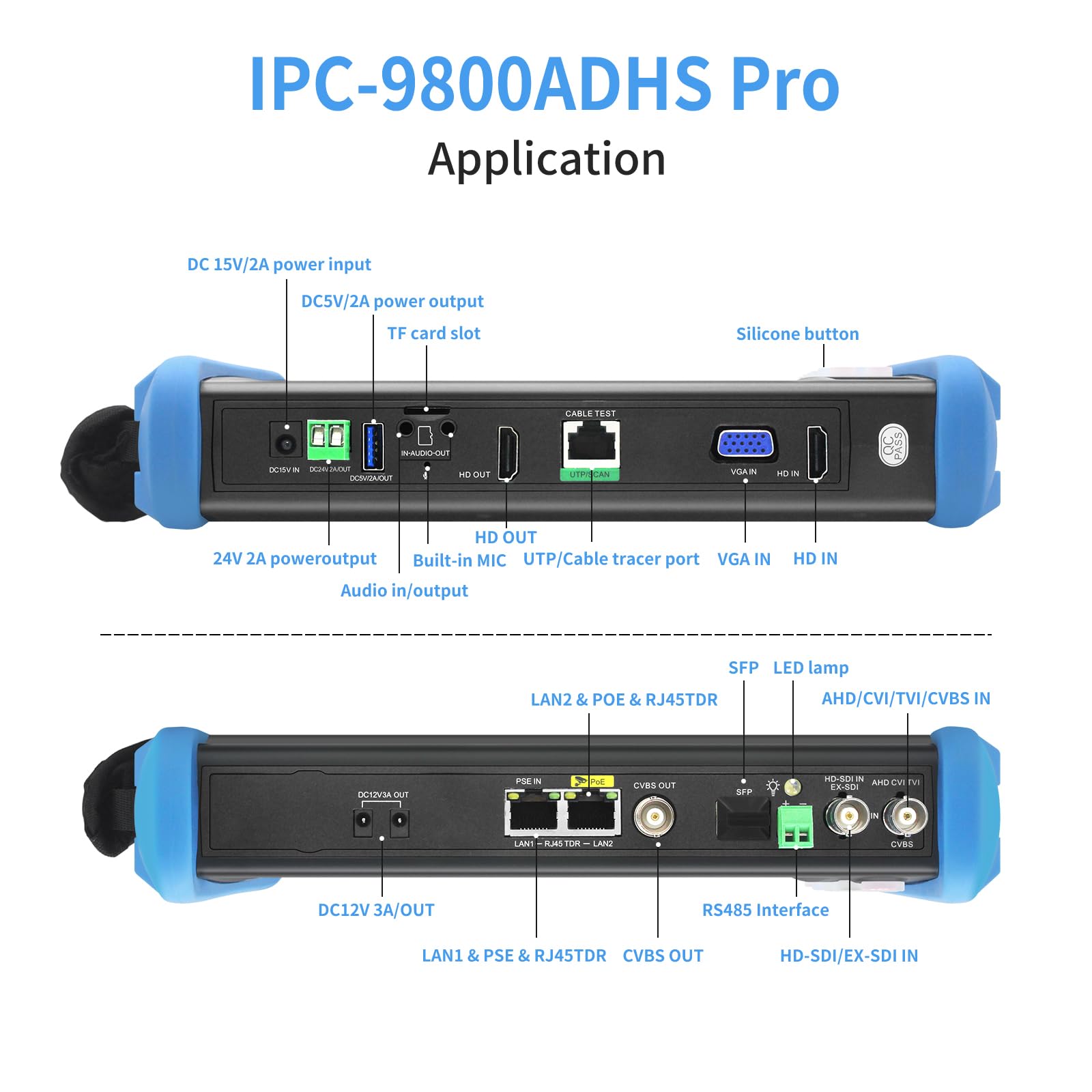

• ?More parameters Camera Tester?CCTV camera monitor upgraded to Android 11.0 version, which can install more apps in it. With 7 inch IPS touch screen, 1280*800 resolution. Dual Ethernet port 10/100/1000Mbps, Support RS485, Audio I/O, VGI input, HDMI I/O, WiFi, DC output:24V/2A,12V/3A,5V/2A, LED lamp. Cemera tester Dimension/Net weight 9.4 x 5.3 x 1.4 inch/0.93kg(2.07lbs).
• ?More models?IPC-9800 series models include IPC-9800(B07K8RFWX6), IPC-9800ADH(B094W22TVT), IPC-9800ADHS(B07K8QD2H3), IPC-9800CADHS(B0BJDVWV6T), IPC-9800CMADHS(B0BYNDNWS4), All features IPC-9800MOVTADHS(B07K8KWKRN). If you are interested in any of the models, you can to browse product information.
