Description
Brand: Riotaxy

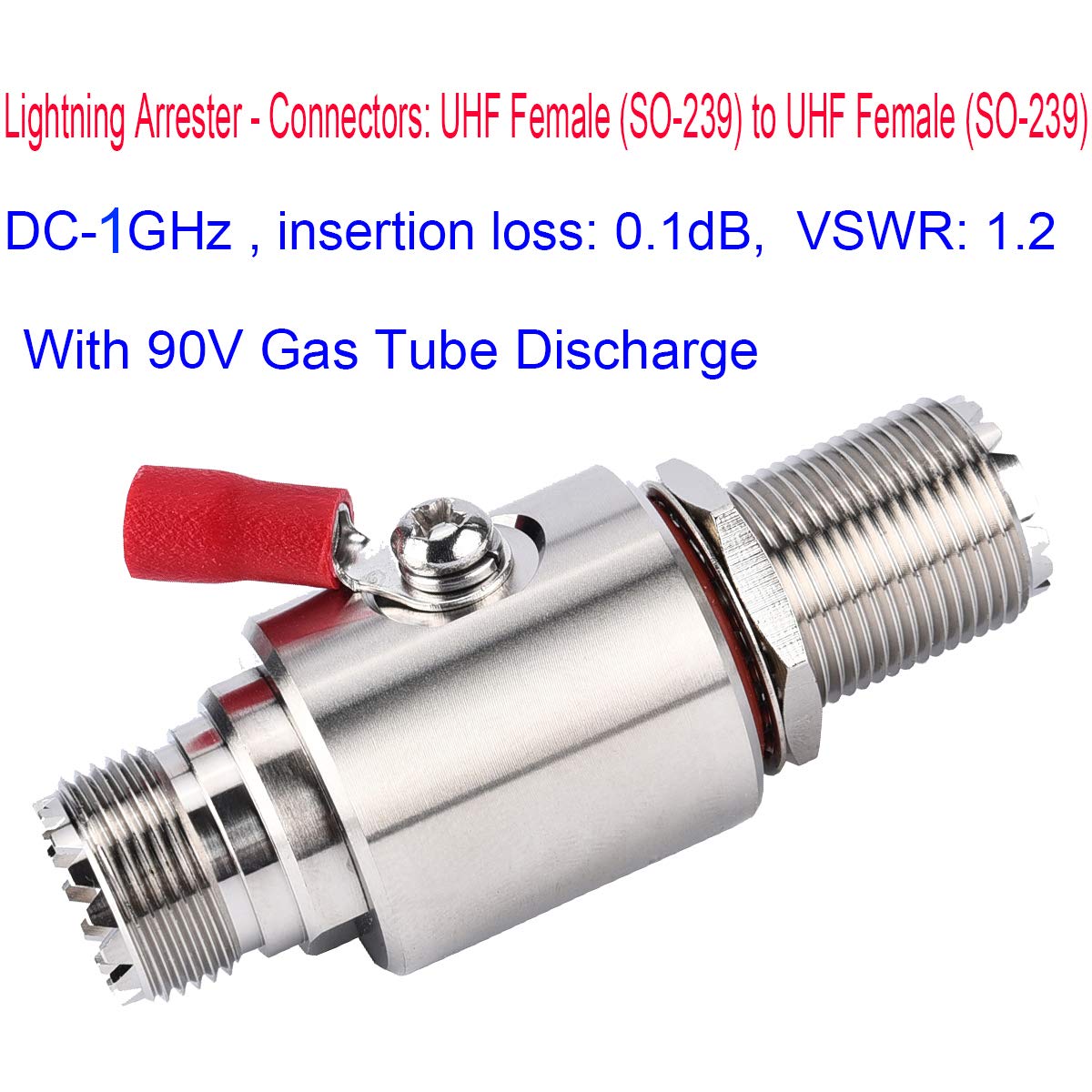

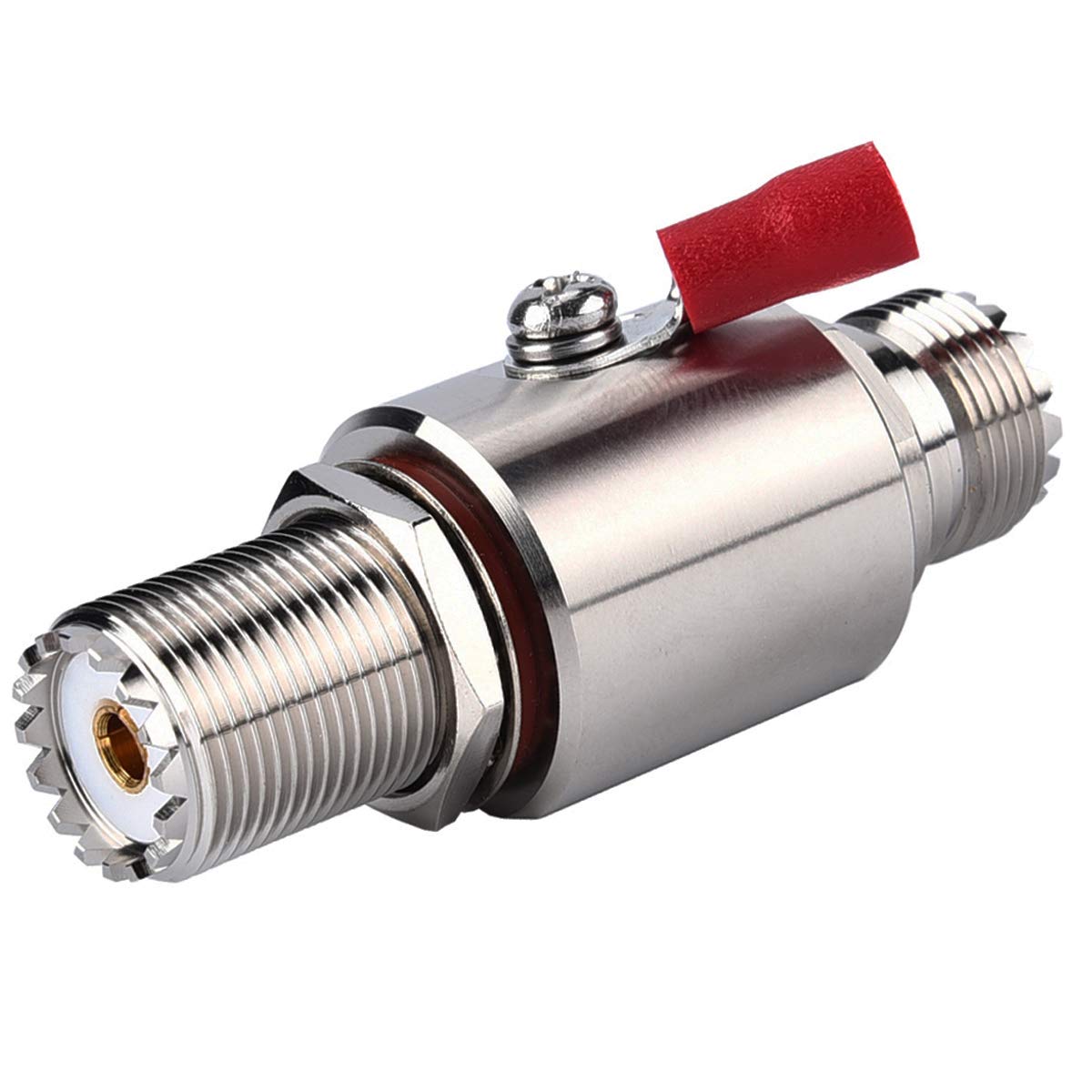

It is a UHF Lightning Protector that operates over the frequency range of DC-1 GHz. It uses a 90V gas discharge tube to shunt electrical surges and transients to ground, protecting sensitive communications equipment from these events.
It is a great UHF lightning protection solution for Ham radio and other lower frequency Antenna.

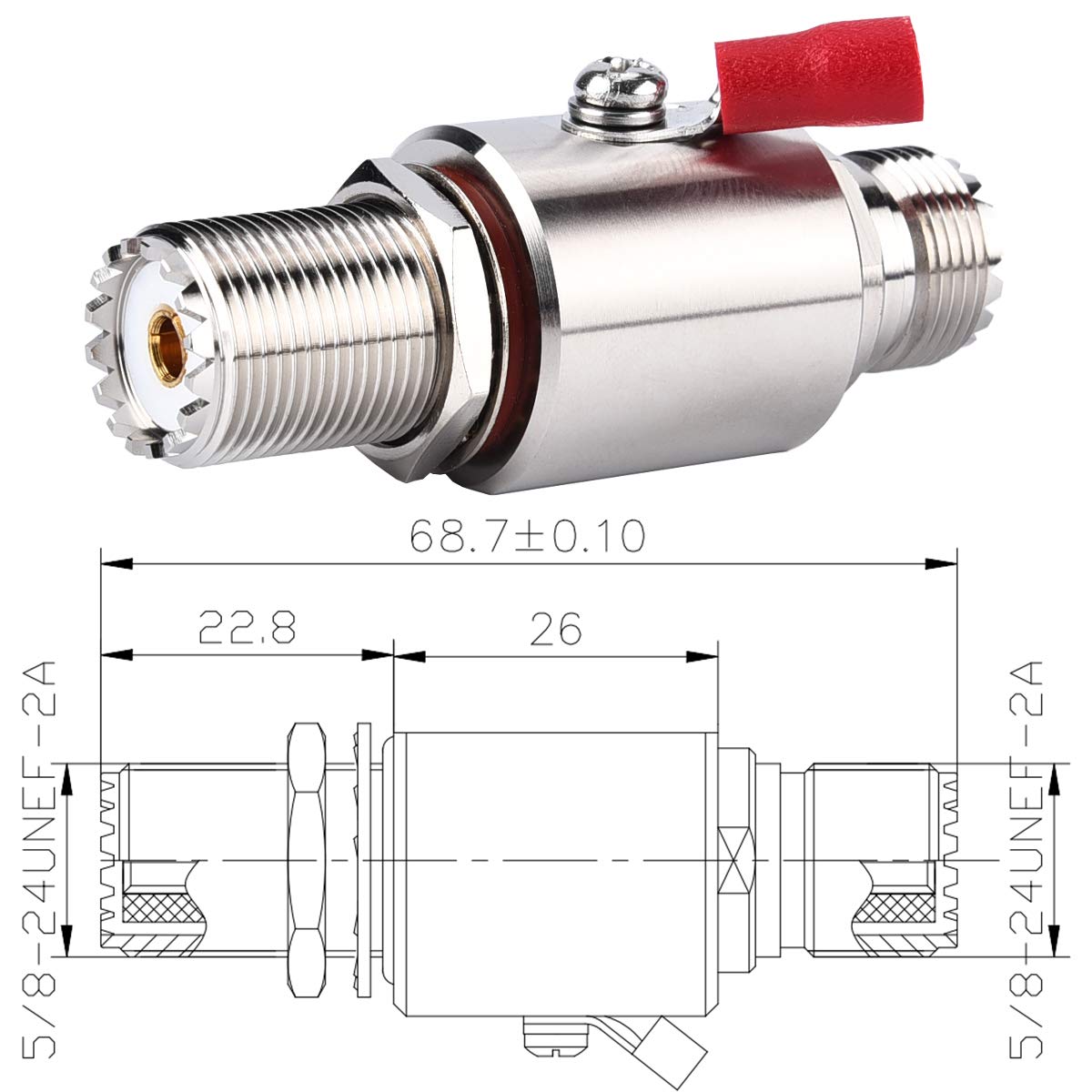

This model features PL259(UHF Female) Socket TO SO239 Socket(UHF Female) for mounting through an enclosure wall or the arrestor can be used inline.
SO239 259 arrester will pass DC,so SO-239 surge protector is suitable for applications where DC is carried through the coax cable. Both UHF connector ports of this unit are equally protected -- it can be installed in either orientation.
A ground lug and terminal on the housing provide superior grounding.
Specification:
Frequency Range: DC-1GHz
Discharge Voltage: DC90V
Impedance: 50 ohms
Insertion Loss: < 0.1 dB
VSWR:1.2
Max Power: 50W
Max surge voltage let through:200 mV
Throughput Energy: 5 nJ
Max Current Load: 10A
RoHS: Yes

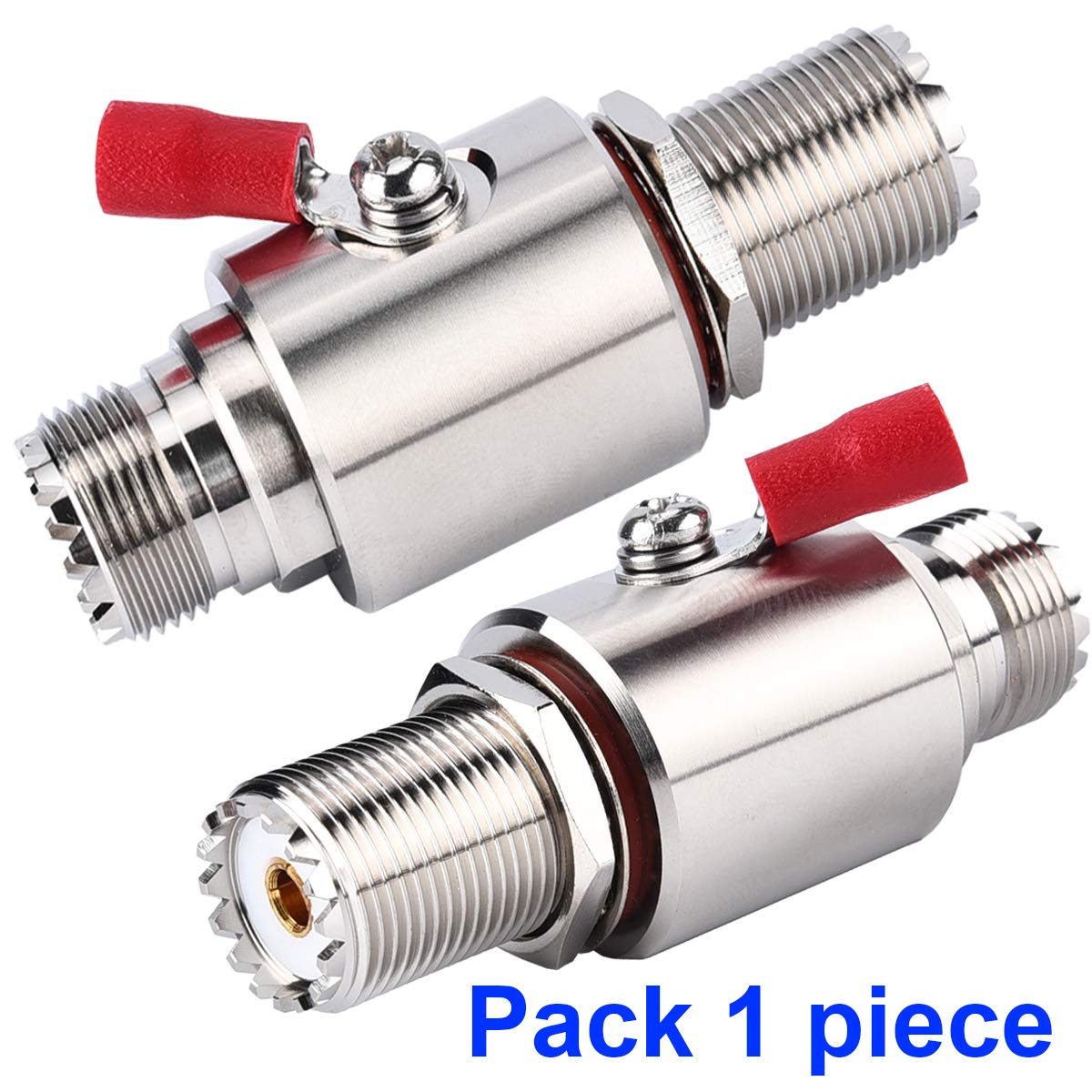

Packing : 1 piece UHF female to female Bulkhead lightning arrestor
• 1. UHF Lightning Arrester,PL259(UHF Female) Socket TO SO239 Socket( UHF Female) ,PL-259 Lightning surge protector for cable. With ground screw connection for easy install
• 2.Run a piece of heavy gauge copper wire (8 or 10 gauge) from the grounding screw on the side of the arrestor to a 3 foot minimum length grounding rod driven into the ground
• 3.High quality construction,reliable Wide-Band Performance from DC-1GHz, insertion loss 0.1dB and VSWR 1.2 ,Replaceable 90V Gas Tube Element with High Surge Power CapabilityHigh Surge Power Capability
• 4.A great UHF PL259 arrestor to protect your life, protectors offer HF/VHF/UHF other frequency equipment with extremely low loss. They boast an insertion loss of less than 0.1 dB. Ideal for CB Radio, HAM Radio Gear, 2-Way Base Stations.
• 5.SO239 arresters should be installed as close as possible to the equipment to be protected, often at the point where the cable enters the building. They can also be installed near the antenna for additional protection
Color: UHF Female to Female
It is a UHF Lightning Protector that operates over the frequency range of DC-1 GHz. It uses a 90V gas discharge tube to shunt electrical surges and transients to ground, protecting sensitive communications equipment from these events.
It is a great UHF lightning protection solution for Ham radio and other lower frequency Antenna.
This model features PL259(UHF Female) Socket TO SO239 Socket(UHF Female) for mounting through an enclosure wall or the arrestor can be used inline.
SO239 259 arrester will pass DC,so SO-239 surge protector is suitable for applications where DC is carried through the coax cable. Both UHF connector ports of this unit are equally protected -- it can be installed in either orientation.
A ground lug and terminal on the housing provide superior grounding.
Specification:
Frequency Range: DC-1GHz
Discharge Voltage: DC90V
Impedance: 50 ohms
Insertion Loss: < 0.1 dB
VSWR:1.2
Max Power: 50W
Max surge voltage let through:200 mV
Throughput Energy: 5 nJ
Max Current Load: 10A
RoHS: Yes
Packing : 1 piece UHF female to female Bulkhead lightning arrestor
• 1. UHF Lightning Arrester,PL259(UHF Female) Socket TO SO239 Socket( UHF Female) ,PL-259 Lightning surge protector for cable. With ground screw connection for easy install
• 2.Run a piece of heavy gauge copper wire (8 or 10 gauge) from the grounding screw on the side of the arrestor to a 3 foot minimum length grounding rod driven into the ground
• 3.High quality construction,reliable Wide-Band Performance from DC-1GHz, insertion loss 0.1dB and VSWR 1.2 ,Replaceable 90V Gas Tube Element with High Surge Power CapabilityHigh Surge Power Capability
• 4.A great UHF PL259 arrestor to protect your life, protectors offer HF/VHF/UHF other frequency equipment with extremely low loss. They boast an insertion loss of less than 0.1 dB. Ideal for CB Radio, HAM Radio Gear, 2-Way Base Stations.
• 5.SO239 arresters should be installed as close as possible to the equipment to be protected, often at the point where the cable enters the building. They can also be installed near the antenna for additional protection
Color: UHF Female to Female
