Description
Brand: Riotaxy

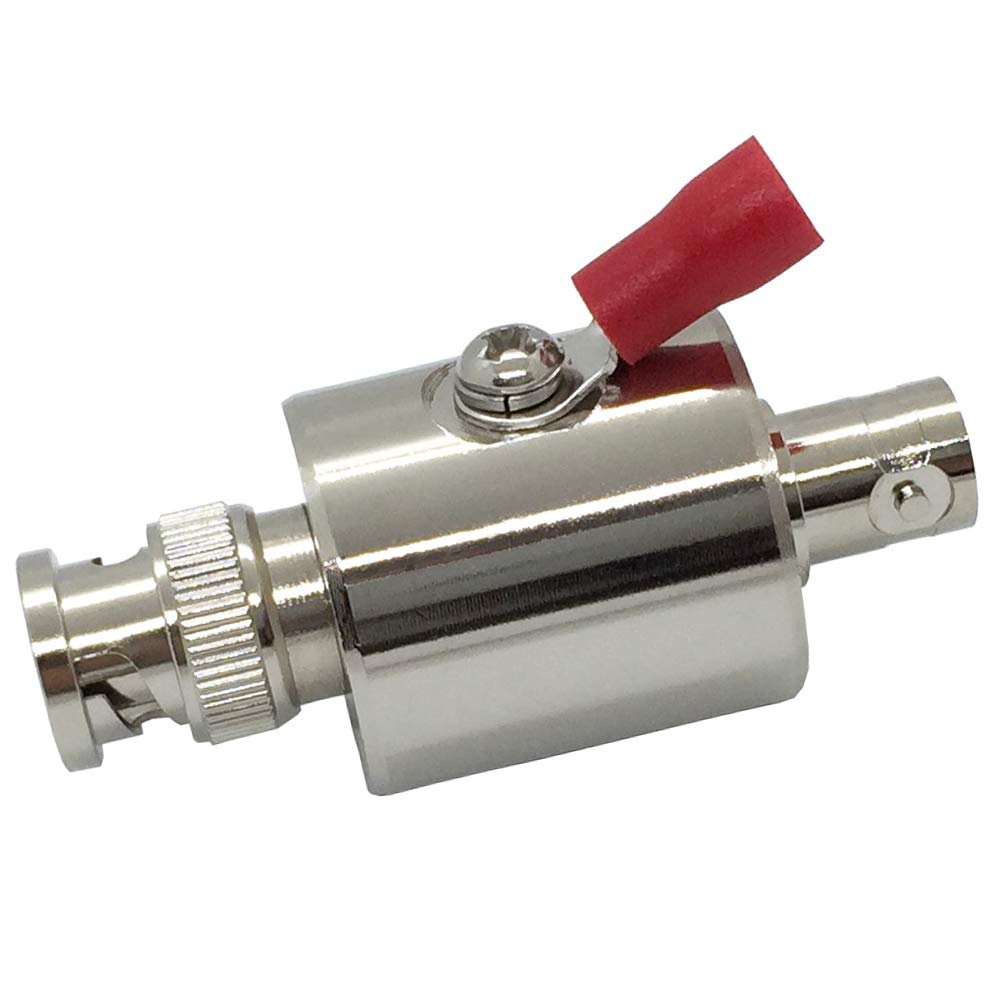

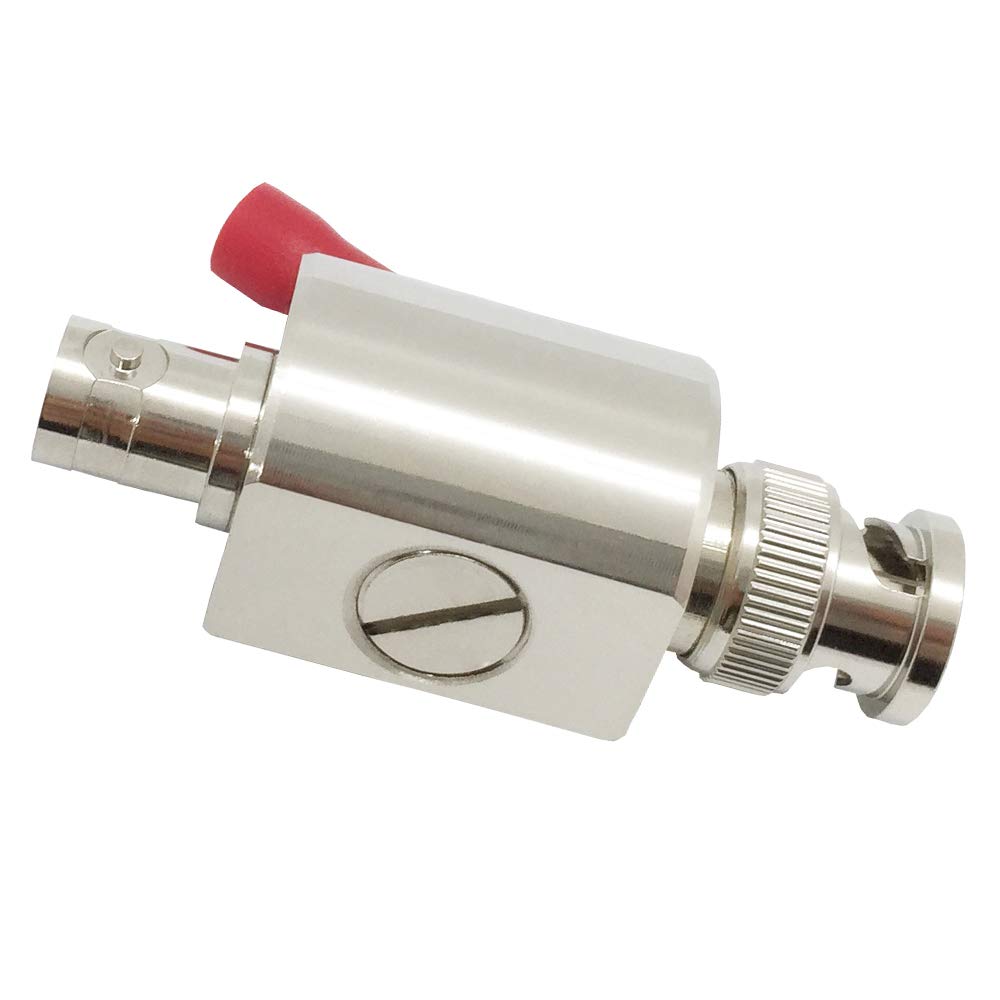

Lightning Arrestor BNC-Male to BNC-Female 50 Ohm
1.Materials & Plated:
Body brass nickel plated,Teflon(PTFE) Insulator for a reliable signal every time

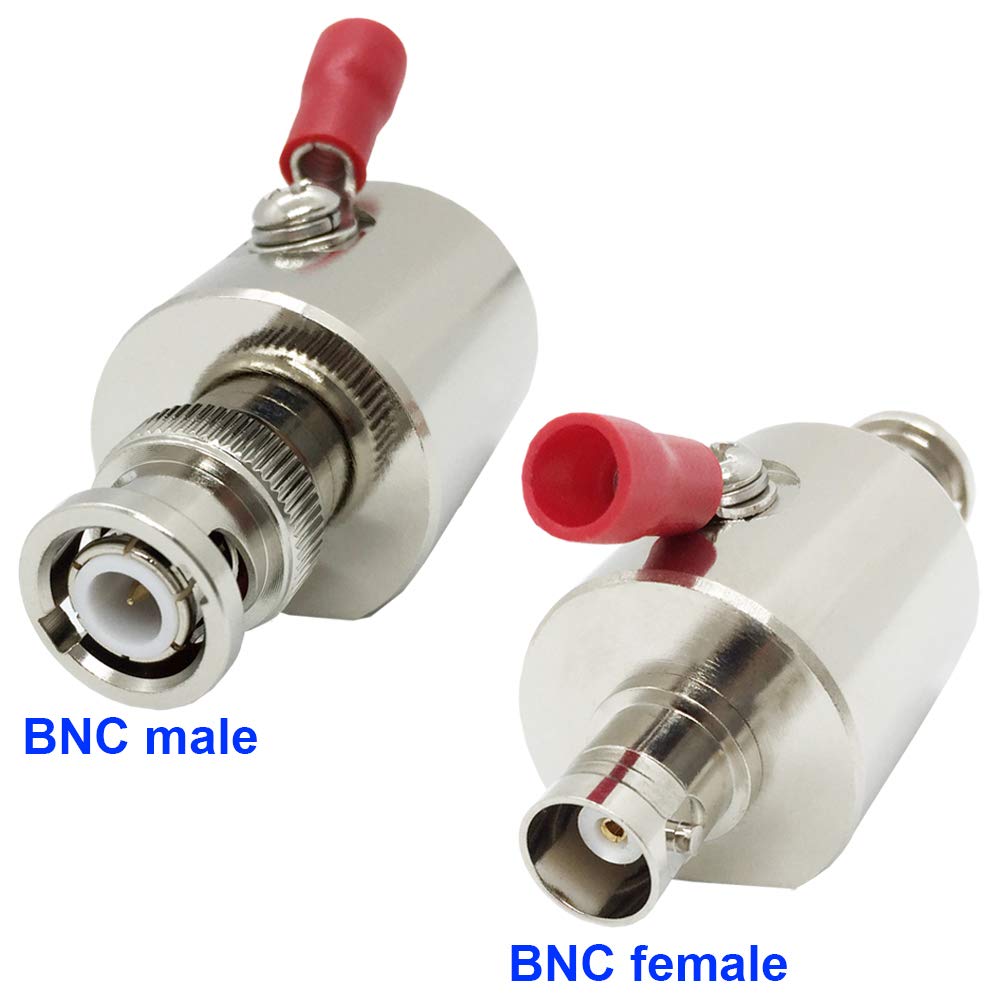

Connectors: BNC-Male to BNC-Female
RoHS compliant
2.Electricail Characteristics?
Impedance:50 ohm
Contact Resistance:Center conductor ? 1.5m?, Outer conductor ? 1m?
Max Power:50W discharge current capacity(kA@8/20?S):10
Insulation Resistance :? 5000M? Durability :? 500 cycles
Temperature range: -40°C to +85 °C
Frequency Range up to 3 GHz
Attenuation is less than 0.2 dB
VSWR less than 1.2
3.Package include:
1 x Lightning Arrestor Surge Protector BNC-Male to BNC-Female 50 Ohm
I4. Protects signal boosters from lightning strikes?
Prevent a lightning strike from destroying your electrical system.
The 50 ohm Lightning Surge Protector with BNC male to female Connectors can be installed to prevent expensive damage from incapacitating your circuitry.
The Lightning Surge Protector safeguards your amplifier and boosted devices from power surges caused by lightning strikes to antennas mounted outside
This lightning protector is specifically for 50 ohm systems.
Lightning surge protector for cable.
AWG 8/9/10 wire is suitable for grounding
• 1.BNC Lightning arrestor with male to female connector with 90V gas discharge tube?Pack one piece)
• 2.Protect your amplifier system from dangerous thunder & lightning strikes or electrical surges by installing the lightning arrestor between the amplifier and the outdoor antenna
• 3.Designed and manufactured the protector body material with high quality nickel plated brass to provide superior performance and longevity
• 4.Standard 90 V DC breakdown voltage gas discharge tube (GDT) element which can be easily replaced to provide multistrike capacity
• 5.Wideband frequency range up to 3 GHz Ideal for CCTV camera, vedio system, Ham radio gear, CB antenna, two-way radio, scanners and more
Lightning Arrestor BNC-Male to BNC-Female 50 Ohm
1.Materials & Plated:
Body brass nickel plated,Teflon(PTFE) Insulator for a reliable signal every time
Connectors: BNC-Male to BNC-Female
RoHS compliant
2.Electricail Characteristics?
Impedance:50 ohm
Contact Resistance:Center conductor ? 1.5m?, Outer conductor ? 1m?
Max Power:50W discharge current capacity(kA@8/20?S):10
Insulation Resistance :? 5000M? Durability :? 500 cycles
Temperature range: -40°C to +85 °C
Frequency Range up to 3 GHz
Attenuation is less than 0.2 dB
VSWR less than 1.2
3.Package include:
1 x Lightning Arrestor Surge Protector BNC-Male to BNC-Female 50 Ohm
I4. Protects signal boosters from lightning strikes?
Prevent a lightning strike from destroying your electrical system.
The 50 ohm Lightning Surge Protector with BNC male to female Connectors can be installed to prevent expensive damage from incapacitating your circuitry.
The Lightning Surge Protector safeguards your amplifier and boosted devices from power surges caused by lightning strikes to antennas mounted outside
This lightning protector is specifically for 50 ohm systems.
Lightning surge protector for cable.
AWG 8/9/10 wire is suitable for grounding
• 1.BNC Lightning arrestor with male to female connector with 90V gas discharge tube?Pack one piece)
• 2.Protect your amplifier system from dangerous thunder & lightning strikes or electrical surges by installing the lightning arrestor between the amplifier and the outdoor antenna
• 3.Designed and manufactured the protector body material with high quality nickel plated brass to provide superior performance and longevity
• 4.Standard 90 V DC breakdown voltage gas discharge tube (GDT) element which can be easily replaced to provide multistrike capacity
• 5.Wideband frequency range up to 3 GHz Ideal for CCTV camera, vedio system, Ham radio gear, CB antenna, two-way radio, scanners and more
