Description
Brand: RF Outlet

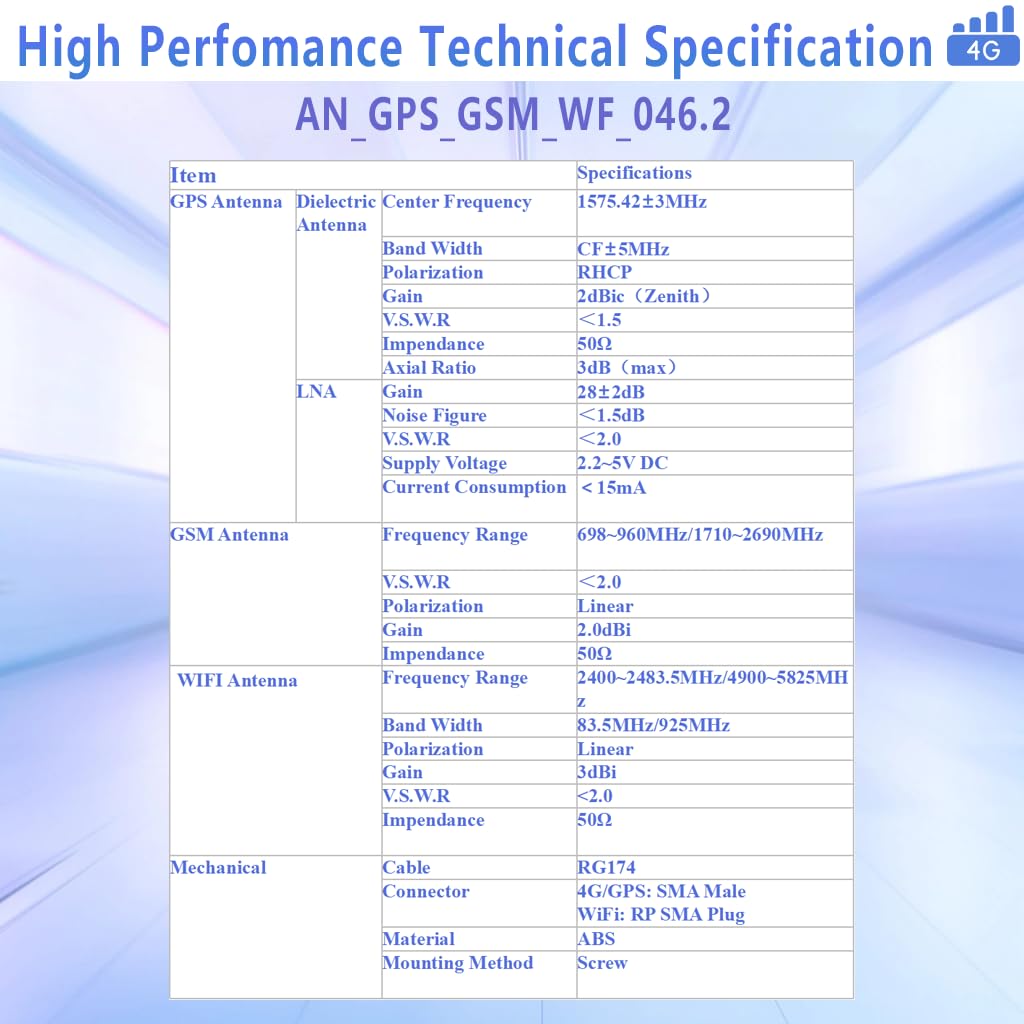

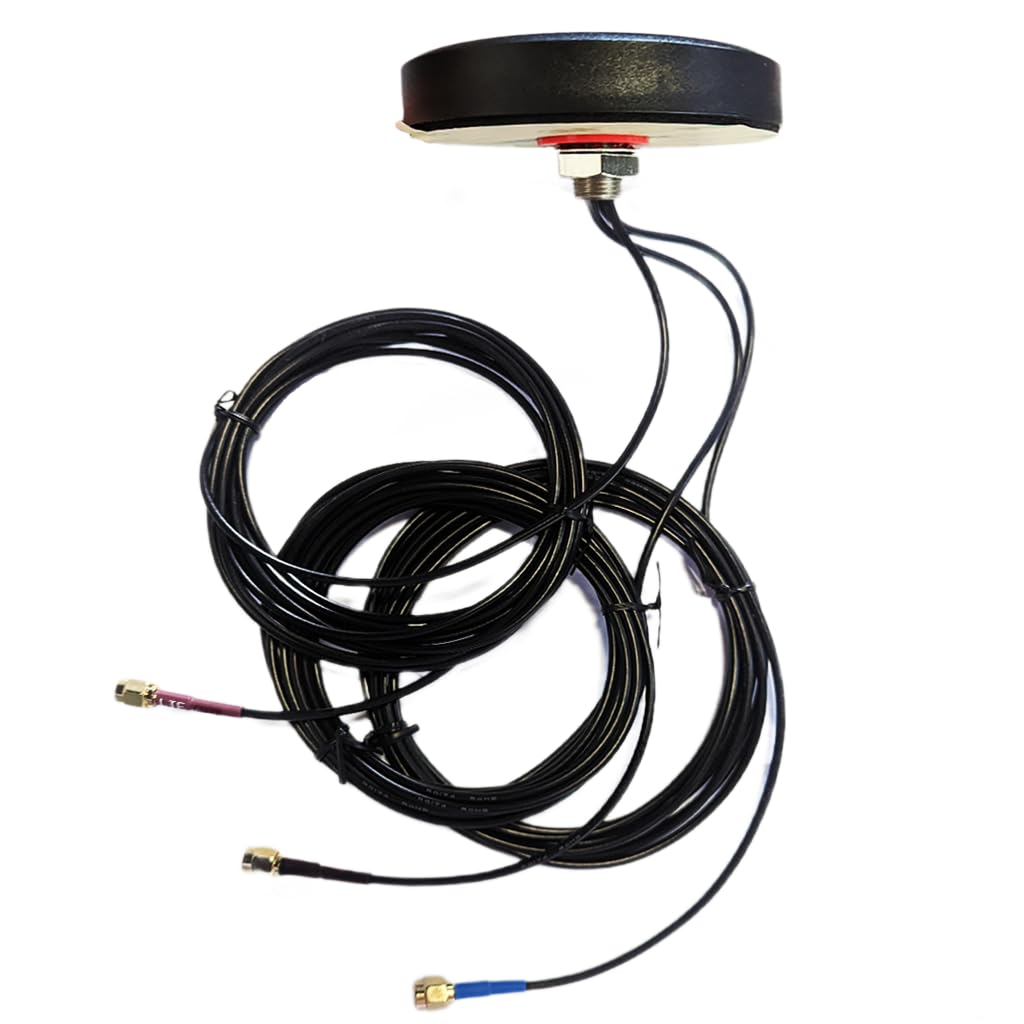

<p><b>ITEM ID: AN_GPS_GSM_WF_046LM</b></p> <p><b> GPS+4G/3G+WiFi Combination Antenna Circular Shape</b></p> <p><b>GPS Antenna </b></p> <b>Dielectric Antenna</b><br> Center Frequency:1575.42±3MHz<br> Band Width:CF±5MHz<br> Polarization:RHCP<br> Gain:2dBic?Zenith?<br> V.S.W.R:?1.5<br> Impendance:50?<br> Axial Ratio:3dB?max?<br> <br> <b>LNA</b><br> <br> Gain:28±2dB<br> Noise Figure:?1.5dB<br> V.S.W.R:?2.0<br> Supply Voltage:2.2~5V DC<br> Current Consumption:<15mA<br> <br><p><b>GSM Antenna </b></p> Frequency Range:698~960MHz/1710~2690MHz<br> V.S.W.R:?2.0<br> Polarization:Linear<br> Gain:2.0dBi<br> Impendance:50?<br> <br><p><b>WIFI Antenna </b></p> Frequency Range:2400~2483.5MHz//4900~5825MHz<br> Band Width:83.5MHz/925MHz<br> Polarization:Linear<br> Gain:3dBi<br> V.S.W.R:<2.0<br> Impendance:50?<br> <br><p><b>Mechanical </b></p> Cable:RG174<br> Connector:SMA male for GPS,SMA male for GSM,RP-SMA plug for WiFi<br> Material:ABS<br> Mounting Method:Screw<br> <br> <p><b>Environmental </b></p> Operating Temperature:-40?~+85?<br> Ingress Protection:IP65~IP66(exclude cable outlet)<br> Environmentally Friendly:ROHS Compliant<br><br>?<b>GSM/3G/4G FREQUENCY ,WiFi FREQUENCY and GPS CENTER FREQUENCY</b>?:824~960MHz/1710~2170MHz;2400~2483.5MHz;1575.42±3MHz.Ideal for equipment wireless upgrade or car roof top assembly to receive GSM/3G/4G,GPS and WiFi signal.<br>?<b>PREMIUM QUALITY ANTENNA</b>?: Our Omni-Directional Screw Mount Antenna is made from durable material - reinforced plastic, copper wire. It will be a professional, durable accessory!<br>?<b>Multiple applications</b>?: Multi-purose wireless device signal reception (CPE, GPS Navigation, Mobile internet ,etc.<br>?<b>IP66 WATERPROOF</b>?: This antenna is completely waterproof (IP66) . Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna.<br>?<b>100% Satisfaction Guarantee</b>?: We are committed to providing customers with the best product and services.
• GSM/3G/4G FREQUENCY ,WiFi FREQUENCY and GPS CENTER FREQUENCY: 698~960MHz/1710~2690MHz
• 2400~2483.5MHz/4900~5825MHz
• 1575.42±3MHz.Ideal for equipment wireless upgrade or car roof top assembly to receive GSM/3G/4G,GPS and WiFi signal.
• PREMIUM QUALITY ANTENNA: Our Omni-Directional Screw Mount Antenna is made from durable material - reinforced plastic, copper wire. It will be a professional, durable accessory!
• Multiple applications: Multi-purose wireless device signal reception CPE, GPS Navigation, Mobile internet ,etc.
• IP66 WATERPROOF: This antenna is completely waterproof IP66 . Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna.
• 100% Satisfaction Guarantee: We are committed to providing customers with the best product and services. If you have any question, please tell us and if the good is with any quality issue, we're happy to offer you a new one!
Color: Black
<p><b>ITEM ID: AN_GPS_GSM_WF_046LM</b></p> <p><b> GPS+4G/3G+WiFi Combination Antenna Circular Shape</b></p> <p><b>GPS Antenna </b></p> <b>Dielectric Antenna</b><br> Center Frequency:1575.42±3MHz<br> Band Width:CF±5MHz<br> Polarization:RHCP<br> Gain:2dBic?Zenith?<br> V.S.W.R:?1.5<br> Impendance:50?<br> Axial Ratio:3dB?max?<br> <br> <b>LNA</b><br> <br> Gain:28±2dB<br> Noise Figure:?1.5dB<br> V.S.W.R:?2.0<br> Supply Voltage:2.2~5V DC<br> Current Consumption:<15mA<br> <br><p><b>GSM Antenna </b></p> Frequency Range:698~960MHz/1710~2690MHz<br> V.S.W.R:?2.0<br> Polarization:Linear<br> Gain:2.0dBi<br> Impendance:50?<br> <br><p><b>WIFI Antenna </b></p> Frequency Range:2400~2483.5MHz//4900~5825MHz<br> Band Width:83.5MHz/925MHz<br> Polarization:Linear<br> Gain:3dBi<br> V.S.W.R:<2.0<br> Impendance:50?<br> <br><p><b>Mechanical </b></p> Cable:RG174<br> Connector:SMA male for GPS,SMA male for GSM,RP-SMA plug for WiFi<br> Material:ABS<br> Mounting Method:Screw<br> <br> <p><b>Environmental </b></p> Operating Temperature:-40?~+85?<br> Ingress Protection:IP65~IP66(exclude cable outlet)<br> Environmentally Friendly:ROHS Compliant<br><br>?<b>GSM/3G/4G FREQUENCY ,WiFi FREQUENCY and GPS CENTER FREQUENCY</b>?:824~960MHz/1710~2170MHz;2400~2483.5MHz;1575.42±3MHz.Ideal for equipment wireless upgrade or car roof top assembly to receive GSM/3G/4G,GPS and WiFi signal.<br>?<b>PREMIUM QUALITY ANTENNA</b>?: Our Omni-Directional Screw Mount Antenna is made from durable material - reinforced plastic, copper wire. It will be a professional, durable accessory!<br>?<b>Multiple applications</b>?: Multi-purose wireless device signal reception (CPE, GPS Navigation, Mobile internet ,etc.<br>?<b>IP66 WATERPROOF</b>?: This antenna is completely waterproof (IP66) . Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna.<br>?<b>100% Satisfaction Guarantee</b>?: We are committed to providing customers with the best product and services.
• GSM/3G/4G FREQUENCY ,WiFi FREQUENCY and GPS CENTER FREQUENCY: 698~960MHz/1710~2690MHz
• 2400~2483.5MHz/4900~5825MHz
• 1575.42±3MHz.Ideal for equipment wireless upgrade or car roof top assembly to receive GSM/3G/4G,GPS and WiFi signal.
• PREMIUM QUALITY ANTENNA: Our Omni-Directional Screw Mount Antenna is made from durable material - reinforced plastic, copper wire. It will be a professional, durable accessory!
• Multiple applications: Multi-purose wireless device signal reception CPE, GPS Navigation, Mobile internet ,etc.
• IP66 WATERPROOF: This antenna is completely waterproof IP66 . Ideal for use outdoors, in vending machines, meter housings, equipment sheds, or other locations requiring a low-profile vandal resistant external antenna.
• 100% Satisfaction Guarantee: We are committed to providing customers with the best product and services. If you have any question, please tell us and if the good is with any quality issue, we're happy to offer you a new one!
Color: Black
