Brand: REVOTECH

Note:<br>1. Please don't place any heavy thing on the PoE extender;<br>2. To prevent the water seeping into the extender, please keep PoE extender away wet environment;<br>3. Suggest to use PoE extender indoors. When installing the extender in outdoor please install it in waterproof place.<br><br>PoE Extender is a cost effective way to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN Access Points and Network Cameras in Gigabit speed 1000Mbps, up to a distance of 200m while complying with IEEE PoE and Data standards.<br><br>Other Specification:<br>Data Speed: 10/100/1000Mbps<br>PoE input: 1 RJ45 port(DC 48-57V)<br>PoE output: 2 RJ45 port<br>Input power: 30 Watts Max<br>Output power: 15.4 Watts Max<br>Network Medium: Cat5e,Cat6,Cat6e,UTP cable(less than 120m)<br>Daisy Chain Distance: up to 700m(6 pieces)<br>Repeater Mode: Store and forward<br>MAC Address Table: 2K<br>Packet Buffer Memory: 48 Byte<br>Switching Capacity: 400Mbps<br>PoE Standard: IEEE 802.3af/at<br>PoE Cable Core: 1/2(+), 3/6(-)<br>Power Supply Type: Mode A,End-Span<br>LED Display: PoE Working status, Ethernet<br>Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet.<br>Electromanetic Radiation: FCC Class A, CE<br>Storage Humidity: 5%~90%, No Condensation<br>Operating temperature: -10?45?<br>Dimension: 88mm*44mm*22mm<br>Weight: 52g<br><br>Package contents:<br>1 x 2 Port POE Extender Gigabit (POE5003-G)

Features:

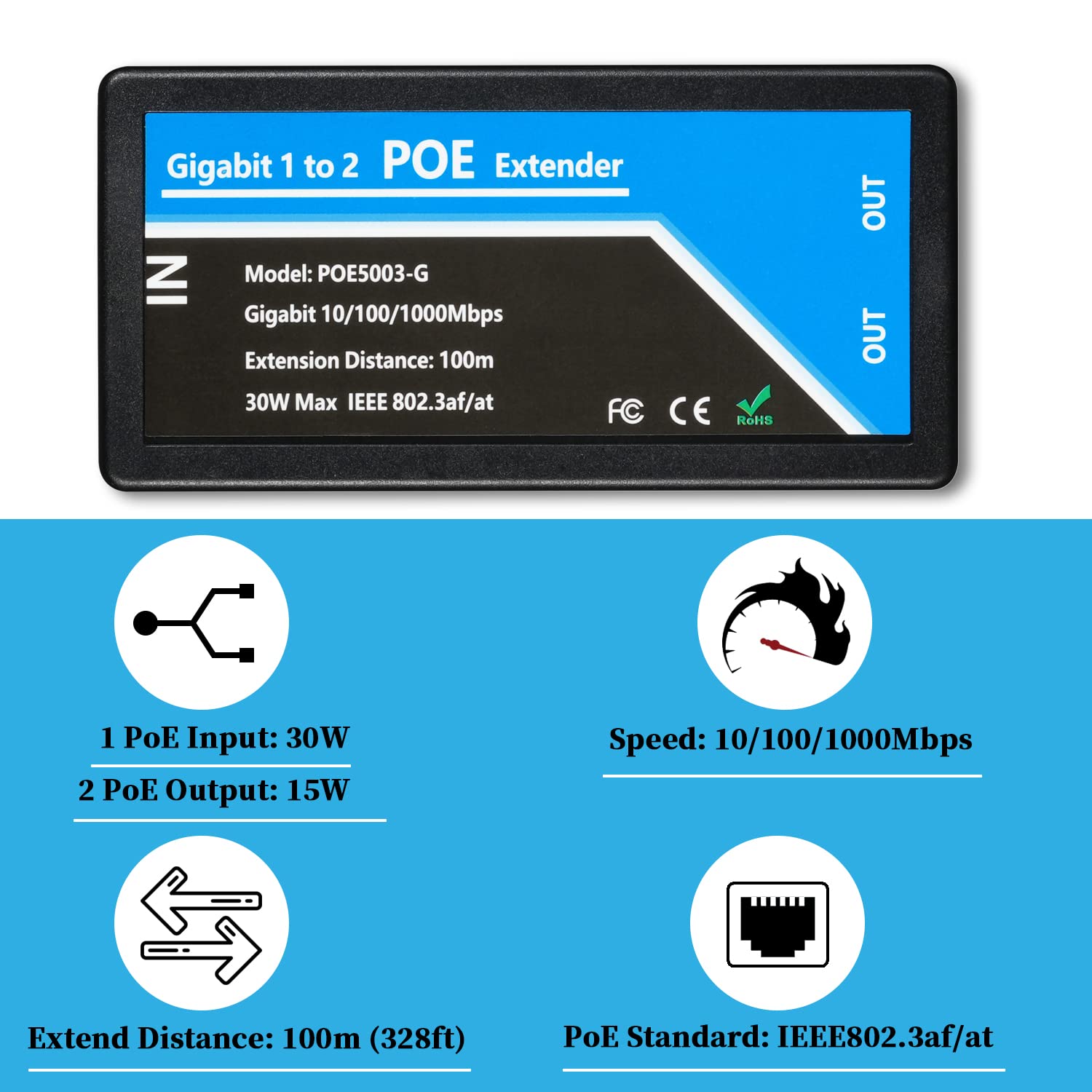

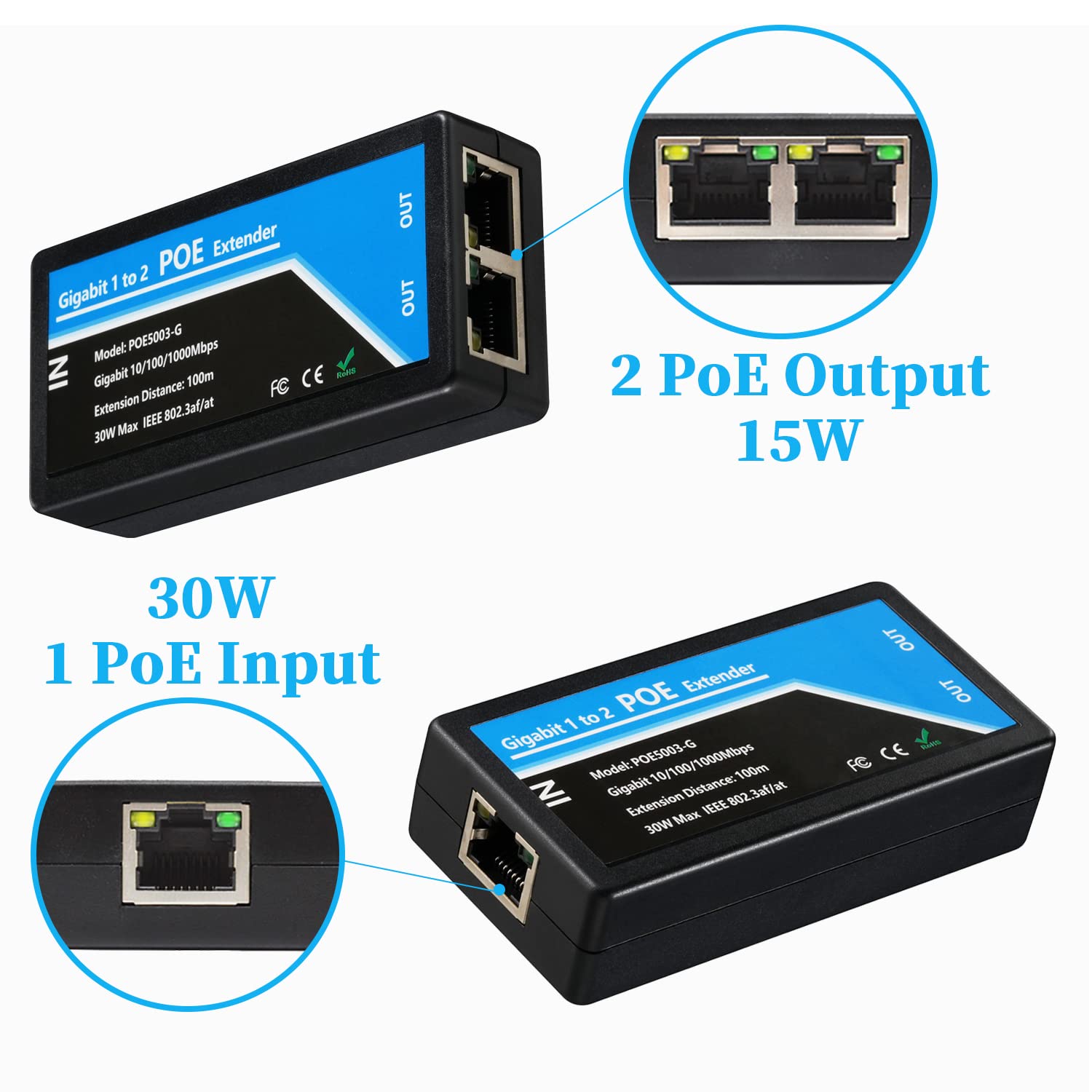

• ?2 PoE Output?The PoE Extender features 1 PoE 30W input and two PoE 15.4W output, Power 2 PoE Device with one RJ45 network cable.

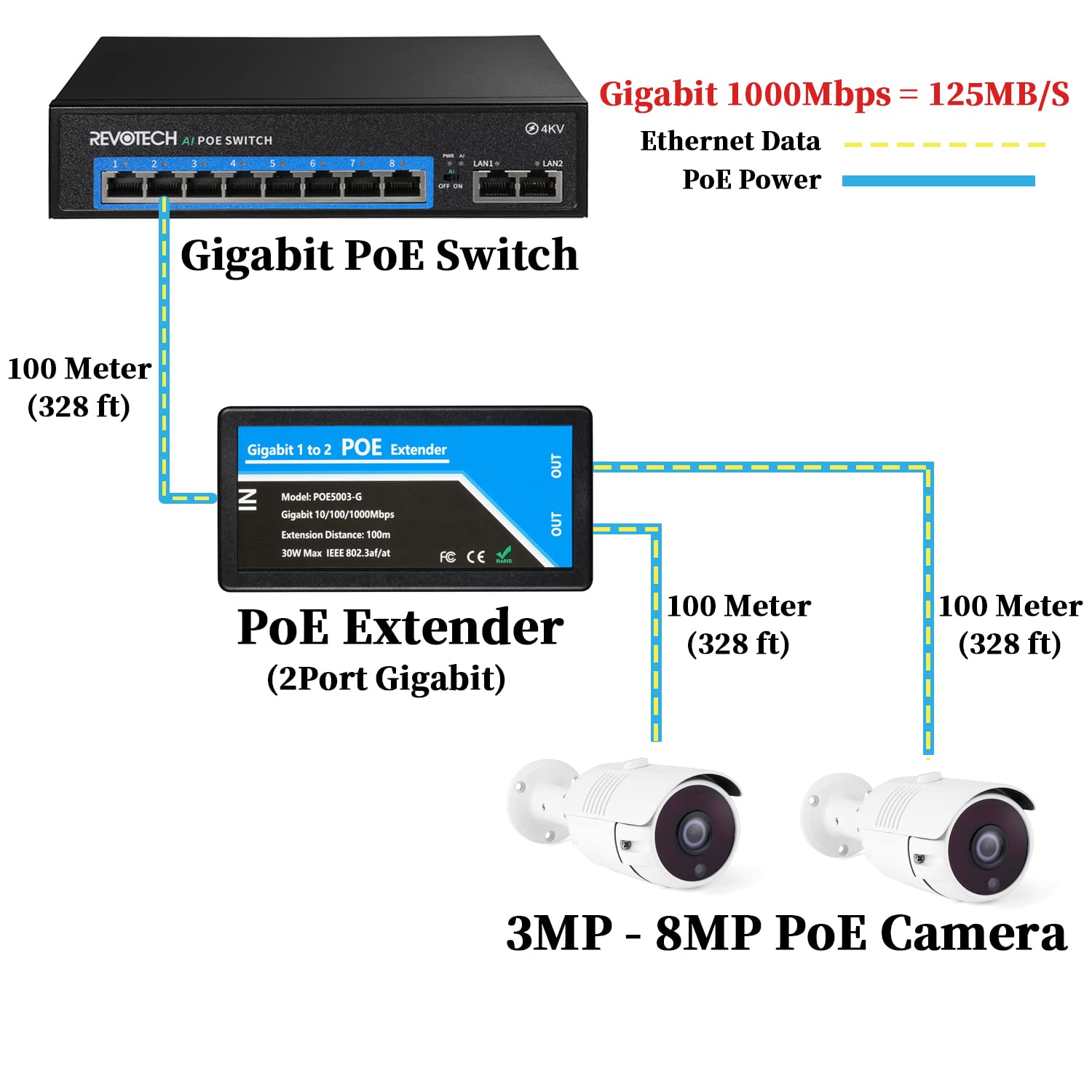

• ?100M Extension?The POE extender can extend the range of the Ethernet network and PoE installation by an additional 100m (328 ft). The maximum is 6 pieces, 700 meters (2,296ft) when deployed in cascade.
• ?Gigabit Transmission?Support up to 1000Mbps(125MB/s), Avoid lags, reduce latency and package loss. Providing better network experience.
• ?Advantage of PoE?The PoE Extender cost effective installation - does not require local power and other configuration required. Powered via the PoE input, Plug and Play. Automatically detects and protects PoE equipments from being damaged by incorrect installation.

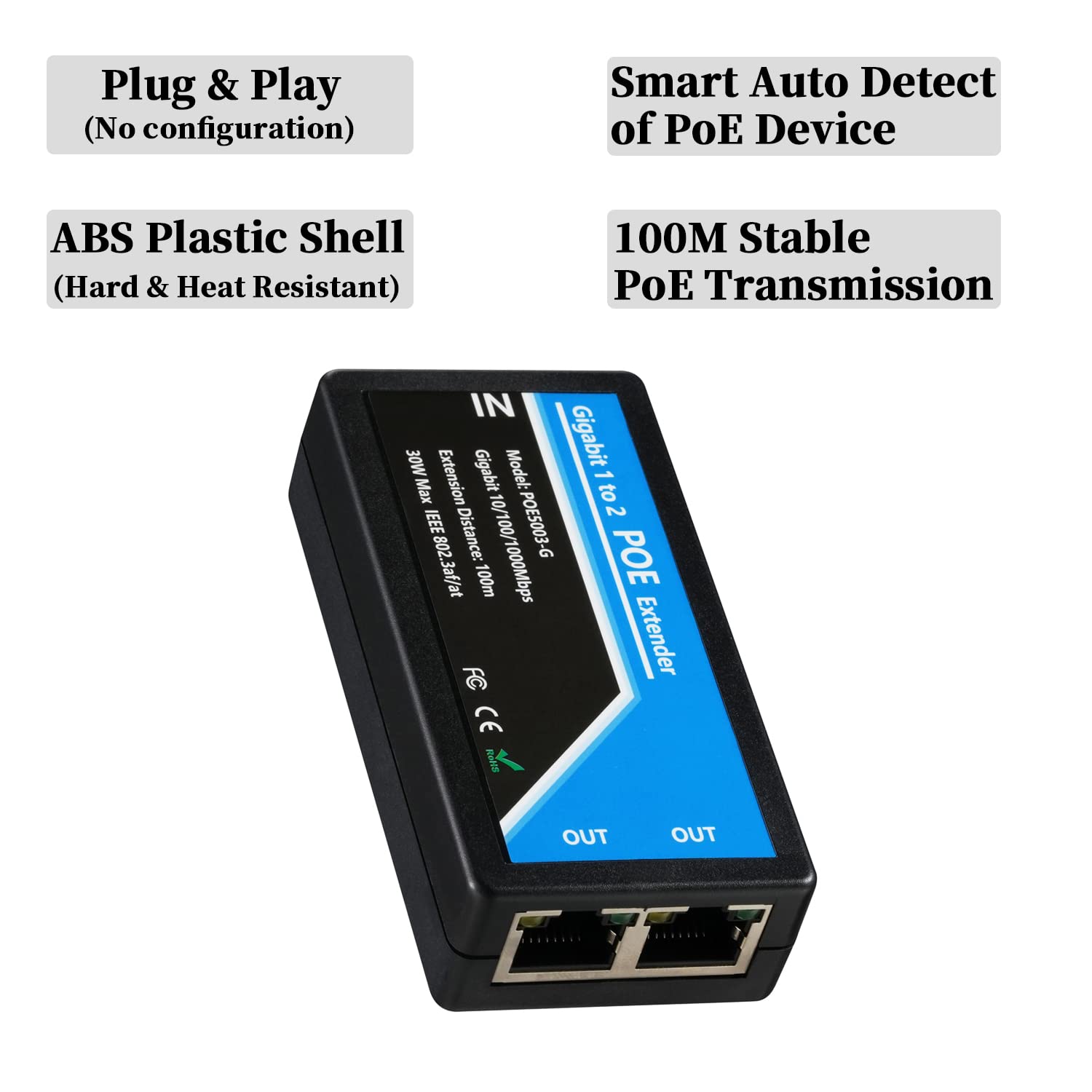

• ?Plug and Play?This PoE Extender feature auto detection, will automatically detect terminal device and supply power and network.No configuration needed.

Product Details:

• Color: Gigabit 2 port POE extender
• Model: POE5003-G
• Package Quantity: 1
