Brand: REVOTECH

OVERVIEW:<br>The PSE802G is a single port, highpower PoE PSE solution for remote PoE PD devices. Generating up to 30W ,PSE802G supplies remote power for new applications such as wireless access points, pan-tilt-zoom (PTZ) IP cameras and videophones. It complies with IEEE 802.3at PoE standard and is backwards to IEEE802.3af. It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. For all the function featured in PSE802G, people can get the benefit of flexible network installation at lower cost, less downtime. It also provides a high-bandwidth pipe to the network.<br><br>Model: PSE802G<br>Standards Compliance: IEEE 802.3 10Base-T Ethernet<br>IEEE 802.3u 100Base-Tx Fast Ethernet<br>IEEE 802.3af Power over Ethernet<br>IEEE 802.3at Power over Ethernet<br>Connector: RJ-45 10/100/1000 Mbps<br><br>Pin Assignment and Polarity: 1/2(+), 3/6 (-)<br>Output Power Voltage: 54 Vdc Maximal<br>Power: 30 Watts Max<br>Input Power AC Input Voltage: 100~240 VAC<br>Requirements AC Input Current: 0.8A@ 100-240 VAC<br>AC Frequency: 50~60 Hz<br>Indicators: AC Power (Orange) / PoE (Green)<br>Operating Temperature: -10~50°C<br>Storage Humidity: Maximum 95%, Non-condensing<br>Regulatory: RoHS Compliant, CE/FCC, Safety Approvals<br>Dimensions (L x W x H): 144mm x 57mm x 40mm (5.62in x 2.24in x 1.57in)<br>Weight: 350g (0.77lbs)<br><br>Package Content:<br>1 x POE Injector<br>1 x Power Cable<br>1 x Quick Installation Guide

Features:

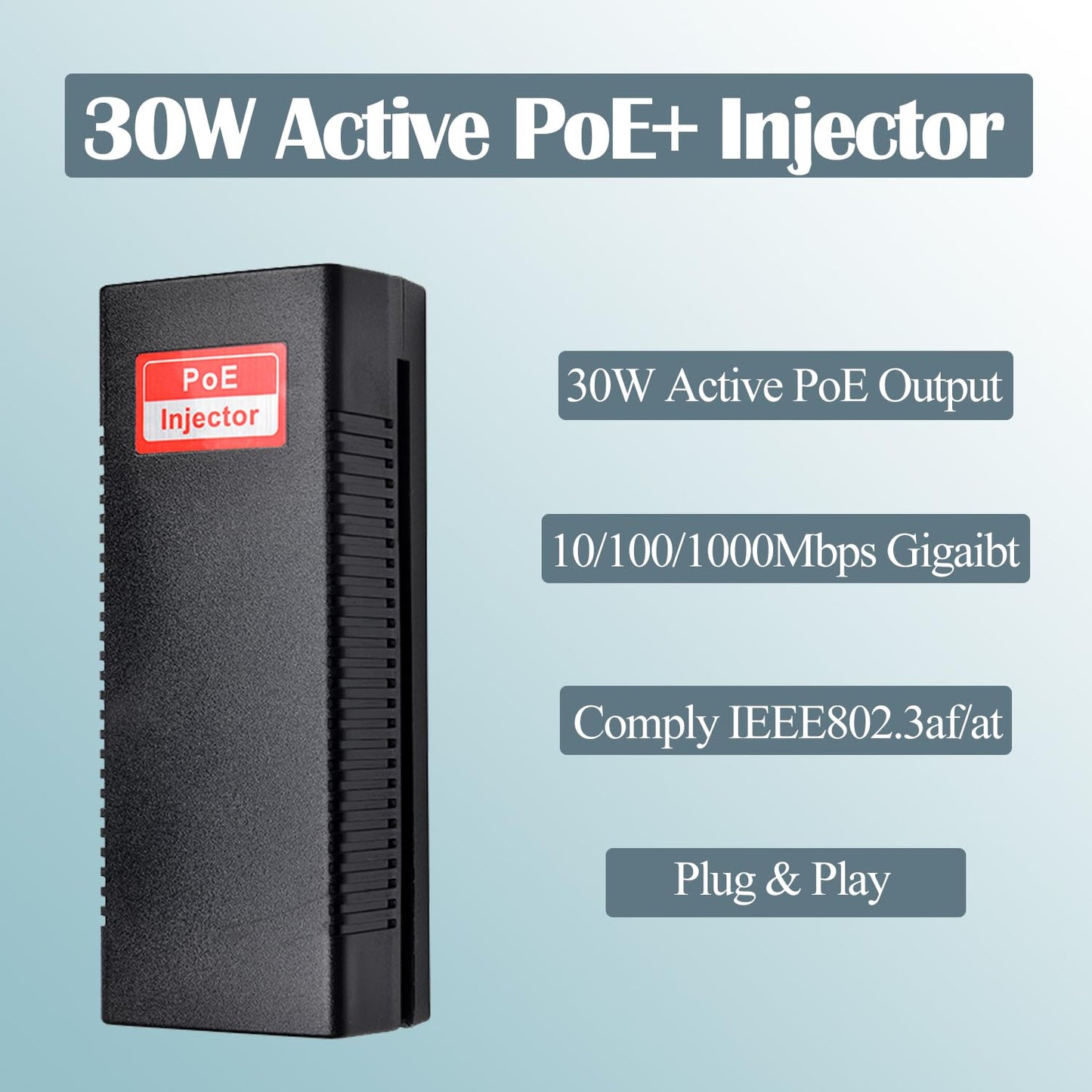

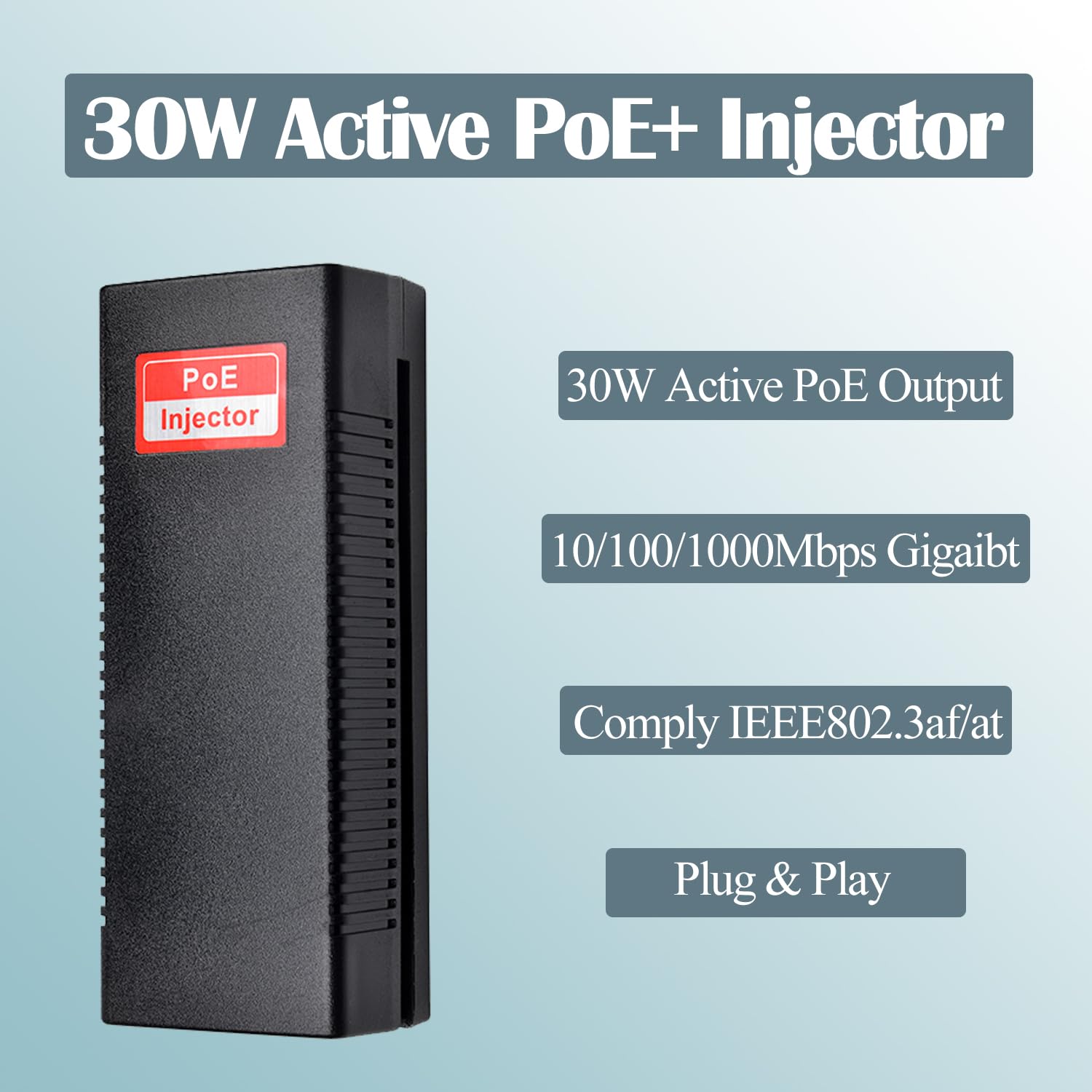

• ?30W PoE+ Injector?Up to 30W PoE power supply, equipped with 1 Gigabit Ethernet port input and 1 Gigabit PoE + Ethernet port output.
• ?Strong Compatibility?Comply with IEEE 802.3at, compatible with IEEE 802.3af or traditional PoE applications, safe low-power devices only receive the power they need.

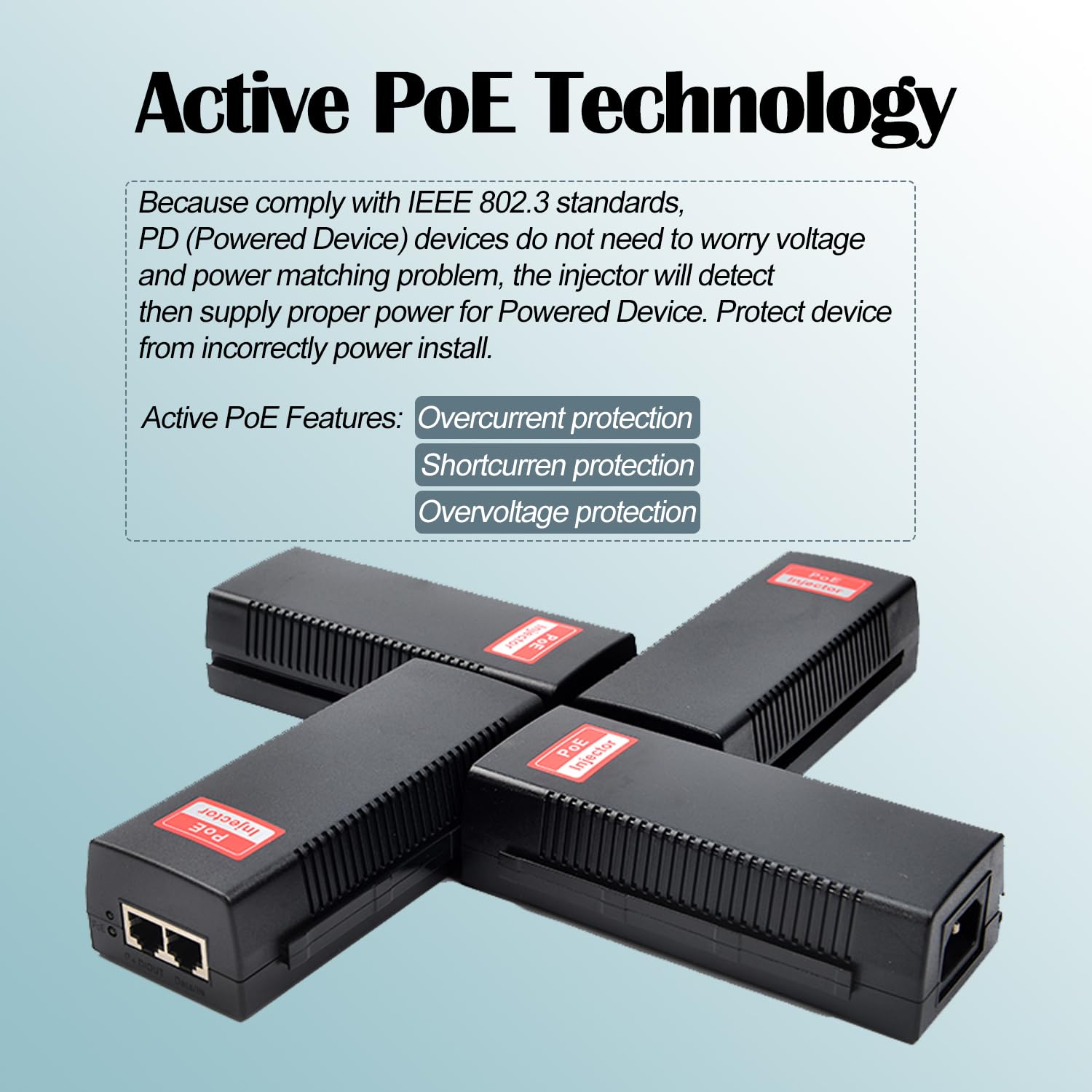

• ?Auto-sensing Technology?Provides up to 30 watts of power for 802.3at PoE devices, and is backward compatible with 802.3af PoE devices. It can detect both POE and non-POE devices. For a POE device that conforms to the 802.3at or 802.3af standard, it will communicate with the device and provide an appropriate power source. For non-standard POE equipment, it will automatically detect and actively shut down to protect the equipment.

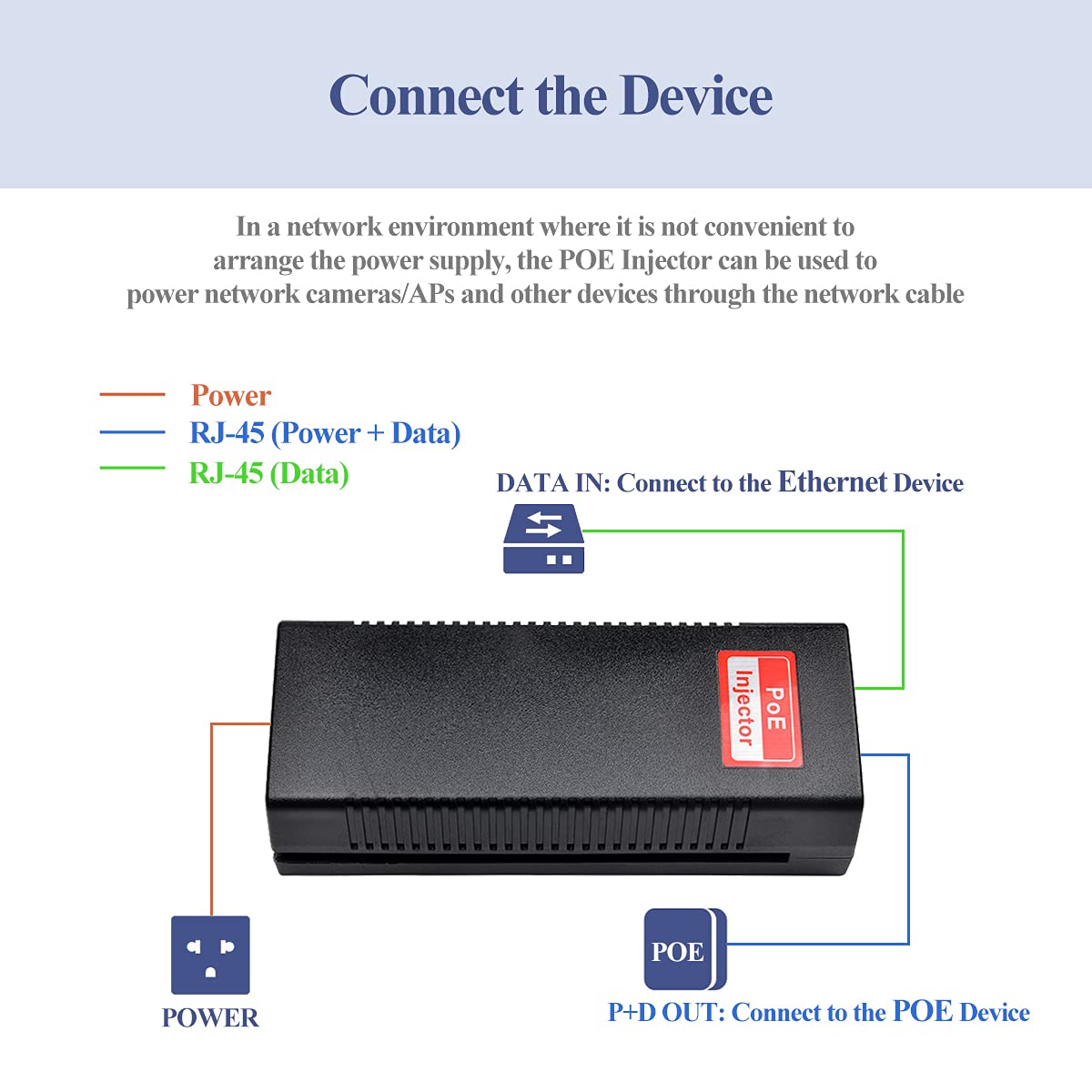

• ?Plug and Play without Setting?Only need to connect a PoE network device, which is suitable for most installation scenarios. Whether you want to use it with an IP camera at home or at work, use a VoIP phone in a meeting room, or use it to provide power and network to wireless access points. Unique interlock function, easy to install.
• ?Multiple Protections?Overcurrent protection, overcharge protection, overvoltage protection and anti-interference protection.

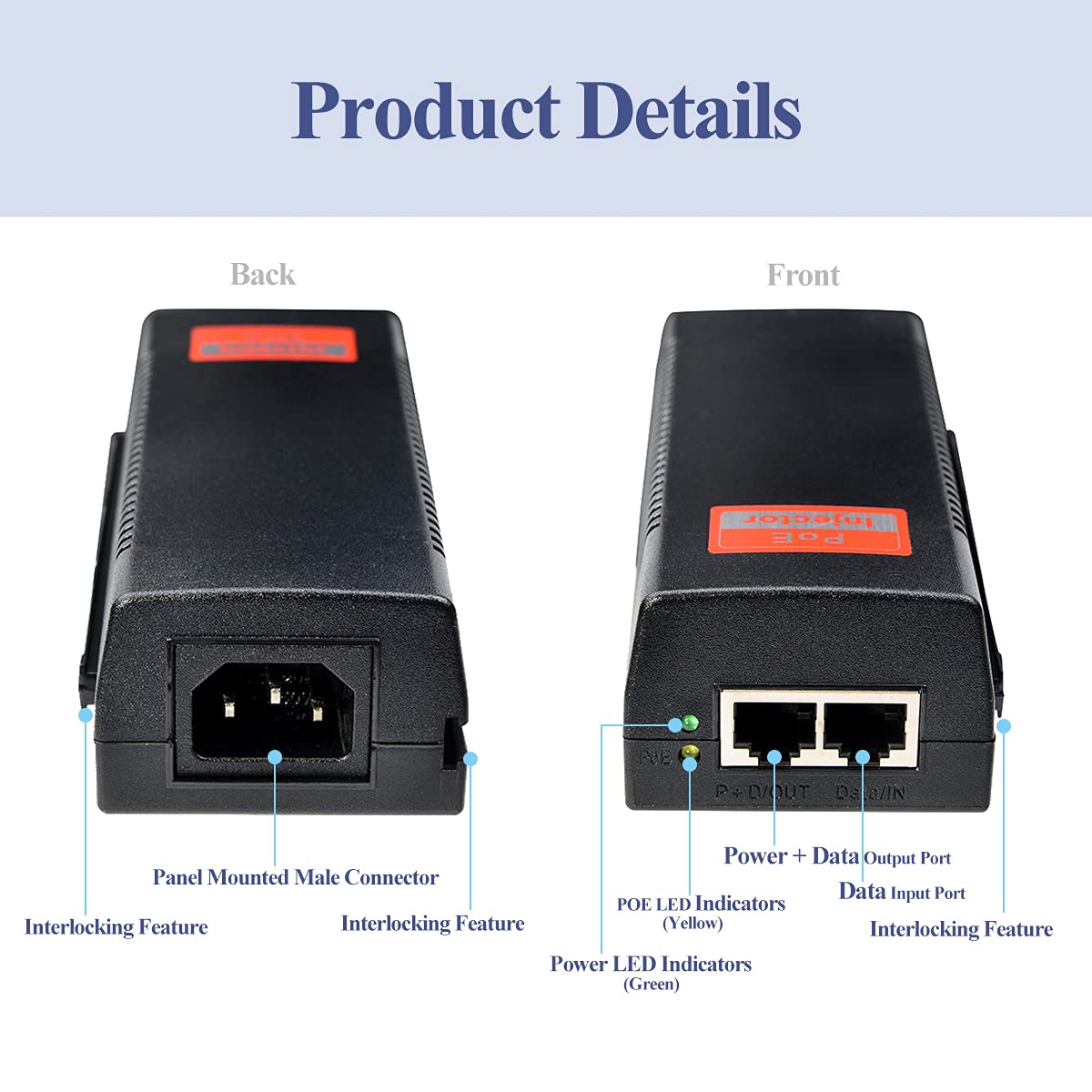

Product Details:

• Color: Gigabit 30W Black
• Model: Gigabit 30W
• Package Quantity: 0
