Brand: Radio Design Labs
Audio Inputs (5): Balanced (2): 30 kΩ XLR; Balanced terminal block; Unbalanced (2): 30 kΩ RCA jacks Input Level: Left and Right front-panel user controls, Balanced: +4 dBu nominal; +2 dBu to +26 dBu;Unbalanced: -10 dBV nominal; -11 dBV to +11 dBV (for 0 dBFS) External Sync Inputs (3): 110 Ω AES/EBU XLR, xfmr isolated; 75 Ω S/PDIF RCA jack; 75 Ω AES-3ID BNC Outputs (3): 110 Ω AES/EBU XLR, transformer isolated; 75 Ω S/PDIF RCA jack; 75 Ω AES-3ID BNC (selectable) Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz Resolution: 16, 20 or 24 bits (front-panel selectable) Frequency Response: 10 Hz to 20 kHz (+/- 0.125 dB); 20 Hz to 20 kHz (+/- 0.05 dB) THD+N: < -105 dBFS (0.0006%, 20 Hz to 20 KHz, internal sample rate) Crosstalk: < -115 dB (50 to 60 Hz); < -105 dB (15 kHz) Residual Noise: < -135 dB (10 Hz to 20 kHz) Dynamic Range: > 114 dB (resolution 24-bit unweighted) Programmable Features Menus (4): Metering Ballistic; Meter 0 Reference; Peak hold/store; Display intensity Indicators (49): Power; External sync lock; Sample rate (6); BITS (3): Audio metering (26); Peak metering (12) Power Requirement: 24 to 33 Vdc @ 300 mA, Ground-referenced Dimensions: Height: 1.7 in, 4.3 cm; Length: 8.6 in, 20.6 cm; Depth: 4.59 in, 11.66 cm

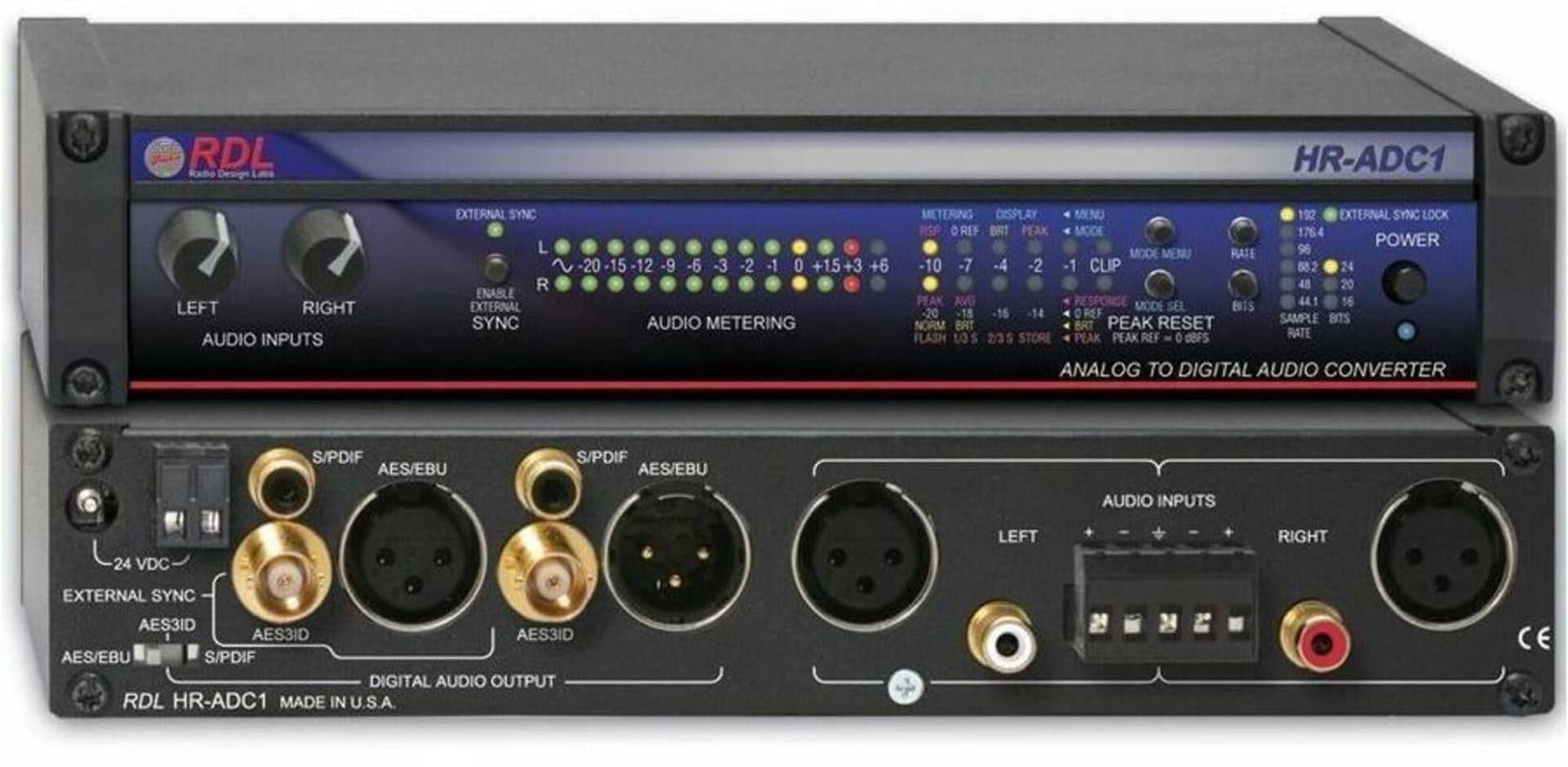

• The HR-ADC1 is a broadcast quality A/D converter that provides exceptional audio accuracy and clarity with any audio source or style
• Superior analog performance fine tuned through audiophile listening practices produces very low distortion (0
• 0006%), exceedingly low noise (-135 dB) and remarkably flat frequency response (+/- 0
• 05 dB)
• This performance is coupled with unparalleled metering flexibility and programmability with average mastering level monitoring and peak value storage
Model: HR-ADC1
Color: Multicolor
Audio Inputs (5): Balanced (2): 30 kΩ XLR; Balanced terminal block; Unbalanced (2): 30 kΩ RCA jacks Input Level: Left and Right front-panel user controls, Balanced: +4 dBu nominal; +2 dBu to +26 dBu;Unbalanced: -10 dBV nominal; -11 dBV to +11 dBV (for 0 dBFS) External Sync Inputs (3): 110 Ω AES/EBU XLR, xfmr isolated; 75 Ω S/PDIF RCA jack; 75 Ω AES-3ID BNC Outputs (3): 110 Ω AES/EBU XLR, transformer isolated; 75 Ω S/PDIF RCA jack; 75 Ω AES-3ID BNC (selectable) Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz Resolution: 16, 20 or 24 bits (front-panel selectable) Frequency Response: 10 Hz to 20 kHz (+/- 0.125 dB); 20 Hz to 20 kHz (+/- 0.05 dB) THD+N: < -105 dBFS (0.0006%, 20 Hz to 20 KHz, internal sample rate) Crosstalk: < -115 dB (50 to 60 Hz); < -105 dB (15 kHz) Residual Noise: < -135 dB (10 Hz to 20 kHz) Dynamic Range: > 114 dB (resolution 24-bit unweighted) Programmable Features Menus (4): Metering Ballistic; Meter 0 Reference; Peak hold/store; Display intensity Indicators (49): Power; External sync lock; Sample rate (6); BITS (3): Audio metering (26); Peak metering (12) Power Requirement: 24 to 33 Vdc @ 300 mA, Ground-referenced Dimensions: Height: 1.7 in, 4.3 cm; Length: 8.6 in, 20.6 cm; Depth: 4.59 in, 11.66 cm
• The HR-ADC1 is a broadcast quality A/D converter that provides exceptional audio accuracy and clarity with any audio source or style
• Superior analog performance fine tuned through audiophile listening practices produces very low distortion (0
• 0006%), exceedingly low noise (-135 dB) and remarkably flat frequency response (+/- 0
• 05 dB)
• This performance is coupled with unparalleled metering flexibility and programmability with average mastering level monitoring and peak value storage
Model: HR-ADC1
Color: Multicolor
