Description
Brand: Qolsys
• Programmable security control board supports security and smoke detecting zones
• Supports up to 10 2-wire smoke detectors and powers up to 15 input zones
• Encrypted S-Line technology protects signals while supporting legacy 319.5 systems
• LED lights indicate status of each individual zone
• Charging circuit for back-up battery, fully supervised with power outage recovery

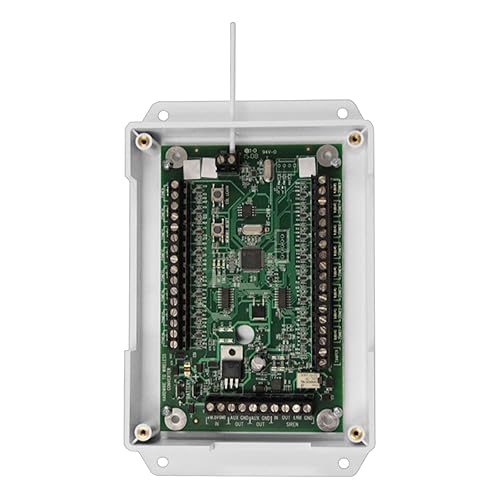

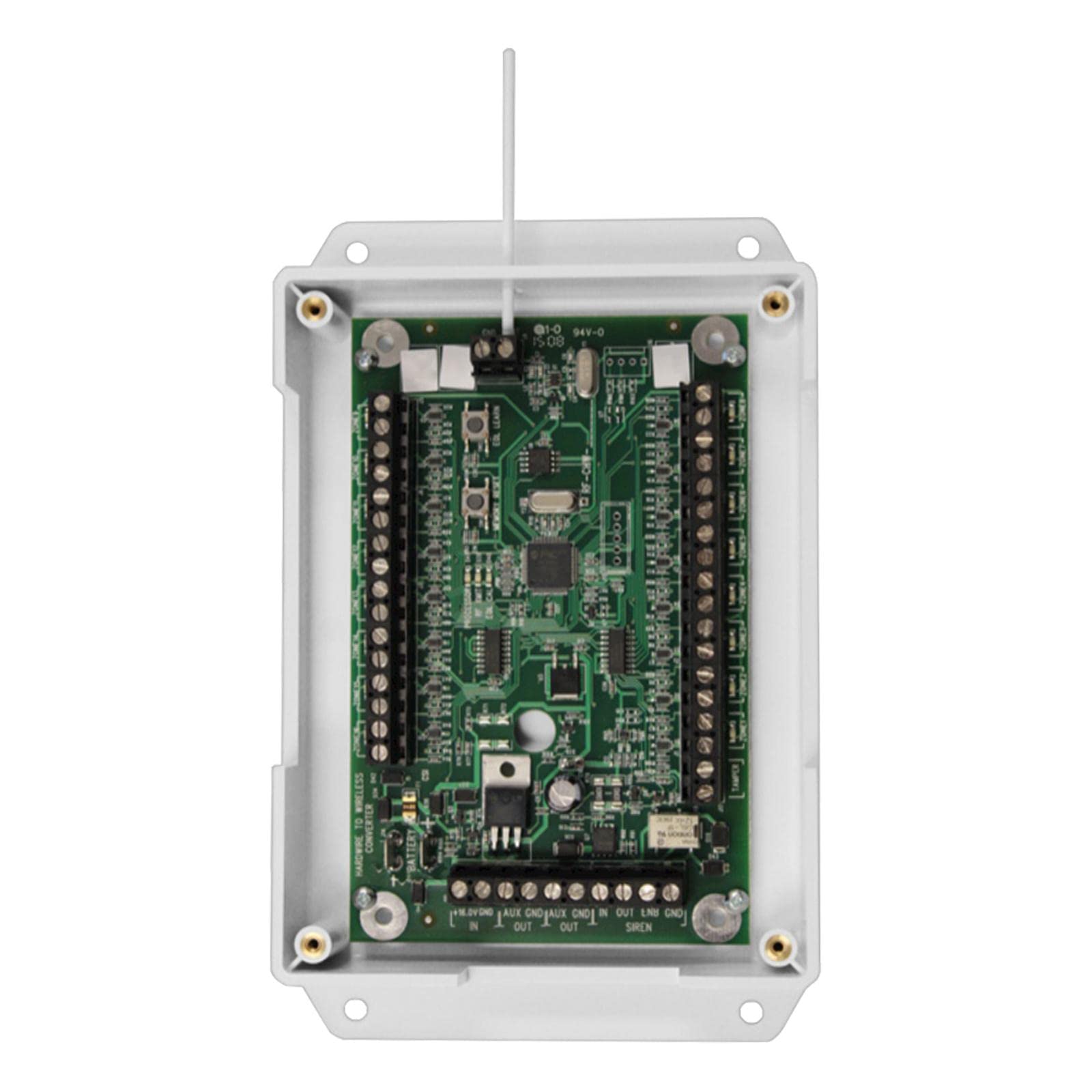

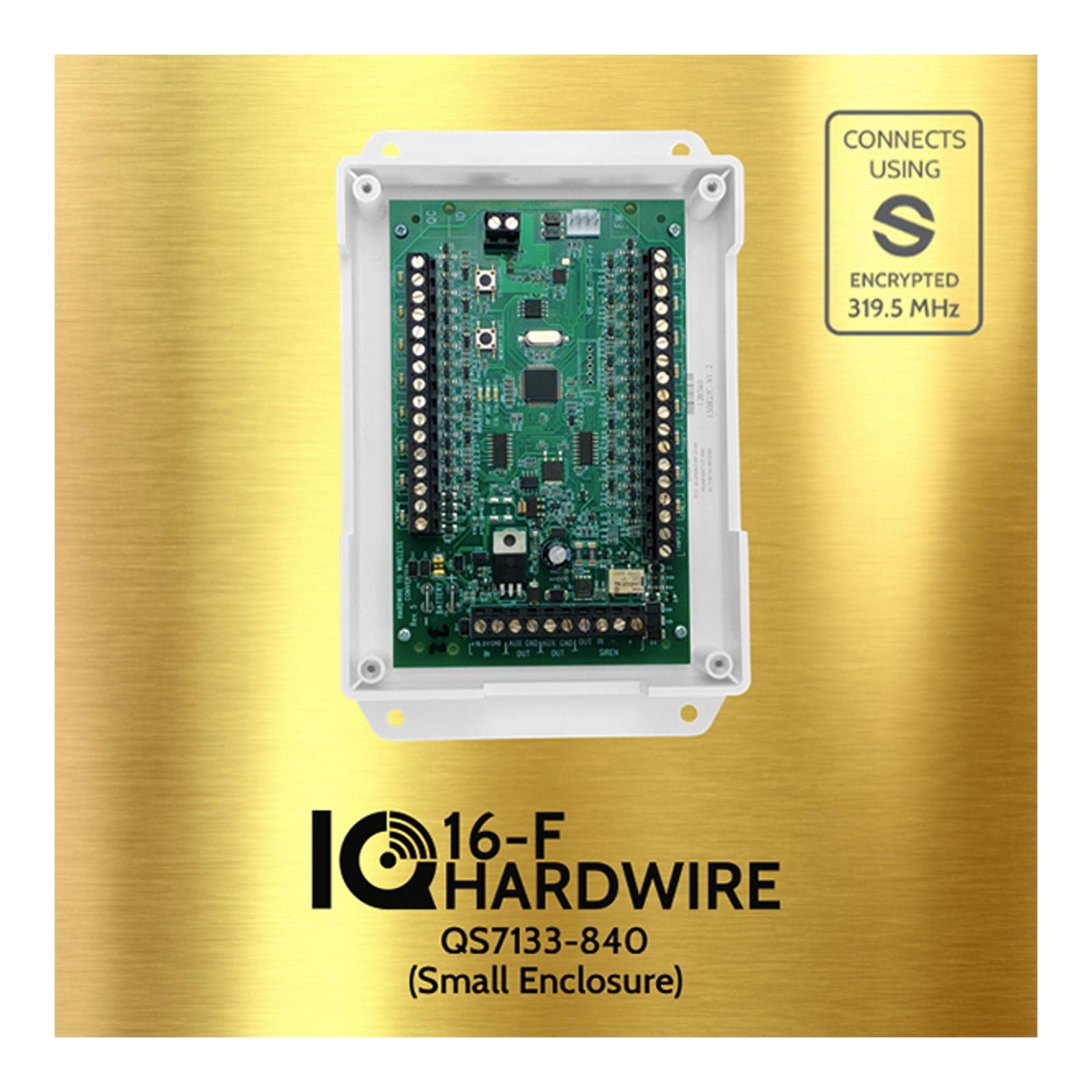

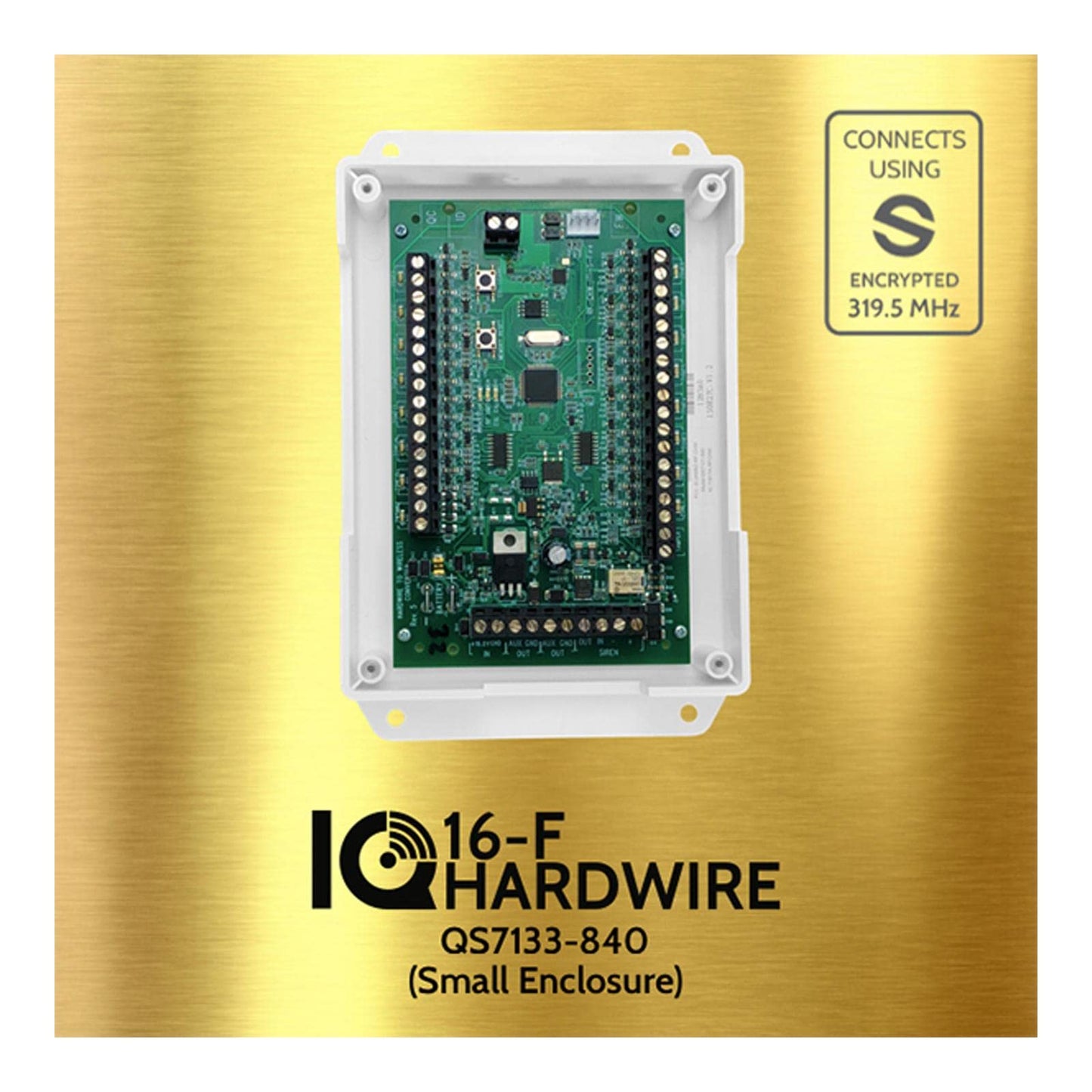

Add hardwired security zones to your IQ Panel 2 (or 2+) with the Qolsys IQ Hardwire 16-F Wireless Converter. This security control board increases the amount of sensors and smoke detectors that can be supported in your Qolsys system. The board also provides power sources for multiple input zones, LED status lights, backup battery charging, and a siren relay.
- Programmable security control board supports security and smoke detecting zones
- Supports up to 10 2-wire smoke detectors and powers up to 15 input zones
- Encrypted S-Line technology protects signals while supporting legacy 319.5 systems
- LED lights indicate status of each individual zone
- Up to 500 Milliamps of power for hardwired motion detectors, glass break detectors, and/or sirens
- Charging circuit for back-up battery, fully supervised with power outage recovery
Installation Details

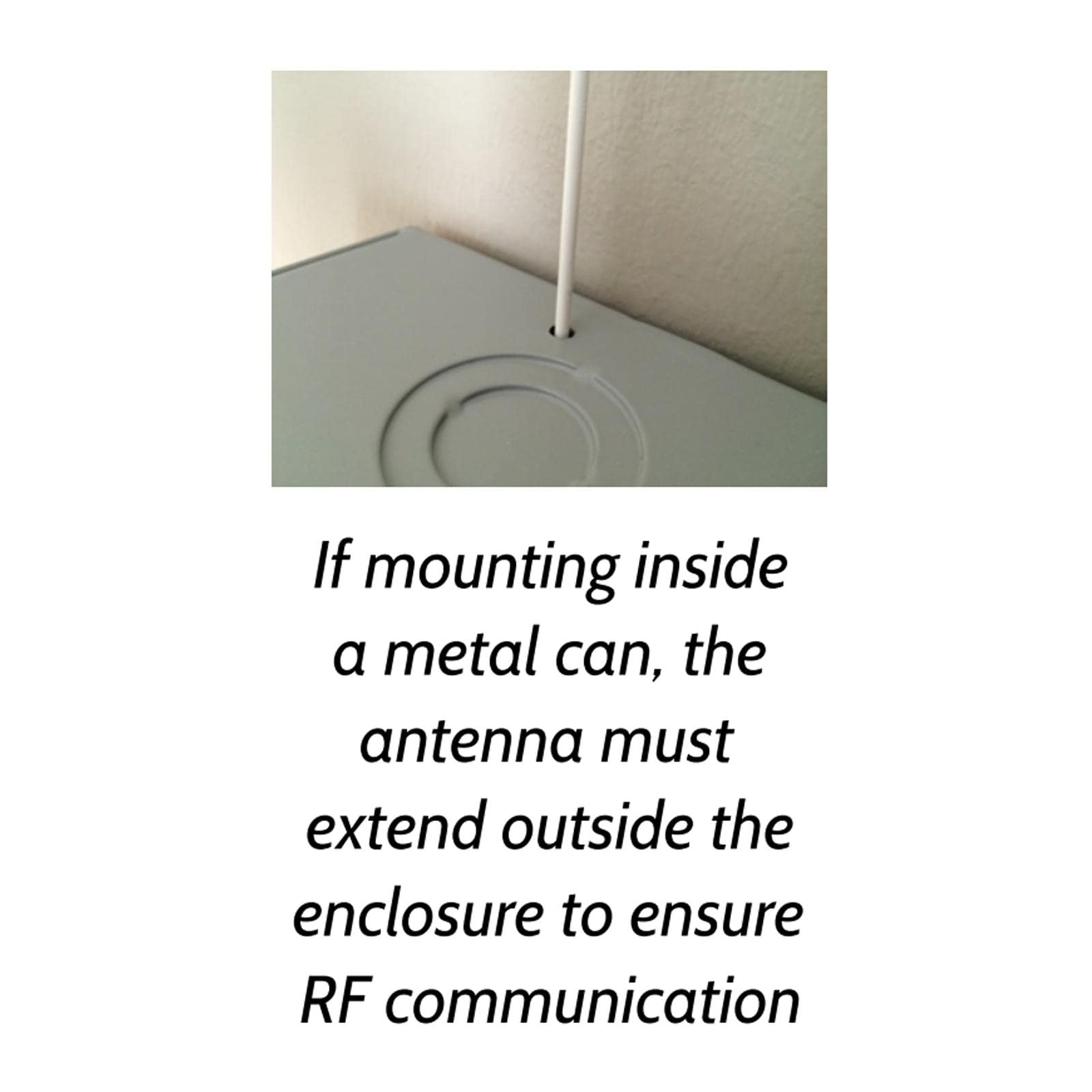

The IQ Hardwire 16-F Wireless Converter comes with a small plastic enclosure for easy mounting. Vertically install the Wireless Converter in your desired location within wireless range of your IQ Panel. Wire in your desired devices and sensors and attach the included antenna to the top of the control panel. Afterwards, pair the Converter with your IQ Panel by press and holding the "EOL LEARN" button on the Converter and placing your IQ Panel into "Auto Learn" mode.
Contents
- Wireless Converter
- Antenna
- Enclosure
NOTE: Not for use with CO detectors.
Technical Details
- Manufacturer Part #: QS7133-840
- UPC: 857497008039
- Input Voltage: 16.0VDC Plug-In Transformer
- Backup Battery: 12VDC 5AH Max (optional)
- Dimensions: 5.5 H X 3.5 W inches
- Operating Temperature: 32 to 122 degrees F (0 to 50 degrees C)
- Humidity: 95% RH Max
- EOL Supervision: 4.7K Ohm fixed or 1k-10k Ohm depending on Resistor Mode
- Input Zones: 15 N/O or N/C (Normally Open/Normally Closed)
- Smoke Zone: 1 two-wire smoke loop, 10 detectors max. Support for System Sensor@reg; 2W-B, 2WT-B, 2WTA-B*
- Auxiliary Voltage Output: 12VDC @ 500mA Max
- Tamper Zone: Used for case tamper, no resistor
- Relay Contact: 60VDC/1A Max drives siren
• Programmable security control board supports security and smoke detecting zones
• Supports up to 10 2-wire smoke detectors and powers up to 15 input zones
• Encrypted S-Line technology protects signals while supporting legacy 319.5 systems
• LED lights indicate status of each individual zone
• Charging circuit for back-up battery, fully supervised with power outage recovery
