Brand: Qcvoruno

Our Qcvoruno factory has been manufacturing security monitors & displays for more than 20 years and has rich experience. According to customer needs and market updates, we have been optimizing and upgrading monitors, aiming to provide customers with better product quality and better user experience. We will provide high-quality after-sales consulting services to solve your problems as quickly as possible.Our factory can also customize special product requirements for batch customers, such as size, brightness, interface, appearance structure, etc. Customers who need customization can send email to customer service for consultation.

?Monitor specifications?

Brand?Qcvoruno
Model Number?QC101A
Support interface?HD?BNC?AV?VGA?USB
Installation method: Mounts on desktop with adjustable mounting brackets/wall mount
Power consumption?DC12V-800Ma(max)
Power adapter?Input:AC100-240V~50/60Hz?Output:DC12V-1A
Panelsize/Aspect ratio?10.1inch/16:9
Resolution?1024(H)*600(V)
Effective viewing area?222.72(W)*125.28(H)mm

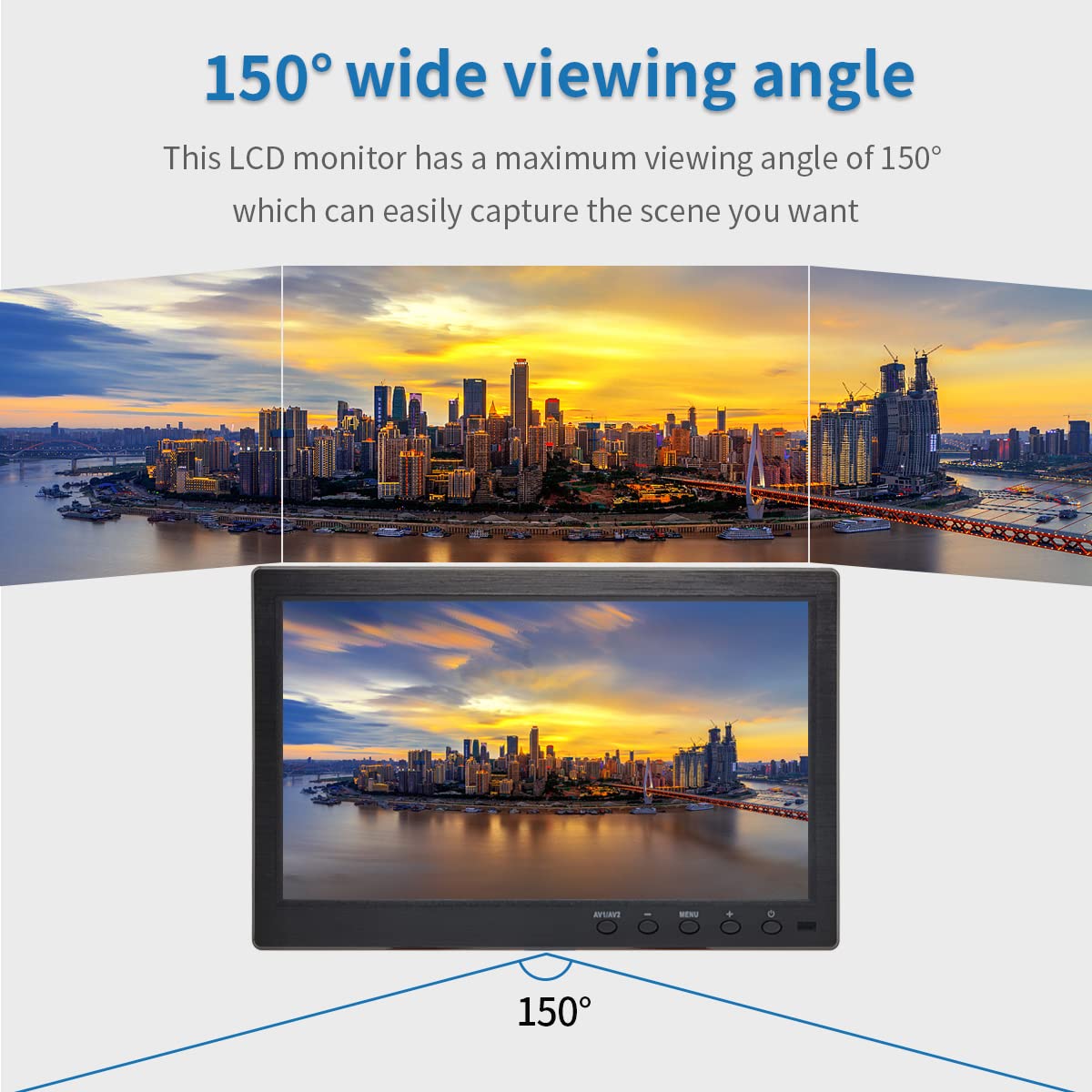

Viewing angle?150°(H)*105°(V)
Brightness?300cd/?
Contrast?500:1
Ressptonse time?12ms
Video input?1Vp-Pcvbs
VGA input?640*480/Hz?800*600/Hz?1024*600/Hz
Operating temperature?0-40?
Scope of application?games, DSLR, DVR, PC, Laptop, DVD, VCD, TV BOX, CCTV, Surveillance cameras, etc.
How to use it as a second monitor?After power on, connect a laptop or desktop computer via VGA or HDMI channel. On the computer's control panel, select Display Select Screen Resolution. Click Detect or Identify, when two monitors 1 and 2 appear on the screen, you can choose to copy or expand.

?Product packaging accessories?

10.1"monitor*1
Power Adapter*1
HD cable*1
VGA Cable*1
BNC Cable*1
Adjustable Stand*1
Stand-Sticke*1
Remote Control*1
User Manual*1


• ?We are a monitor manufacturer? All security monitors & displays in our store are produced in our own factory, so the quality and price of the products are more competitive than other products. When you have any questions about the use process after purchasing this product, you can send an email to inquire, and we will reply you quickly to help you solve the problem.

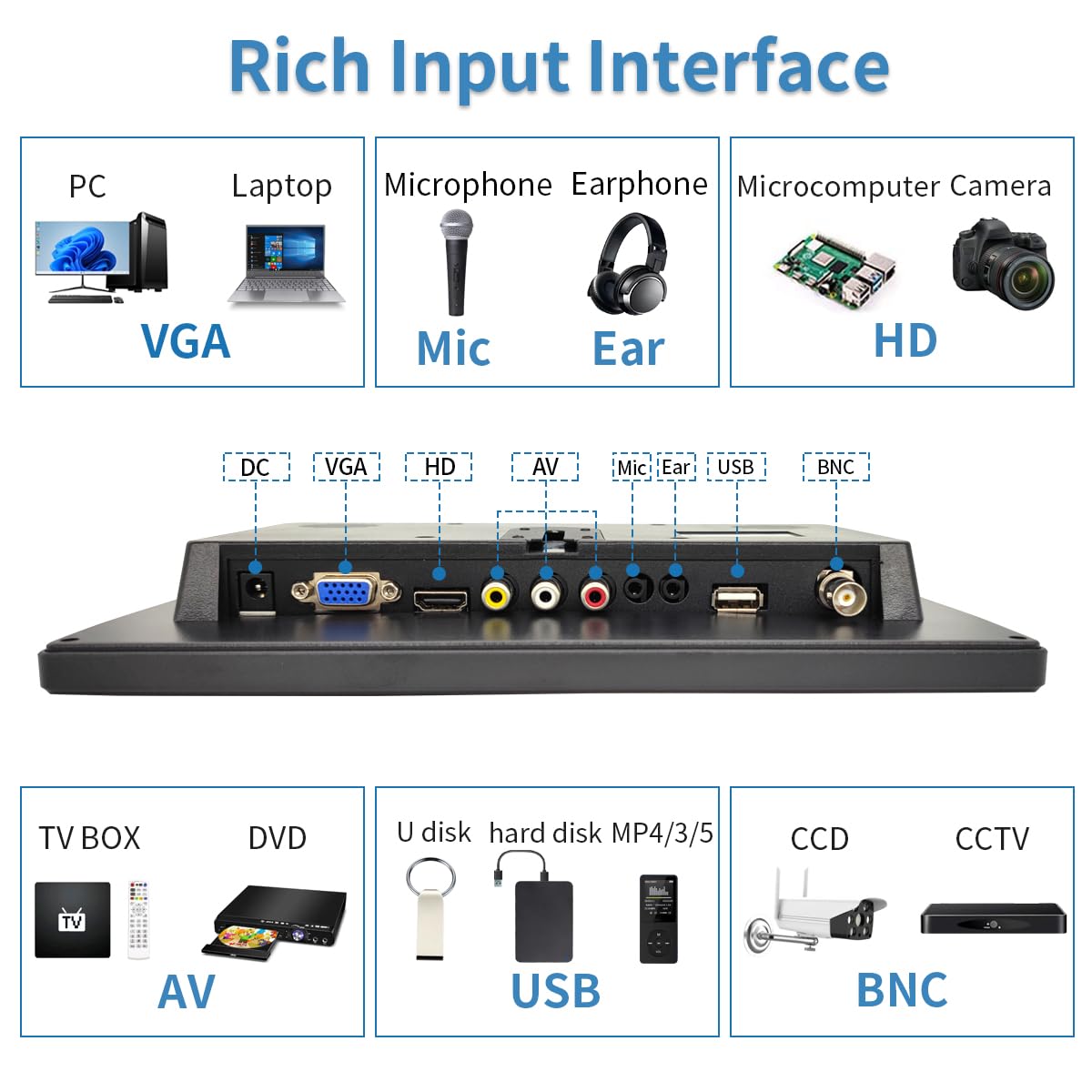

• ?Supports a variety of video input interfaces? The security monitors & displays has a variety of functions designed to meet different customer needs. It provides several different input ports, including HD/VGA/AV/USB/BNC ports, suitable for games, DSLR, DVR, PC, Laptop, DVD, VCD, TV BOX, CCTV, Surveillance cameras, etc.

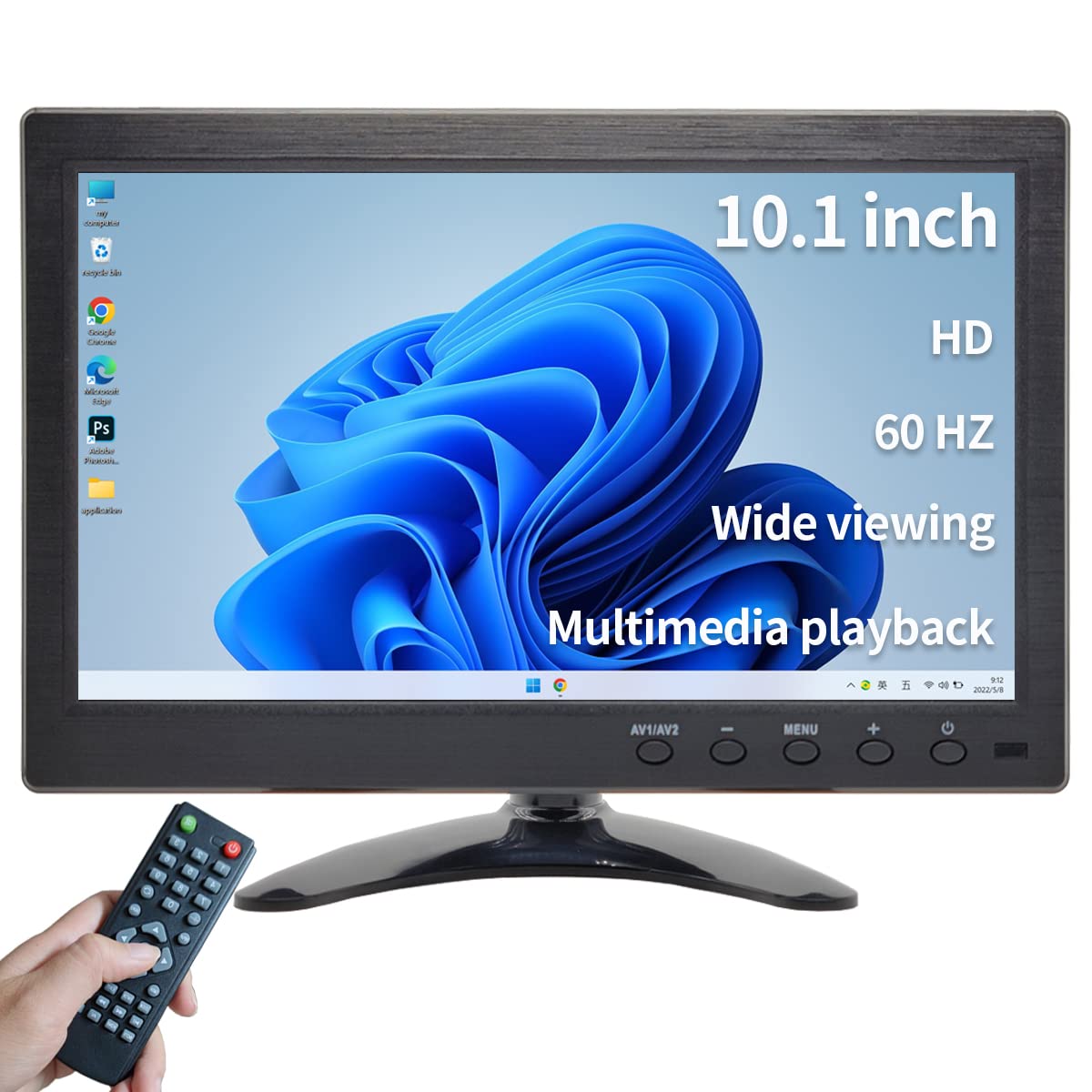

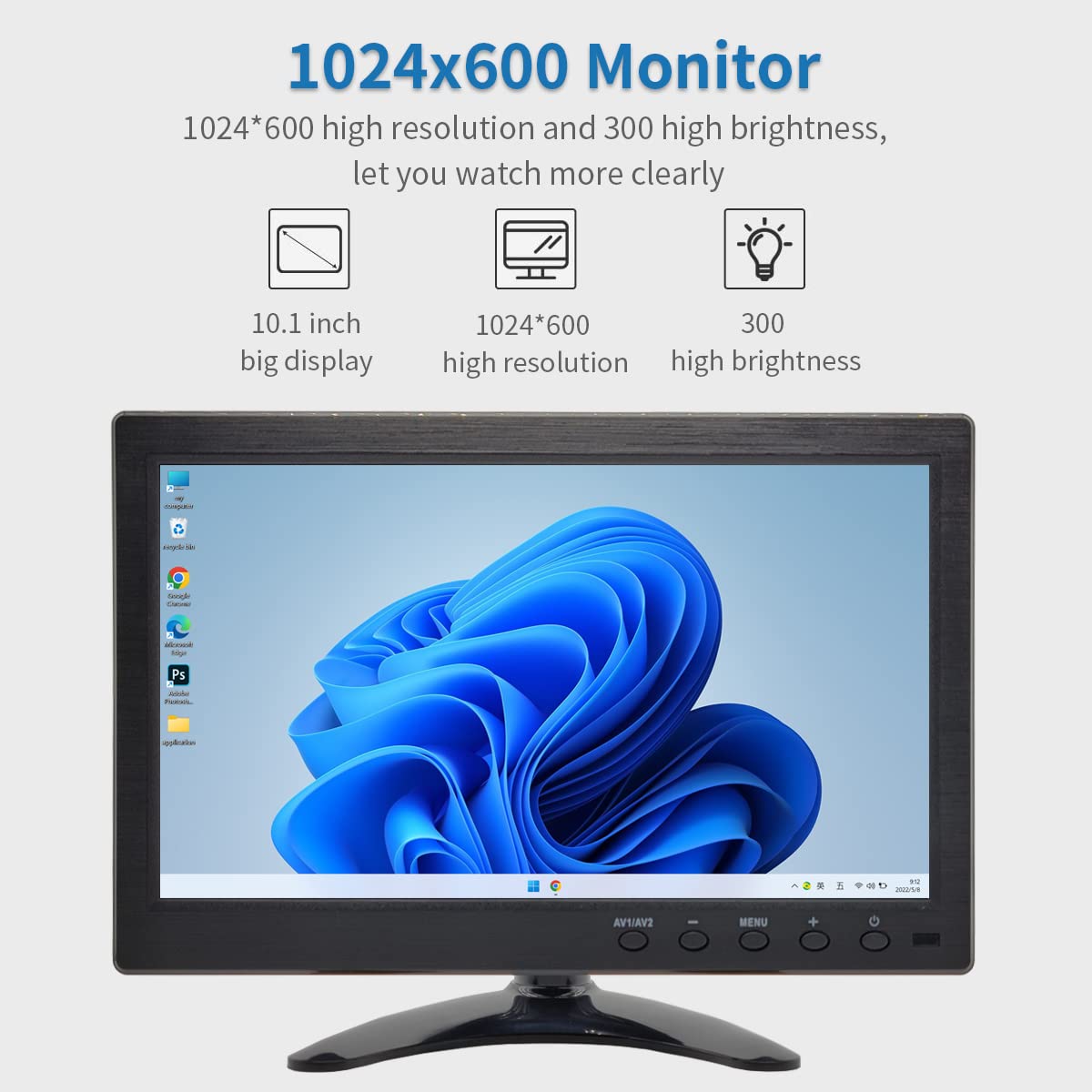

• ?High resolution? 10.1 inch 1024*600 high resolution LCD security monitors for home, 500:1 dynamic contrast ratio, 300cd/? brightness, 16:9 aspect ratio and 150° wide viewing angle, showing delicate colors and clear imaging ability to bring users a comfortable and spectacular viewing experience.

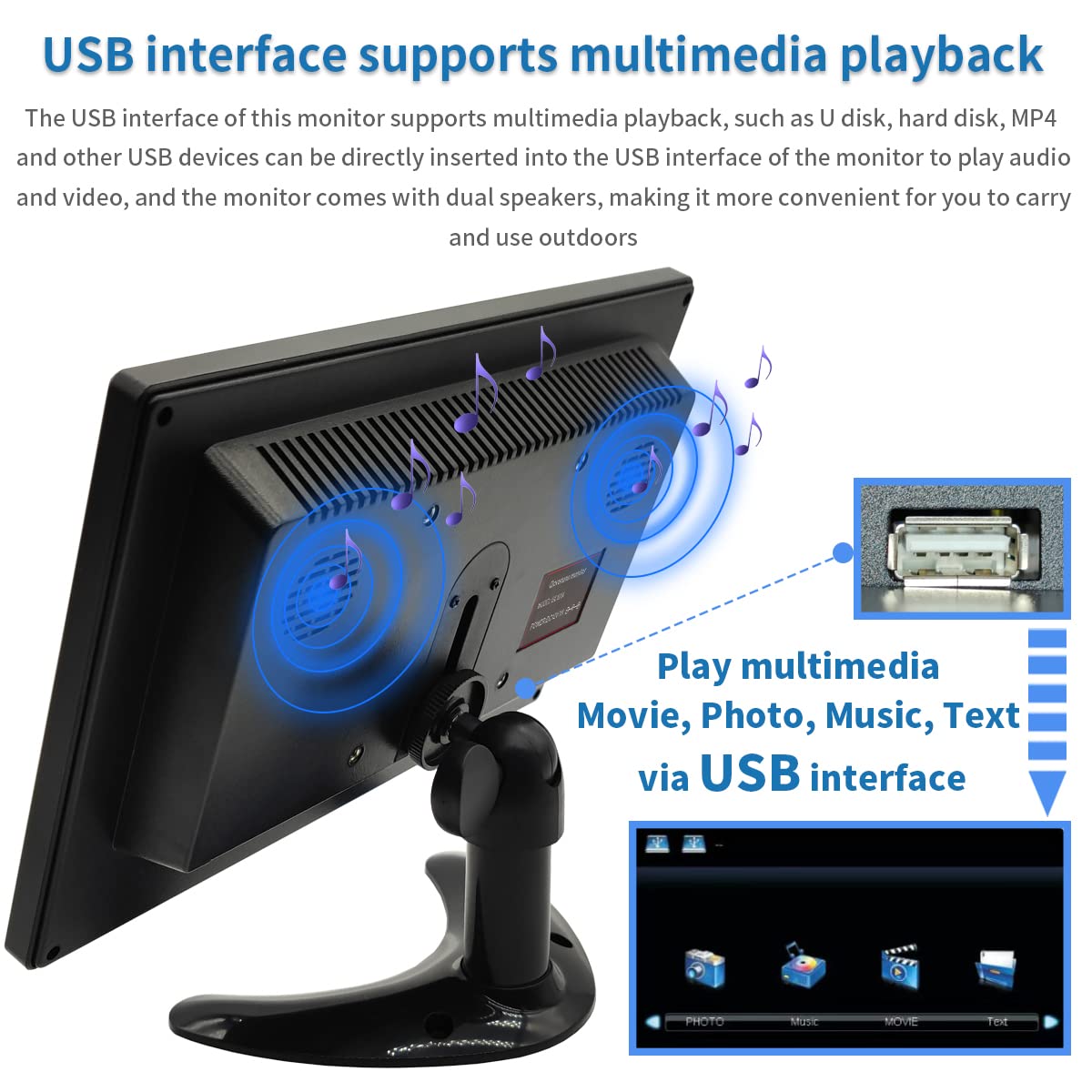

• ?Portable and easy to use? The small security monitor screen is very portable and easy to use, and our monitor has built-in dual speakers and headphone/microphone jacks, the USB interface also supports multimedia video playback, if you want to use it in other places such as travel or outdoor work, you Can be carried around, light weight without any inconvenience.
• ?Wide range of application scenarios?Applicable to a wide range of industries, such as optical industry, medical industry, security industry, video industry, military industry, electronic production, multimedia entertainment, etc.
