Description
Brand: PWAY
• Extend your HDMI Audio Video Signals. Consider that different types of Ethernet cables have signal attenuation, we recommend Cat5e/6/7 within 500 ft and Cat5 within 400 ft
• Supports the max resolution of 1920*1080p@60hz, providing you with an ultra-high-definition video vision. It is also backward compatible with 1080p30, 1080i, 720p60, 720p30, and meet your diverse settings.

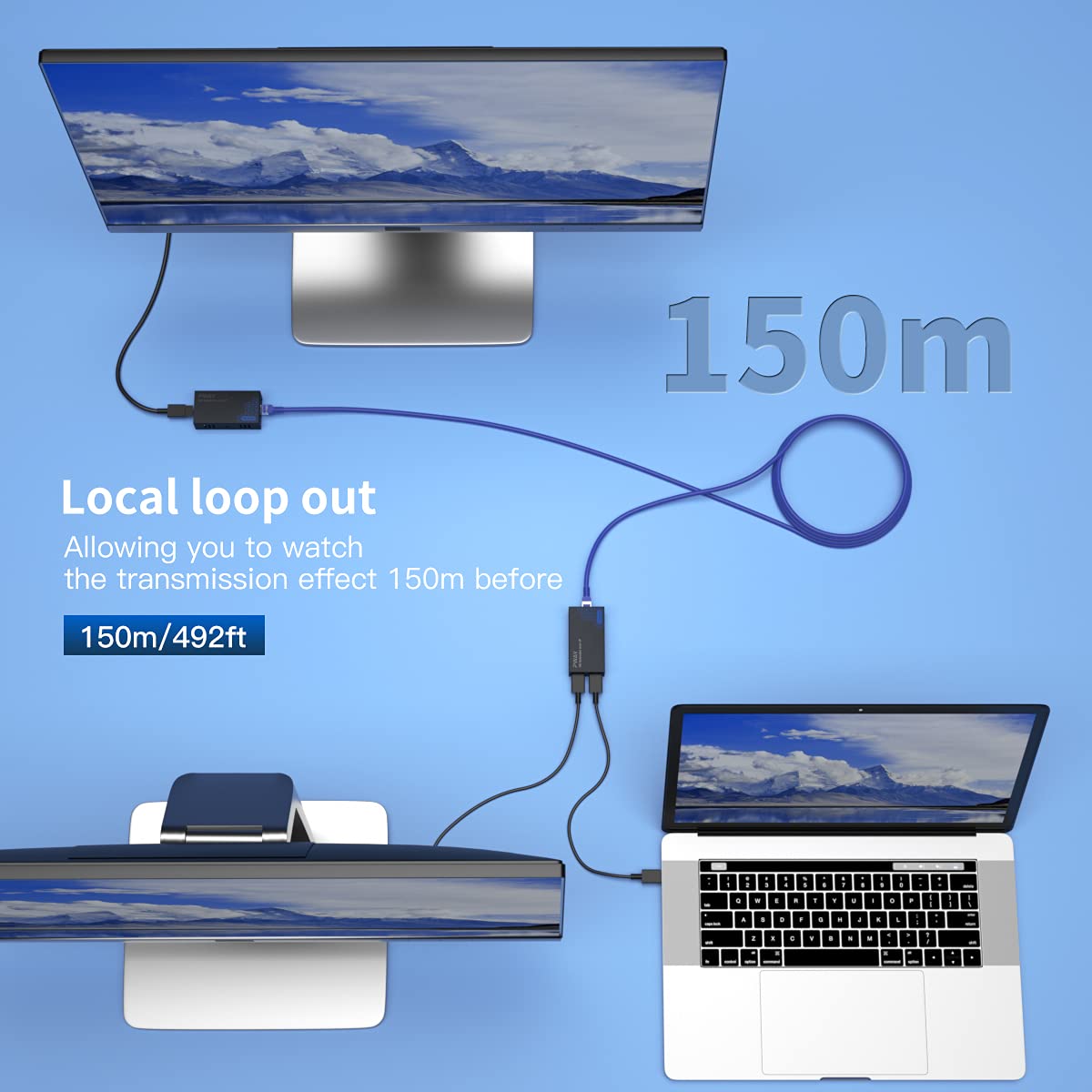

• HDMI local output (loopout). This can connect a monitor to the TX and meet your needs for additional expanded screen.

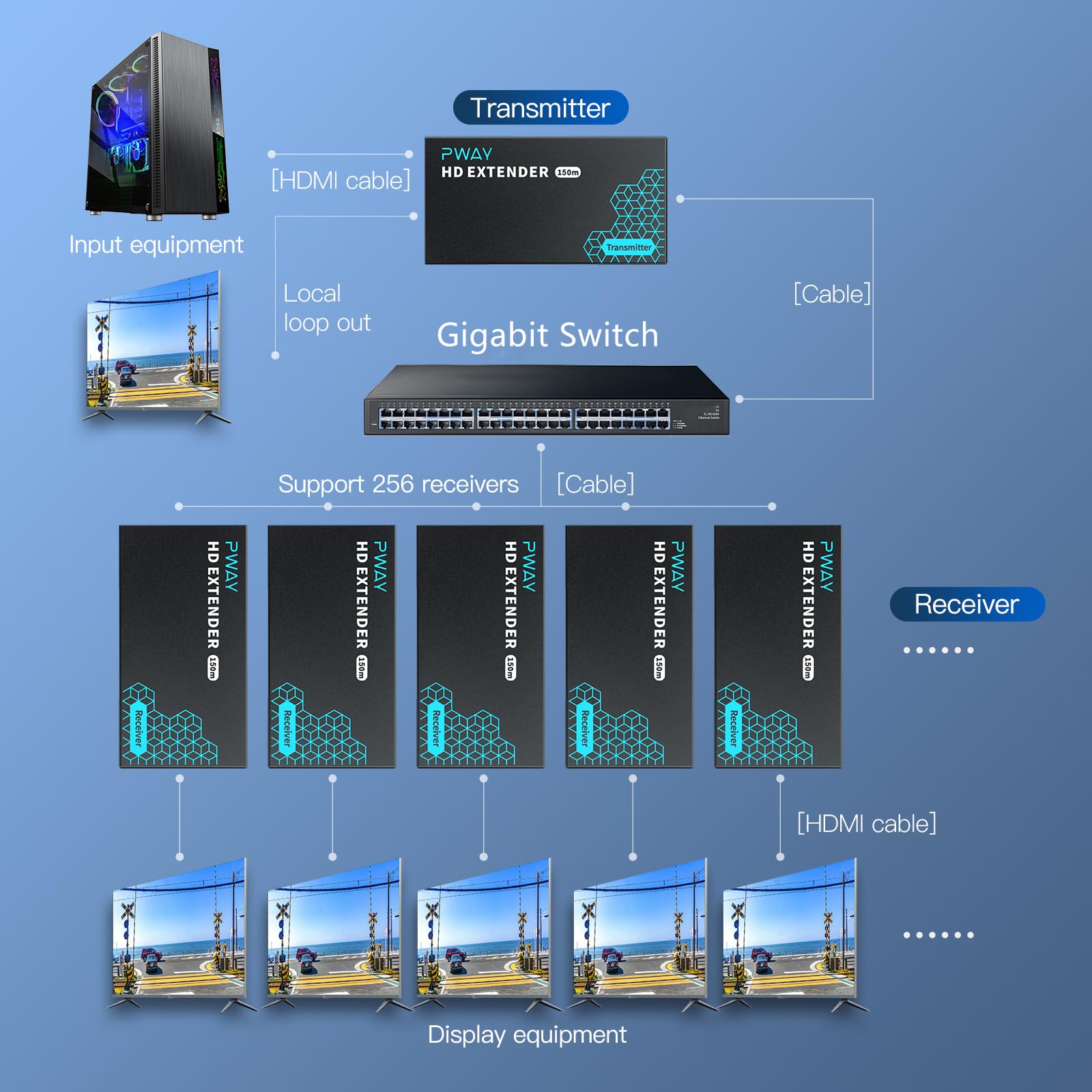

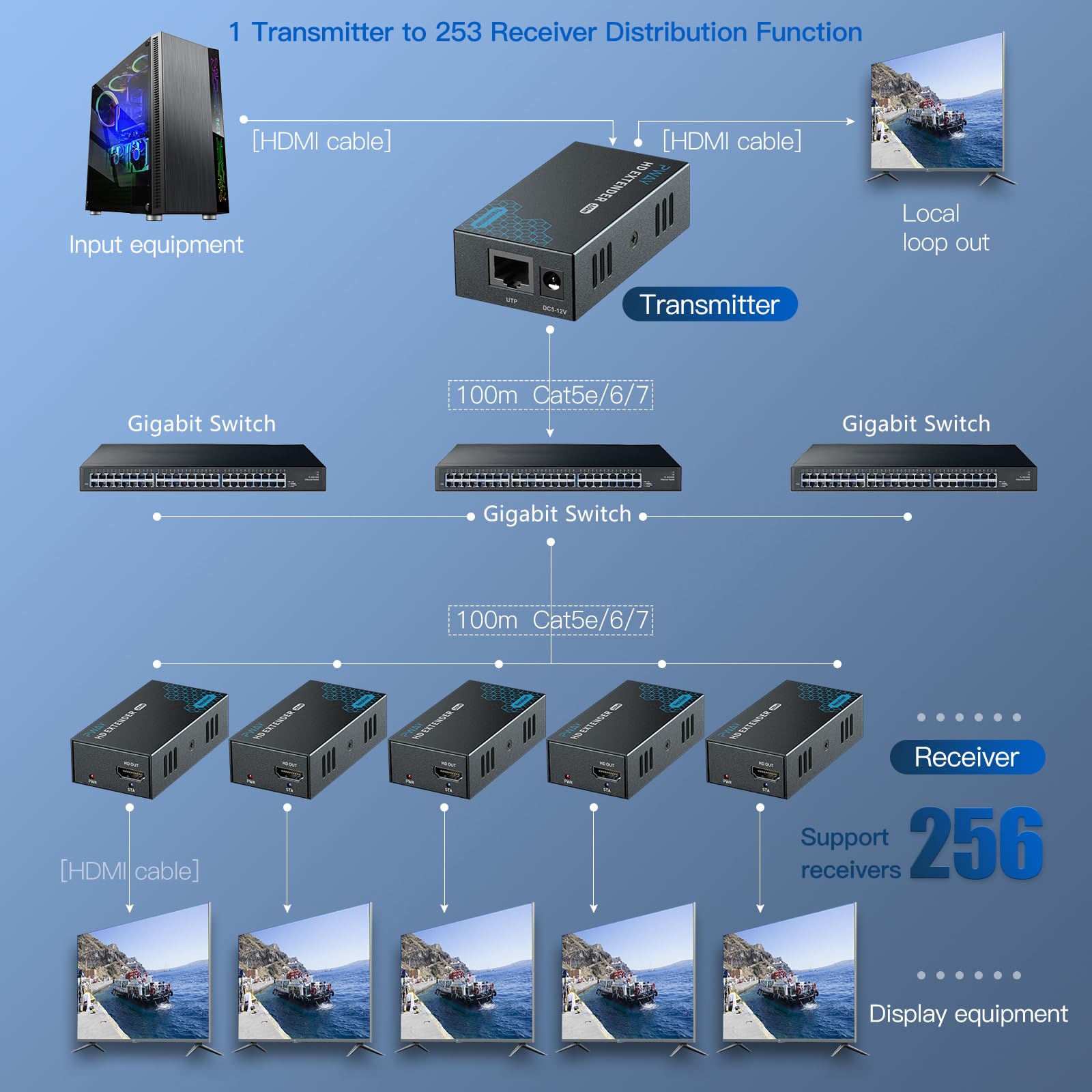

• Support for multiple videos. Connect to your independent Gigabit Ethernet Switch and split to multiple TVs. Note: It is distributed via MAC and does not support 100 Mbit switches, Not recommended for use with your existing home switch
• Simple installation, no software required. Metal shell, more durable
Color: black
HDMI EXTENDER 500FT BY Cat5E/6/7
Do some checks before installation:
1. Set the output resolution of your signal source not higher than TV, and set the max resolution not higher than 1920*1080P@60Hz.
2. Connect your devices directly and check if they have image output (without HDMI extender).
3. If setting up multiple videos, it requires a Gigabit switch, which distributes the videos via MAC.
Specifications
1.Video
* HDMI 1.3 cable (HDMI-A), recommended within 15 feet
* Support input & output max resolution 1920X1080@60Hz, 3D
* Support max pixel clock 165MHz
* Support max data transfer rate 6.75Gbps
2.Ethernet
* Support Ethernet interface RJ45
* Support Ethernet crimping method 5680B (white orange, orange, white green, blue, white blue, green, white brown, brown)
* Support Ethernet cable length Cat5e/6/7---500ft, Cat5---400ft
* Support multiple videos through Gigabit switch.
3.Others
* Max working voltage: 2A/5VDC
* Operating Temperature range: (-5 to +70℃)
* Dimension (L x W x H): 81*43*23 (mm); Weight: 250g
Package Lists
1x Transmitter
1x Receiver
2x Power adapter
1x User manual
• Extend your HDMI Audio Video Signals. Consider that different types of Ethernet cables have signal attenuation, we recommend Cat5e/6/7 within 500 ft and Cat5 within 400 ft
• Supports the max resolution of 1920*1080p@60hz, providing you with an ultra-high-definition video vision. It is also backward compatible with 1080p30, 1080i, 720p60, 720p30, and meet your diverse settings.
• HDMI local output (loopout). This can connect a monitor to the TX and meet your needs for additional expanded screen.
• Support for multiple videos. Connect to your independent Gigabit Ethernet Switch and split to multiple TVs. Note: It is distributed via MAC and does not support 100 Mbit switches, Not recommended for use with your existing home switch
• Simple installation, no software required. Metal shell, more durable
Color: black
