Description
Brand: Proxicast

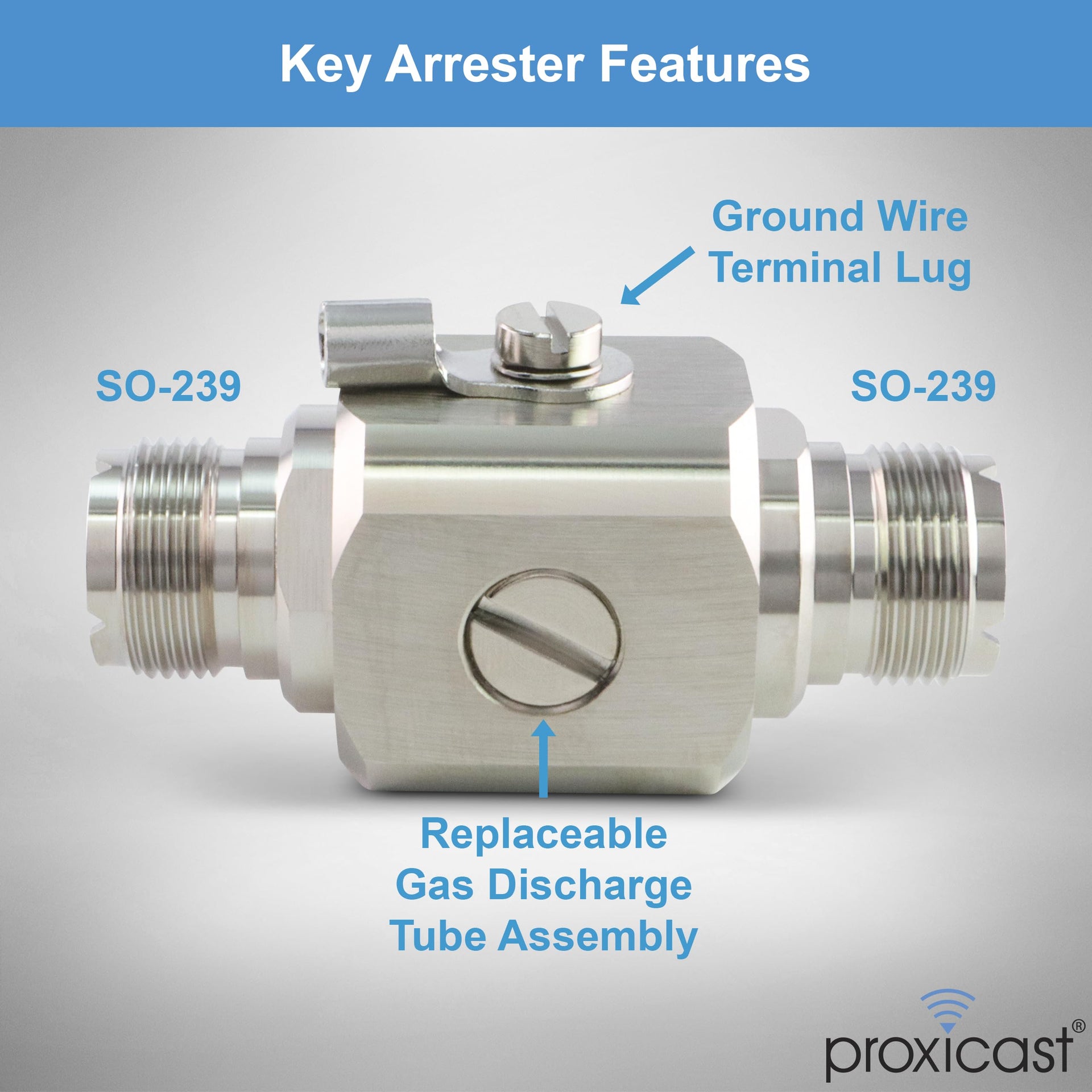

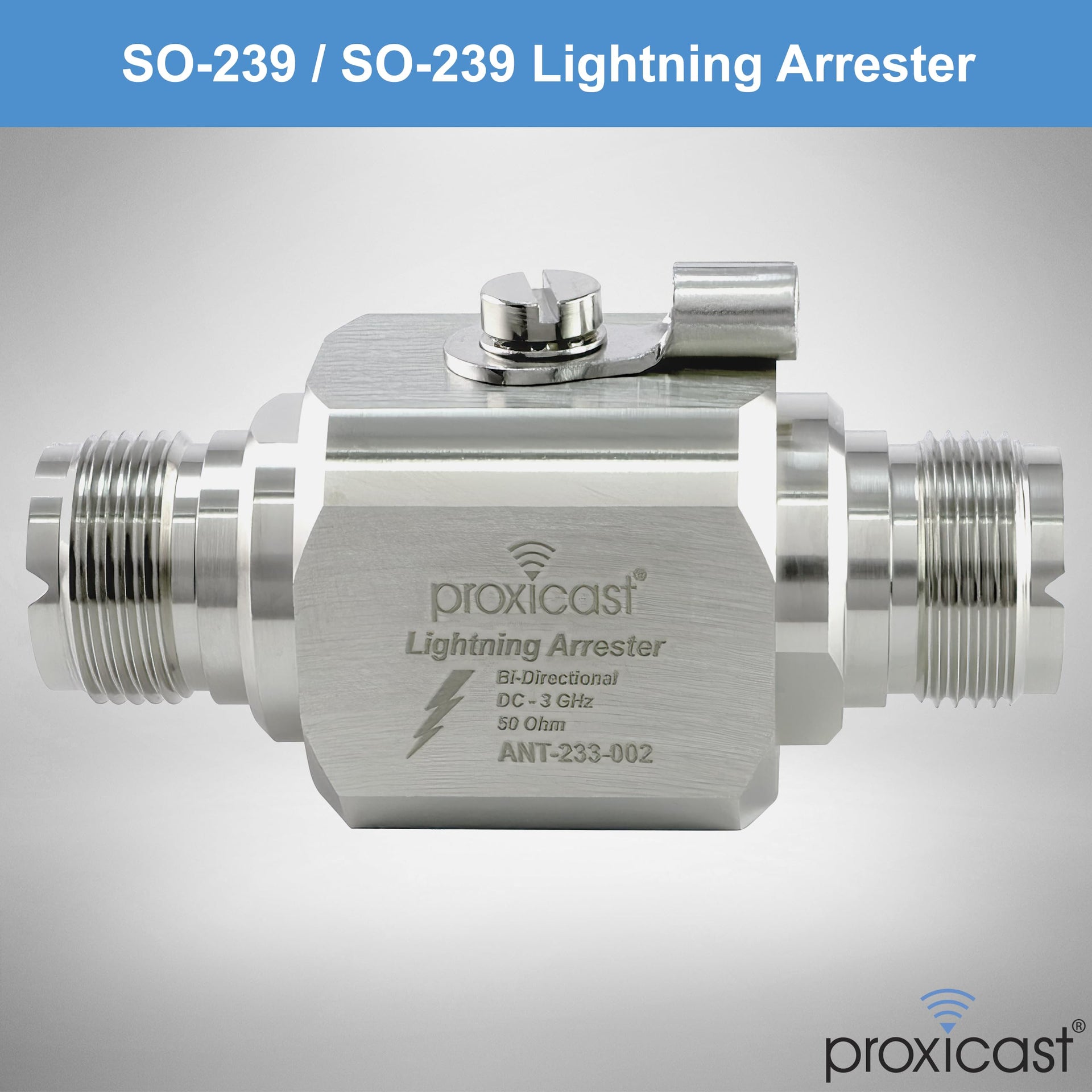

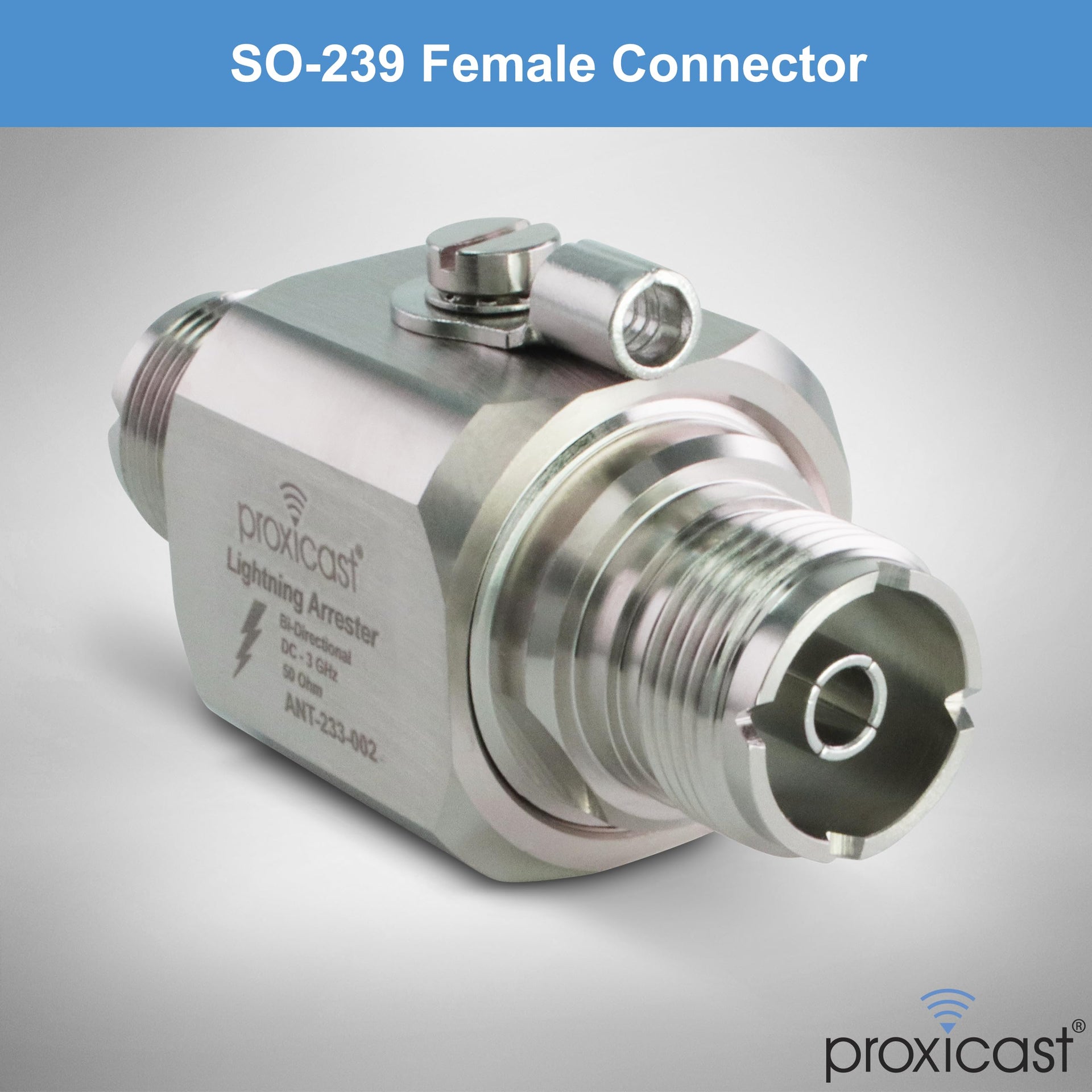

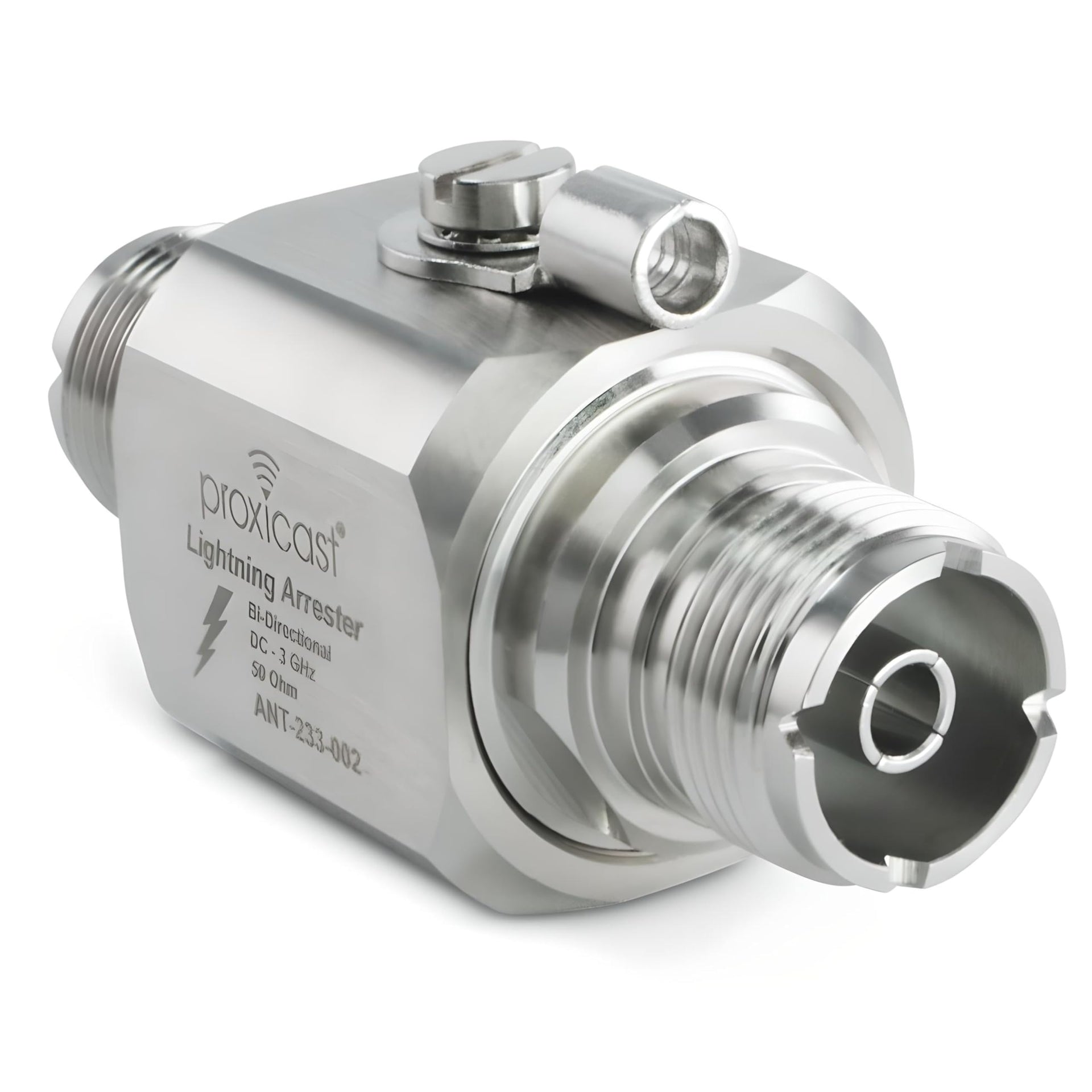

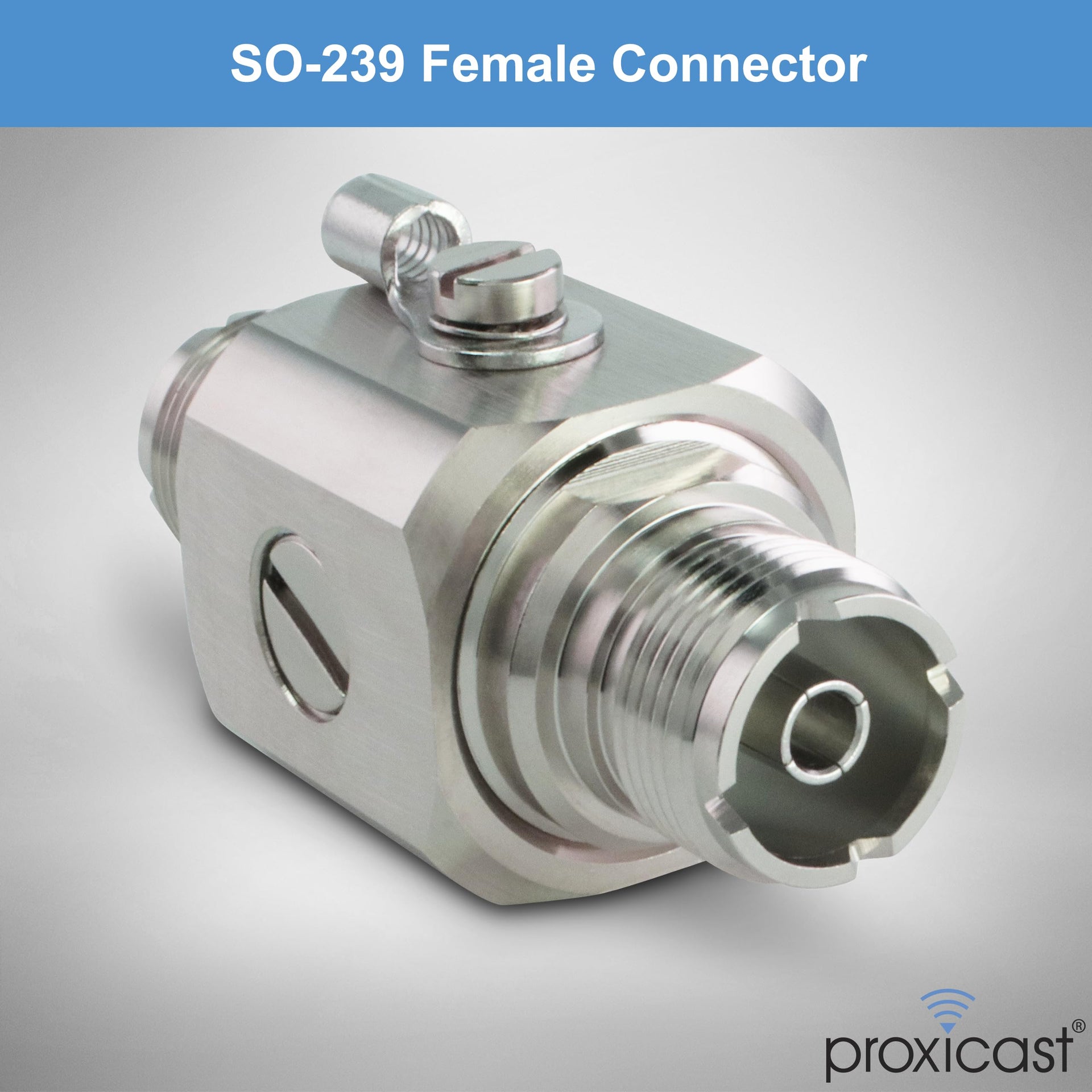

This gas discharge tube coaxial lightning surge protector features UHF Female SO-239 connectors and wide-band operation from DC to 3 GHz with low RF insertion loss.
This gas discharge tube coaxial lightning surge protector features UHF Female SO-239 connectors and wide-band operation from DC to 3 GHz with low RF insertion loss.
This antenna surge protector will pass DC, so it is suitable for applications where DC is carried through the coax cable, such as remote amplifiers and LNAs. Both connector ports are equally protected - it can be installed in either orientation. A ground lug on the housing provides superior grounding.
A Coaxial lightning suppressor should be installed between outdoor antennas and radio equipment and as close a possible to the equipment to be protected, often at the point where the coax cable enters the building to protect equipment, structures and personnel from high-energy electrical pulses carried through the coax cable either from a direct or nearby lightning strike.
Specifications
• Frequency Range: 0 - 3 GHz
• Impedance: 50 ohms
• Discharge Voltage: DC 230V
• Max Power: 200 W
• Insertion Loss: < 0.2 dB
• VSWR ADGP < 1.2
Material
• Connector Body: Nickel Plated Brass
• RoHS compliant
• Connectors: UHF Female SO-239
• Ground Lug
• Dimensions 2.2 x 1.0 in (57 x 25 mm)
• Weight 4.5 oz (127.6 g)
Use Self-Bonding silicone tape (ASIN B00K5GW67O) for fast and easy connection weathersealing.
Proxicast is a USA-based manufacturer of wireless equipment.
• DESIGNED FOR VHF, UHF, TWO-WAY, AMATEUR / HAM and CB RADIOS - Features 2 UHF Female SO239 Connectors
• BI-DIRECTIONAL PROTECTION - High Quality Construction - Outdoor Rated - Suitable for In-Line Use
• VERY LOW RF INSERTION LOSS (Signal Attenuation) - 50 Ohm Impedance - DC Pass-Through
• 230V GAS DISCHARGE TUBE - Coaxial Cable Surge Protector with Multi-Strike Capability Shunts Damaging Surges, Transients, and Lightning Energy to Ground
• CONNECT COAXIAL SURGE PROTECTOR to Antenna Signal Feedline and Earth Ground
Color: UHF-Female/UHF-Female
