Description
Brand: PROCET PoE System

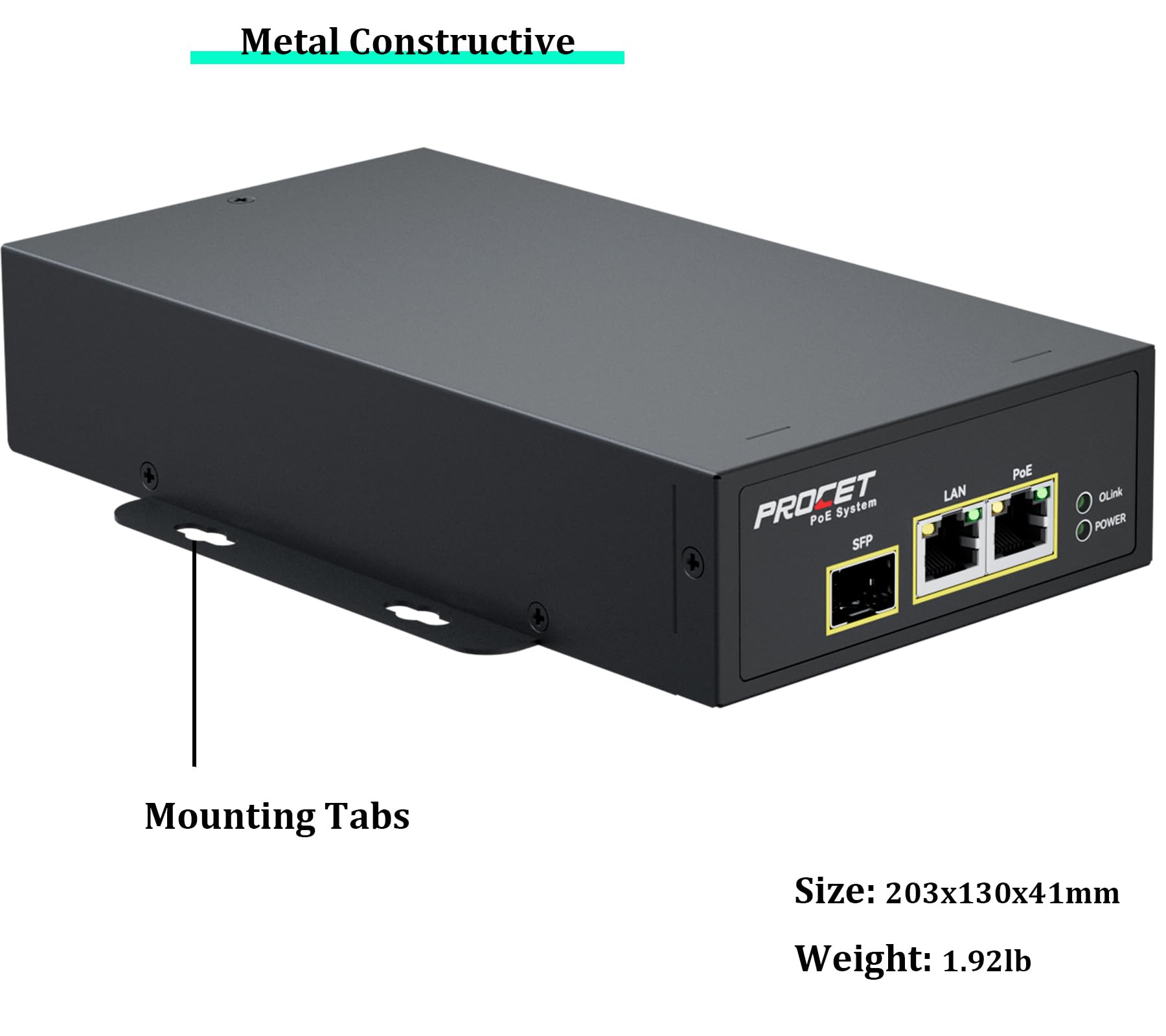

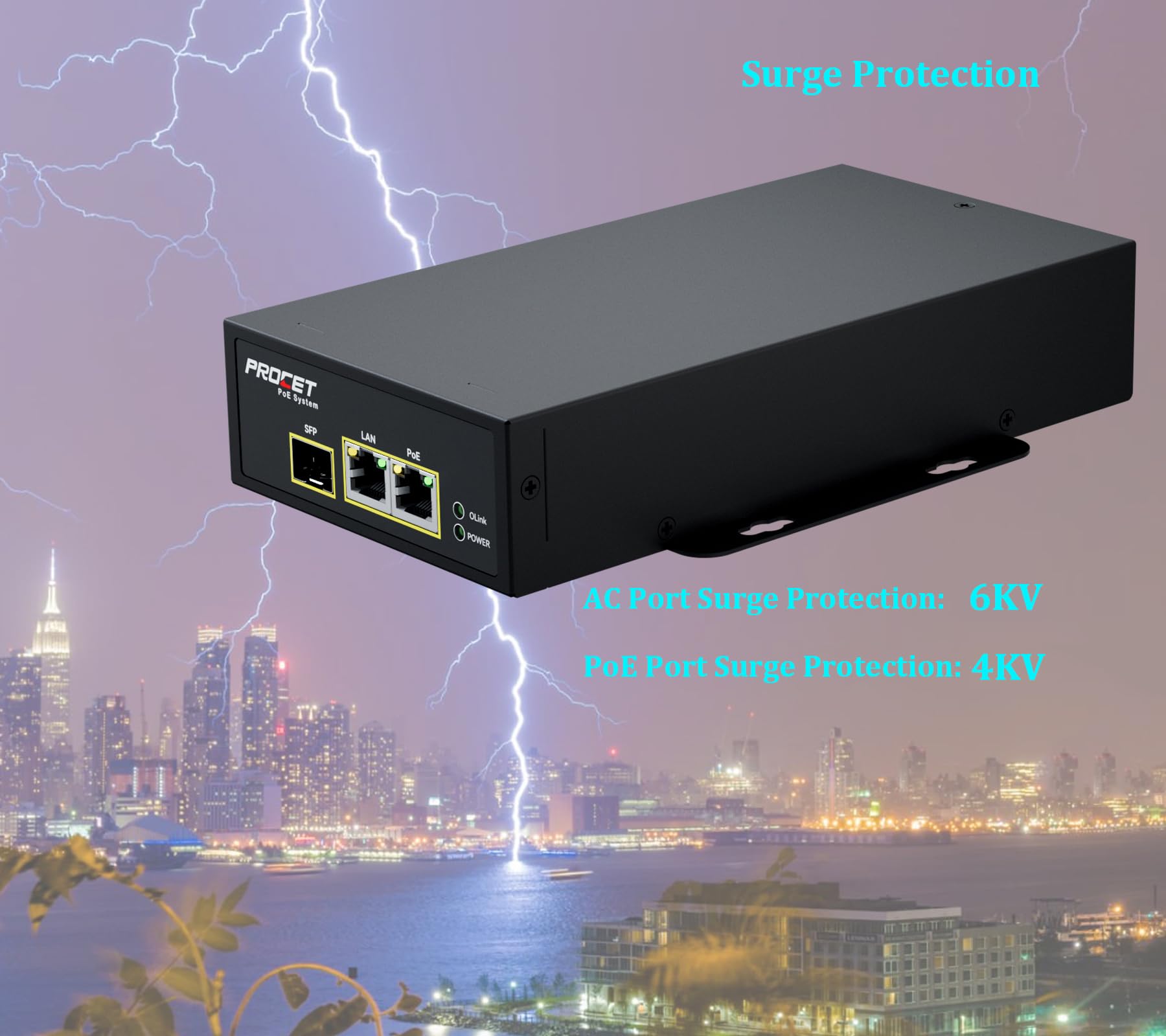

PT-PSE109GBRO-A-S is an Industrial rated fiber PoE Media converter specially designed for complex industrial backhaul and networking applications, special scenarios, like highway side, exurb, etc. Enclosed in an IP20 high-impact metal case, but can work outdoor by covered with waterproof case After negotiating IEEE802.3bt standard PoE, the single PoE output port delivers 55Vdc, 1.75A up to 95W power with 6KV surge protection for remote PDs over 4 Pair at 1000Mbps data rates. It works with a wide input voltage of 100-240Vac with 6KV surge protection and operates under -40? to +65?. It fully complies with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks. For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.

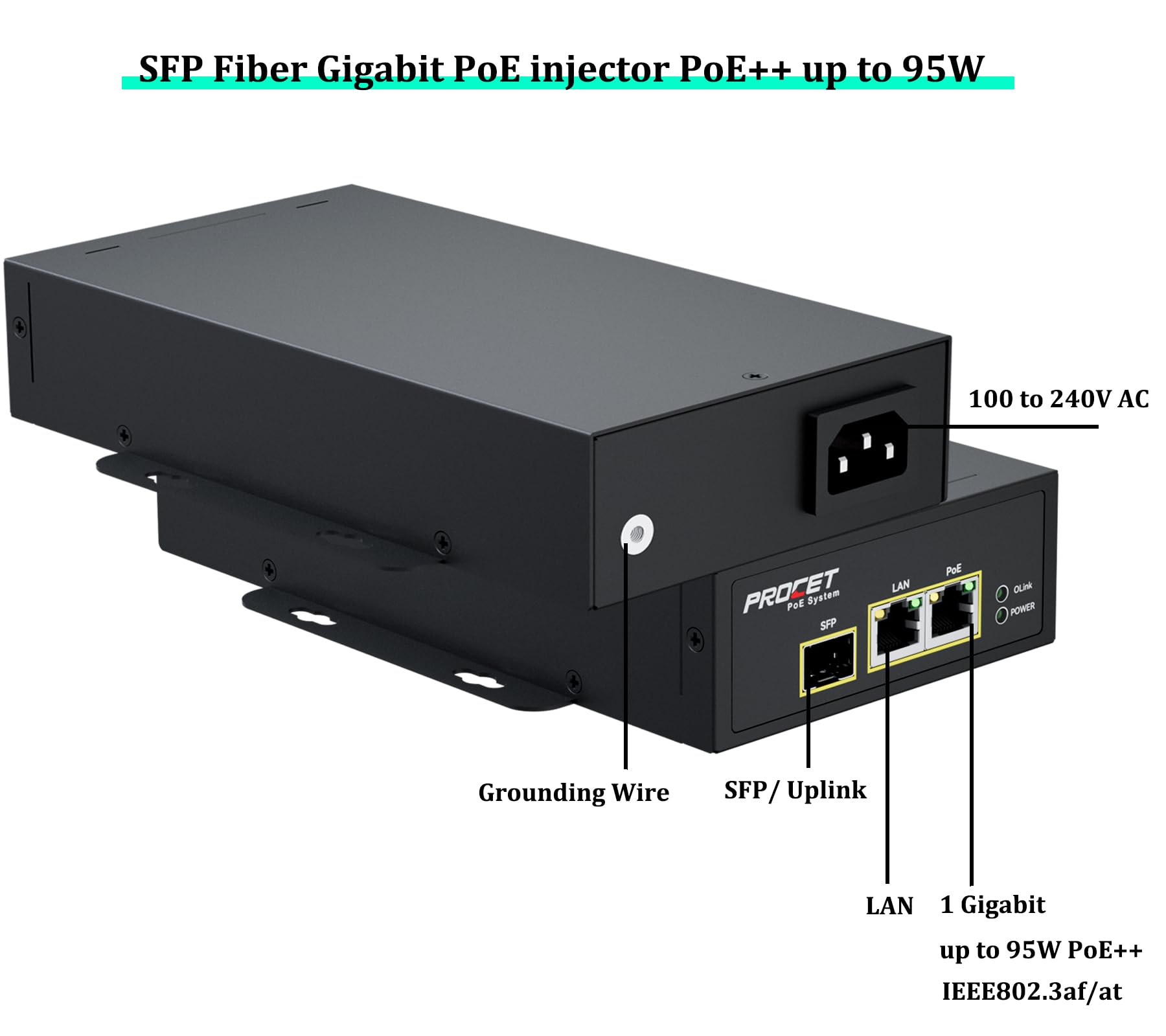

• ?Power Input?AC Input Voltage 90 to 264V AC.
• ?PoE Output?Gigabit 10/100/1000Mbps
• 48-55V DC up to 95W power supply. PoE++ and IEEE802.3af/at standard compliance.

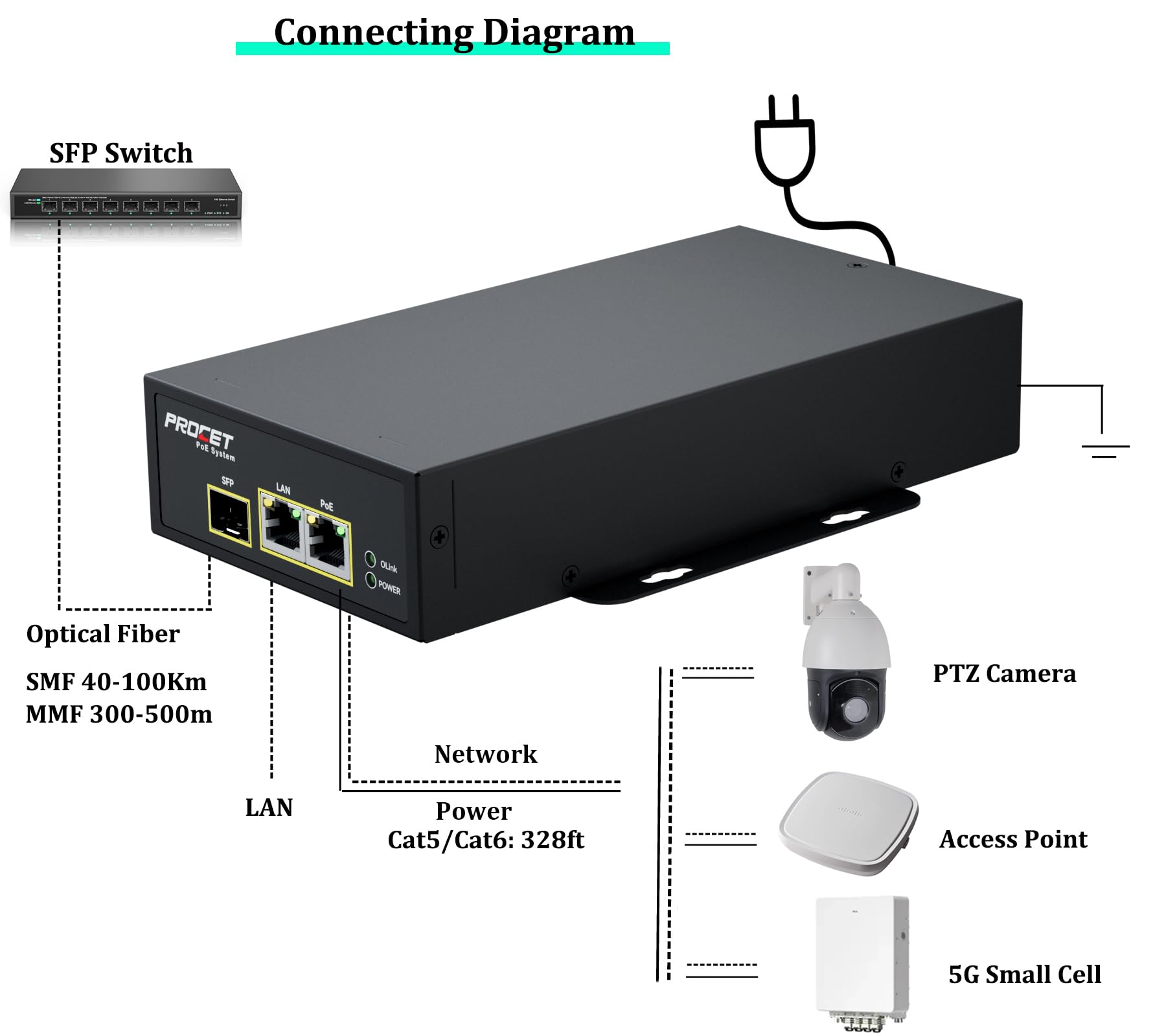

• ?SFP Port?SFP port is for super long range SFP Fiber tramsmssion, but can be used for uplinks at the same time. Through the SFP port, the device can be connected to a core switch or router to achieve high-bandwidth and long-distance uplink connections. Combined with LAN port, make it alternative
• ?PoE Distance?Effective PoE transfer distance is 328FT over Cat5e/Cat6 cable but can expand by adding PoE Extender.
Color: Black
PT-PSE109GBRO-A-S is an Industrial rated fiber PoE Media converter specially designed for complex industrial backhaul and networking applications, special scenarios, like highway side, exurb, etc. Enclosed in an IP20 high-impact metal case, but can work outdoor by covered with waterproof case After negotiating IEEE802.3bt standard PoE, the single PoE output port delivers 55Vdc, 1.75A up to 95W power with 6KV surge protection for remote PDs over 4 Pair at 1000Mbps data rates. It works with a wide input voltage of 100-240Vac with 6KV surge protection and operates under -40? to +65?. It fully complies with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks. For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.
• ?Power Input?AC Input Voltage 90 to 264V AC.
• ?PoE Output?Gigabit 10/100/1000Mbps
• 48-55V DC up to 95W power supply. PoE++ and IEEE802.3af/at standard compliance.
• ?SFP Port?SFP port is for super long range SFP Fiber tramsmssion, but can be used for uplinks at the same time. Through the SFP port, the device can be connected to a core switch or router to achieve high-bandwidth and long-distance uplink connections. Combined with LAN port, make it alternative
• ?PoE Distance?Effective PoE transfer distance is 328FT over Cat5e/Cat6 cable but can expand by adding PoE Extender.
Color: Black
