Description
Brand: PROCET PoE System

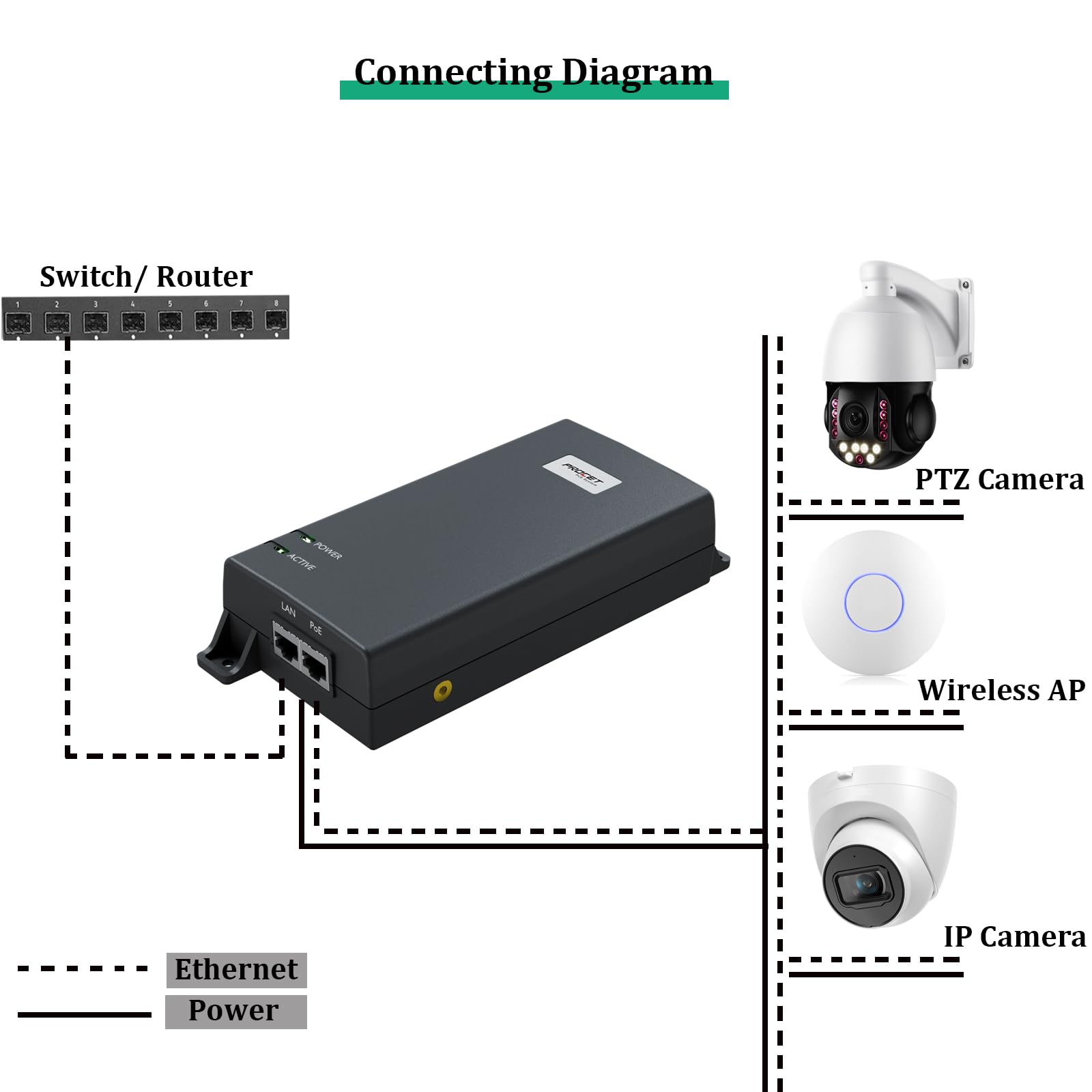

PT-PSE106GW-AR is a single port PoE Injector. It provides 55Vdc, 1.1A power for remote PDs over ful 4-pairs output with 6KV (10/700us) surge protection. It supports 10/100/1000 of data speed. It works for 60W PoE PDs, such as APs, base stations, high power cameras, door locks, displays,POS, information kiosks and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at compliant terminals
PT-PSE106GW-AR is designed for indoor use. It works with input voltage of 100-240Vac. It has detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.

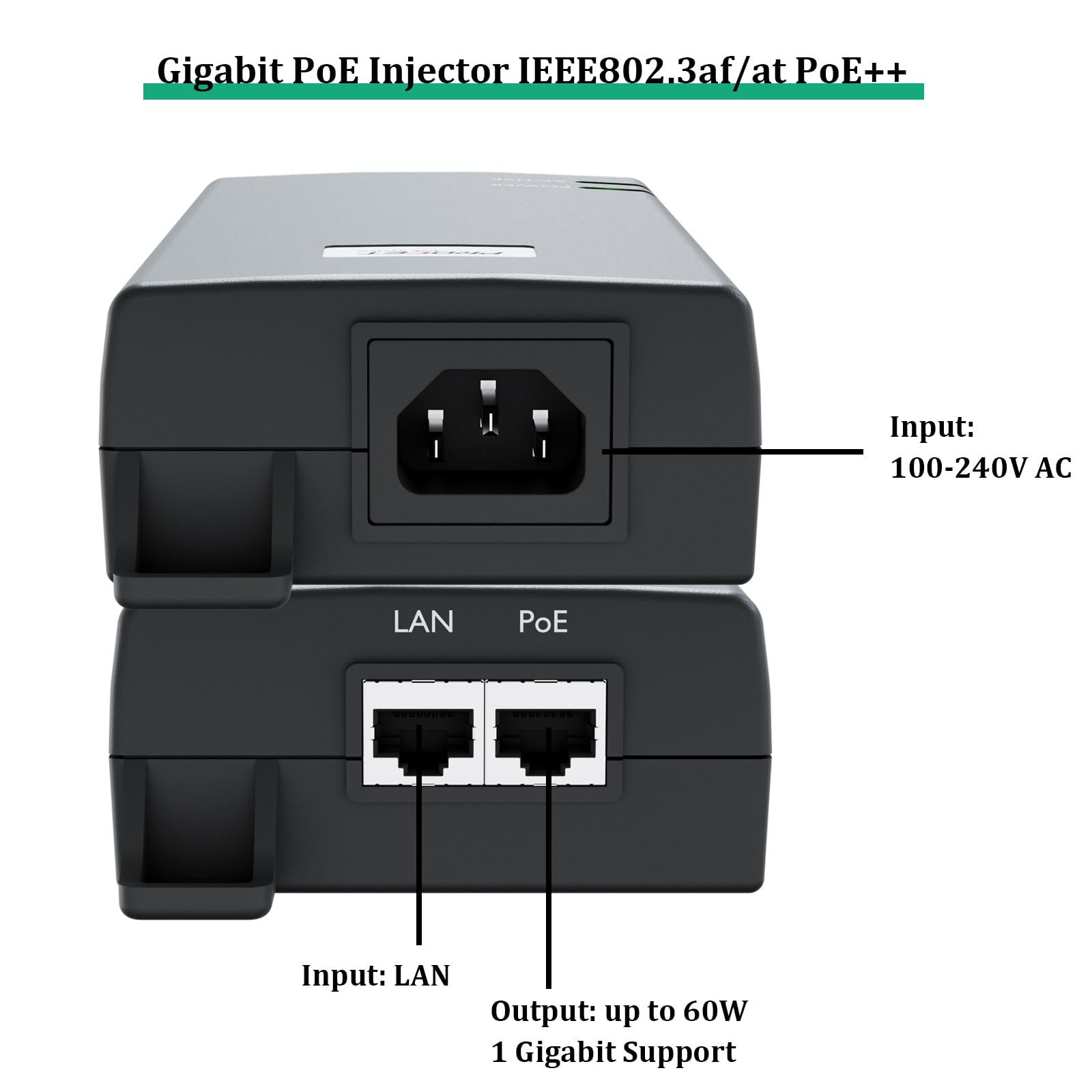

- Input :100-240Vac 1.5A 50/60Hz
- Output: 55Vdc 1100mA
- Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-)
- Data Speed: 10/100/1000Mbps
- IEEE802.3 10Base-T Ethernet
- IEEE802.3u 100Base-Tx Fast Ethernet
- IEEE802.3ab 1000Base-T Gigabit Ethernet
- Full compliant with IEEE802.3af/at,PoE++
- RoHS Compliance
- WEEE Compliance
- Operating Temperature: 0? to 40?
- Operating Humidity: 20% to 80%, non-condensation
- Storage Temperature: -20? to 70?
- Storage Humidity: 10% to 90%, non-condensation
- Operating Altitude: up to 5000meters
- Case: Plastic
- Color: Black
- Mounting: Wall-mounted
- IP Rated: IP40
- Size: 193mm X 85mm X 41mm
- Weight: 425g

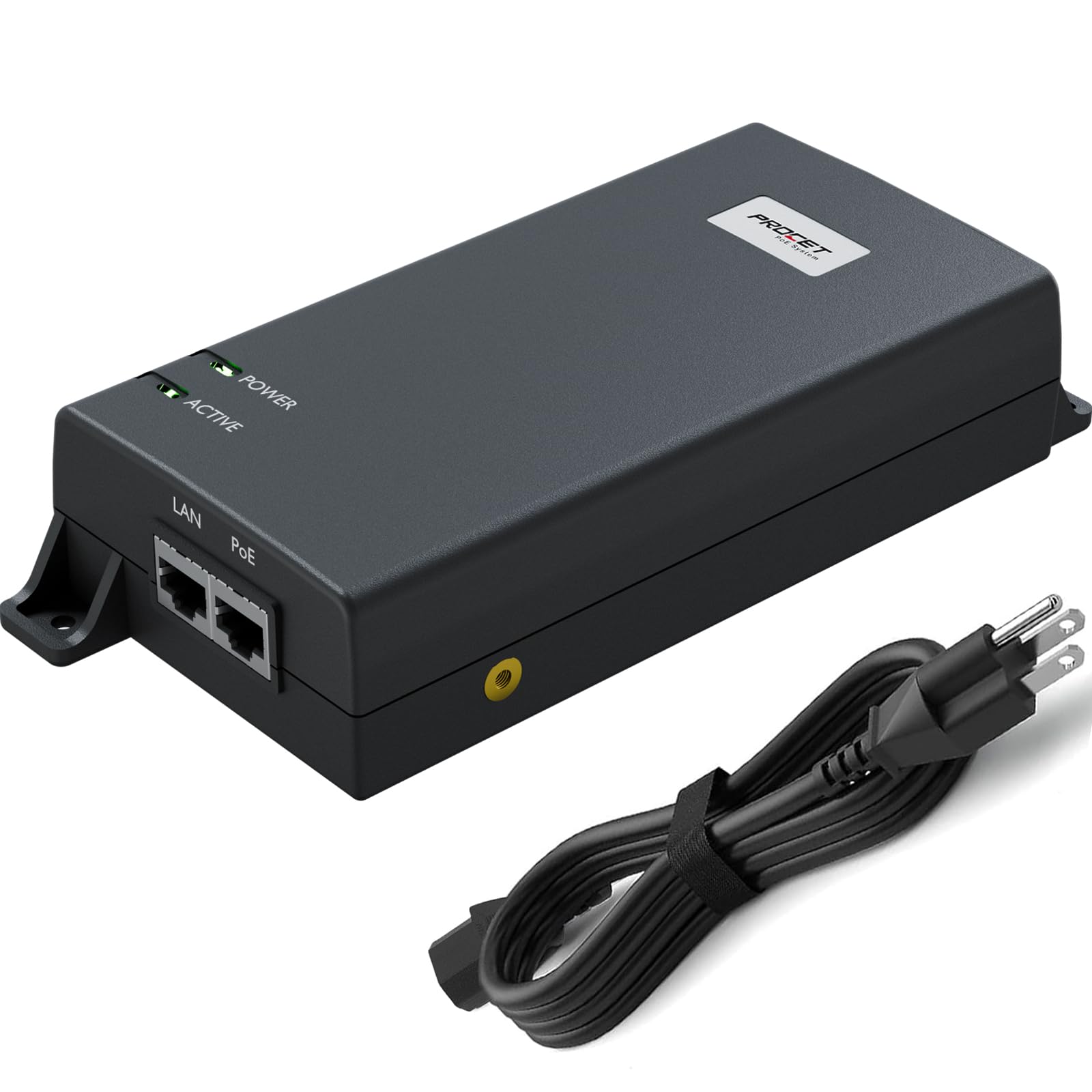

- Packing.?Power Cord x 1(1.5 Meters), Manual x 1
• ?PoE++ Power Injector?Up to 60 watts DC 55V 1.1A, perfect for powering various powered devices such as IP cameras, wireless APs, door locks, displays, POS, information kiosks and more.
• ?Gigabit Speed?This PoE injector supports Network speed of 10/100/1000Mbps, ensuring fast and reliable stable Network connectivity for your PoE device always.

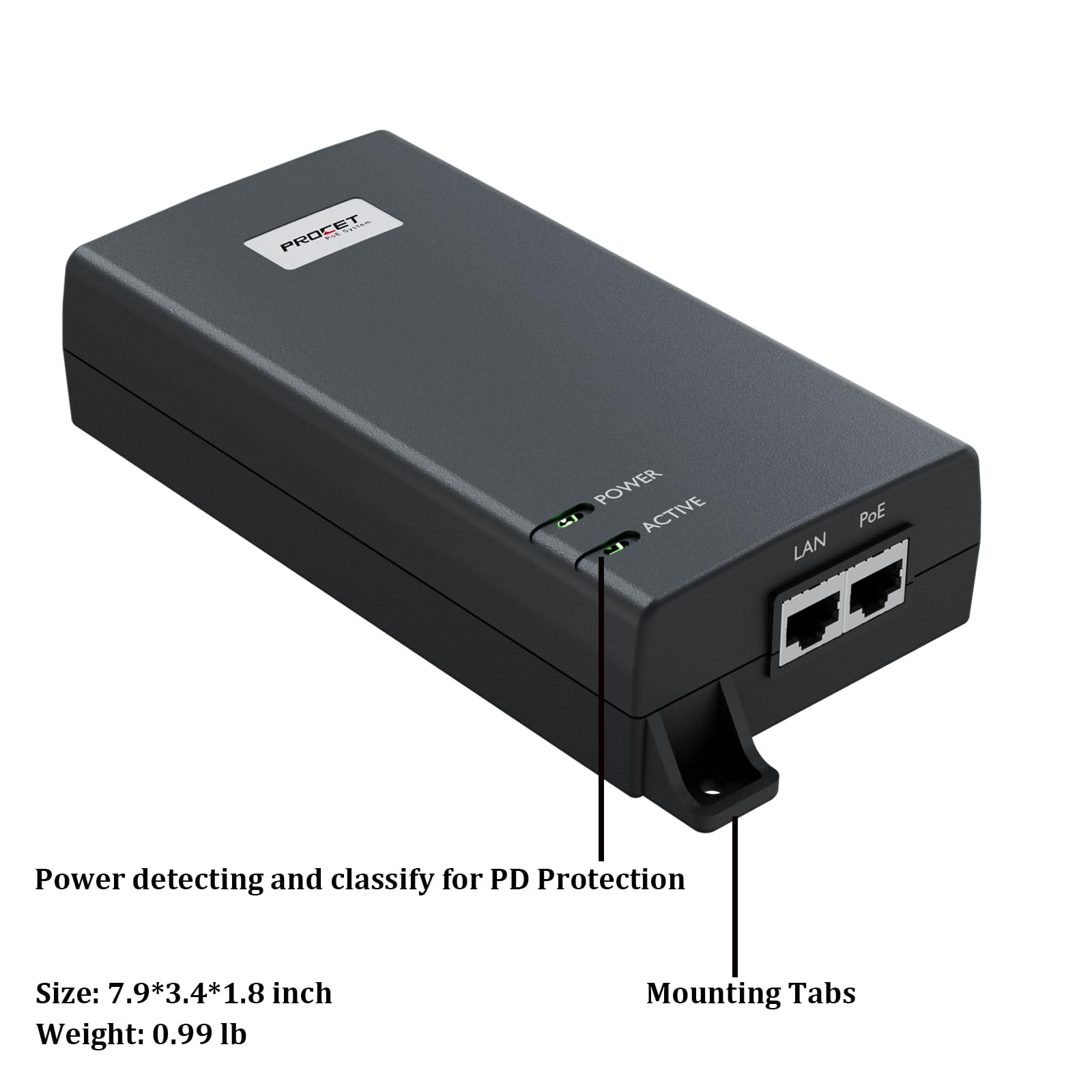

• ?PoE Power Supply?Built-in power detecting chip, classify PDs before powering it, protect devices from damage due to over Voltage input. Fully comply with PoE++ and remains compatible with any IEEE802.3af/at compliant devices.

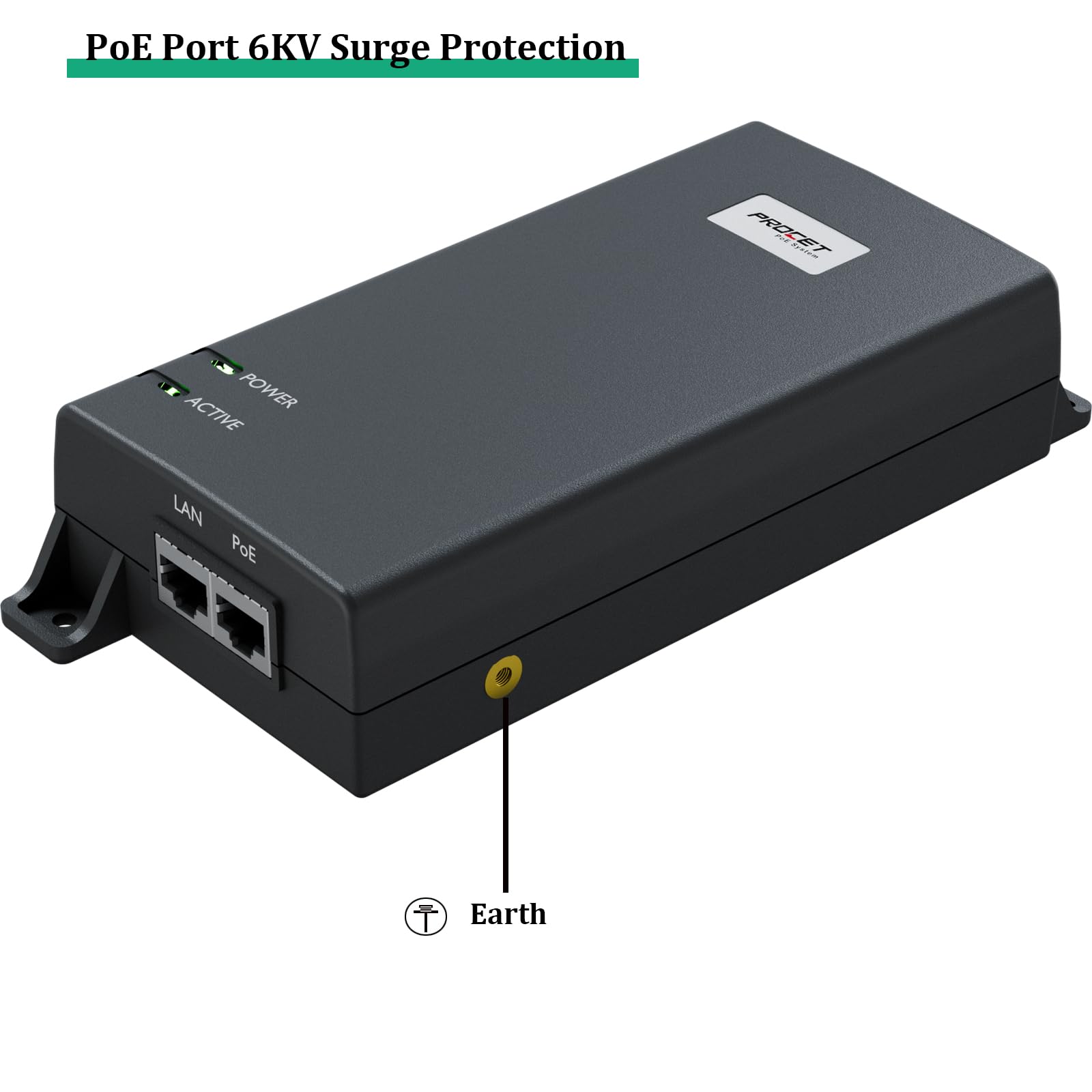

• ?Lightning-Proof?6KV High surge protection with earth grounding wire protecting your equipments better.
• ?Distance Transmission?Effective distance transmit is 238FT over Cat5e/Cat6 cables, but can be expanded up to 1640FT by adding 4 PoE Extenders)
• ?Model?PT-PSE106GW-AR
Color: Black
PT-PSE106GW-AR is a single port PoE Injector. It provides 55Vdc, 1.1A power for remote PDs over ful 4-pairs output with 6KV (10/700us) surge protection. It supports 10/100/1000 of data speed. It works for 60W PoE PDs, such as APs, base stations, high power cameras, door locks, displays,POS, information kiosks and other high power Ethernet terminals. It is also compatible and safe to use with any IEEE802.3af/at compliant terminals
PT-PSE106GW-AR is designed for indoor use. It works with input voltage of 100-240Vac. It has detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standard-compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.
- Input :100-240Vac 1.5A 50/60Hz
- Output: 55Vdc 1100mA
- Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-)
- Data Speed: 10/100/1000Mbps
- IEEE802.3 10Base-T Ethernet
- IEEE802.3u 100Base-Tx Fast Ethernet
- IEEE802.3ab 1000Base-T Gigabit Ethernet
- Full compliant with IEEE802.3af/at,PoE++
- RoHS Compliance
- WEEE Compliance
- Operating Temperature: 0? to 40?
- Operating Humidity: 20% to 80%, non-condensation
- Storage Temperature: -20? to 70?
- Storage Humidity: 10% to 90%, non-condensation
- Operating Altitude: up to 5000meters
- Case: Plastic
- Color: Black
- Mounting: Wall-mounted
- IP Rated: IP40
- Size: 193mm X 85mm X 41mm
- Weight: 425g
- Packing.?Power Cord x 1(1.5 Meters), Manual x 1
• ?PoE++ Power Injector?Up to 60 watts DC 55V 1.1A, perfect for powering various powered devices such as IP cameras, wireless APs, door locks, displays, POS, information kiosks and more.
• ?Gigabit Speed?This PoE injector supports Network speed of 10/100/1000Mbps, ensuring fast and reliable stable Network connectivity for your PoE device always.
• ?PoE Power Supply?Built-in power detecting chip, classify PDs before powering it, protect devices from damage due to over Voltage input. Fully comply with PoE++ and remains compatible with any IEEE802.3af/at compliant devices.
• ?Lightning-Proof?6KV High surge protection with earth grounding wire protecting your equipments better.
• ?Distance Transmission?Effective distance transmit is 238FT over Cat5e/Cat6 cables, but can be expanded up to 1640FT by adding 4 PoE Extenders)
• ?Model?PT-PSE106GW-AR
Color: Black
