Description
Brand: PoE Texas
<b>Add PoE to any switch</b> <br> Replace up to 24 individual injectors with this single 10/100 POE module <p><b>Features</b> <br> Extend power to 328 ft or 100 meters<br> Rack mounted PoE injector<br> 24 shielded RJ45 ports with Data + Power out <br> Power per port limited to 350 ma, self resetting PTC fuse per port <br> 24 shielded RJ45 LAN Ports for data input from your switch <br> Dual DC power jacks - primary and secondary DC power <br> LED power status <br> 10/100 operation <br> 802.3af compatibility with Mode B power pinout (pins +4,5 -7,8) </p><p><b>Compatible Devices:</b> <br> WiFi Access points <br> IP Cameras <br> IP Phones <br> Other 802.3af devices <br> </p><p><b>Included in the box:</b><br> 48-volt, 120-watt UL/CE/FCC certified power supplies <br> 24 Port Midspan PoE Injector <br>NOTE: All devices receive the same voltage (48 volts) and share power up to 120 watts. Check your device specifications for power needs, most IP phones require under 4 watts. To add additional power, use the secondary screw terminal to add a 2nd 48v120w power supply (sold under product name WS-PS-48v120w) for redundant operation or higher power </p><p><b>Other products from WiFi-Texas</b>

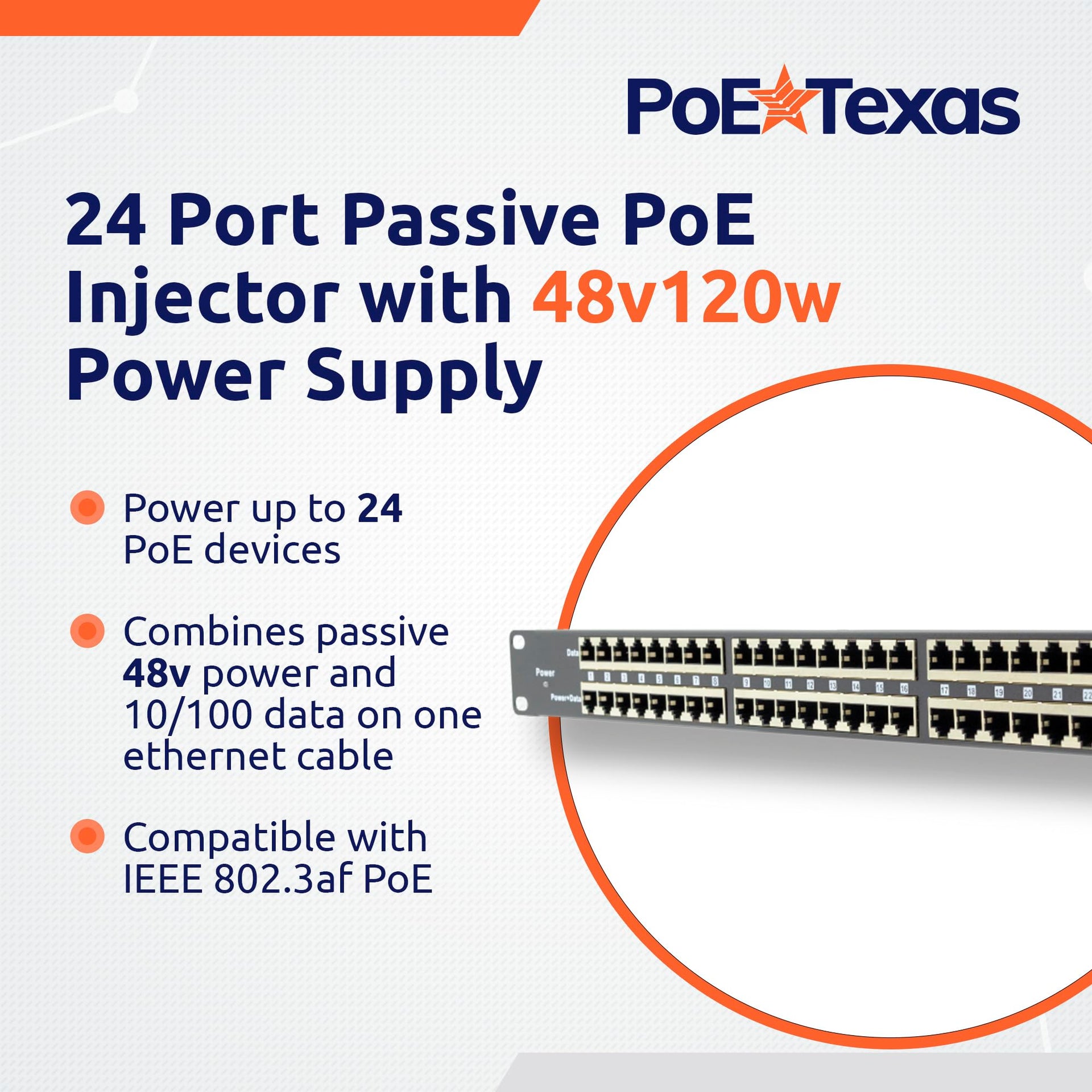

• Power up to 24 PoE devices on this single rack-mountable PoE injector unit, integrating passive 48v power and 10/100 data speeds onto one Ethernet cable for efficient network management. Compatible with IEEE 802.3af PoE (Type 1).
• Use this midspan injector for VoIP phones, WiFi Access Points, IP cameras in security and surveillance systems, and more. Ideal for WISP, IT professionals, and network integrators working in network closets, rack spaces, or commercial buildings.
• Simple plug-and-play installation eliminates the need for complex configurations or any rewiring. Add passive PoE to an existing network switch, or expand your network's number of PoE devices with this streamlined 24-portPoE injector.

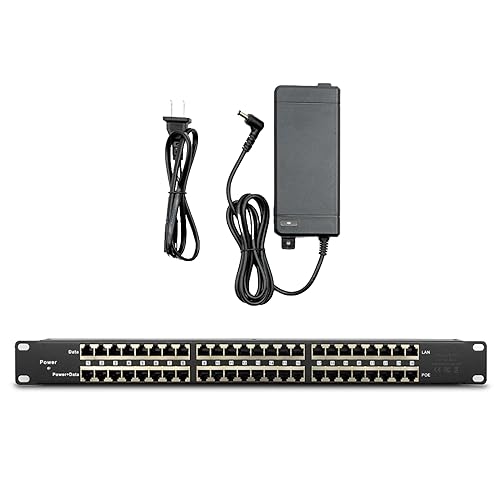

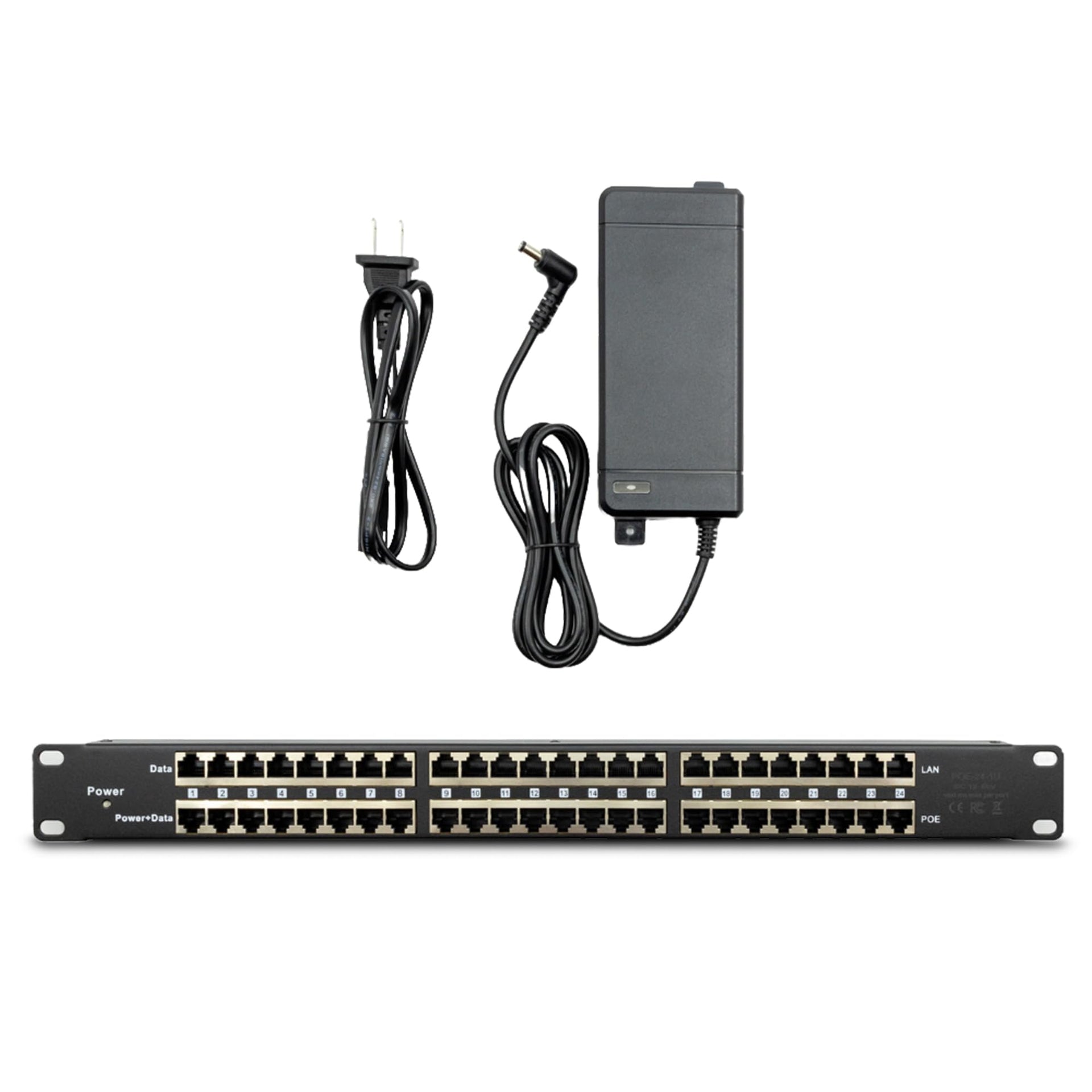

• Includes a 48 volt 120 watt power supply, UL Certified for safety and reliability. Use with your existing network switch or router to deliver 1:1 (LAN : PoE) Power over Ethernet on Mode B (+4,5 - 7,8) of your Cat5e, Cat6, or Cat7 cables.
• All of our PoE Texas products are backed by a 1-year manufacturer's warranty and expert US-based technical support from Austin, TX. For assistance, please call 512-479-0317.
<b>Add PoE to any switch</b> <br> Replace up to 24 individual injectors with this single 10/100 POE module <p><b>Features</b> <br> Extend power to 328 ft or 100 meters<br> Rack mounted PoE injector<br> 24 shielded RJ45 ports with Data + Power out <br> Power per port limited to 350 ma, self resetting PTC fuse per port <br> 24 shielded RJ45 LAN Ports for data input from your switch <br> Dual DC power jacks - primary and secondary DC power <br> LED power status <br> 10/100 operation <br> 802.3af compatibility with Mode B power pinout (pins +4,5 -7,8) </p><p><b>Compatible Devices:</b> <br> WiFi Access points <br> IP Cameras <br> IP Phones <br> Other 802.3af devices <br> </p><p><b>Included in the box:</b><br> 48-volt, 120-watt UL/CE/FCC certified power supplies <br> 24 Port Midspan PoE Injector <br>NOTE: All devices receive the same voltage (48 volts) and share power up to 120 watts. Check your device specifications for power needs, most IP phones require under 4 watts. To add additional power, use the secondary screw terminal to add a 2nd 48v120w power supply (sold under product name WS-PS-48v120w) for redundant operation or higher power </p><p><b>Other products from WiFi-Texas</b>
• Power up to 24 PoE devices on this single rack-mountable PoE injector unit, integrating passive 48v power and 10/100 data speeds onto one Ethernet cable for efficient network management. Compatible with IEEE 802.3af PoE (Type 1).
• Use this midspan injector for VoIP phones, WiFi Access Points, IP cameras in security and surveillance systems, and more. Ideal for WISP, IT professionals, and network integrators working in network closets, rack spaces, or commercial buildings.
• Simple plug-and-play installation eliminates the need for complex configurations or any rewiring. Add passive PoE to an existing network switch, or expand your network's number of PoE devices with this streamlined 24-portPoE injector.
• Includes a 48 volt 120 watt power supply, UL Certified for safety and reliability. Use with your existing network switch or router to deliver 1:1 (LAN : PoE) Power over Ethernet on Mode B (+4,5 - 7,8) of your Cat5e, Cat6, or Cat7 cables.
• All of our PoE Texas products are backed by a 1-year manufacturer's warranty and expert US-based technical support from Austin, TX. For assistance, please call 512-479-0317.
