Brand: PoE Texas

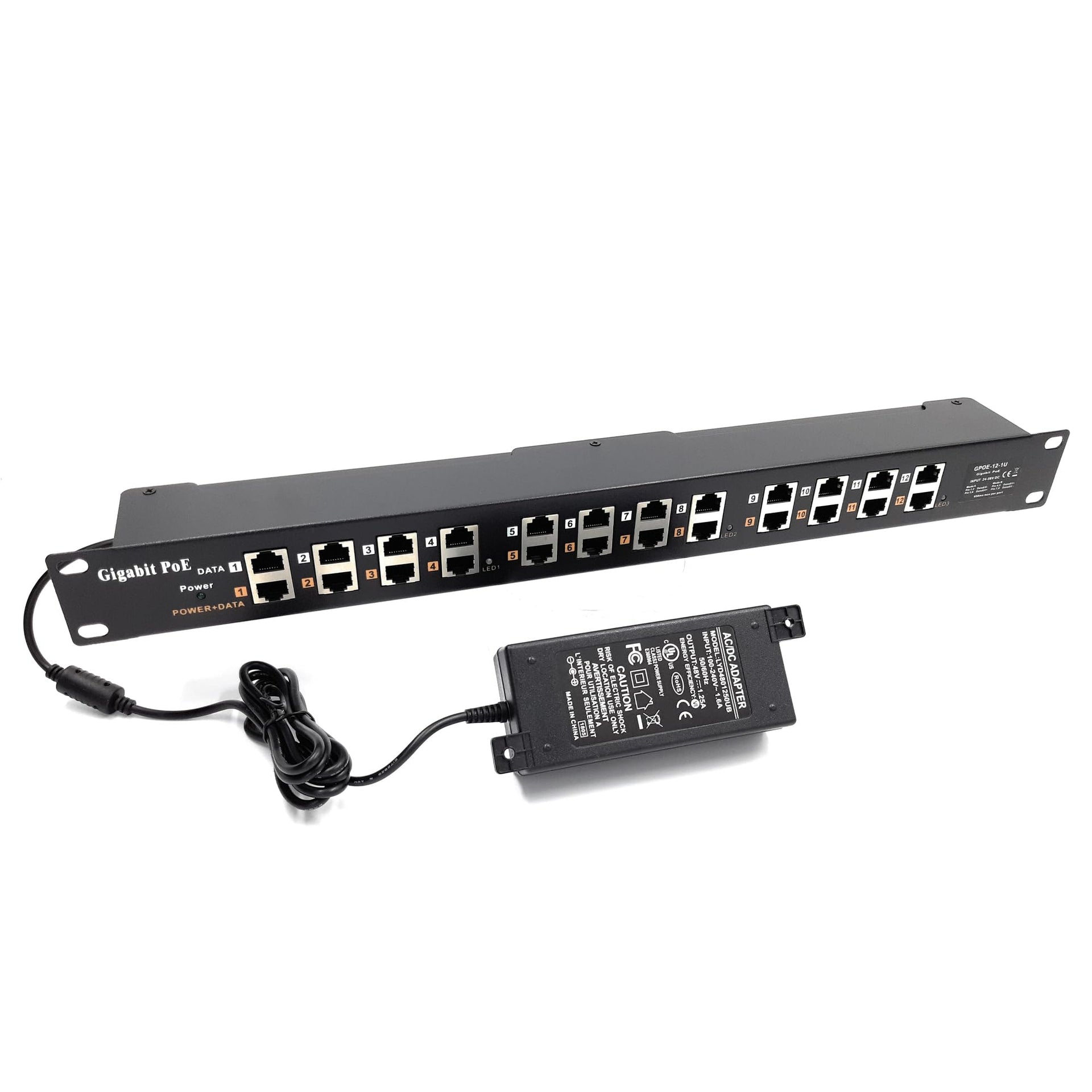

<p><b>12 Port Rack Mounted midspan PoE injector. </b>Remove clutter in your installations and extend power up to 328 feet (1 meter) away from the source. Use this device to replace up to 12 individual power over ethernet injectors and condense into one single gigabit POE module. Use for 802.3af PoE applications with up to 60 watts shared on all ports. <p> <b>Product Features:</b><br> 12 shielded RJ45 ports with Data + Power out<br> 12 shielded RJ45 LAN ports. Data in easily connects to your network switch<br> Mode A operation on pins 1,2(-) 3,6(+) / Mode B operation on pins 4,5(+) 7,8(-)<br> 650 mA per port <br> 2.1mm x 5.5mm DC connector<br> Bright LED status indicators<br> 10/100/1000 Mbps data operation<br> Includes a UL/CE/FCC certified 48 volt 60 watt power supply, 100-240v, 50/60 hz<br> 1U Rackmount height</p> <p> <b>Product Uses:</b><br> IP Phones <br> WiFi Access Points <br> IP Cameras<br> Other IEEE 802.3af PoE devices <br>*Please check manufacturer specifications for compatibility <br><p>LED status show power for all 12 port, and for each group of 4. For each group of 4 port an LED indicates:<br> Port current 0 to 20ma = LED off<br> Port current 20 to 400ma = LED is

• Network Expansion: The 12-port rack mounted midspan PoE injector powers IP cameras, phones, and WiFi access points up to 328 feet away from power source. Delivers 48V passive "Always On" power to all connected devices through standard ethernet cables.
• Gigabit Performance: This power over ethernet injector maintains full 10/100/1000 Mbps data speeds with transparent VLAN passthrough, consuming less power than traditional gigabit PoE switches while providing shielded RJ45 ports with bright LED status indicators.
• Mode A/B Flexibility: Versatile power delivery options supporting both Mode A (pins 1,2- and 3,6+) and Mode B (pins 4,5+ and 7,8-) for compatibility with a wide range of 802.3af devices including IP phones, WiFi access points, and IP cameras.
• Efficient Power Management: The PoE power injector includes UL/CE/FCC certified 48V 60W power supply with 650mA per port limit. It's energy-efficient with zero power draw when devices are not connected. The fanless design ensures quiet, noise-free operation in 1U of rack space.
• All PoE Texas products are backed by a 1-Year manufacturers warranty and a 30-Day, no questions asked, return policy with expert technical assistance available via phone at 512-479-0317.

Color: Black
