Brand: Phanteks

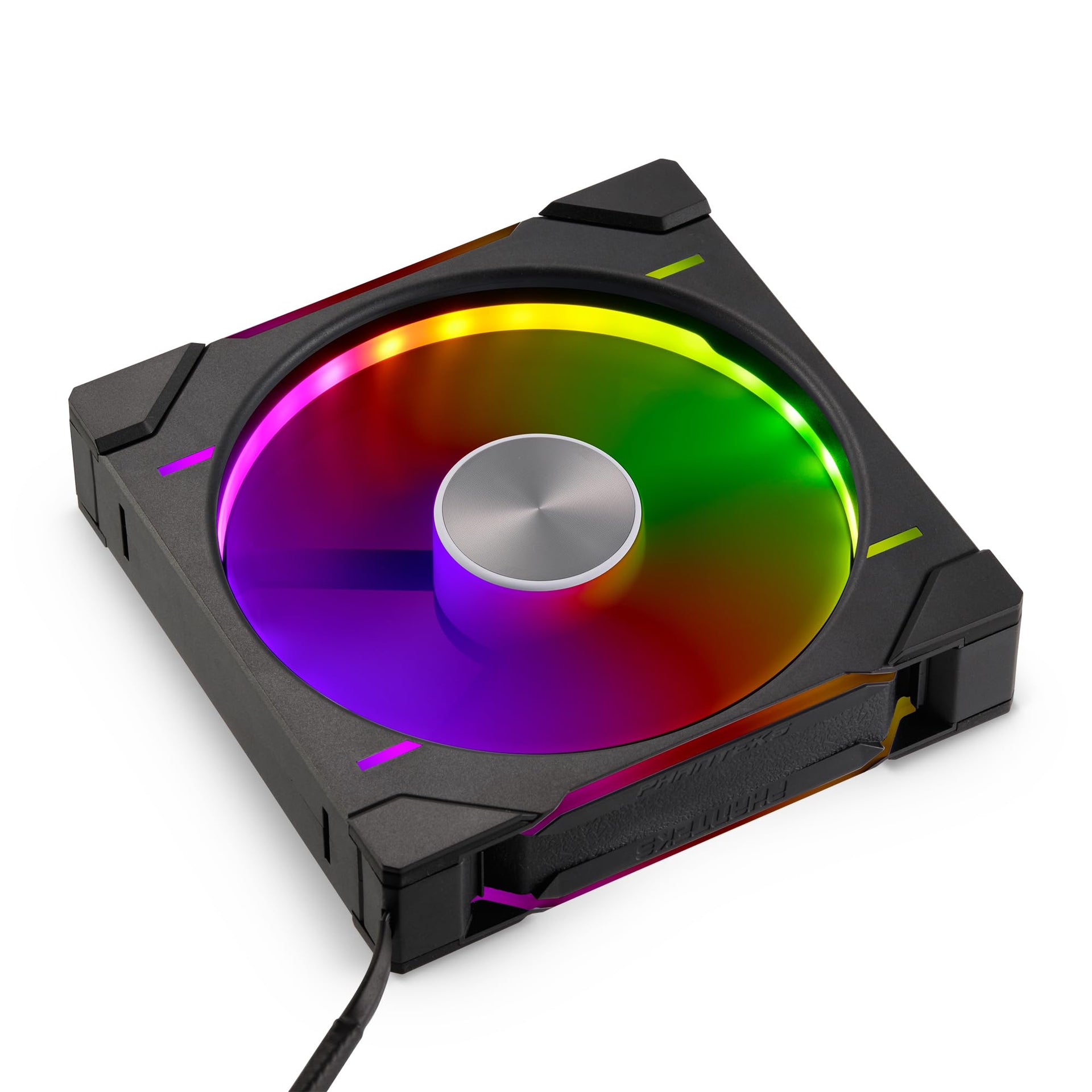

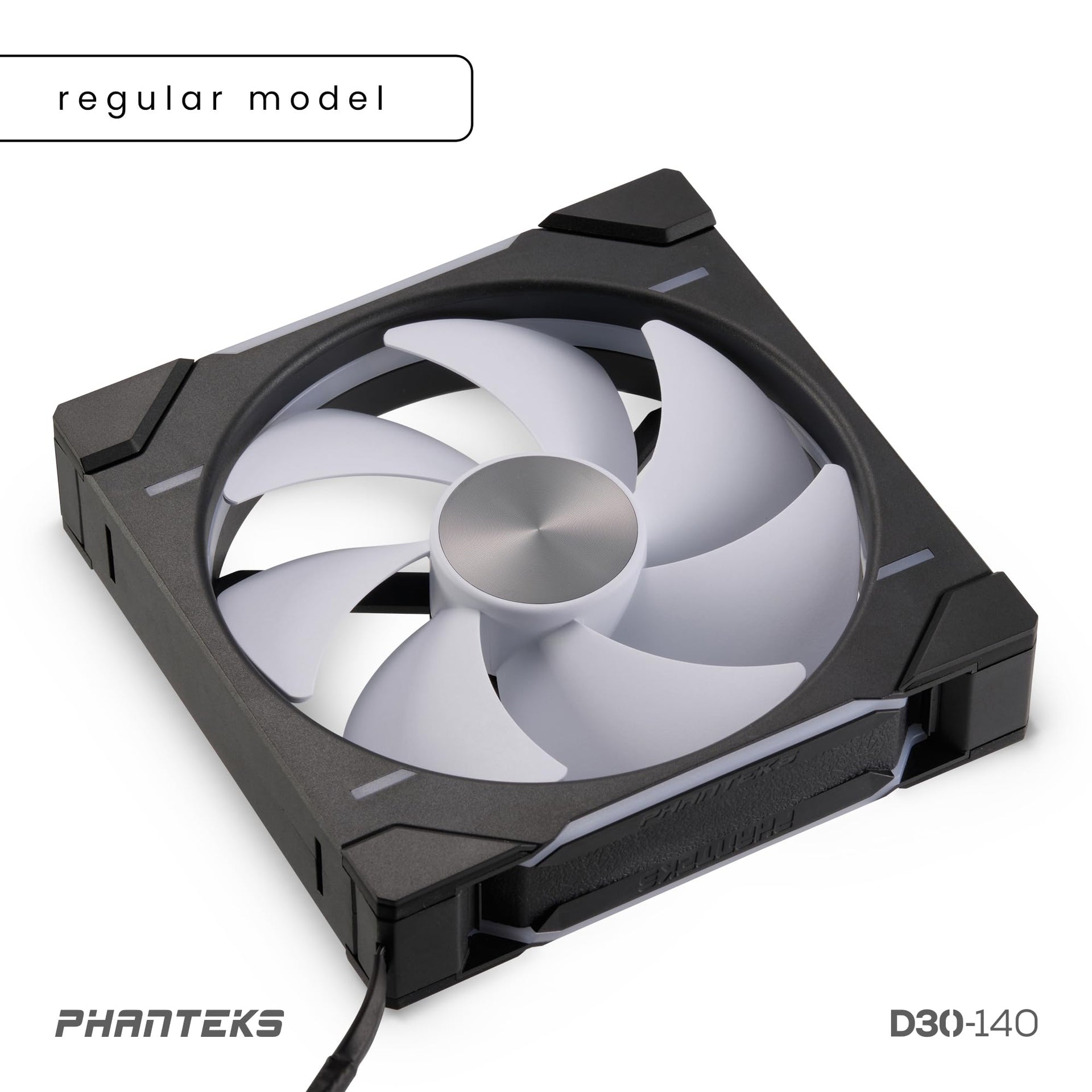

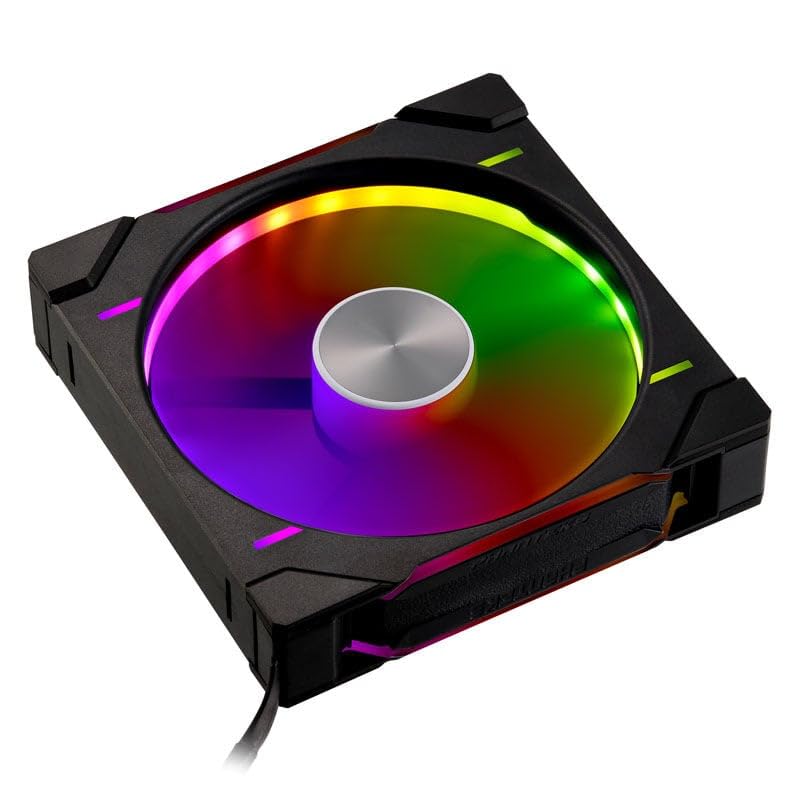

The Phanteks D30-140 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-140 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds. The D30-140 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-140 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system. Type: Case Fan. Wind Direction: Regular. Materials: PBT (Polybutylene terephthalate). Fan Size: 140 x 140 x 30 mm. Bearing Type: FDB (Fluid Dynamic Bearing). Blade Geometry: Seven Blades Design- White Matte. Rated Voltage FAN: 12V LED: 5V. Operating Voltage Range: 5~13.2V. PWM: Yes. Rated Current (Ampere): 0.15A LED:0.45A(Max). Locked Current: Polarity Protection. Power Consumption: less than or equal 1.8W. Speed: 250-1800 plus minus 10% RPM. Max. Airflow: 71.93 CFM. Max. Air Pressure: 3.32 mm H2O. Noise Level: 29.5 dB(A). Fan Connector: 4-Pin PWM. Fan Cable Length: 700 mm / 27.56 in. D-RGB Connector: 3-Pin JST Daisy-chain. D-RGB Cable Length: 600+100 mm / 23.62+3.94 in. LED Number: 30 (D-RGB). LED Rated Voltage DC: 5V (+5V/D/GND). LED Rated Current Max: 0.45A. MTBF (Life Expectance): 50,000hrs at 40 degree C. Weight: 350g. Scope of Delivery: 1x PH-F140D30_DRGB_PWM_BK01, 4x Fan Screw, 4x UNC 6-32 Radiator Screw 36mm, 4x M4 Radiator Screw 36mm, 1x Corner Clip Cable, 3x Corner Clip, 1x Bridge Clip, 1x Bridge Clip Connector, 4x Screw Cover Corner (2L, 2R), 2x Screw Cover Bridge, 1x D-RGB M/B Adaptor.

Features:

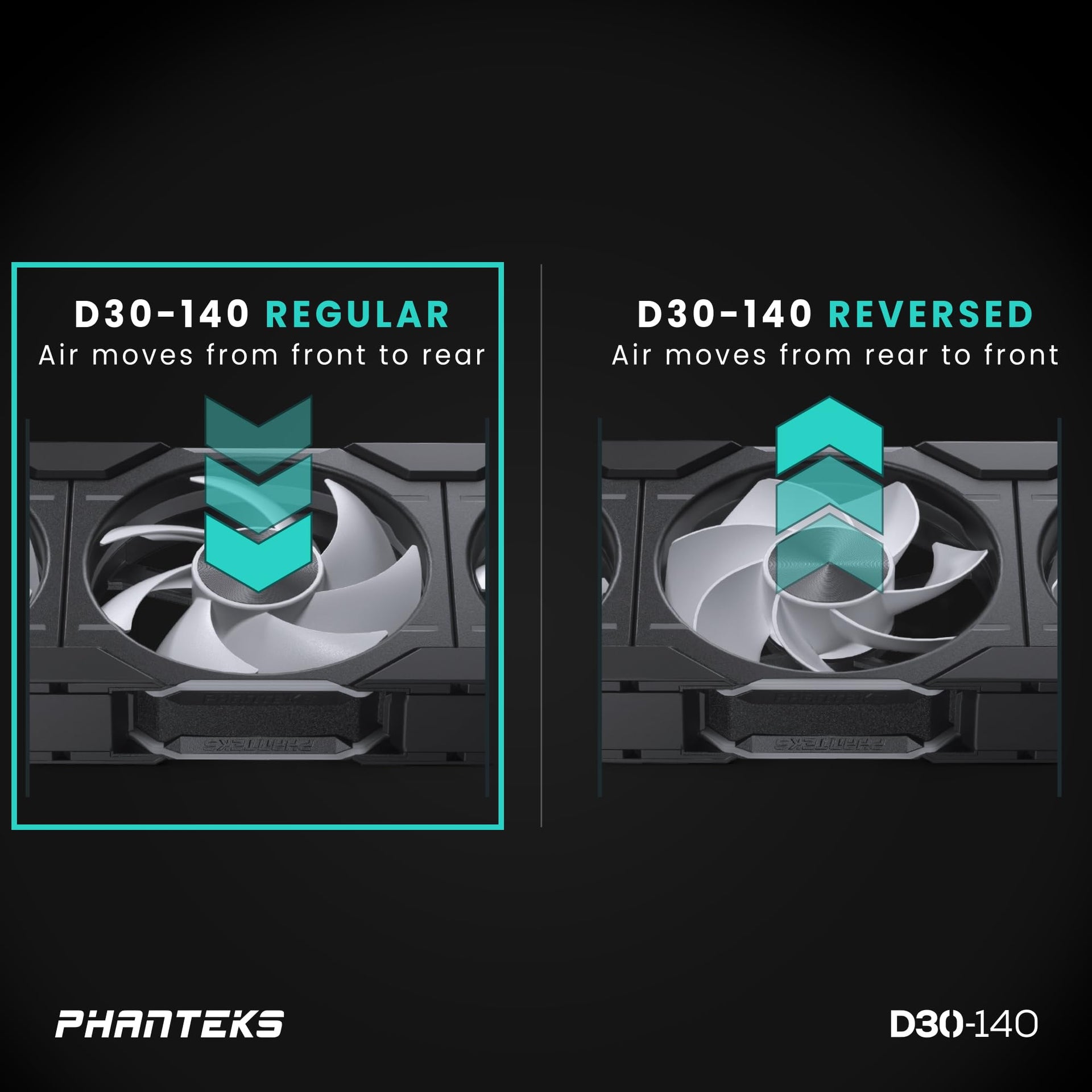

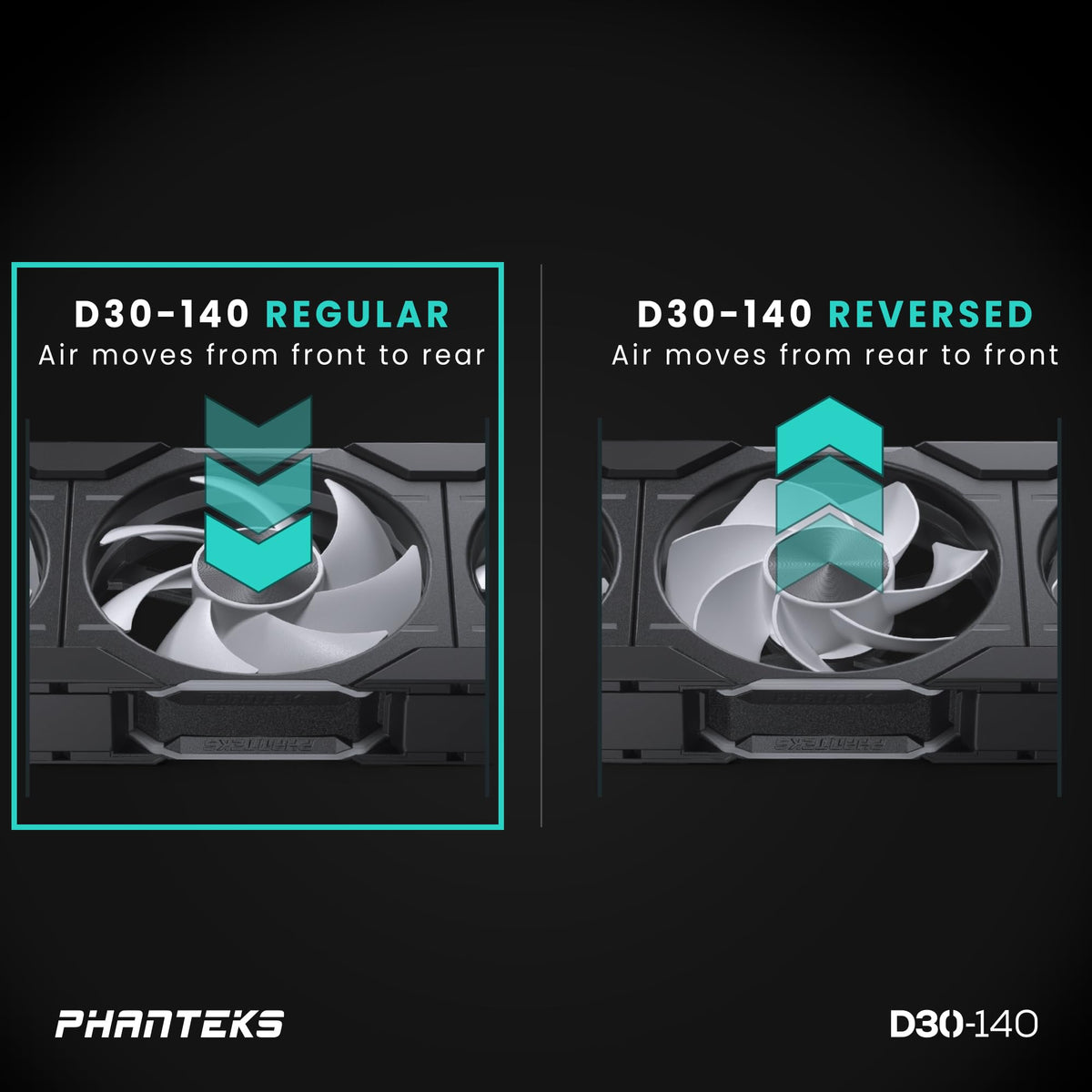

• Regular & Reverse airflow models available: With regular and reverse airflow models available, the D30 fan allows for the perfect configuration without obstructing the fan blade lighting effect.
• Easy and clean fan linking system: Linking multiple fans together reduces cable clutter considerably while the screw cover plates, and bridge connectors make multiple D30 fans work as one clean unit.

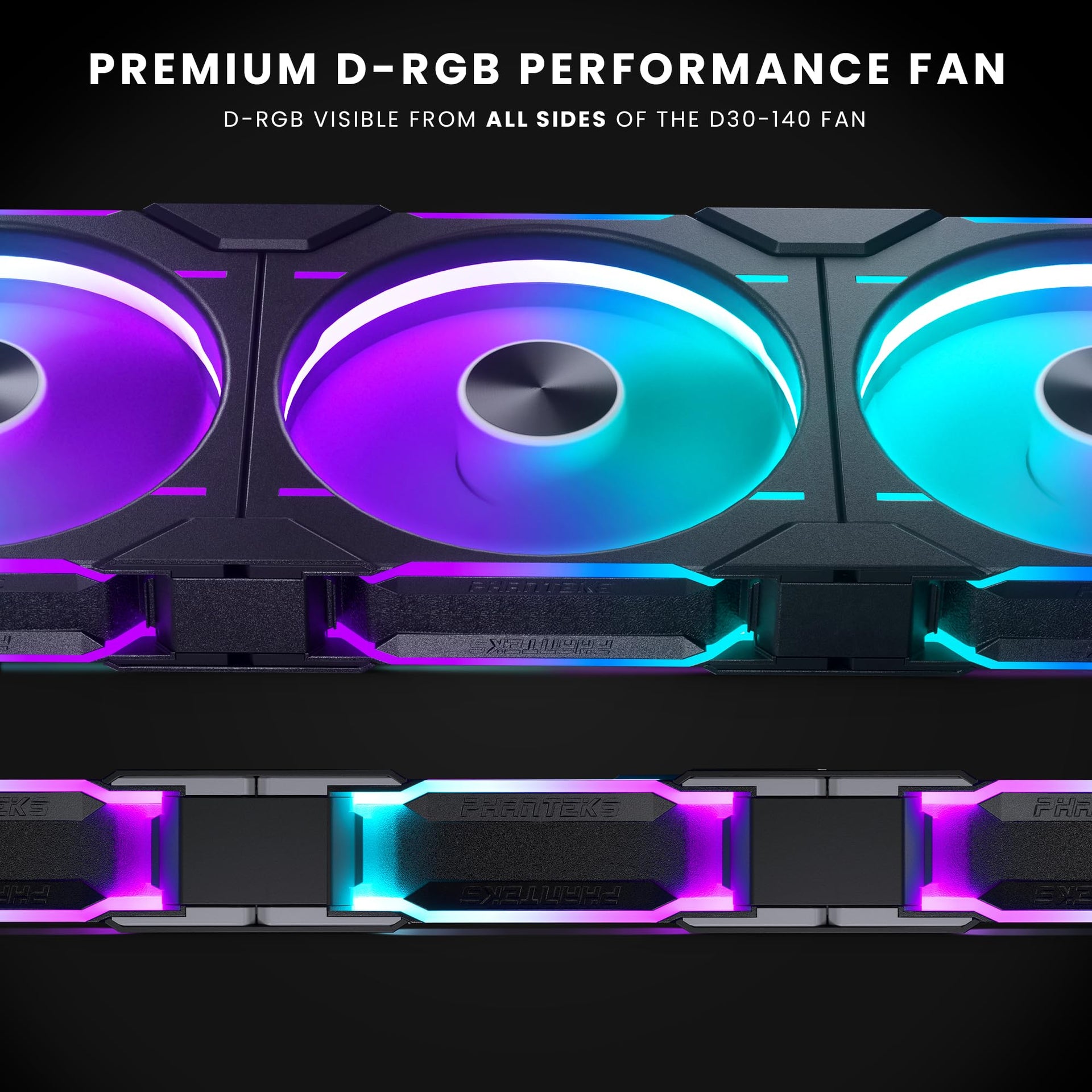

• The D-RGB lighting is integrated and visible from all sides of the D30-140 fan. The blades reflect the light coming from the Halos lighting ring inside the frame. Compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.
• 30 mm of performance: On a radiator or behind restrictive mesh/dust filters, the 30 mm thick frame and blades provide plenty of air pressure to keep things cool.

Product Details:

• Color: BLACK
• Model: PH-F140D30_DRGB_PWM_BK01
• Package Quantity: 1
