Brand: PEN

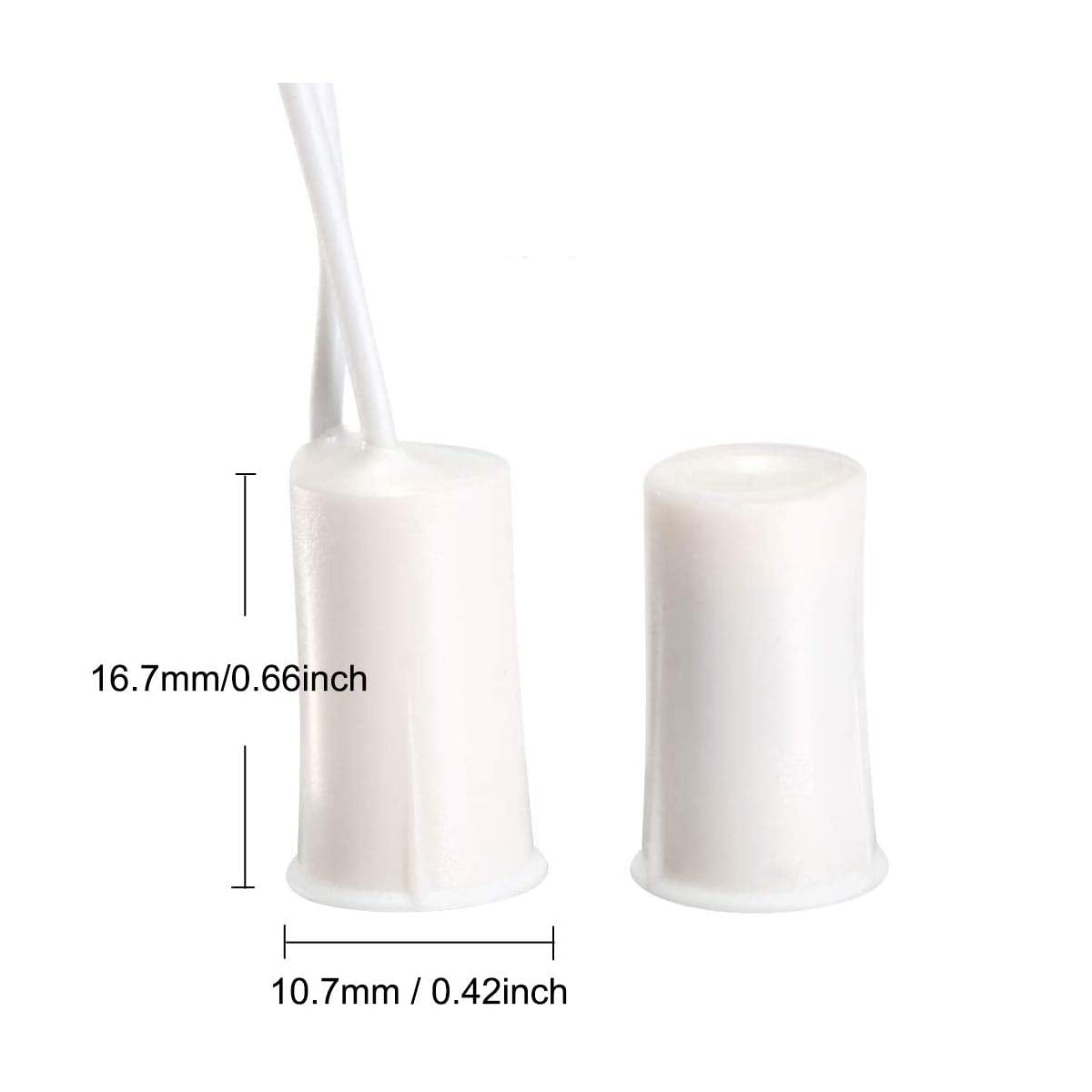

Product description: Model: RC-33. Feature: When the switch is separated from the magnet, the circuit is conductive(light on); When the switch is close to the magnet, the circuit is not conductive(light off). WIDE APPLICAIONS Work with all access control and burglar alarm systems. Can be installed in wooden or aluminum alloy doors and windows. PLEASE NOTE A magnetic door contact can only provide a switching signal to the device. It cannot directly load the power supply and cannot be directly connected to the lamp. Specifications: Model: RC-33 Contact Type: NC( normally closed) Max. Sensor Sensitivity: 10mm(+/-5mm) Max. Current: 120mA Max. Voltage: 100V Working Voltage: DC0-24V Max. Contact Power: 10W Size(Approx.): 16.7 x 10.7mm / 0.66 x 0.42inch (H D) Cable Length(Each): 30cm / 1.18inch Housing Material: ABS Wire Type: 1007#/24#300mmUL Package Content:6 x Magnetic Door Switch Risk-Free :100 Percent SATISFACTION : If you don't absolutely love them let us know and we will refund your purchase price NO QUESTIONS ASKED! We are so confident you will love our products. This is our confidence in product quality and commitment to customers

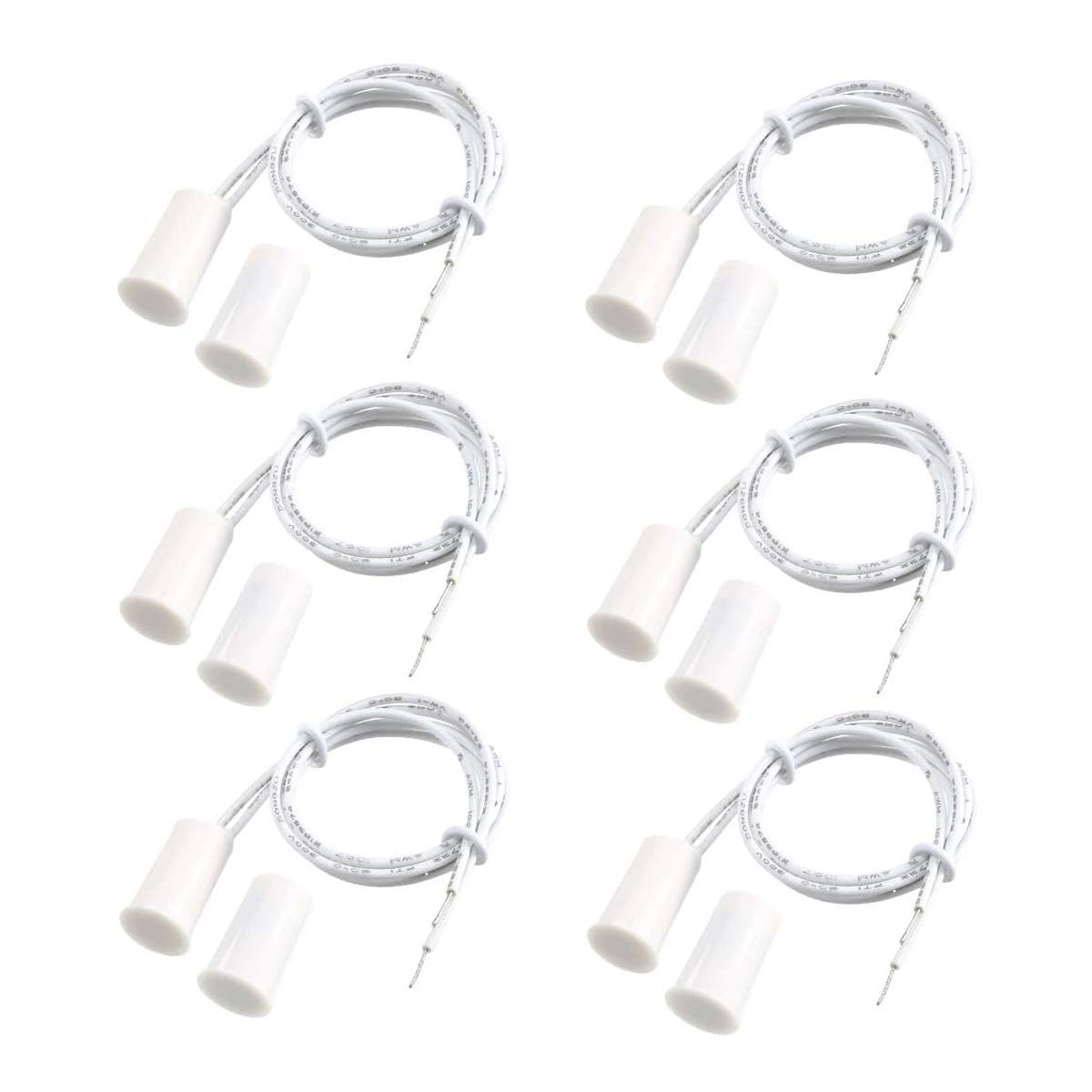

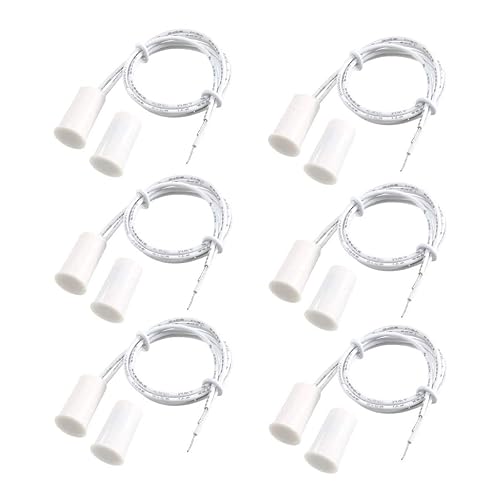

• ?Package Included?: 6Sets x RC-33 Magnetic Reed Switch.(Mounting screws are includes).

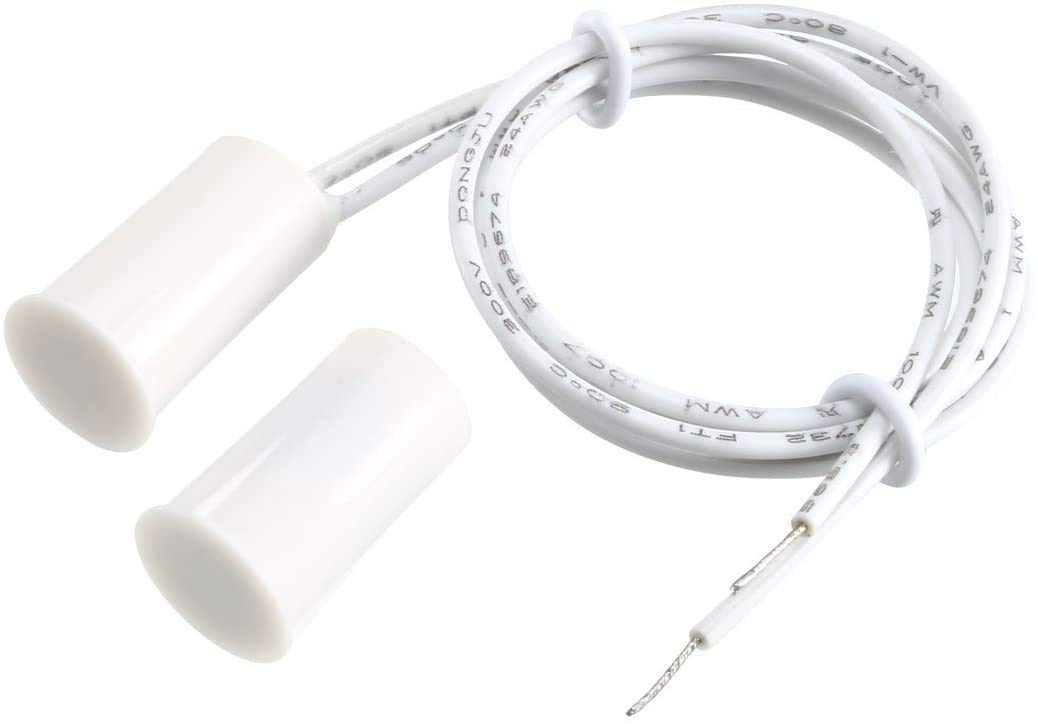

• ?Function?: RC-33 RecessedThe reed switch is an electrical switch operated by an applied magnetic field. Designed for use with alarm systems. Great for use in family and factory window, door. etc.
• ?Specification? : Current: 0.5A ; Voltage: 100V ; Power Rating: 10W; Action Distance: 10mm,Cable Length: 30cm/11.8"; Total Size: 16.7mm x 10.7mm/0.66" x 0.42" (L*D)
• ?Reed Switch??Important : When the magnet is near it makes connectivity, when the magnet is removed connectivity is broken.Wired magnetic door/windows contact can be added to wireless/wired Alarm Systems.(some wireless system has wired zones)

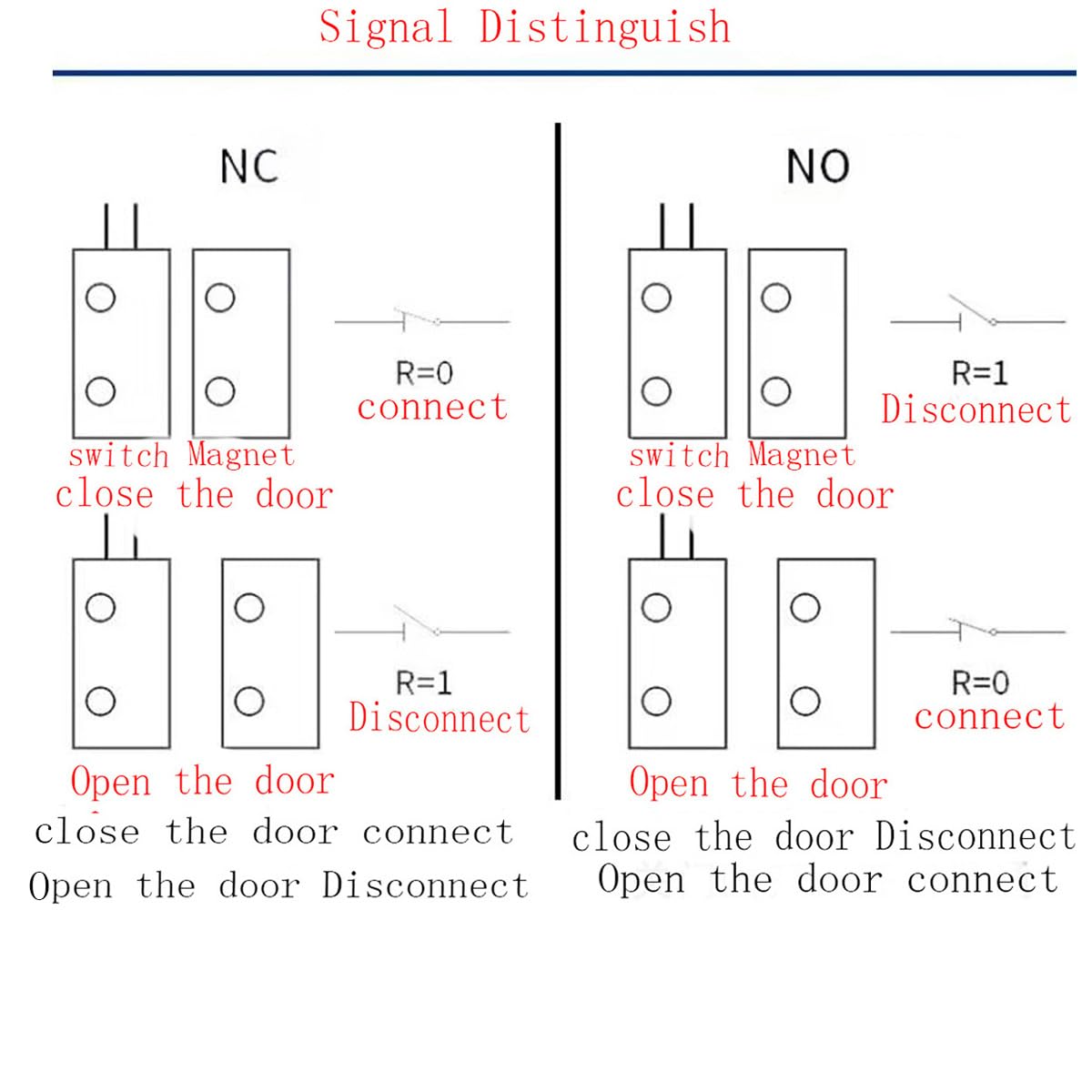

• ?Switch Type?: NO Means normally open : when the magnet separate, the circuit is conductive( light on ); when the magnet together, the circuit is not conductive ( light off ), NC means normally closed: when the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ).
