Brand: P-Audio

Features || * 3.9" Large FormatVoice Coil * 4800 Watts Peak Power Handling * Active Balanced Cooling * Ferrite Magnetics * Precision Rectangular Ribbon Wire * Double Spider Suspension * Integrated Demodulation Rings * Die Cast Aluminum Chassis || Applications || The P Audio C15-4800CA is a high output wide bandwidth transducer. The C15-4800CA is an upgraded design that features many of P Audio's new technologies & performance upgrades. The 15 inch (381mm) diameter piston will produce extremely high sound pressure levels at both low & mid band frequencies & is ideal for high level response in both live sound & recorded music venues. The transducer uses high energy ferrite magnetics to achieve a very high acoustic output to weight ratio. The C15-4800CA has been optimized for use in two way or three way sound reinforcement systems & has a rated operating range of 55Hz to 2000Hz. The C15-4800CA employs a large 3.9 inch (99.3mm) diameter voice coil that provides an AES rated 1200 watts of continuous power handling & a full 4800 watts of peak rated power handling when sufficient amplifier headroom is available. The C15-4800CA utilizes P Audio's Auto Balanced Cooling (ABC) technology to not only improve transducer power handling & reliability but to also increase power compression performance by carefully balancing & directing airflow to critical areas. The voice coil design is a bobbin wound geometry w/P Audio s rectangular wire technology to improve conversion efficiency & provide a large cross-sectional area for superior cooling. The transducer employs magnetic flux demodulation devices in the structure to increase fidelity & sonic accuracy. The system suspension has been designed specifically for high linear displacement & extended low frequency response. The C15-4800CA also features a double spider configuration that further enhances system reliability & mechanical control. The transducer chassis is a die cast aluminum design that insures a very high degree of structural integrity. Specifications || Nominal diameter : 381 mm/15 in || Power rating : 1200 W(aes) || Nominal impedance : 8 OHMS || Sensitivity : 96 dB || Frequency rangev55-2000 Hz || Chassis type : Cast aluminum || Magnet type. : Ferrite || Magnet weight : 3.17 kg/111.8 oz || Voice coil diameter : 99.3 mm/3.9 in || Coil material : CCA-R || Former material : Glass fiber || Cone material : Paper || Surround material : Cloth || Suspension : Double || X-max : 5.25 mm/0.21 in || Gap depth : 15.0 mm/0.59 in || Voice coil winding width : 25.5 mm/1.0 in || Net Weight : 13.2 kg/29.1 lb || Packing Dimension WxDxH : 430 x 430 x 235 mm || Shipping Weight : 14.2 kg/31.3 lb || Small Signal Parameters || Re...5.50 || Fs...51 Hz || Mms..126.83 g/4.47 oz || Mmd..112.45 g/3.97 oz || Qms...7.40 || Qes...0.43 || Qts...0.41 || Vas...80.57 lt/2.85 ft || Bl...22.66 Tm || Cms...7.9e-05 m/N || Rms...5.39 Ns/m || Le (at 1kHz)..0.67 mH || Sd...855 cm2

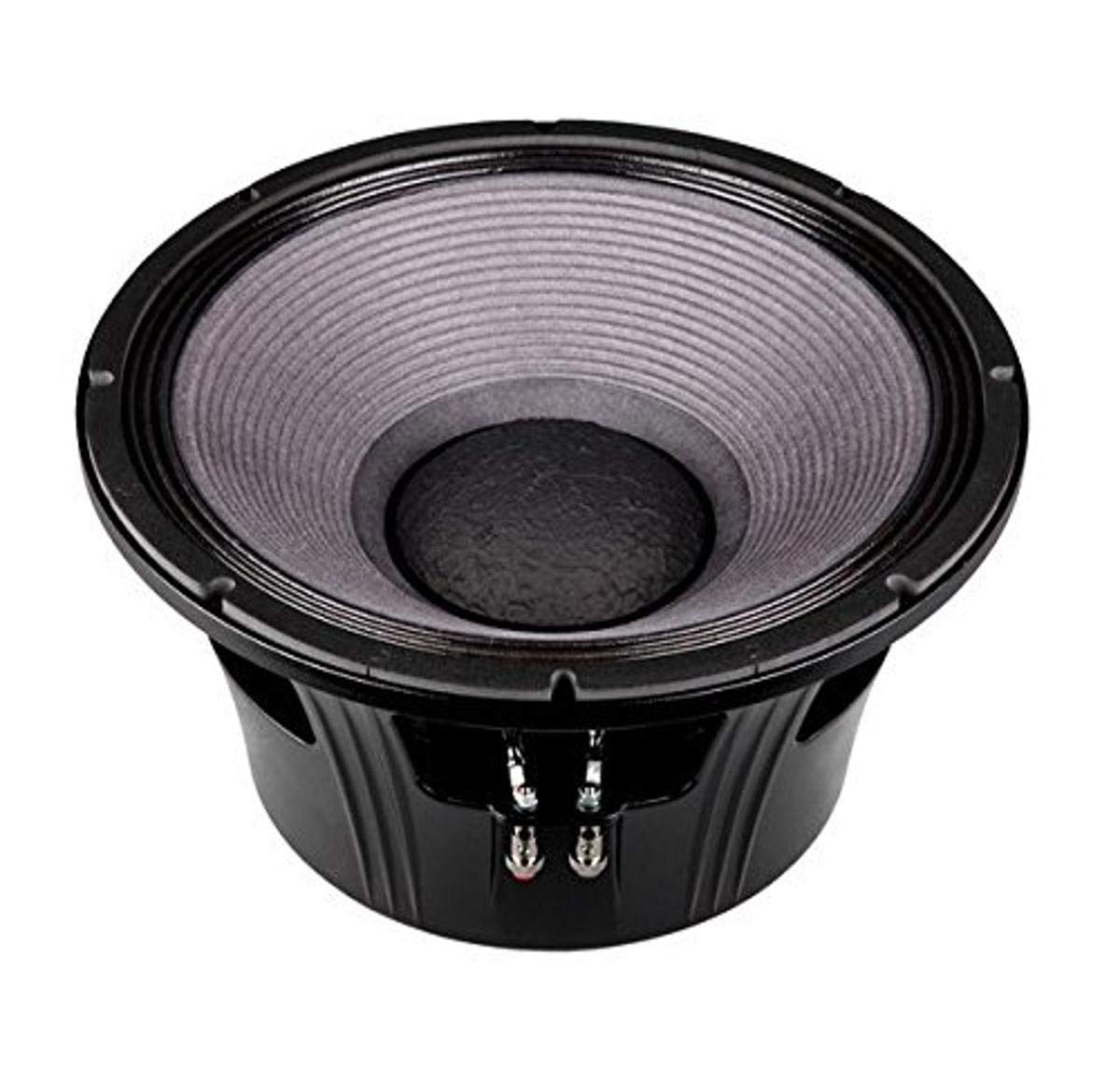

• The C154800CA is a 15-inch high-performance woofer from P Audio, designed for professional audio systems. This woofer is ideal for use in two-way or three-way sound reinforcement systems.
• Features
• Power Handling : 1200 watts continuous and up to 4800 watts peak power.
• Frequency Range : Operates between 55Hz and 2000Hz, making it suitable for low and mid-band frequencies.
• Cooling Technology : Equipped with P Audio's Auto Balanced Cooling (ABC) technology for enhanced reliability and reduced power compression.
• Durable Design : Includes a heavy-duty cone and a double spider configuration for improved mechanical control and extended low-frequency response.
• Specifications (1)
• Nominal diameter : 381 mm/15 in
• Power rating : 1200 W(aes)
• Nominal impedance : 8 OHMS
• Sensitivity : 96 dB
• Frequency rangev55-2000 Hz
• Chassis type : Cast aluminum
• Magnet type. : Ferrite
• Magnet weight : 3.17 kg/111.8 oz
• Voice coil diameter : 99.3 mm/3.9 in
• Specifications (2)
• Coil material : CCA-R
• Former material : Glass fiber
• Cone material : Paper
• Surround material : Cloth
• Suspension : Double
• X-max : 5.25 mm/0.21 in
• Gap depth : 15.0 mm/0.59 in
• Voice coil winding width : 25.5 mm/1.0 in
• Net Weight : 13.2 kg/29.1 lb
• Packing Dimension WxDxH : 430 x 430 x 235 mm
• Shipping Weight : 14.2 kg/31.3 lb
• Small Signal Parameters
• Re...5.50
• Fs...51 Hz
• Mms..126.83 g/4.47 oz
• Mmd..112.45 g/3.97 oz
• Qms...7.40
• Qes...0.43
• Qts...0.41
• Vas...80.57 lt/2.85 ft
• Bl...22.66 Tm
• Cms...7.9e-05 m/N
• Rms...5.39 Ns/m
• Le (at 1kHz)..0.67 mH
• Sd...855 cm2

Model: C154800CA
Color: Black
