Description
Brand: Optex
• Motion sensor ideal for outdoor use
• Special UV resistant lenses and casings for outdoors
• Detection Area: 40 x 50 feet
• Easy Pet Alley adjustment, selectable sensitivity and pulse count
• Built-in photocell and Form C relay output
• Motion sensor ideal for outdoor use
• Special UV resistant lenses and casings for outdoors
• Detection Area: 40 x 50 feet
• Easy Pet Alley adjustment, selectable sensitivity and pulse count
• Built-in photocell and Form C relay output

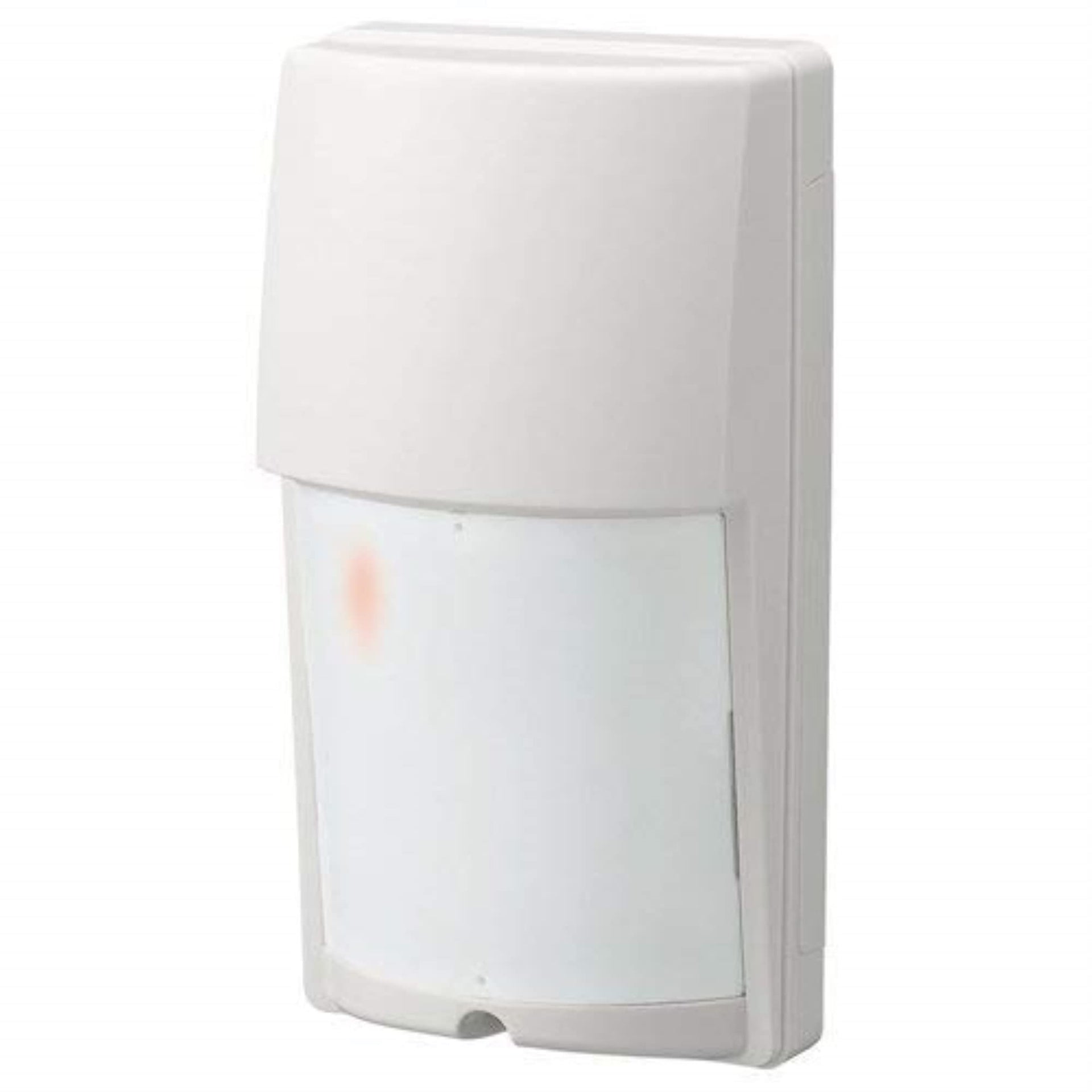

The Optex Outdoor PIR Motion Sensor, Standard-Range Model is ideal for outdoor annunciation, activation, and automation applications. The detector features special UV resistant lenses and casings for outdoor use. It also features an easy Pet Alley adjustment, selectable sensitivity and pulse count, extra strong sunlight & RFI Immunity, built-in photocell, and Form C relay output.
Technical Details
- Manufacturer Part #: LX-402
- UPC: 788924080864
- Detection Method: Passive Infrared
- Detection Area: 40 x 50 feet (12 x 15 m) 120° wide
- Coverage:
- Multi-level area: 40 zones
- Pet alley area: 18 zones
- Mounting:
- Multi-level area: 8.3 feet (2.5 m)
- Pet alley area: 4 to 5 feet (1.2 to 1.5 m)
- Detection Speed: 1 to 3.3 feet/second (0.3 to 1.0 m/sec.)
- Sensitivity Adjustment: Selectable 3 position (H, M, L)
- LED Indicator: LED lights during detection
- Alarm Period: 2 seconds ±1 sec. (delay timer)
- Alarm Output: NC. NO. 28VDC 0.2A max.
- Tamper Switch: Opens when cover removed.
- Pulse Count: 2 (20 ±5 sec.) or TEST (1 pulse)
- Day/Night Mode Adjustment: Approx. 10 to 100,000 lux
- Warm-Up Period: Approx. 60 seconds
- Power Input: 10.8 to 13.2V DC
- Current Draw: 25mA max.
- Installation Place: Wall (indoor/outdoor)
- Operating Temperature: -20° to 50° C (-4° to 122° F)
- Environmental Humidity: 95 percent max.
- Weight: 6 ounces (170g)
- IP Rating: IP54
- Accessory: Masking strips (LX-402 only), mounting screw, sponge
- Warranty: 1 Year
• Motion sensor ideal for outdoor use
• Special UV resistant lenses and casings for outdoors
• Detection Area: 40 x 50 feet
• Easy Pet Alley adjustment, selectable sensitivity and pulse count
• Built-in photocell and Form C relay output
• Motion sensor ideal for outdoor use
• Special UV resistant lenses and casings for outdoors
• Detection Area: 40 x 50 feet
• Easy Pet Alley adjustment, selectable sensitivity and pulse count
• Built-in photocell and Form C relay output
