Description
Brand: onelinkmore

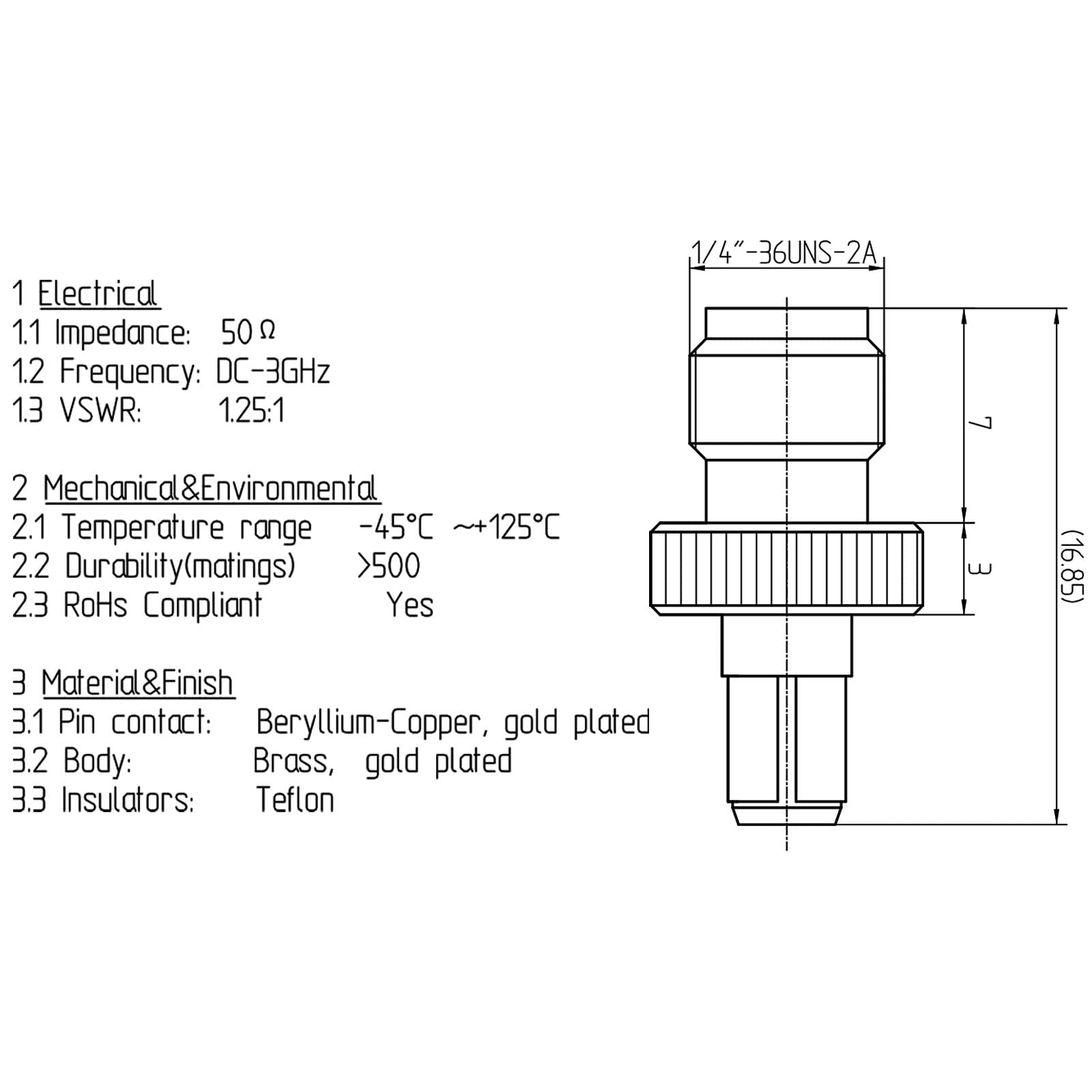

Product Series:SMA to TS9 adapter <br>Body Plating:Goldplated <br>Connector Material:Brass <br>Gender: SMA Jack,female pin / TS9 Plug,male pin <br>Style:Straight<br>Application: For antennas, broadcast, radios, Wi-Fi, Telecom, 4G LTE Wifi router, mobiles hotspots, 2G 3G 4G GSM Wlan Bluetooth, HSDPA UMTS DCS Antenne connector, coaxial cable, wireless LAN devices, CCTV, microwave applications and digital communication system.
• SNUG-FIT CLICK-LOCK MECHANISM - FIRM AUDIBLE CLICK ON INSERTION: Precision-machined to tight dimensional tolerances, the TS9 Male end seats firmly in the hotspot's antenna port with a tactile, audible click. This mechanical fit maintains consistent electrical contact at the pin interface, preventing micro-movement that causes signal interruption during travel or light vibration. Gold-plated center pin ensures stable conductivity throughout the rated 1,000+ mating cycle lifespan.

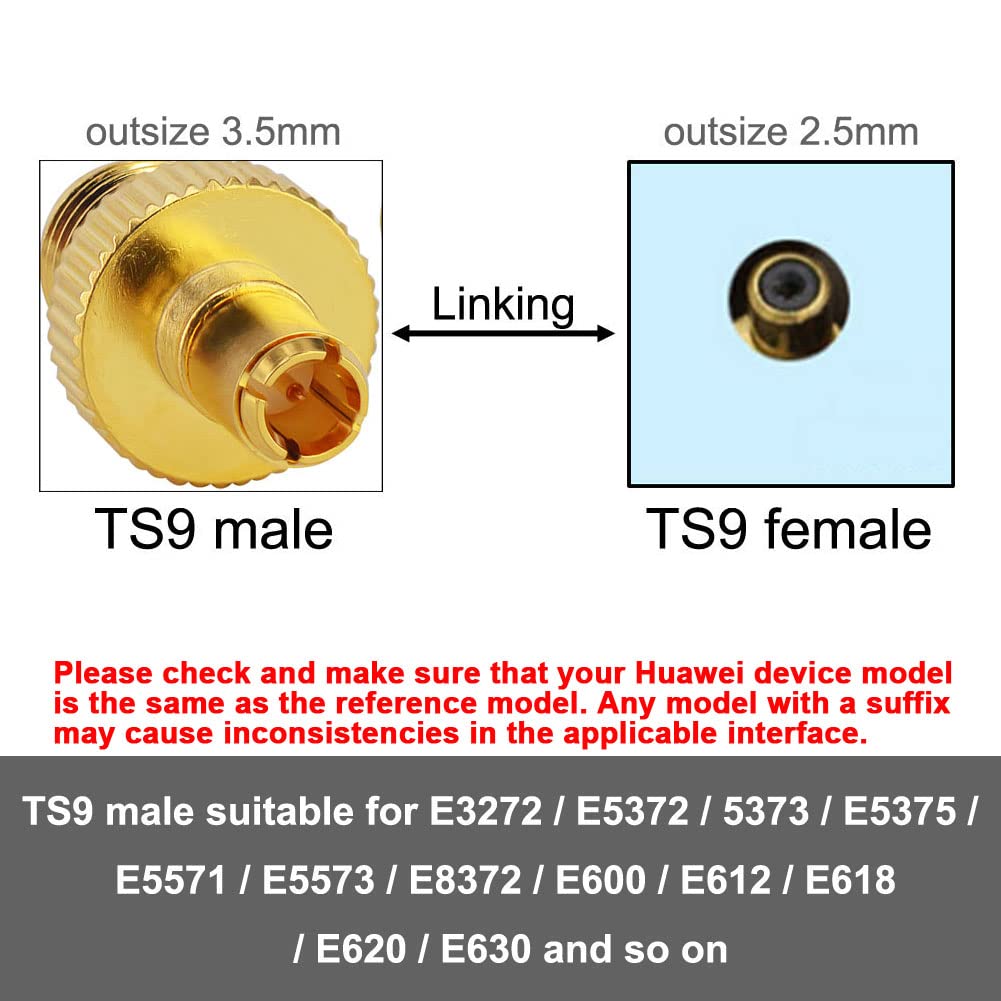

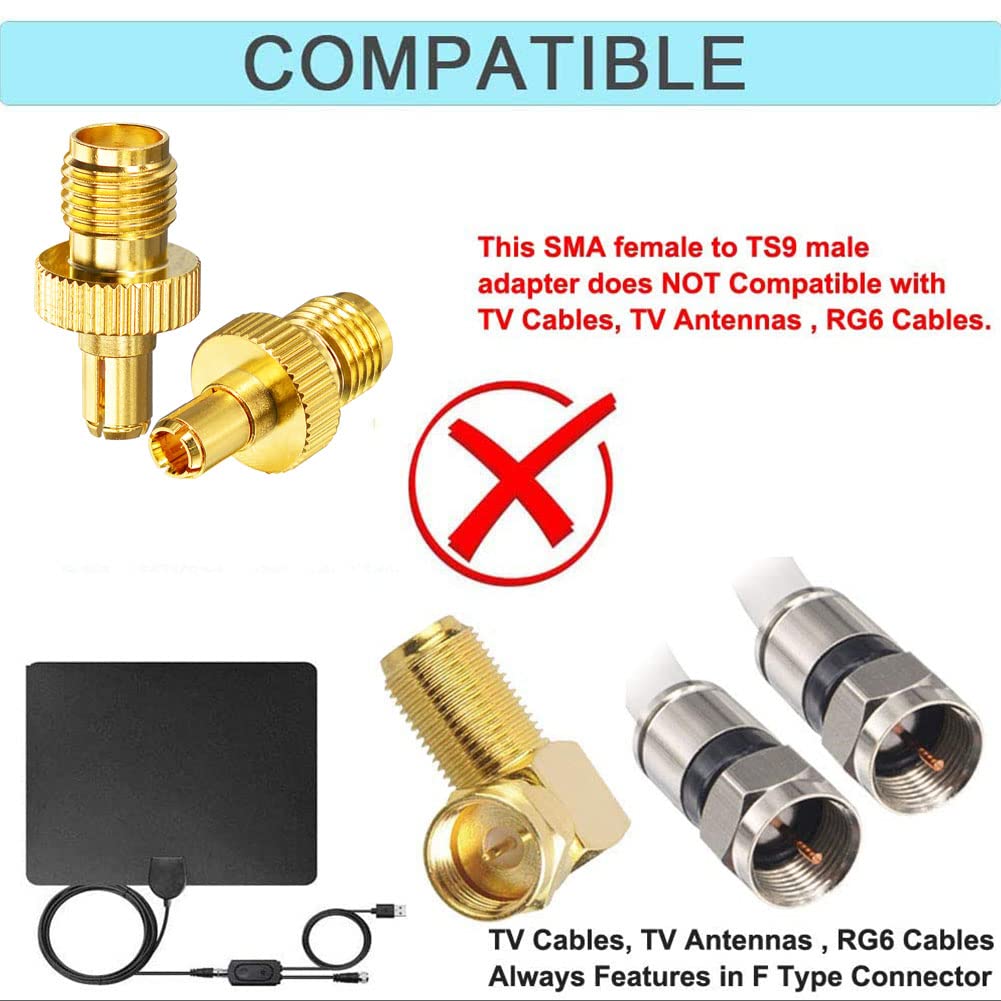

• VERIFIED COMPATIBLE: Nighthawk M1/MR1100, M5/MR5100/MR5200, M6/MR6110/MR6150/MR6500/MR6550, M6 Pro/MR6400, M7/MR7400 - UPDATED 2024: Covers the full current Netgear Nighthawk lineup plus Verizon Jetpack MiFi 8800L/7730L/6620L, AT&T Unite AC815S, Novatel USB730L/U620L, ZTE MF985 Velocity 2, and any hotspot or USB modem with TS9 female antenna ports. NOT for CRC9 (Huawei) - CRC9 is physically smaller and incompatible. NOT for RP-SMA devices. Verify your port before ordering.

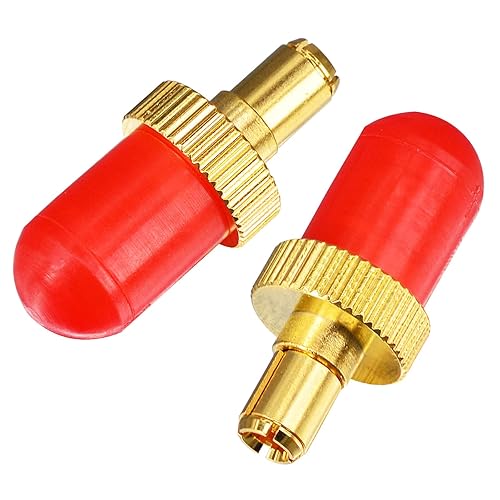

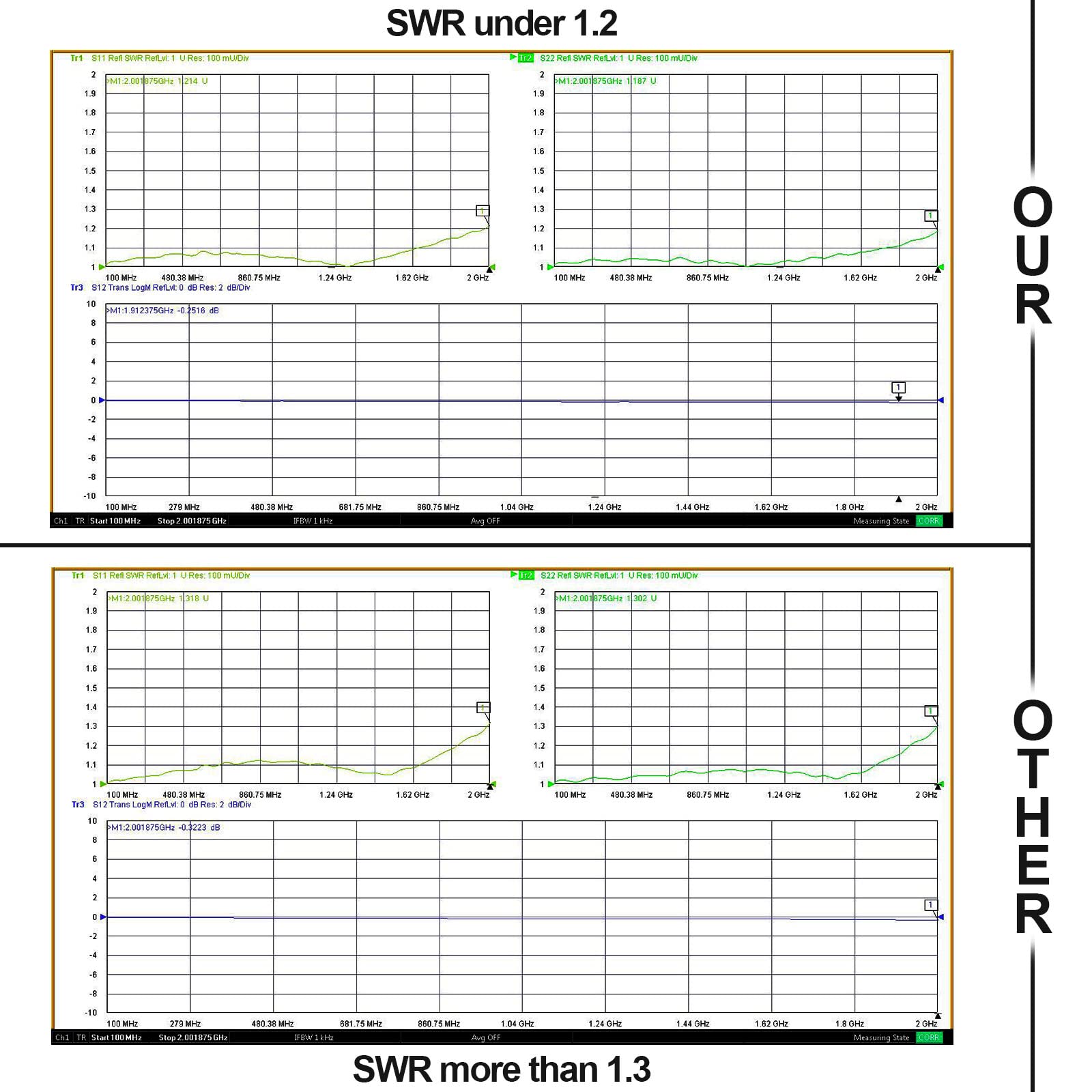

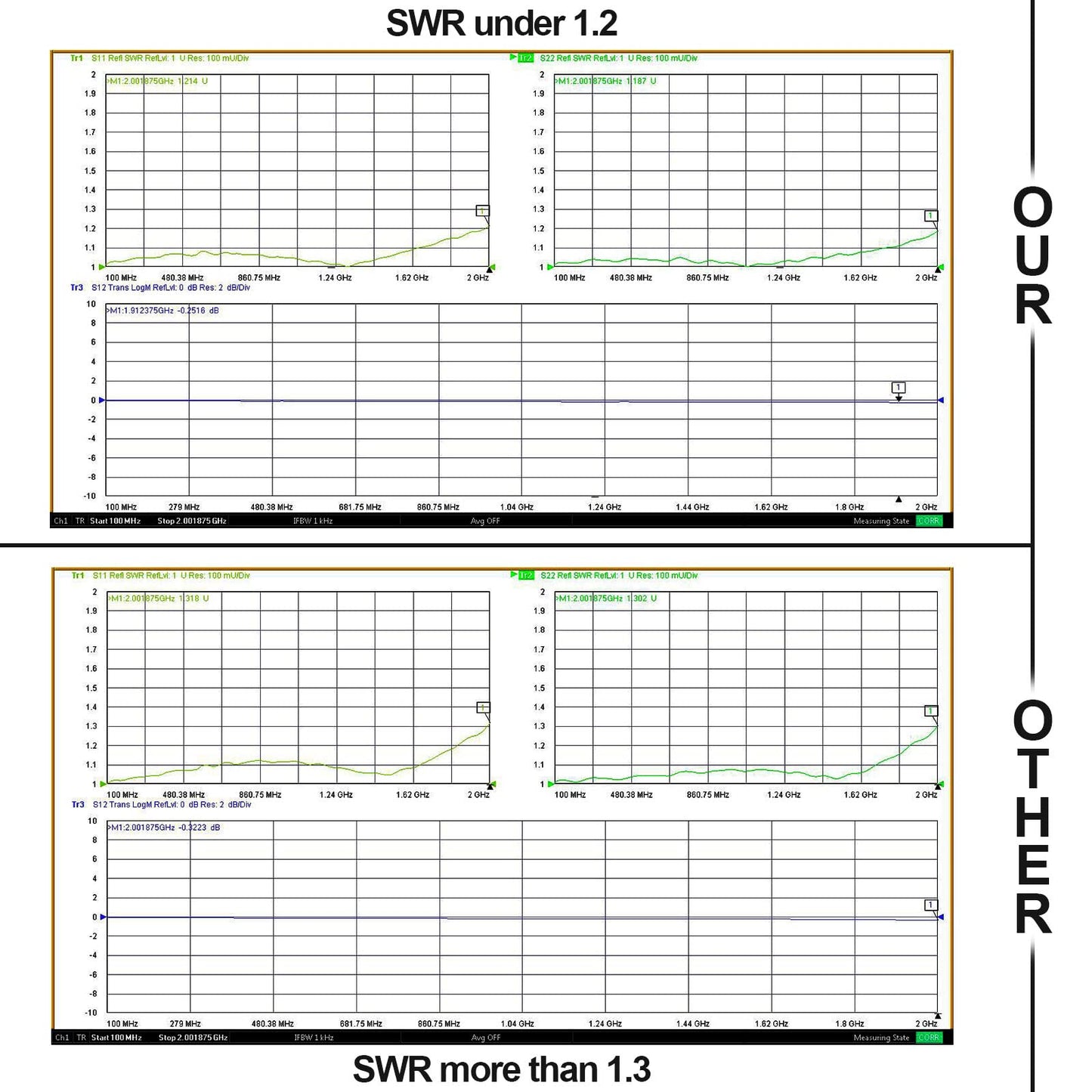

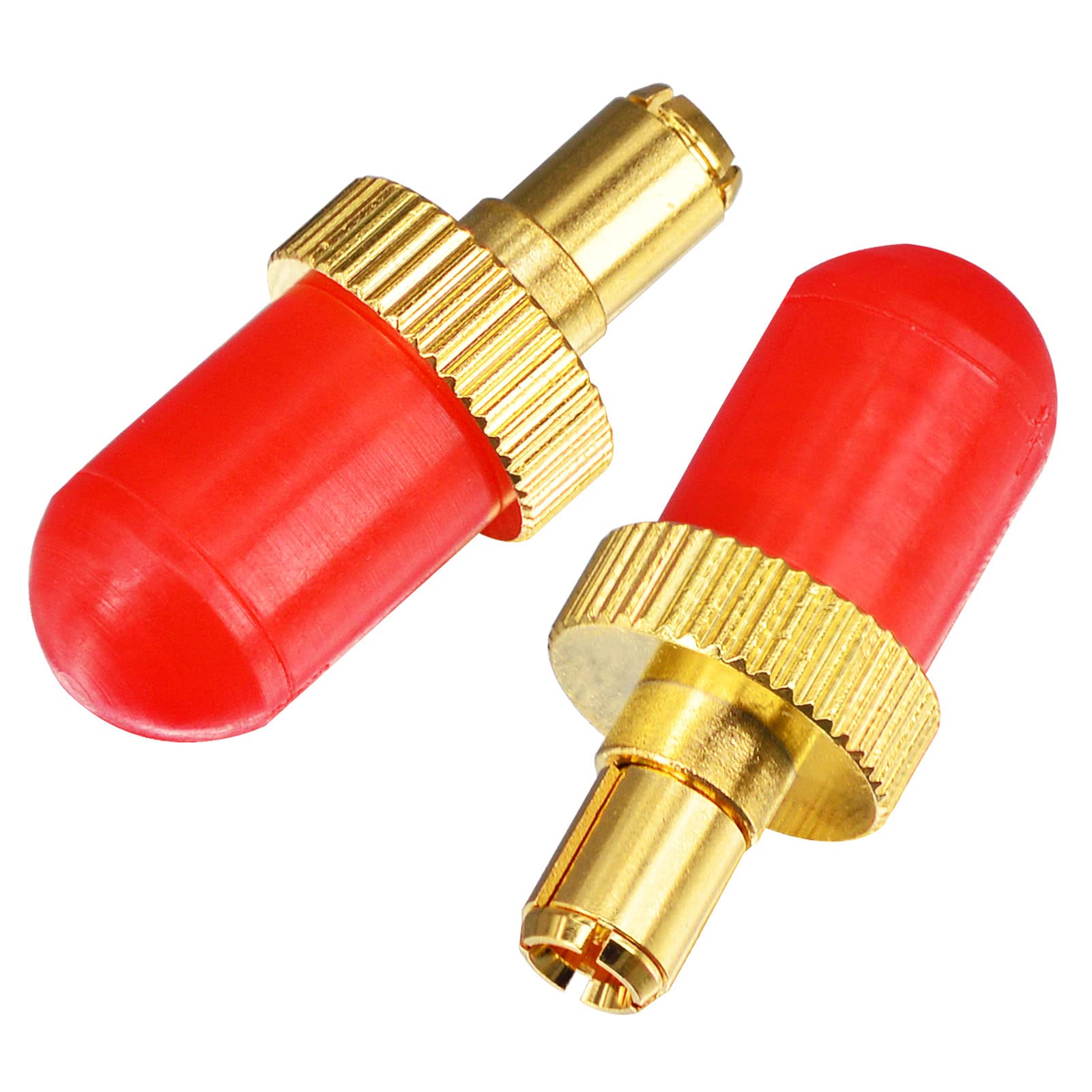

• PURE BRASS BODY, HEAVY GOLD PLATING - BUILT TO LAST BEYOND 1,000 CYCLES: Zinc die-cast connector bodies oxidize and lose conductivity within months, especially in humid environments. This adapter is machined from pure brass with heavy gold plating on both the outer shell and center TS9 pin - the same material specification used in professional RF test equipment connectors. VSWR ?1.1, insertion loss ?0.15dB at 3GHz. Rated for 1,000+ mating cycles without contact degradation.
• DIRECT SOLID-BODY DESIGN - LOWEST INSERTION LOSS, BEST FOR FIXED INSTALLATIONS: This is a rigid cable-free adapter, providing the most direct electrical path between your antenna coax and the hotspot's TS9 port - no additional cable length adding attenuation. Optimized for desktop and stationary setups where the SMA antenna cable is independently supported. Secure the antenna cable with a clip or velcro tie within 6 inches of the adapter to avoid port strain. For mobile use, pair with a short pigtail cable instead.
• 2-PACK COVERS BOTH MIMO PORTS - OR KEEP ONE AS A TRAVEL SPARE: The Nighthawk M5, M6, and M7 series all have two TS9 antenna ports for MIMO operation - connecting a dual-port external MIMO antenna requires two adapters simultaneously. This 2-pack covers both ports in one purchase. If you only need one port, the second adapter serves as a travel spare for your gig bag, RV kit, or backup setup. Compact enough to carry in any hotspot accessories pouch.
Model: OL1188-X
Color: gold
Product Series:SMA to TS9 adapter <br>Body Plating:Goldplated <br>Connector Material:Brass <br>Gender: SMA Jack,female pin / TS9 Plug,male pin <br>Style:Straight<br>Application: For antennas, broadcast, radios, Wi-Fi, Telecom, 4G LTE Wifi router, mobiles hotspots, 2G 3G 4G GSM Wlan Bluetooth, HSDPA UMTS DCS Antenne connector, coaxial cable, wireless LAN devices, CCTV, microwave applications and digital communication system.
• SNUG-FIT CLICK-LOCK MECHANISM - FIRM AUDIBLE CLICK ON INSERTION: Precision-machined to tight dimensional tolerances, the TS9 Male end seats firmly in the hotspot's antenna port with a tactile, audible click. This mechanical fit maintains consistent electrical contact at the pin interface, preventing micro-movement that causes signal interruption during travel or light vibration. Gold-plated center pin ensures stable conductivity throughout the rated 1,000+ mating cycle lifespan.
• VERIFIED COMPATIBLE: Nighthawk M1/MR1100, M5/MR5100/MR5200, M6/MR6110/MR6150/MR6500/MR6550, M6 Pro/MR6400, M7/MR7400 - UPDATED 2024: Covers the full current Netgear Nighthawk lineup plus Verizon Jetpack MiFi 8800L/7730L/6620L, AT&T Unite AC815S, Novatel USB730L/U620L, ZTE MF985 Velocity 2, and any hotspot or USB modem with TS9 female antenna ports. NOT for CRC9 (Huawei) - CRC9 is physically smaller and incompatible. NOT for RP-SMA devices. Verify your port before ordering.
• PURE BRASS BODY, HEAVY GOLD PLATING - BUILT TO LAST BEYOND 1,000 CYCLES: Zinc die-cast connector bodies oxidize and lose conductivity within months, especially in humid environments. This adapter is machined from pure brass with heavy gold plating on both the outer shell and center TS9 pin - the same material specification used in professional RF test equipment connectors. VSWR ?1.1, insertion loss ?0.15dB at 3GHz. Rated for 1,000+ mating cycles without contact degradation.
• DIRECT SOLID-BODY DESIGN - LOWEST INSERTION LOSS, BEST FOR FIXED INSTALLATIONS: This is a rigid cable-free adapter, providing the most direct electrical path between your antenna coax and the hotspot's TS9 port - no additional cable length adding attenuation. Optimized for desktop and stationary setups where the SMA antenna cable is independently supported. Secure the antenna cable with a clip or velcro tie within 6 inches of the adapter to avoid port strain. For mobile use, pair with a short pigtail cable instead.
• 2-PACK COVERS BOTH MIMO PORTS - OR KEEP ONE AS A TRAVEL SPARE: The Nighthawk M5, M6, and M7 series all have two TS9 antenna ports for MIMO operation - connecting a dual-port external MIMO antenna requires two adapters simultaneously. This 2-pack covers both ports in one purchase. If you only need one port, the second adapter serves as a travel spare for your gig bag, RV kit, or backup setup. Compact enough to carry in any hotspot accessories pouch.
Model: OL1188-X
Color: gold
