Description
Brand: OLYCOM
<p>IM-FP488GW series is the 10/100/1000 Mbps managed industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ? to + 75 ?, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards.</p> <p><b>Ports:</b></p> <p>1. Fiber Port: 4pcs 1.25G SFP fiber ports ( without SFP transceivers)</p> <p>2. Network Ports: 8pcs 10/100/1000M RJ45 ports with POE AT 30W (without power adapter)</p> <p>3. Managed Port: 1pc console network port </p> <p><b>Features:</b></p> <p>1. 4kV Ethernet surge protection, adapt to a harsh outdoor environment</p> <p>2. Support IEEE802.3az EEE, optimize power consumption</p> <p>3. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)</p> <p>4. Support QoS, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression, differentiated services</p> <p>5. Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol
• PORT: 8 x Gigabit Ethernet RJ45 ports with POE AT 30W for each port, 4 x Gigabit SFP slots, 1 x managed console network port ( WITHOUT SFPS and POWER ADAPTER).
• L2 MANAGED: This managed industrial fiber switch supports STP, RSTP, MSTP, ITU-T G.8032 EPR, Qos, IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching and other managed functions ( Details
• POE STANDARD: The 8 port POE switch supports POE (15.4W) and POE+ (30W). 1/2 (V+), 3/6 (V-) is the default, and 4/5 (V+),7/8 (V-) is optional wire connection. Total power is 240W.

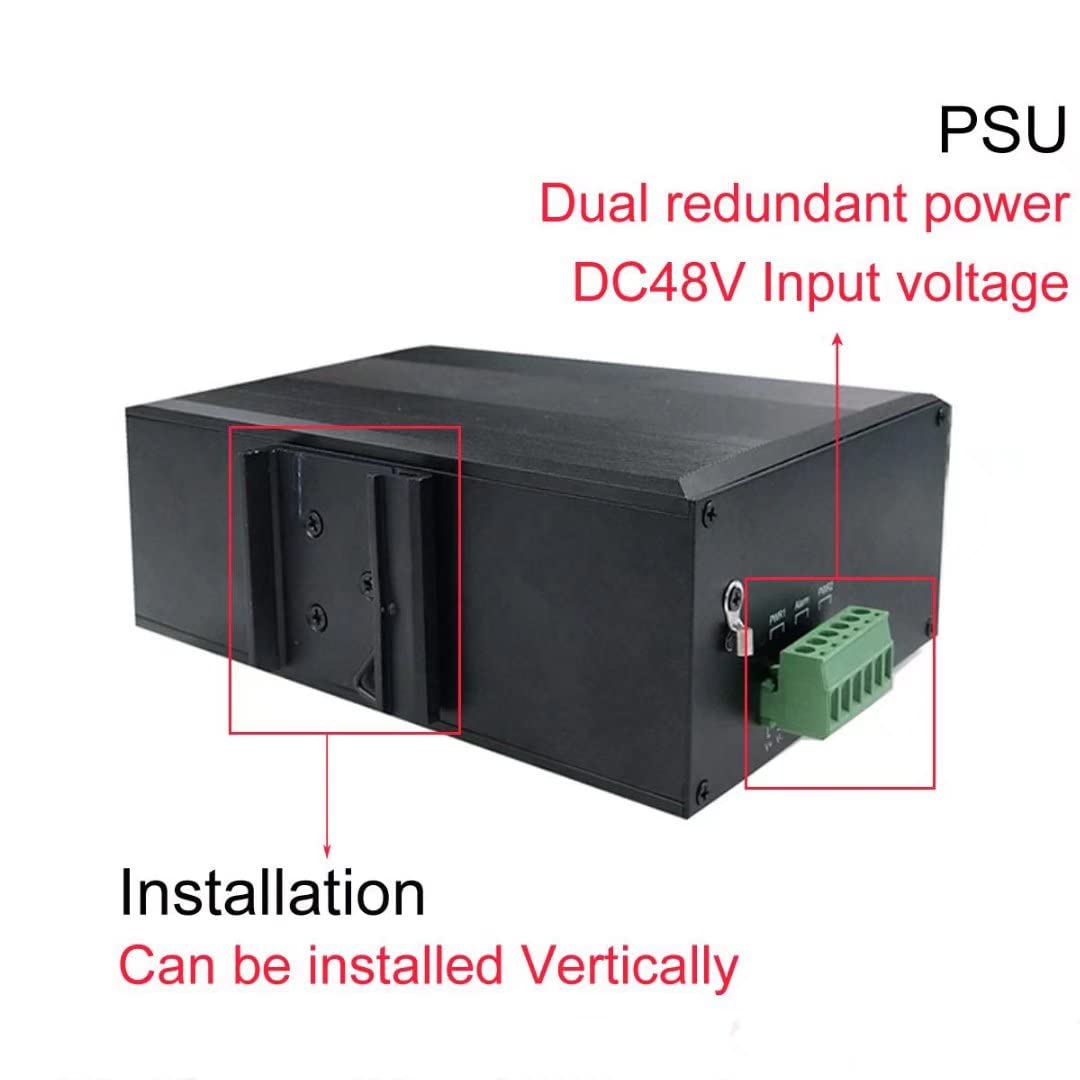

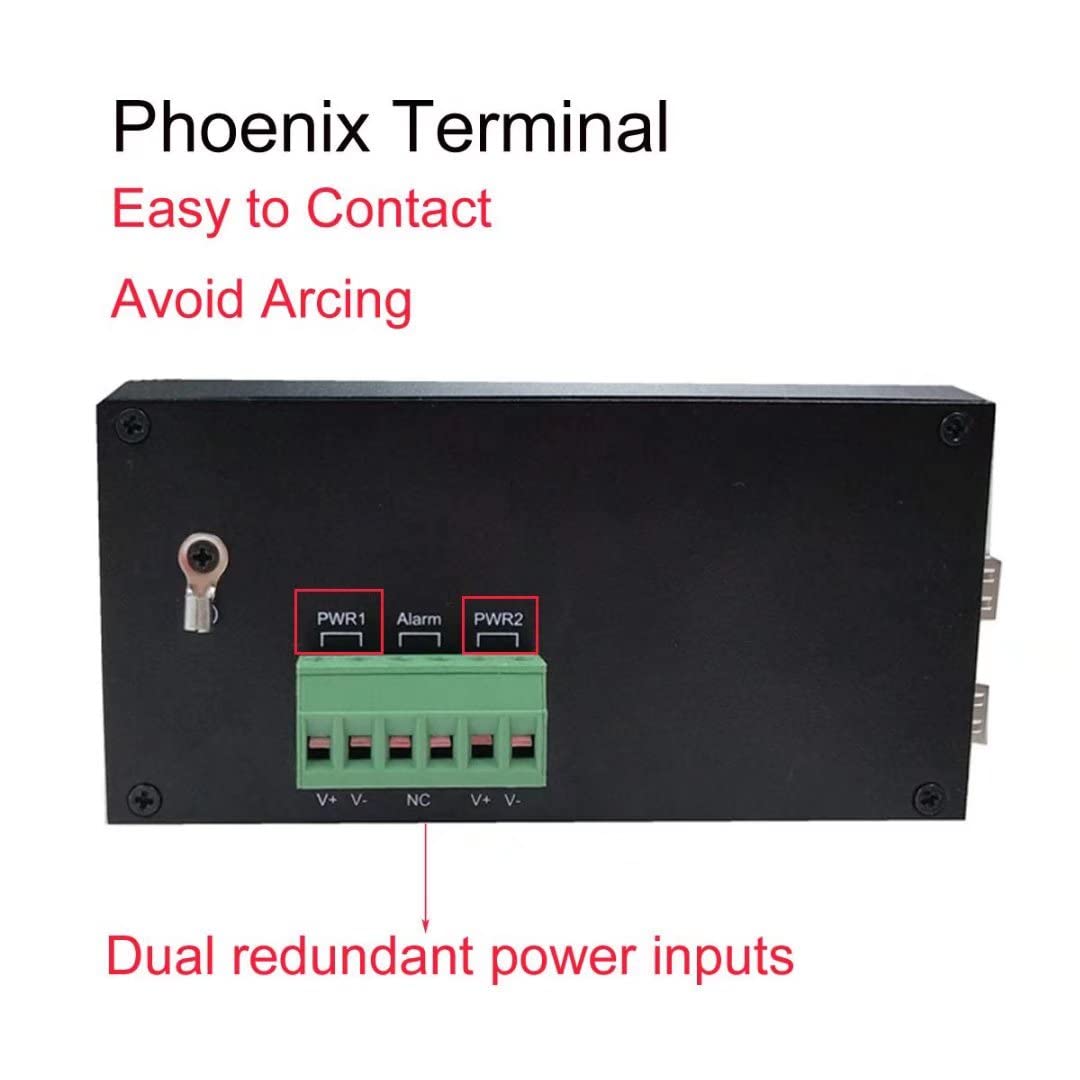

• REDUNDANT POWER: The 8 ports POE+ managed network switch has dual redundant power inputs with overload current protection (power supply sold separately)
• WHAT YOU GET: 1pc 8port POE Outdoor DIN-Rail Industrial Managed Switch (without SFP module, without power adapter), 1pc managed cable, 1pc user manual, and lifetime technical support.
<p>IM-FP488GW series is the 10/100/1000 Mbps managed industrial POE fiber switch, comply with IEEE802.3af/at, power on POE IP cameras through the Ethernet cable, simple construction, power range up to 100 meters, operating temperature-40 ? to + 75 ?, meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards.</p> <p><b>Ports:</b></p> <p>1. Fiber Port: 4pcs 1.25G SFP fiber ports ( without SFP transceivers)</p> <p>2. Network Ports: 8pcs 10/100/1000M RJ45 ports with POE AT 30W (without power adapter)</p> <p>3. Managed Port: 1pc console network port </p> <p><b>Features:</b></p> <p>1. 4kV Ethernet surge protection, adapt to a harsh outdoor environment</p> <p>2. Support IEEE802.3az EEE, optimize power consumption</p> <p>3. Support STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring(EPR)</p> <p>4. Support QoS, transport classification Qos, Cos, bandwidth control (input/output direction), storm suppression, differentiated services</p> <p>5. Support IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol
• PORT: 8 x Gigabit Ethernet RJ45 ports with POE AT 30W for each port, 4 x Gigabit SFP slots, 1 x managed console network port ( WITHOUT SFPS and POWER ADAPTER).
• L2 MANAGED: This managed industrial fiber switch supports STP, RSTP, MSTP, ITU-T G.8032 EPR, Qos, IEEE802.1q VLAN, VLAN port, based Mac VLAN, IP subnet VLAN, Protocol VLAN, VLAN convert, MVR IGMP/MLD snooping V1/V2/V3, IGMP filtrating/ modulating, IGMP searching and other managed functions ( Details
• POE STANDARD: The 8 port POE switch supports POE (15.4W) and POE+ (30W). 1/2 (V+), 3/6 (V-) is the default, and 4/5 (V+),7/8 (V-) is optional wire connection. Total power is 240W.
• REDUNDANT POWER: The 8 ports POE+ managed network switch has dual redundant power inputs with overload current protection (power supply sold separately)
• WHAT YOU GET: 1pc 8port POE Outdoor DIN-Rail Industrial Managed Switch (without SFP module, without power adapter), 1pc managed cable, 1pc user manual, and lifetime technical support.
