Brand: OLYCOM
<p><b>Key Features</b></p> <p> </p> <ul> <li>4 KV Ethernet surge protection, adapt to a hardened outdoor environment;</li> <li>Support Auto MDI/MDIX;</li> <li>Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard ;</li> <li>IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant;</li> <li>A store-and-forward switching mechanism;</li> </ul> <p> </p> <p><b>Specification </b></p> <p> </p> <ul> <li>Product Name: 10/100/1000Mbps Industrial Grade Fiber Switch (1F+4TP)</li> <li>Model No.: IM-FS140GE</li> <li>Fiber Port: 1 x 1000Mpbs SFP uplink port,SM,1310nm,20Km</li> <li>Ethernet Port: 4x10/100/1000M UTP RJ45</li> <li>Switching features: Transmission mode:storage and forward ;System bandwidth?40Gbps (non-traffic jam)</li> <li>Network media: 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(?100m)</li> <li>100/1000BASE-TX:CAT5 or above shielded twisted pair(?100m)</li> <li>Transmission distance: 20Km</li> <li>LEDs: Power, network, fiber</li> <li>Power supply:Input voltage:DC
• Interface: 4 10/100/1000Base-TX CAT5 ports and 1 10/100/1000Base-X LC uplink port. 1310nm operating wavelength,single mode,dual fiber, up to 20km transmission distance.
• Industry Standards: EMI: FCC Part 15 Subpart B Class A?EN 55022 Class A EMS?EN 61000-4-2 (ESD) Level 3?EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3?EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3?EN 61000-4-8 Traffic Control?NEMA-TS2 Vibration?IEC 60068-2-6 Freefall?IEC 60068-2-32

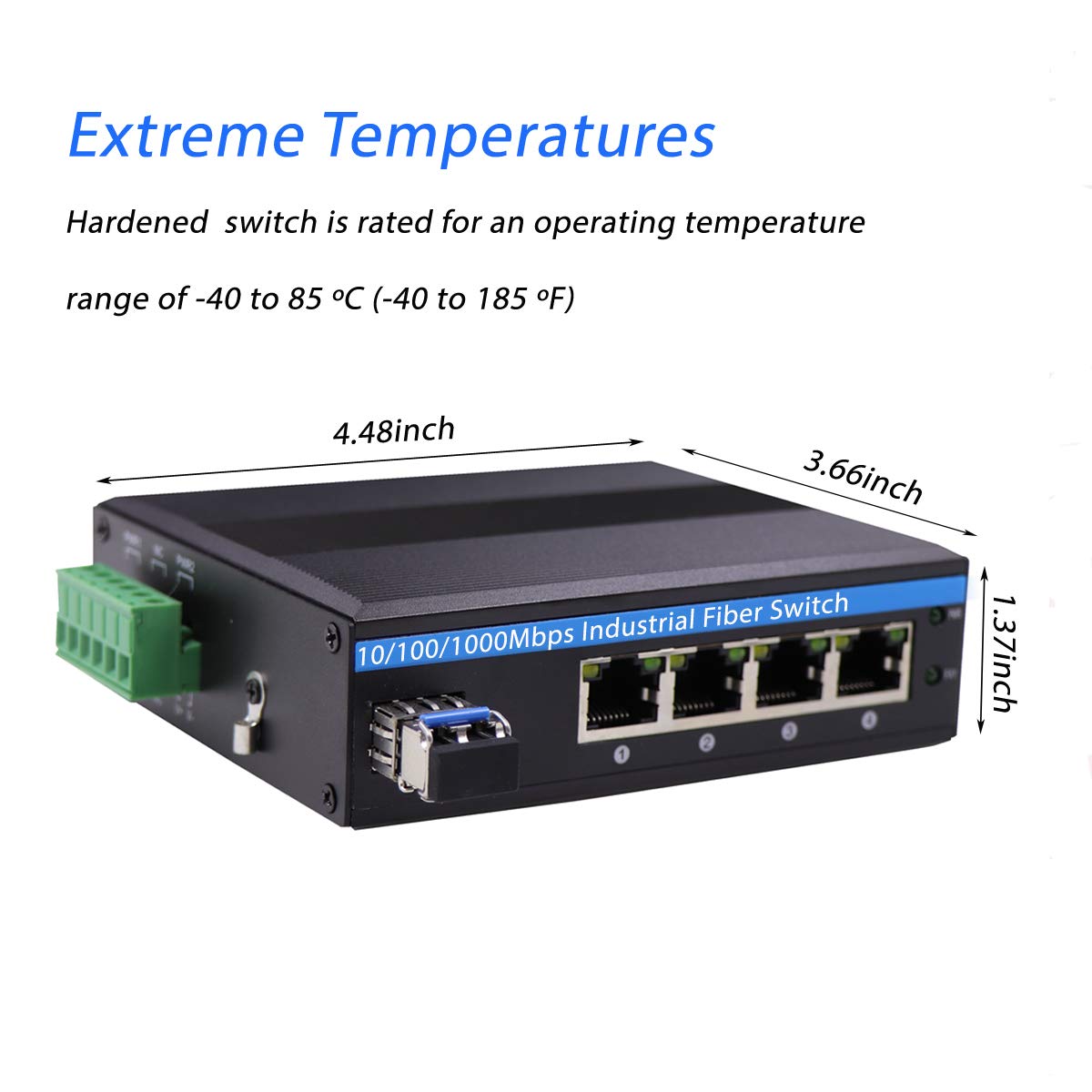

• Wide Temperature & Tough Environment: Working temperature?-40°? 85°C (-40°? 185°F),Storage temperature :-40°? 85°C (-40°? 185°F).Working humidity:10%?90%,non-condensing
• Storage humidity: 10%?95%,non-condensing

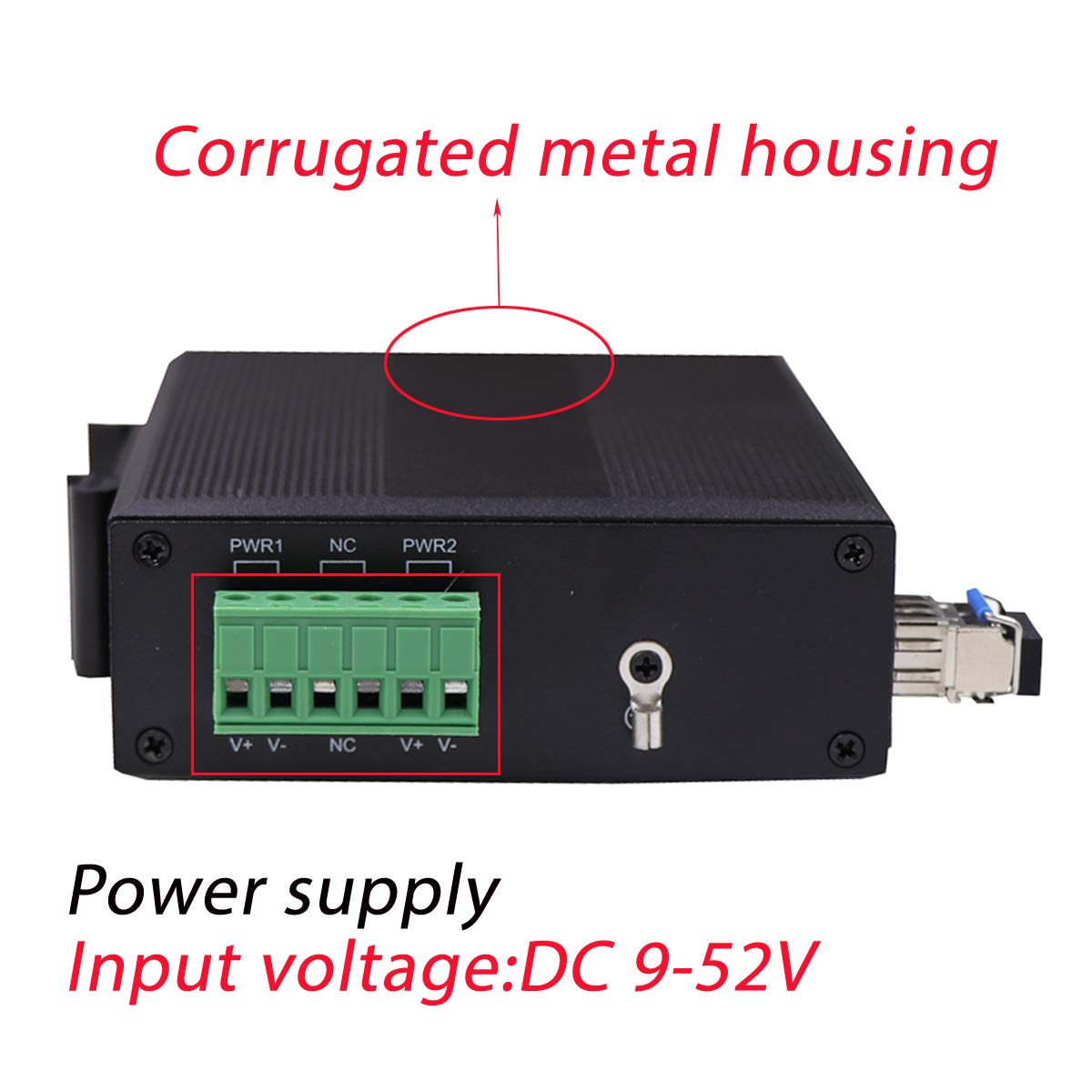

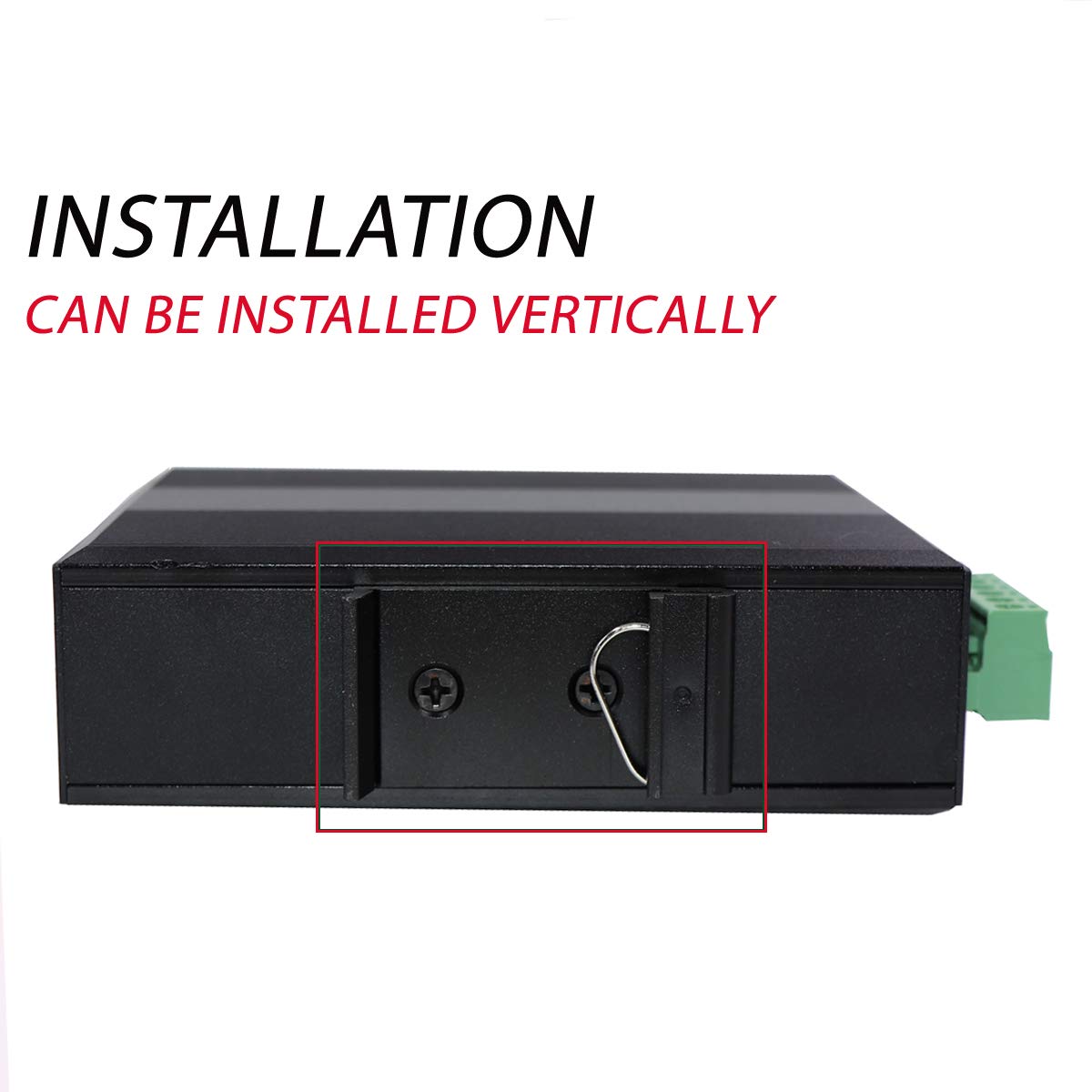

• Safety, Installation& PowerSupply: Meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. Commercial CE/LVD EN60950. Redundant dual DC input power, DC 9-36V Input voltage
Color: Black
<p><b>Key Features</b></p> <p> </p> <ul> <li>4 KV Ethernet surge protection, adapt to a hardened outdoor environment;</li> <li>Support Auto MDI/MDIX;</li> <li>Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard ;</li> <li>IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant;</li> <li>A store-and-forward switching mechanism;</li> </ul> <p> </p> <p><b>Specification </b></p> <p> </p> <ul> <li>Product Name: 10/100/1000Mbps Industrial Grade Fiber Switch (1F+4TP)</li> <li>Model No.: IM-FS140GE</li> <li>Fiber Port: 1 x 1000Mpbs SFP uplink port,SM,1310nm,20Km</li> <li>Ethernet Port: 4x10/100/1000M UTP RJ45</li> <li>Switching features: Transmission mode:storage and forward ;System bandwidth?40Gbps (non-traffic jam)</li> <li>Network media: 10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(?100m)</li> <li>100/1000BASE-TX:CAT5 or above shielded twisted pair(?100m)</li> <li>Transmission distance: 20Km</li> <li>LEDs: Power, network, fiber</li> <li>Power supply:Input voltage:DC
• Interface: 4 10/100/1000Base-TX CAT5 ports and 1 10/100/1000Base-X LC uplink port. 1310nm operating wavelength,single mode,dual fiber, up to 20km transmission distance.
• Industry Standards: EMI: FCC Part 15 Subpart B Class A?EN 55022 Class A EMS?EN 61000-4-2 (ESD) Level 3?EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3?EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3?EN 61000-4-8 Traffic Control?NEMA-TS2 Vibration?IEC 60068-2-6 Freefall?IEC 60068-2-32
• Wide Temperature & Tough Environment: Working temperature?-40°? 85°C (-40°? 185°F),Storage temperature :-40°? 85°C (-40°? 185°F).Working humidity:10%?90%,non-condensing
• Storage humidity: 10%?95%,non-condensing
• Safety, Installation& PowerSupply: Meet IP40 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. Commercial CE/LVD EN60950. Redundant dual DC input power, DC 9-36V Input voltage
Color: Black
