Description
Brand: NOYITO
Model: LM7806
Description:
NOYITO LM7806-6V LM7809-9V LM7812-12V voltage regulator module integrates rectification, filter components and voltage regulator chip, input AC or DC voltage within a certain range can stably output 6V/9V/12V voltage. With overheating and overcurrent protection.
This product is upgraded according to the user's usage. The output is changed from the single terminal output of the original version to the terminal + 5X2 Pins output. And optimize the PCB design, improve the thermal performance and stability of the product.
Parameter:
Enter the rated voltage parameters:
LM7806 - (DC / AC 9V-24V);
LM7809 - (DC / AC 12V-24V);
LM7912 - (DC/ AC 15V- 24V).
There is no need to distinguish between the positive and negative terminals at the input.
Output rated voltage parameters:
LM7806 - DC 6V ± 0.3V;
LM7809 - DC 9V ± 0.3V ;
LM7912 - DC 12V ±0.3V.
Maximum output current: 1.2A Max.
Output mode: terminal + 5x2 pins.
VCC: Connect the output positive.
GND: Connect the output negative terminal.
Dimension : 49 x 26 x 22 mm (LxWxH).
Protection function: overheat protection, overcurrent protection.
Special Note: Do not exceed the rated voltage of the input voltage. Do not overload the output.
Package Inclued:

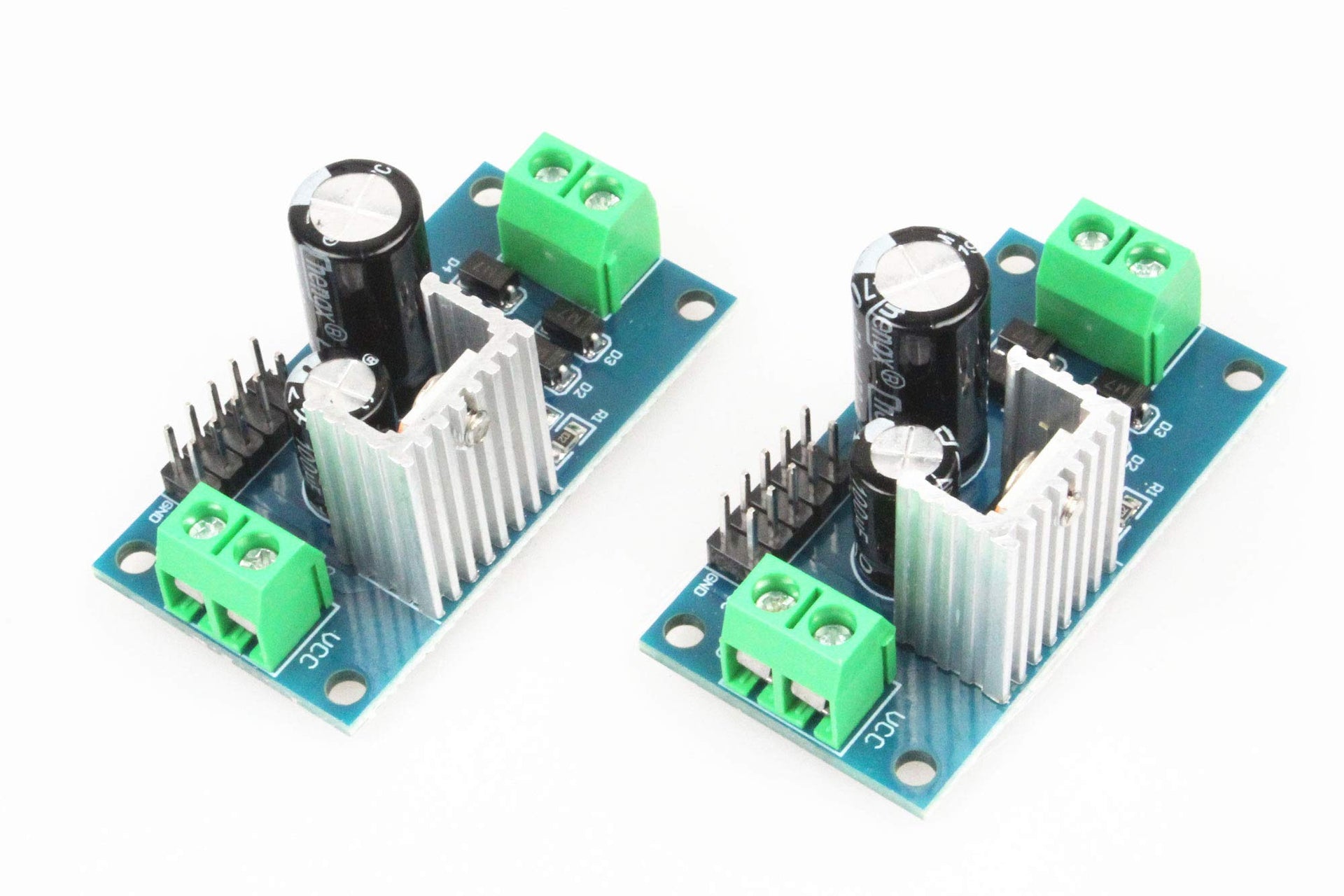

NOYITO Three Terminal Voltage Regulator Module（Pack of 2）
• NOYITO LM7806-6V LM7809-9V LM7812-12V voltage regulator module integrates rectification, filter components and voltage regulator chip, input AC or DC voltage within a certain range can stably output DC 6V / 9V / 12V voltage. With overheating and overcurrent protection.（Pack of 2）
• This product is upgraded according to the user's usage. The output is changed from the single terminal output of the original version to the terminal + 5X2 Pins output. And optimize the PCB design, improve the thermal performance and stability of the product.

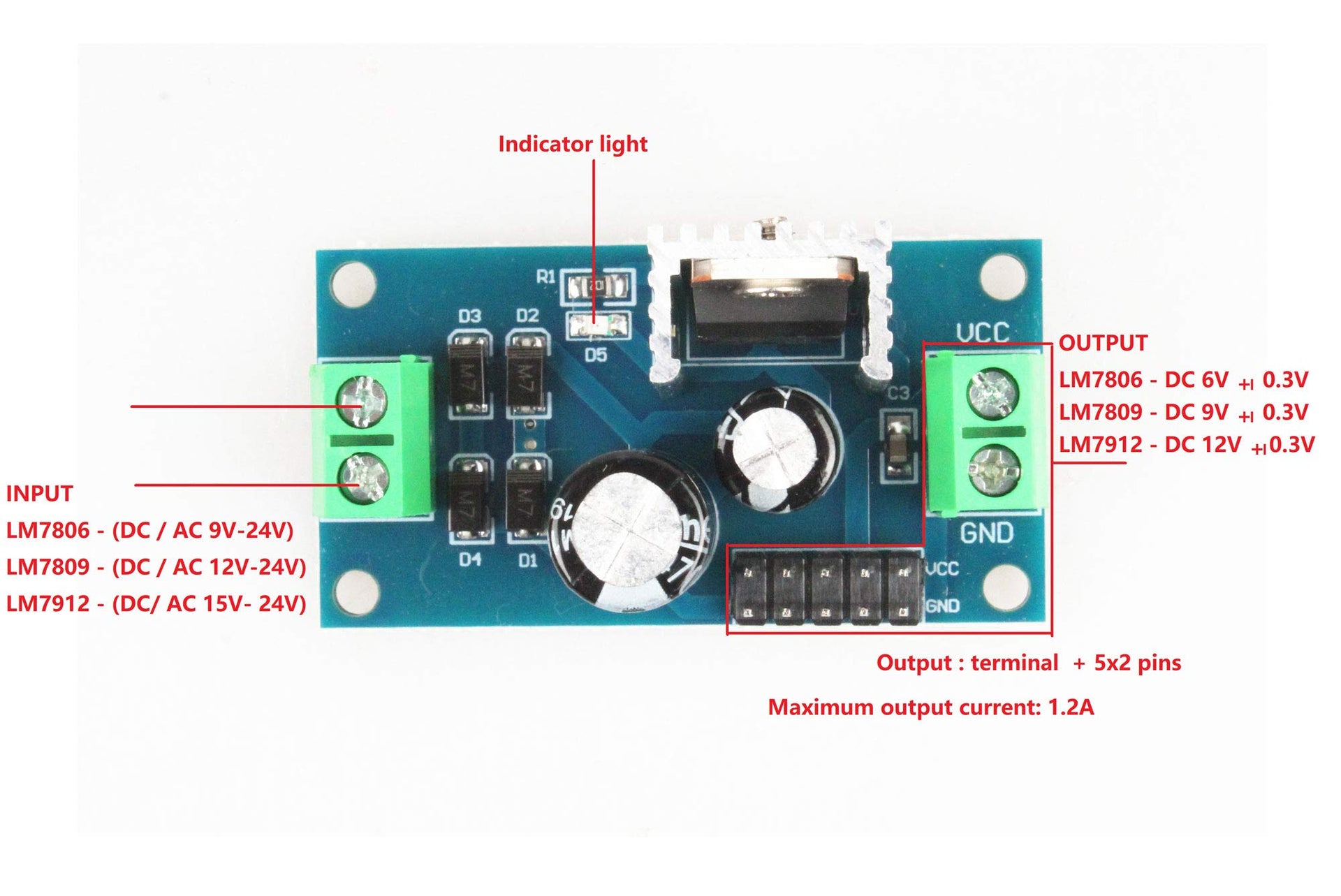

• There is no need to distinguish between the positive and negative terminals at the input (the second product picture is the wiring diagram). You can choose the model according to your needs. You can input AC or DC power.
• Input voltage parameters: LM7806 - (DC / AC 9V-24V)
• LM7809 - (DC / AC 12V-24V)
• LM7912 - (DC / AC 15V - 24V).
• Output voltage parameters: LM7806 - DC 6V ± 0.3V
• LM7809 - DC 9V ± 0.3V
• LM7912 - DC 12V ± 0.3V. Maximum output current: 1.2A Max.
Color: Blue
Model: LM7806
Description:
NOYITO LM7806-6V LM7809-9V LM7812-12V voltage regulator module integrates rectification, filter components and voltage regulator chip, input AC or DC voltage within a certain range can stably output 6V/9V/12V voltage. With overheating and overcurrent protection.
This product is upgraded according to the user's usage. The output is changed from the single terminal output of the original version to the terminal + 5X2 Pins output. And optimize the PCB design, improve the thermal performance and stability of the product.
Parameter:
Enter the rated voltage parameters:
LM7806 - (DC / AC 9V-24V);
LM7809 - (DC / AC 12V-24V);
LM7912 - (DC/ AC 15V- 24V).
There is no need to distinguish between the positive and negative terminals at the input.
Output rated voltage parameters:
LM7806 - DC 6V ± 0.3V;
LM7809 - DC 9V ± 0.3V ;
LM7912 - DC 12V ±0.3V.
Maximum output current: 1.2A Max.
Output mode: terminal + 5x2 pins.
VCC: Connect the output positive.
GND: Connect the output negative terminal.
Dimension : 49 x 26 x 22 mm (LxWxH).
Protection function: overheat protection, overcurrent protection.
Special Note: Do not exceed the rated voltage of the input voltage. Do not overload the output.
Package Inclued:
NOYITO Three Terminal Voltage Regulator Module（Pack of 2）
• NOYITO LM7806-6V LM7809-9V LM7812-12V voltage regulator module integrates rectification, filter components and voltage regulator chip, input AC or DC voltage within a certain range can stably output DC 6V / 9V / 12V voltage. With overheating and overcurrent protection.（Pack of 2）
• This product is upgraded according to the user's usage. The output is changed from the single terminal output of the original version to the terminal + 5X2 Pins output. And optimize the PCB design, improve the thermal performance and stability of the product.
• There is no need to distinguish between the positive and negative terminals at the input (the second product picture is the wiring diagram). You can choose the model according to your needs. You can input AC or DC power.
• Input voltage parameters: LM7806 - (DC / AC 9V-24V)
• LM7809 - (DC / AC 12V-24V)
• LM7912 - (DC / AC 15V - 24V).
• Output voltage parameters: LM7806 - DC 6V ± 0.3V
• LM7809 - DC 9V ± 0.3V
• LM7912 - DC 12V ± 0.3V. Maximum output current: 1.2A Max.
Color: Blue
