Description
Brand: NOYITO
Model: LM7805
Features:
1. 3A Rectifier Bridge (AC and DC can be input).
2. 2x35V 220UF High Voltage Capacitor (Buffered filter).
3. High quality radiator (with heat sink to enhance heat dissipation).
4.1.5A High-current chip.
Parameter
Input voltage:
LM7812 : DC 15-24V or AC 12-18V.
LM7805 - AC or DC 7.5V - 20V.
Output voltage: DC 5V / 12V. (LM7812 version output 12V, LM7805 version output 5V. Please select the appropriate version based on demand.)
Load regulation rate: 100mV;
Quiescent current: 8mA;
Output noise voltage: 42uV;
Input and output voltage difference: 2V;
Output impedance: 15mΩ;
Peak current: 1.5A (1A or less is recommended if the module is working for a long time);
Module size: 44x20x22mm (LWH)
Hole spacing: 33.5mm (L), 15.5mm (W)
Package Included:

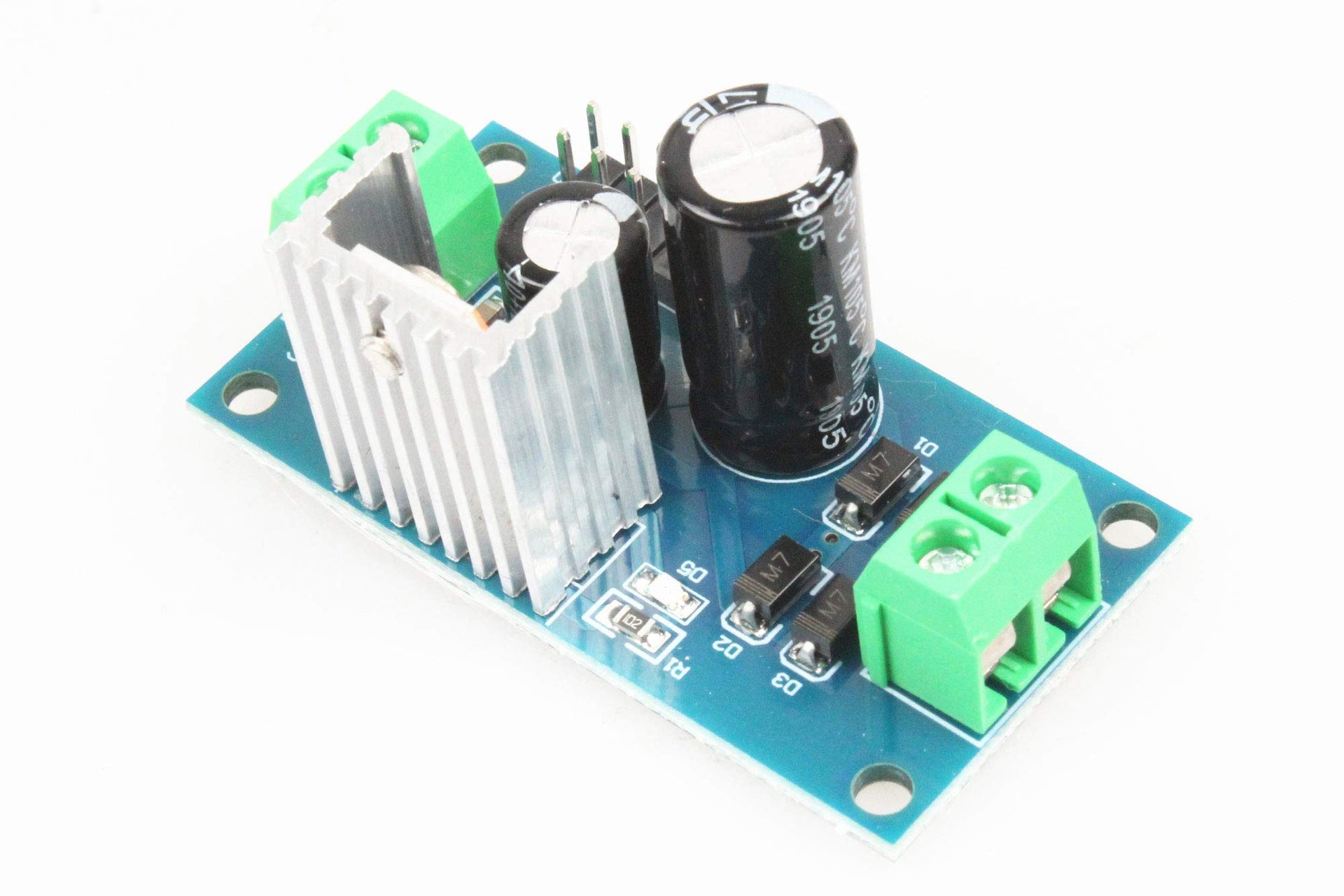

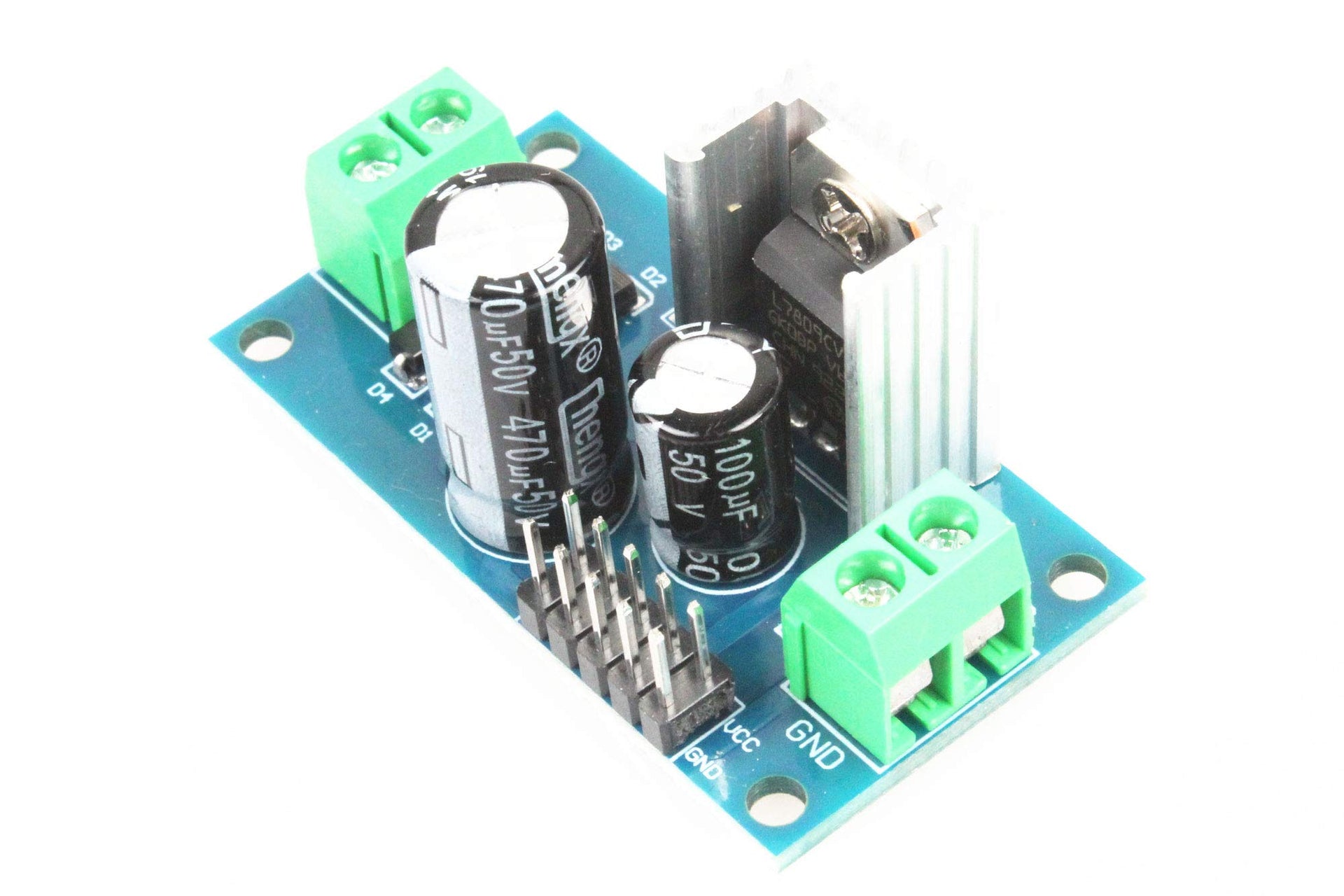

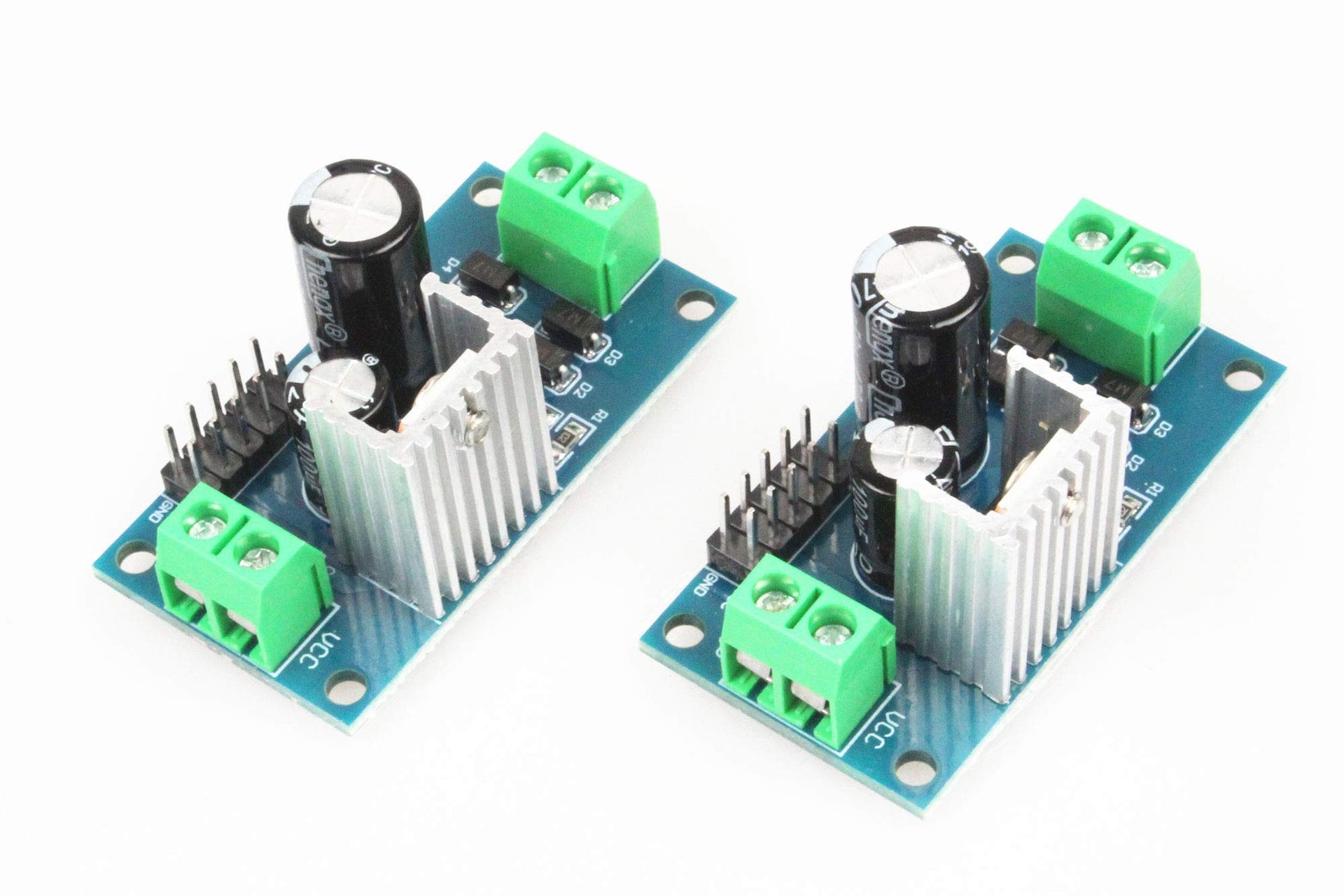

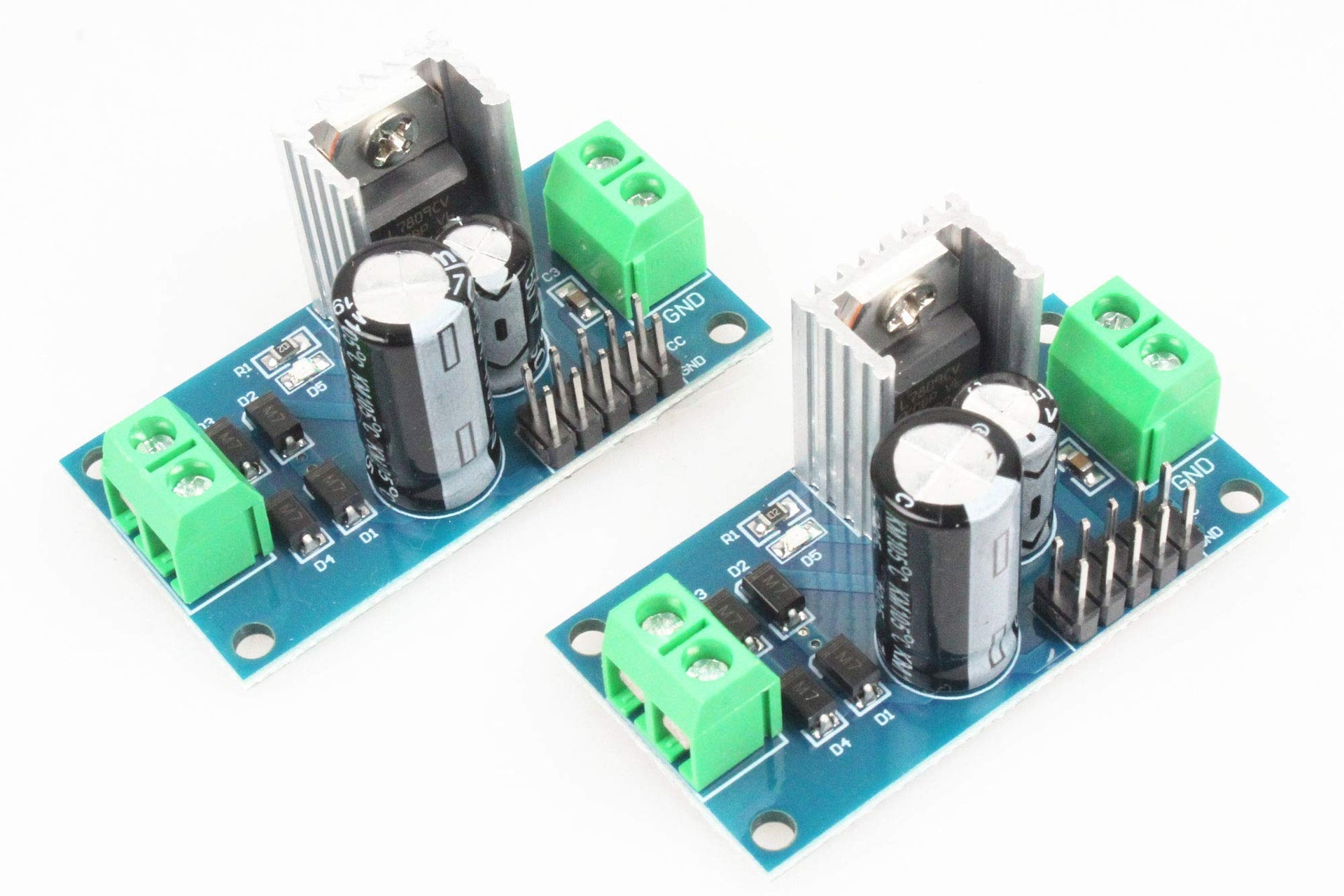

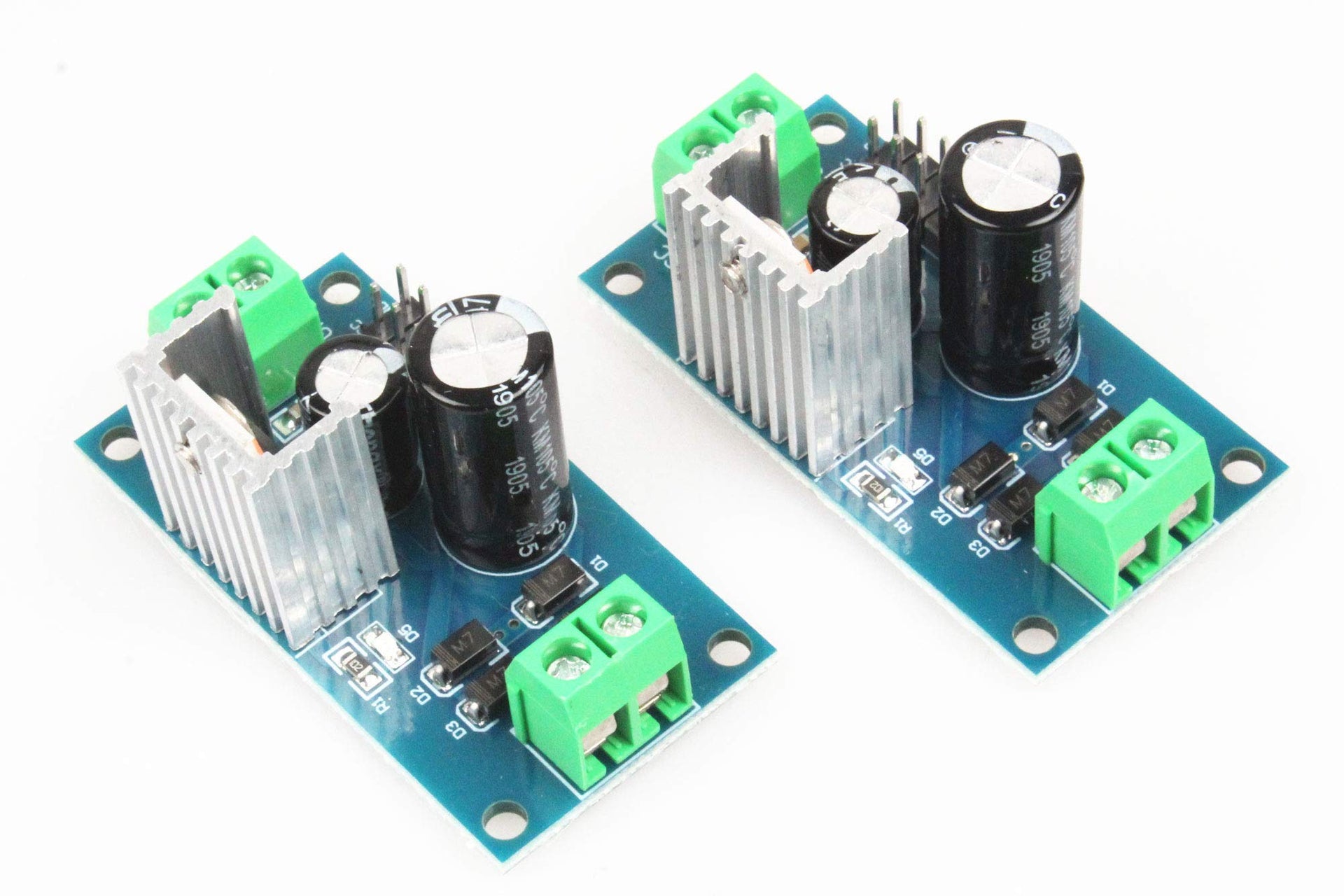

2pcs NOYITO Three-terminal Regulator Power Supply Modules
• The regulator power module adopts 3A full-wave bridge rectifier, AC and DC both can input, and the input terminal does not need to distinguish between positive and negative.
• The filter uses two 35V 220UF large-capacity electrolytic capacitors as buffer filter, which can make the output current stable and smooth.
• Input voltage: LM7812 - (DC 15-24V or AC 12-18V). LM7805 - (AC or DC 7.5V - 20V). (Do not overload use it. Short circuit is strictly prohibited at input and output side)
• Output voltage: DC 5V / 12V. (LM7812 version output 12V, LM7805 version output 5V. Please select the appropriate version based on demand.)
• Output current: 1.5A max (1A or less is recommended if the module is working for a long time) (Do not overload use it. Short circuit is strictly prohibited at input and output side)
Color: GREEN
Power/Wattage: DC 05V
Model: LM7805
Features:
1. 3A Rectifier Bridge (AC and DC can be input).
2. 2x35V 220UF High Voltage Capacitor (Buffered filter).
3. High quality radiator (with heat sink to enhance heat dissipation).
4.1.5A High-current chip.
Parameter
Input voltage:
LM7812 : DC 15-24V or AC 12-18V.
LM7805 - AC or DC 7.5V - 20V.
Output voltage: DC 5V / 12V. (LM7812 version output 12V, LM7805 version output 5V. Please select the appropriate version based on demand.)
Load regulation rate: 100mV;
Quiescent current: 8mA;
Output noise voltage: 42uV;
Input and output voltage difference: 2V;
Output impedance: 15mΩ;
Peak current: 1.5A (1A or less is recommended if the module is working for a long time);
Module size: 44x20x22mm (LWH)
Hole spacing: 33.5mm (L), 15.5mm (W)
Package Included:
2pcs NOYITO Three-terminal Regulator Power Supply Modules
• The regulator power module adopts 3A full-wave bridge rectifier, AC and DC both can input, and the input terminal does not need to distinguish between positive and negative.
• The filter uses two 35V 220UF large-capacity electrolytic capacitors as buffer filter, which can make the output current stable and smooth.
• Input voltage: LM7812 - (DC 15-24V or AC 12-18V). LM7805 - (AC or DC 7.5V - 20V). (Do not overload use it. Short circuit is strictly prohibited at input and output side)
• Output voltage: DC 5V / 12V. (LM7812 version output 12V, LM7805 version output 5V. Please select the appropriate version based on demand.)
• Output current: 1.5A max (1A or less is recommended if the module is working for a long time) (Do not overload use it. Short circuit is strictly prohibited at input and output side)
Color: GREEN
Power/Wattage: DC 05V
