Description
Brand: NOYITO

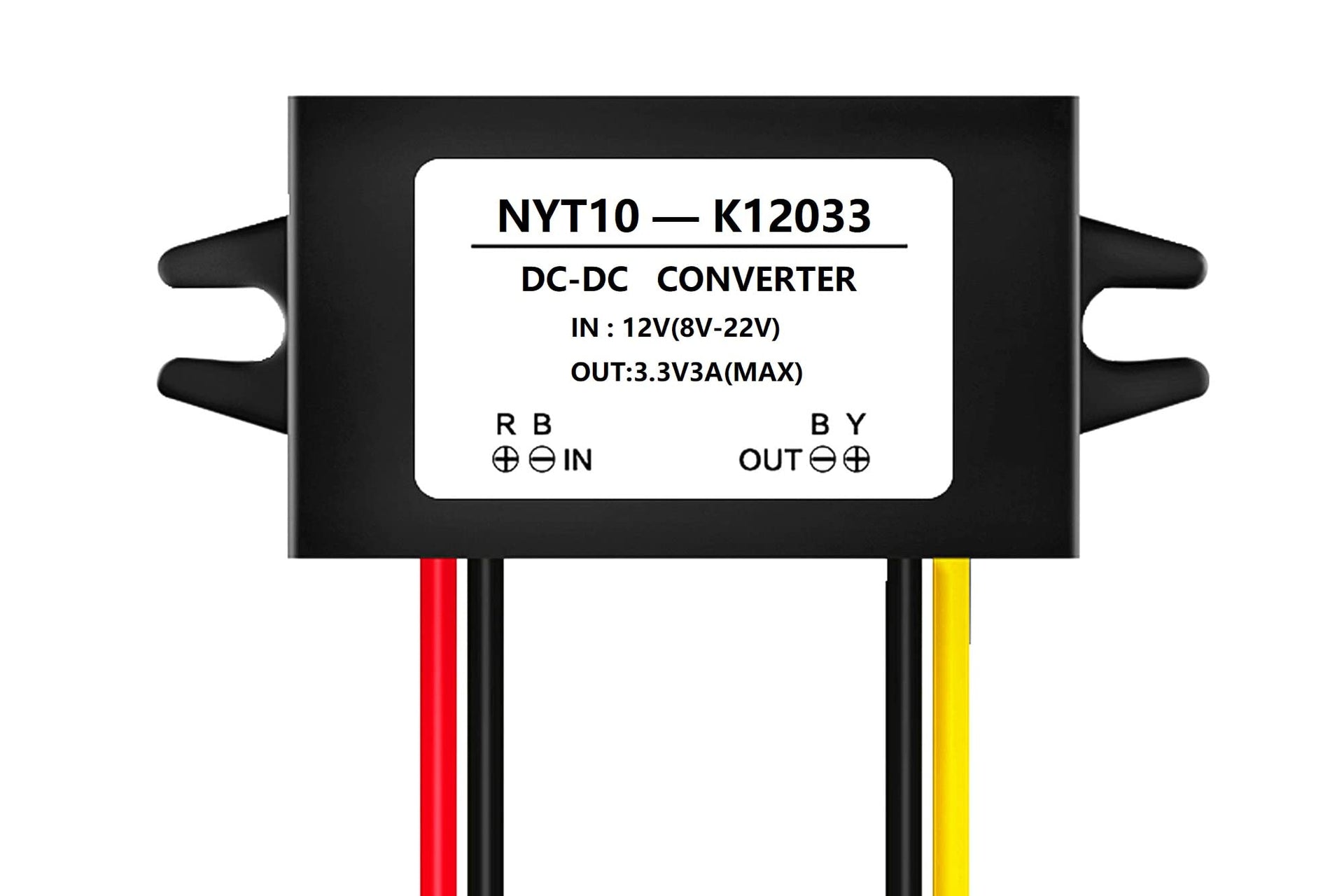

Model: NYT10-K12033
Product Description：
1. This product is a fixed ratio buck power converter. To ensure the normal work of the converter, the input voltage must be higher than the output voltage value of 2V or more. If there is no voltage difference of 2V, the output voltage will become lower, but the converter will not be damaged.
2. The chip works in light load mode when no load is applied, and the output voltage may vary within a certain range.
3. The output positive and negative terminals are short-circuited, and the chip starts short-circuit protection.
4. It is recommended to add a suitable fuse to the input when using.
Parameter:
Input voltage: DC 12V 8V-22V.
Output voltage: DC3.3V ±0.25V.
Output current: 3A Max.
Output power: 9.9W.
Conversion efficiency: about 95%.
Modular nature: Non-isolated buck power converter.
Protection level: IP67.
Working temperature: -20 ° C - +85 ° C.

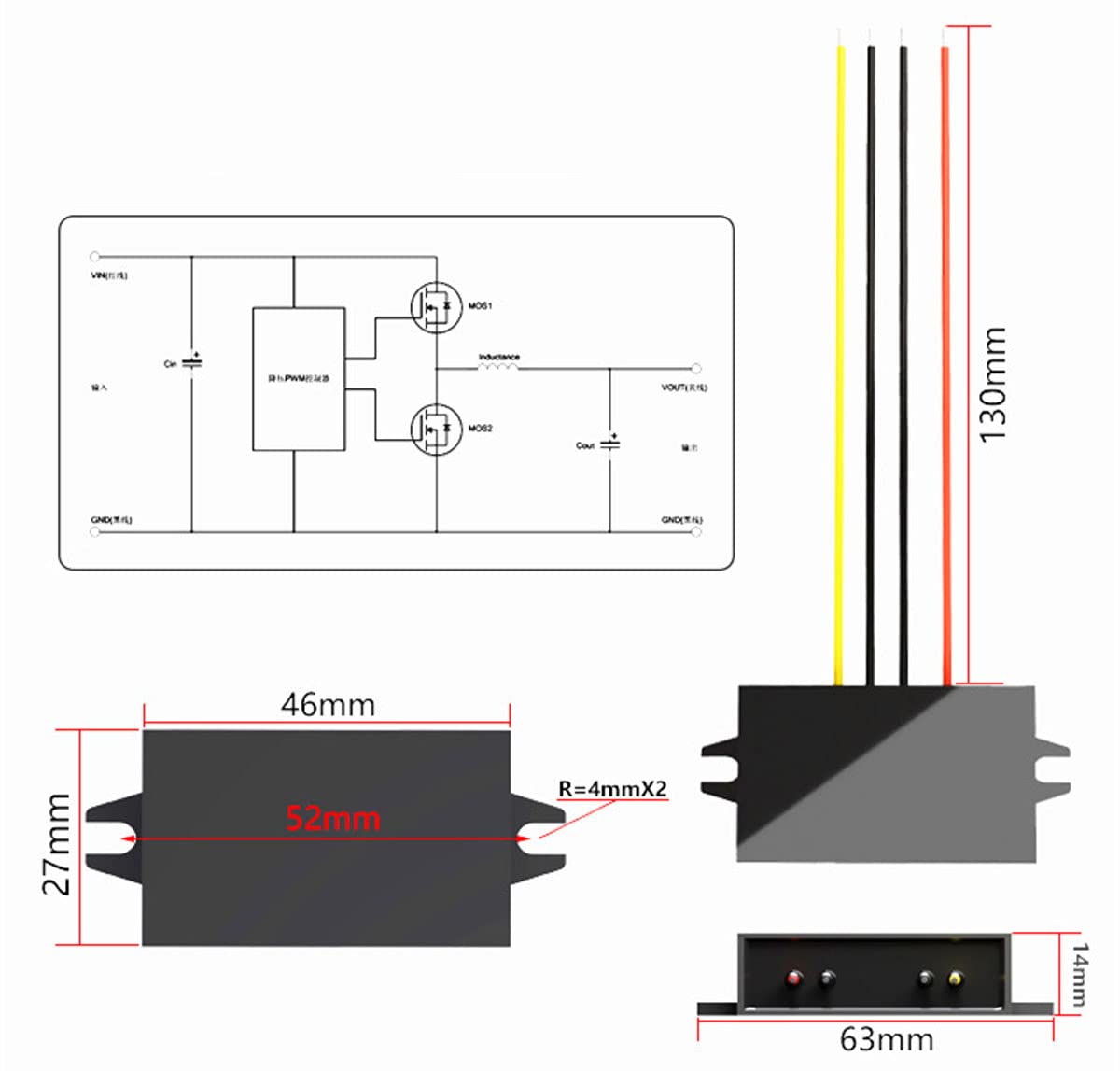

Dimensions: 46x27x14mm.
Weight: about 30g.
Mounting wire length: about13cm.
Protection function：Overcurrent protection，Overheat protection，Short circuit protection，Undervoltage protection.

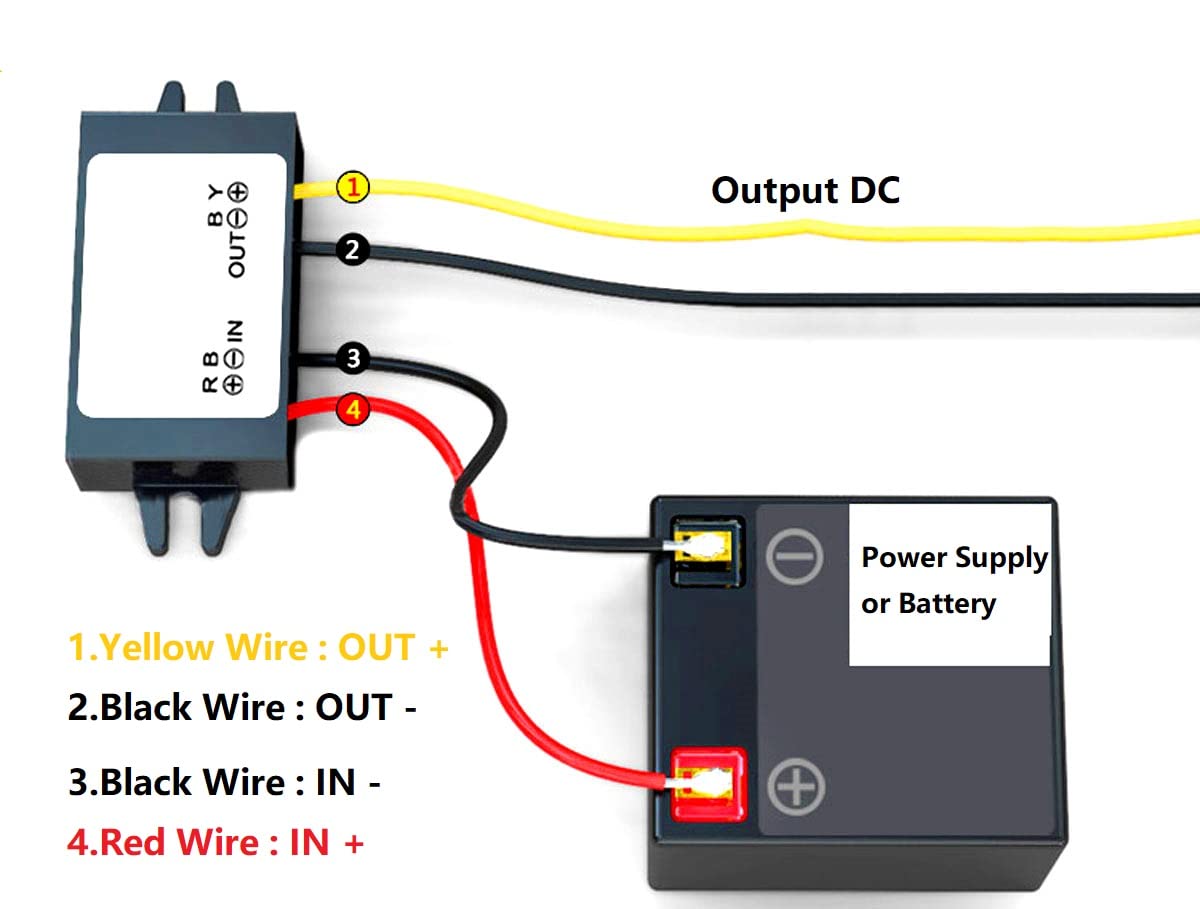

Wiring instructions:
Input:
Positive: Red wire.
Negative: Black wire.
Output:
Positive: Yellow wire.
Negative: Black wire.
Package Included:
1Pcs NOYITO DC-DC 3.3V 2A 3A Converter Buck Module
• Input voltage: DC 12V 8V-22V.
• Output voltage: DC3.3V ±0.25V.
• Output current: 3A Max.【This product has been upgraded, from the old version's maximum 2A current output to the new version's maximum 3A current.】
• Conversion efficiency: about 95%. Shockproof Waterproof level: IP67.
• Protection function：Overcurrent protection，Overheat protection，Short circuit protection，Undervoltage protection.
• If the module works for a long time it is recommended that the current does not exceed 2A.
Color: Black
Power/Wattage: 3.3V 2A
Model: NYT10-K12033
Product Description：
1. This product is a fixed ratio buck power converter. To ensure the normal work of the converter, the input voltage must be higher than the output voltage value of 2V or more. If there is no voltage difference of 2V, the output voltage will become lower, but the converter will not be damaged.
2. The chip works in light load mode when no load is applied, and the output voltage may vary within a certain range.
3. The output positive and negative terminals are short-circuited, and the chip starts short-circuit protection.
4. It is recommended to add a suitable fuse to the input when using.
Parameter:
Input voltage: DC 12V 8V-22V.
Output voltage: DC3.3V ±0.25V.
Output current: 3A Max.
Output power: 9.9W.
Conversion efficiency: about 95%.
Modular nature: Non-isolated buck power converter.
Protection level: IP67.
Working temperature: -20 ° C - +85 ° C.
Dimensions: 46x27x14mm.
Weight: about 30g.
Mounting wire length: about13cm.
Protection function：Overcurrent protection，Overheat protection，Short circuit protection，Undervoltage protection.
Wiring instructions:
Input:
Positive: Red wire.
Negative: Black wire.
Output:
Positive: Yellow wire.
Negative: Black wire.
Package Included:
1Pcs NOYITO DC-DC 3.3V 2A 3A Converter Buck Module
• Input voltage: DC 12V 8V-22V.
• Output voltage: DC3.3V ±0.25V.
• Output current: 3A Max.【This product has been upgraded, from the old version's maximum 2A current output to the new version's maximum 3A current.】
• Conversion efficiency: about 95%. Shockproof Waterproof level: IP67.
• Protection function：Overcurrent protection，Overheat protection，Short circuit protection，Undervoltage protection.
• If the module works for a long time it is recommended that the current does not exceed 2A.
Color: Black
Power/Wattage: 3.3V 2A
