Brand: MikroTik

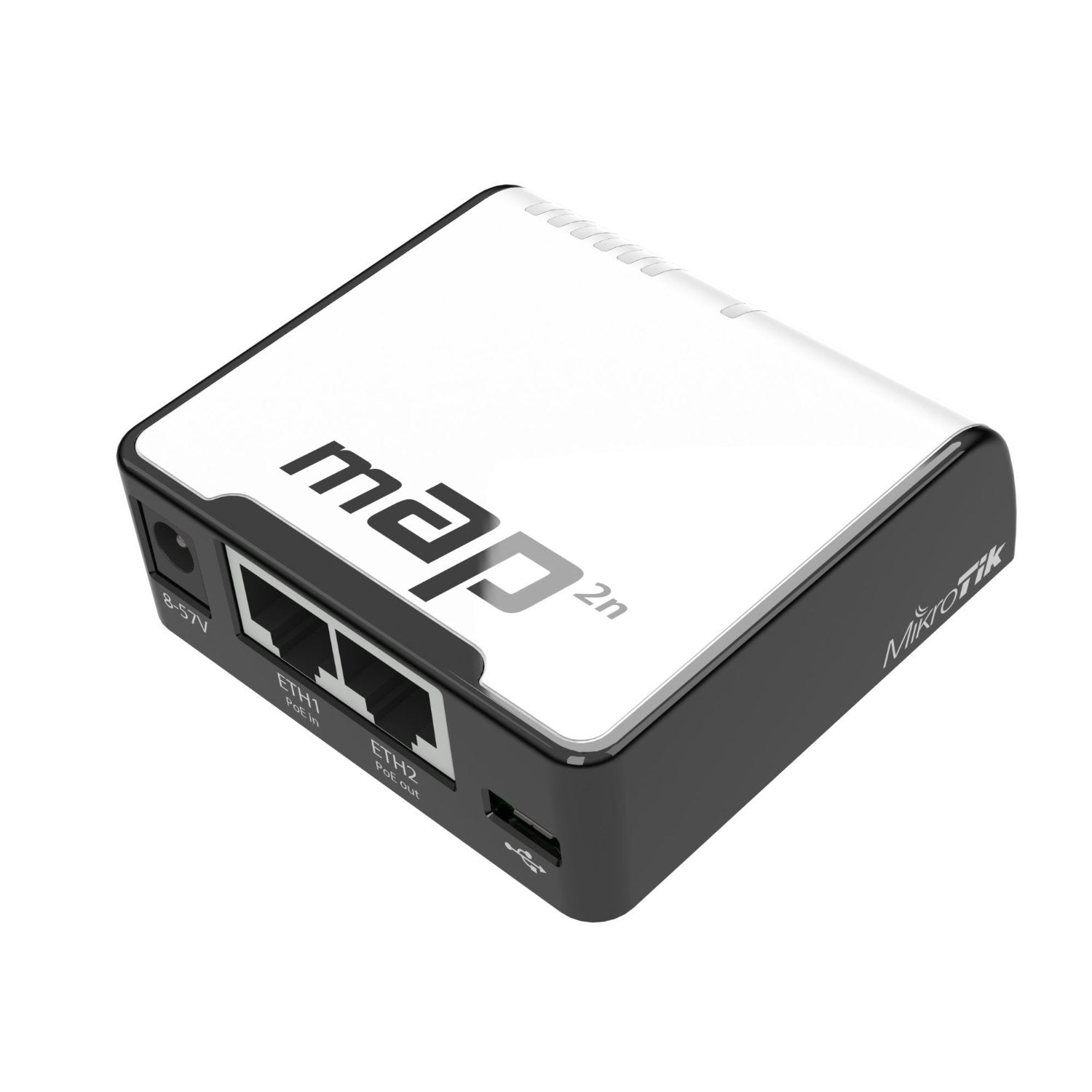

<b>Model: RBmAP2nD (10 UNITS)<br><br> Mikrotik Wireless Dual-Chain 2.4GHz Micro Access Point</b><br><br> The mAP (micro Access Point) also known as RBmAP2nD is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.<br><br> <b>Technical Description</b><br> Architecture MIPSBE<br> CPU QCA9531<br> CPU core count 1<br> CPU nominal frequency 650 MHz<br> Dimensions 68x68x19mm<br> License level 4<br> Operating System RouterOS<br> Size of RAM 64 MB<br> Storage size 16 MB<br> Storage type FLASH<br> Tested ambient temperature -20°C to 70°C<br> MicroUSB input Voltage 5-5 V<br> PoE in 802.3af/at<br> PoE in input Voltage 12-57 V<br> PoE out Passive PoE<br> PoE-out ports Ether2<br> Number of DC inputs 3 (PoE-IN, DC jack, MicroUSB)<br> DC jack input Voltage 8-57 V<br> Max out per port output (input < 30 V) 0.5 A<br> Max total out (A) 0.5 A<br> Max power consumption 5 W<br> Wireless 2.4 GHz Max data rate 300 Mbit/s<br> Wireless 2.4 GHz number of chains 2<br> Wireless 2.4 GHz standards 802.11b/g/n<br> Antenna gain dBi for 2.4 GHz 1.2<br> Wireless 2.4 GHz chip model QCA9531<br> Wireless 2.4 GHz generation Wi-Fi 4<br> 10/100 Ethernet ports 2<br> Number of USB ports 1<br> USB Power Reset Yes<br> USB slot type microUSB type AB<br> Max USB current (A) 1<br> PCB temperature monitor Yes<br> Voltage Monitor Yes

Features:

• The mAP also known as RBmAP2nD is a micro wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities
• It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack
• The mAP also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it
• 650MHz CPU, 64MB RAM, 2xEthernet, PoE out, Antenna 1.2dBi built in, Dimensions 68x68x19mm, Ethernet 2x 10/100 Mbit/s Ethernet with Auto-MDI/X
• Included parts: 24V 0.8A power adapter, microUSB type B to USB type A adapter

Product Details:

• Color: Multicolor
• Size: 68x68x19mm
• Model: RBMAP2ND
• Package Quantity: 1
