Description
Brand: MEAN WELL

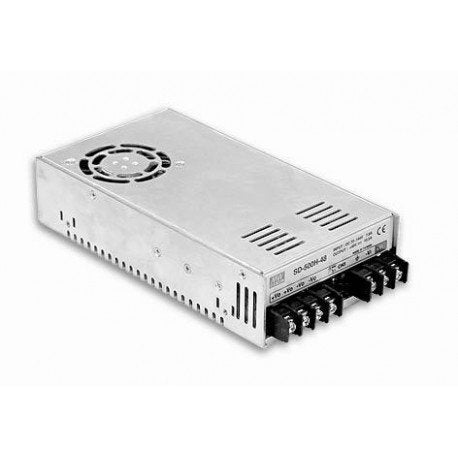

Model: SD-500H-48
Features:DC input active surge current limitingWide 4:1~2:1 DC input range (24V:19~72VDC, 96V:72~144VDC)Protections:Short circuit / Overload / Over voltage / Over temperature / Input polarity (by fuse)2000VAC I/O IsolationForced air cooling by built-in DC fan with fan speed control functionOutput OK SignalBuilt-in remote ON-OFF controlBuilt-in remote sense function3 years warrantyGeneral Specification:AC input voltage range: SD-500L:12,24,48: 19~72VDC ;SD-500H:12,24,48: 72~144VDCAC inrush current (Typ.): SD-500L:12,24,48: 60A~48VDC ;SD-500H:12,24,48: 60A~96VDCDC adjustment range: 12V: 11~15V ,24V: 23~30V ,48V: 46~60VOver voltage protection: 12V: 16~19V ,24V: 30.8~35.2V ,48V: 62~68V, Protection type : Shut down o/p voltage, re-power on to recoverOverload protection: 105~125% rated output power , Protection type: Constant current limiting , shut down o/p voltage after about 5esc. re-power on to recoverOver temperature protection: Shut down o/p voltage, recovers automatically after temperature goes downWithstand voltage:I/P-O/P: 2KVAC ,I/P-F/G: 2KVAC ,O/P-F/G: 0.5KVACWorking temperature: -20~ +60ºC (Refer to "Derating Curve")Safety standards:IEC60950-1 CB approved by TUV, EAC TP TC 004 approvedEMC standards: Compliance to EN55032 (CISPR32) Class B, Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A ,EAC TP TC 020Isolation resistance:I/P-O/P,I/P-F/G,O/P-F/G: 100M Ohms/500VDC/25ºC/70% RHDimension (LxWxH) (mm):215x 115x 50
Model: SD-500H-48
Features:DC input active surge current limitingWide 4:1~2:1 DC input range (24V:19~72VDC, 96V:72~144VDC)Protections:Short circuit / Overload / Over voltage / Over temperature / Input polarity (by fuse)2000VAC I/O IsolationForced air cooling by built-in DC fan with fan speed control functionOutput OK SignalBuilt-in remote ON-OFF controlBuilt-in remote sense function3 years warrantyGeneral Specification:AC input voltage range: SD-500L:12,24,48: 19~72VDC ;SD-500H:12,24,48: 72~144VDCAC inrush current (Typ.): SD-500L:12,24,48: 60A~48VDC ;SD-500H:12,24,48: 60A~96VDCDC adjustment range: 12V: 11~15V ,24V: 23~30V ,48V: 46~60VOver voltage protection: 12V: 16~19V ,24V: 30.8~35.2V ,48V: 62~68V, Protection type : Shut down o/p voltage, re-power on to recoverOverload protection: 105~125% rated output power , Protection type: Constant current limiting , shut down o/p voltage after about 5esc. re-power on to recoverOver temperature protection: Shut down o/p voltage, recovers automatically after temperature goes downWithstand voltage:I/P-O/P: 2KVAC ,I/P-F/G: 2KVAC ,O/P-F/G: 0.5KVACWorking temperature: -20~ +60ºC (Refer to "Derating Curve")Safety standards:IEC60950-1 CB approved by TUV, EAC TP TC 004 approvedEMC standards: Compliance to EN55032 (CISPR32) Class B, Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A ,EAC TP TC 020Isolation resistance:I/P-O/P,I/P-F/G,O/P-F/G: 100M Ohms/500VDC/25ºC/70% RHDimension (LxWxH) (mm):215x 115x 50
